Digital Servo with the advantage of React faster, More initial torque, and greater holding power, is ideal for robotic arms, boats, smart cars, helicopters, and airplanes.
Category
In this video， you will find all the answers about the steering gear, there are mini, standard, and large servos, and also different materials like plastic and metal covers, for our items, the all gear material is metal.
Making Noise
It is okay if your digital servo makes noise when there is no control input or external forces acting on the servo. The reason for this is because of the high-frequency pulses that get sent to the motor within the servo. You are in fact hearing these high-frequency pulses that the motor is receiving.
Our Items

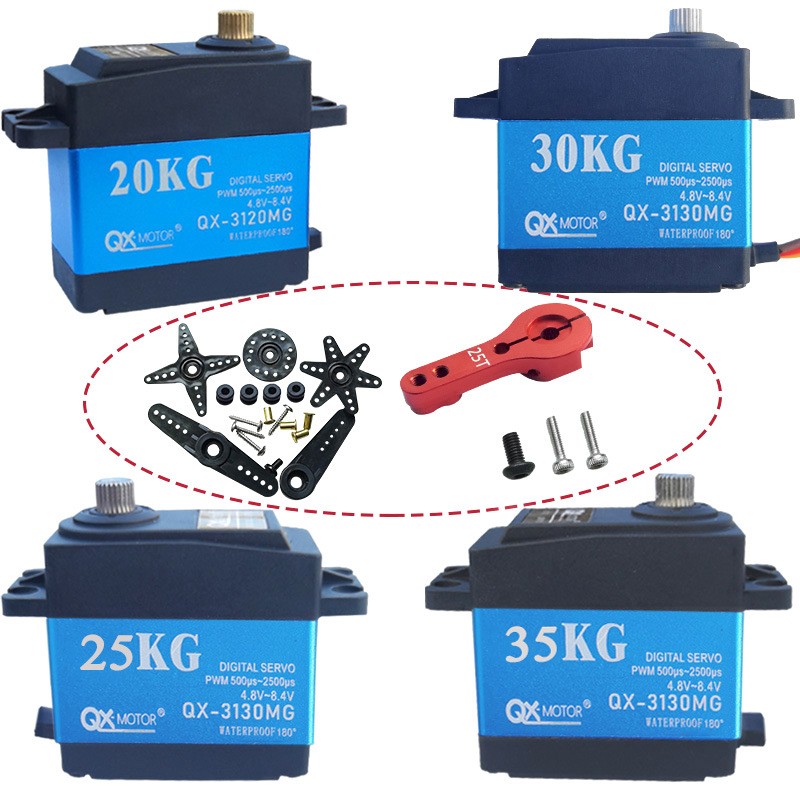

180degree High voltage Waterproof servo 20KG / 25KG / 30KG / 35kg high-speed metal gear digital servo, plastic cover
| Model | Operate Voltage | No Load Speed | Running current | Peak Stall Torque | Stall Current |
| QX-3120MG | 4.8V-8.4V | 0.18sec/60°-0.14sec/60° | 210mA-260mA | 20.5kg.cm – 22.8kg.cm | 2100mA±10% – 2700mA±10% |
| QX-3125MG | 4.8V-8.4V | 0.18sec/60°-0.14sec/60° | 140mA-200mA | 23.5kg.cm – 26.8kg.cm | 2600mA±10% – 3400mA±10% |
| QX-3130MG | 4.8V-8.4V | 0.24sec/60°-0.17sec/60° | 140mA-200mA | 29.5kg.cm – 32kg.cm | 2600mA±10% – 3400mA±10% |
| QX-3135MG | 4.8V-8.4V | 0.32sec/60°-0.22sec/60° | 140mA-200mA | 32.75kg.cm – 40kg.cm | 2800mA±10% – 3800mA±10% |

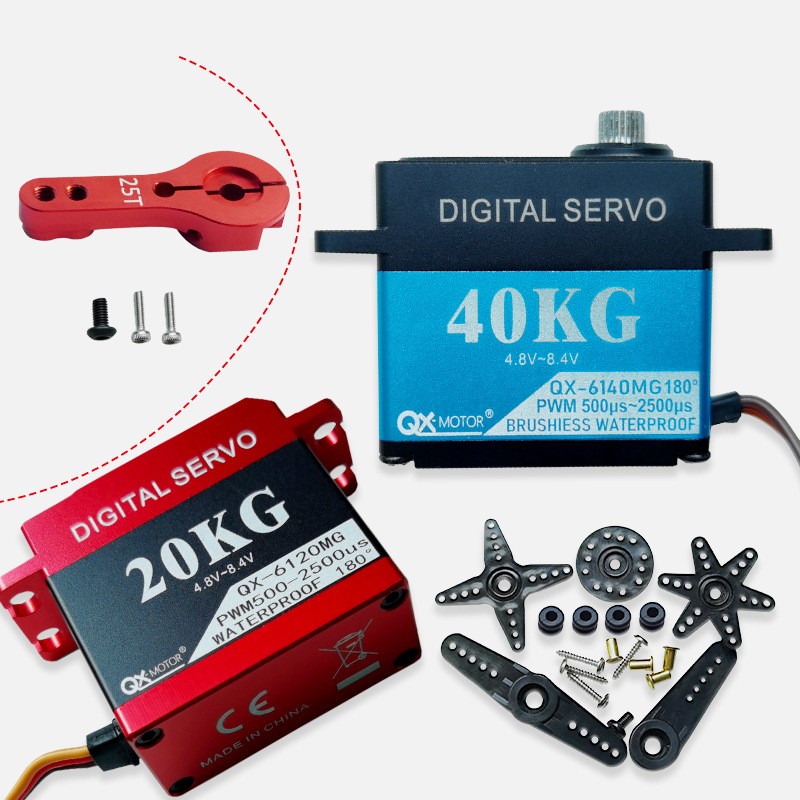

8.4V High-Pressure Steering Gear 20kg / 40kg Ultra-High Torque All-metal Digital Steering Gear Servo.
| Model | Operate Voltage | No Load Speed | Running current | Peak Stall Torque | Stall Current |
| QX-6120MG | 4.8V-8.4V | 0.14sec/60°-0.10sec/60° | 210mA – 260mA | 20.5kg.cm – 22.8kg.com | 2600mA±10% – 3400mA±10% |
| QX-6140MG | 4.8V-8.4V | 0.28sec/60°-0.21sec/60° | 180mA – 230mA | 38.5kg.cm – 42.3kg.com | 4300mA±10% – 5100mA±10% |

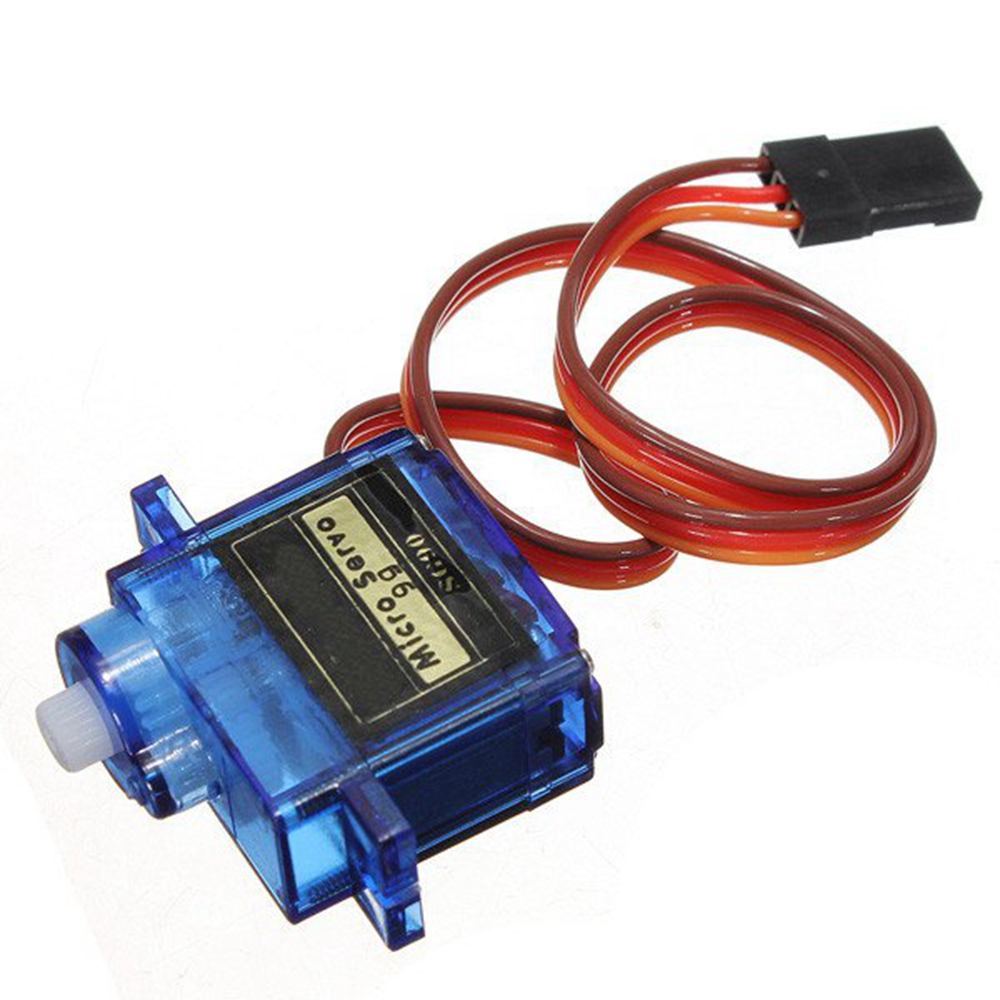

Mini Servo – 9g 1.6kg
Weight: 12G
Speed: 4.8V&0.10sec/60 degrees; 6.0V&0.09sec/60 degree
Torque: 4.8V&1.6KG-cm; 6.0V&1.8kg-cm
Voltage: 4.8V6.0V
Connector Wire Length 250mm
Dimension: 22.6mm x 12.1mm x 22.5mm
Dead Band Width: 5 usec
Interface Specifications: JR / FP General
Material: Semi-metal
Accessories: Multi-arm, fixing screws
Scope: Helicopters KT, fluttering, gliding, small robots, and other models
Recommend Model: Mini Car / Mini Ship / Helicopter & Airplane
The digital steering gear is designed with a control angle of 180°, suitable for model airplanes, car models, climbing cars, short trucks, rally, racing, flat running, off-road, 10 big feet, gasoline engines, robots, aerial photography, gimbals, drones, Robotic arm, etc., compatible with JR/Futaba.
