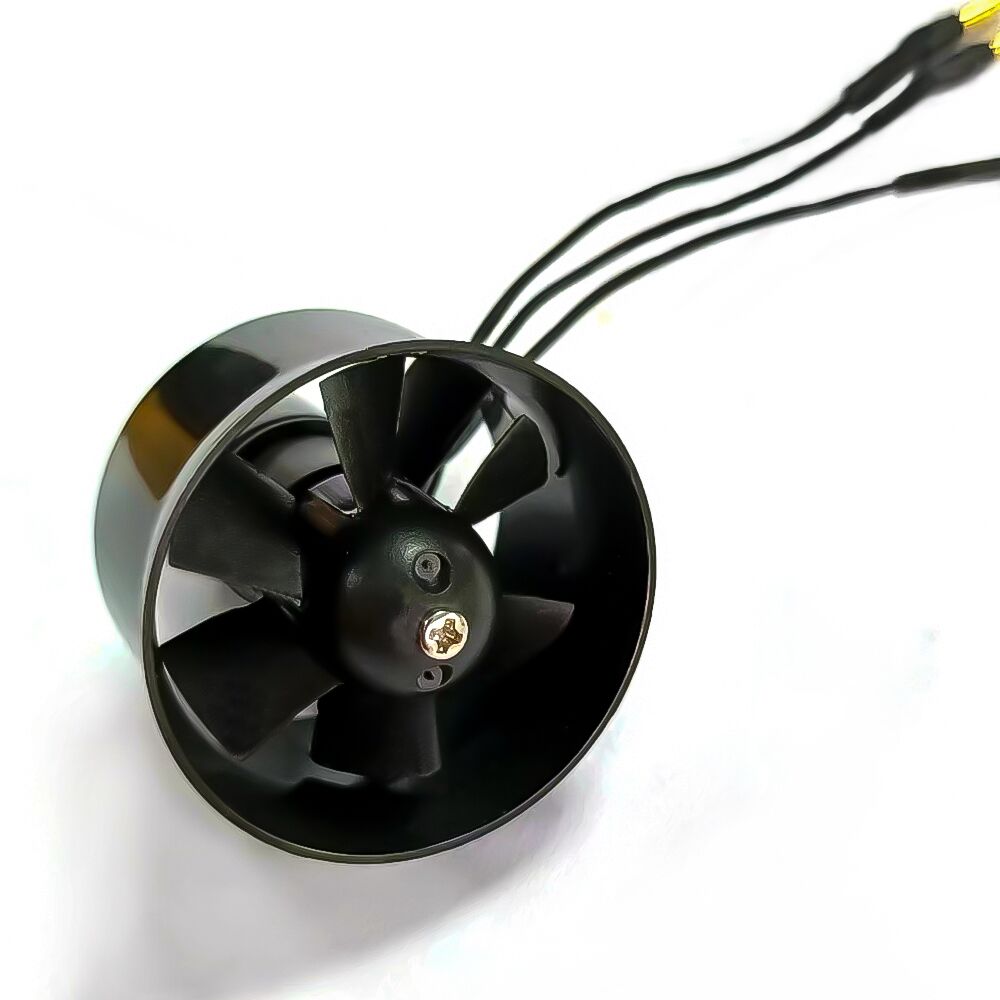

This 30mm culvert, coupled with qf1611-5000kv/6000kv/7000kv/14000kv motor. It is suitable for refitting small fixed-wing and culvert machines. It is a 6-blade fan with strong power and high efficiency! Low temperature. Is the ideal choice for the majority of mold friends!

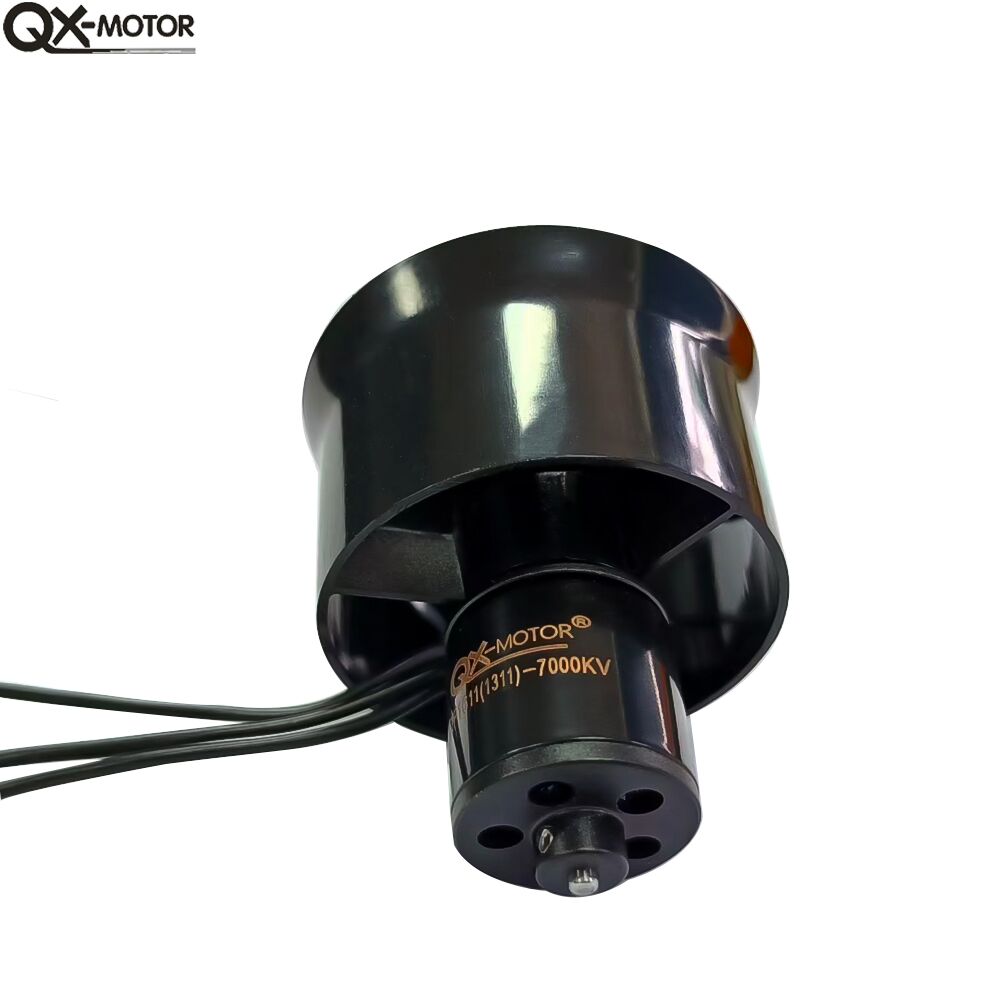

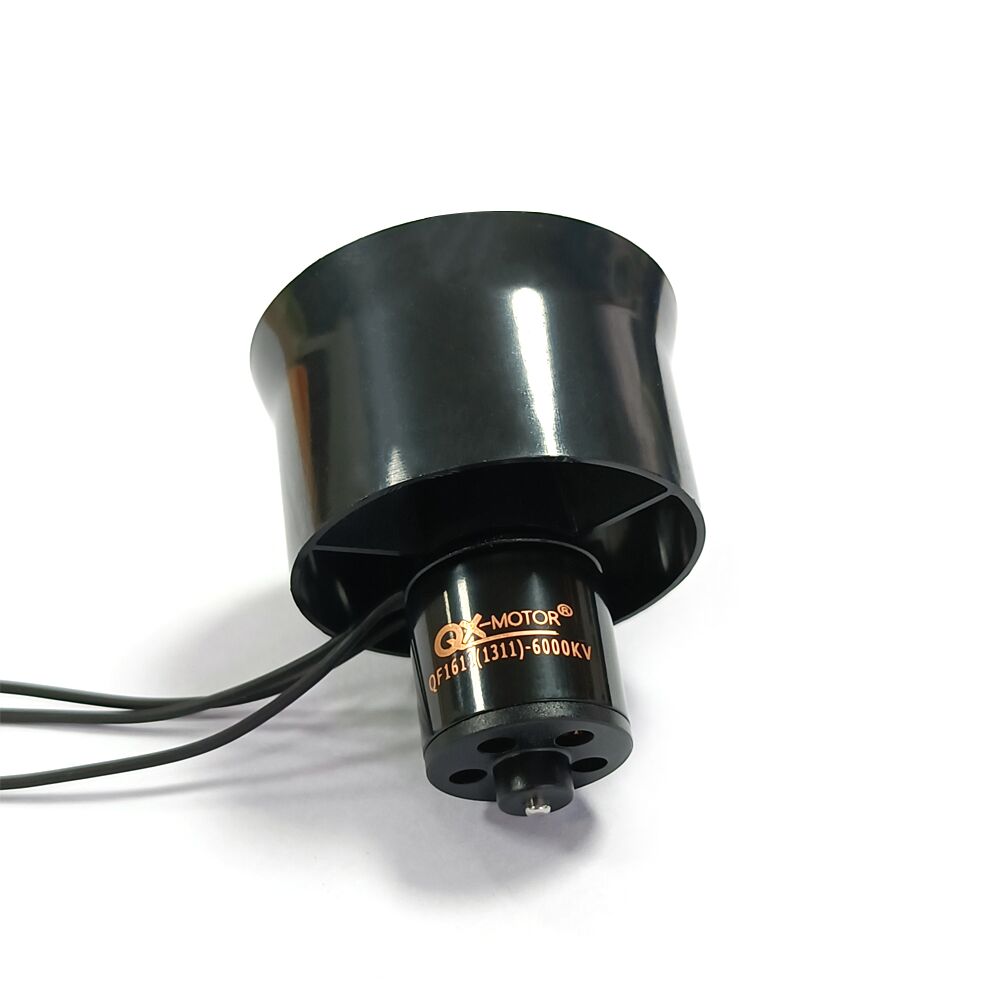

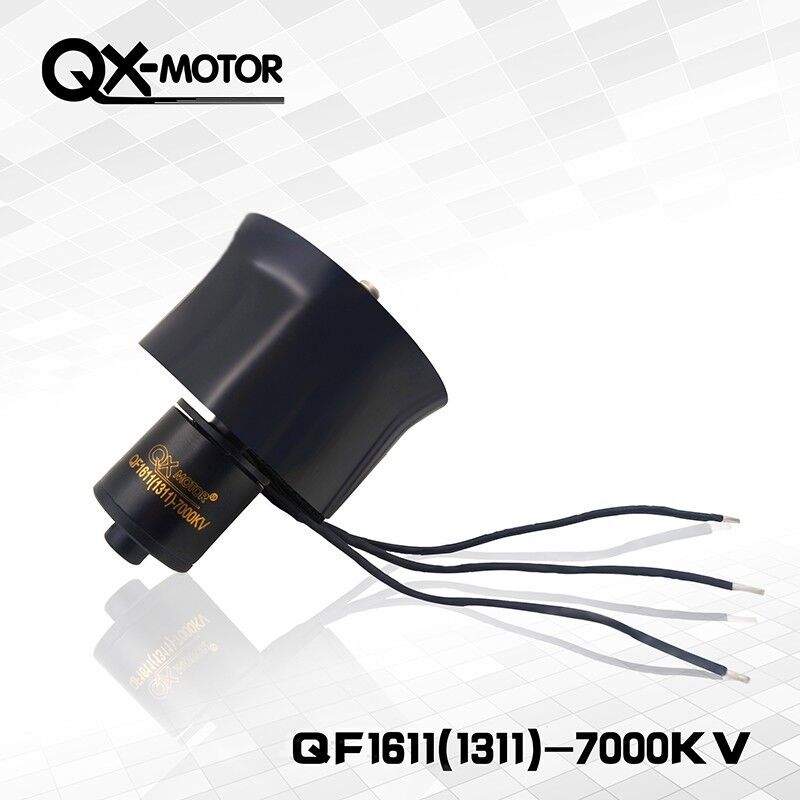

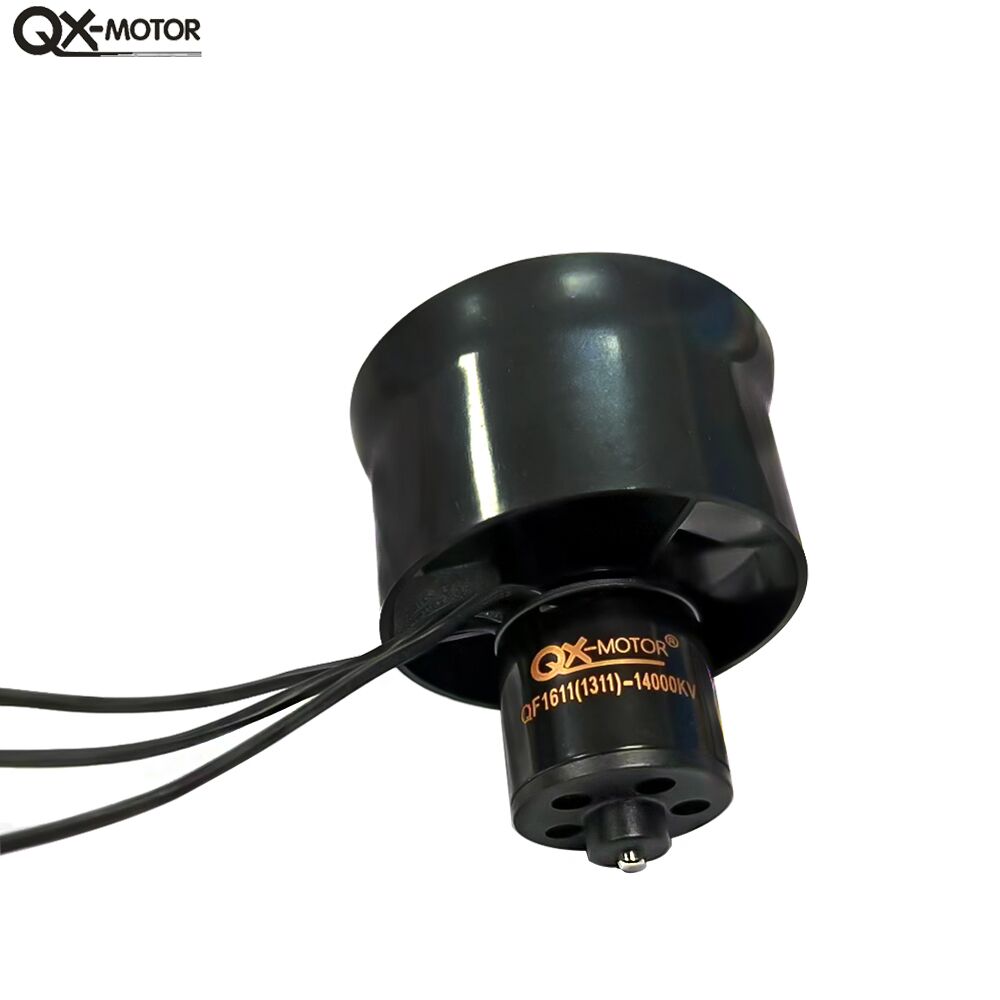

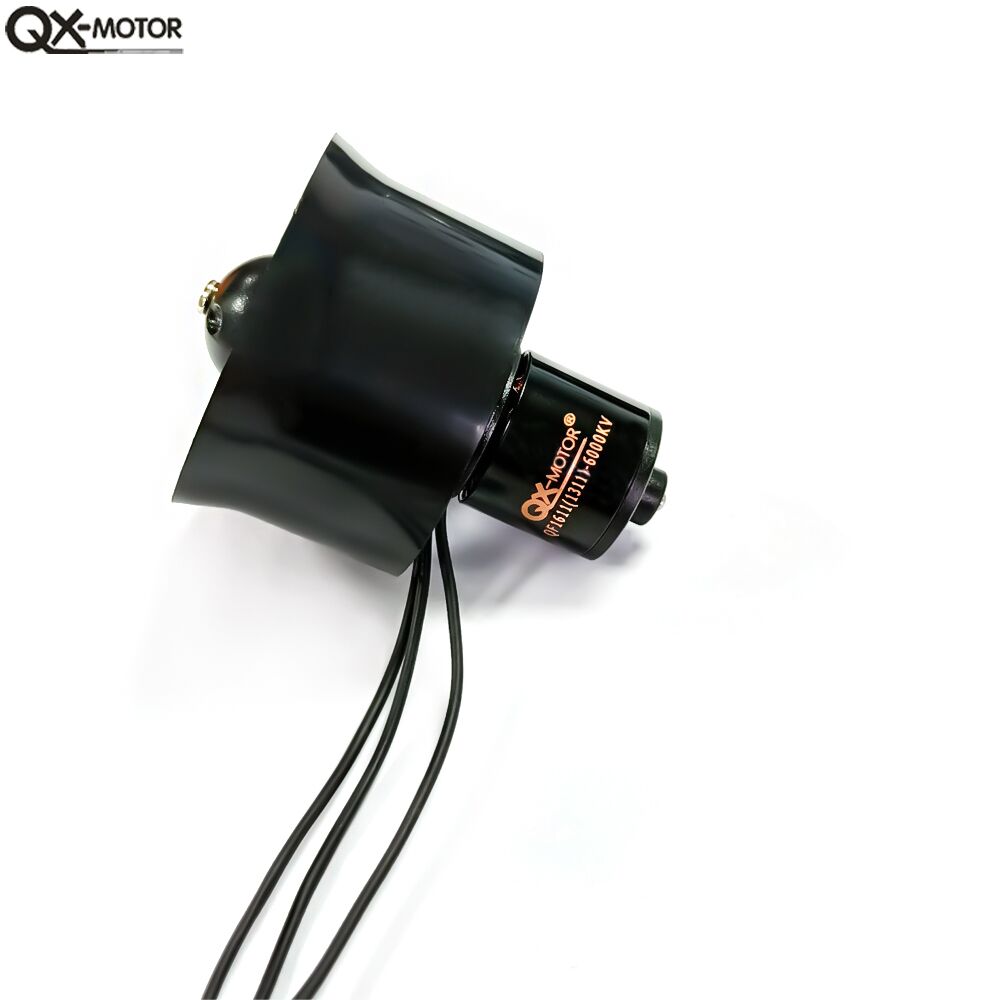

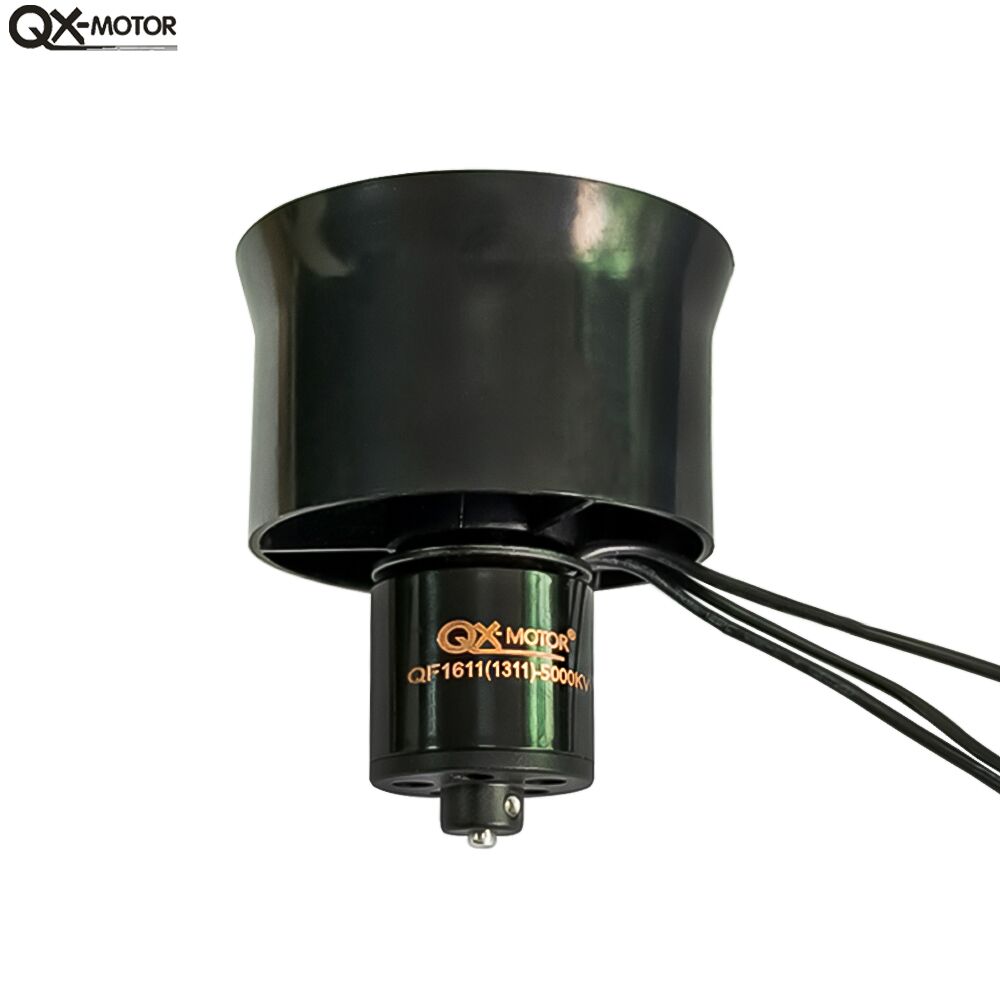

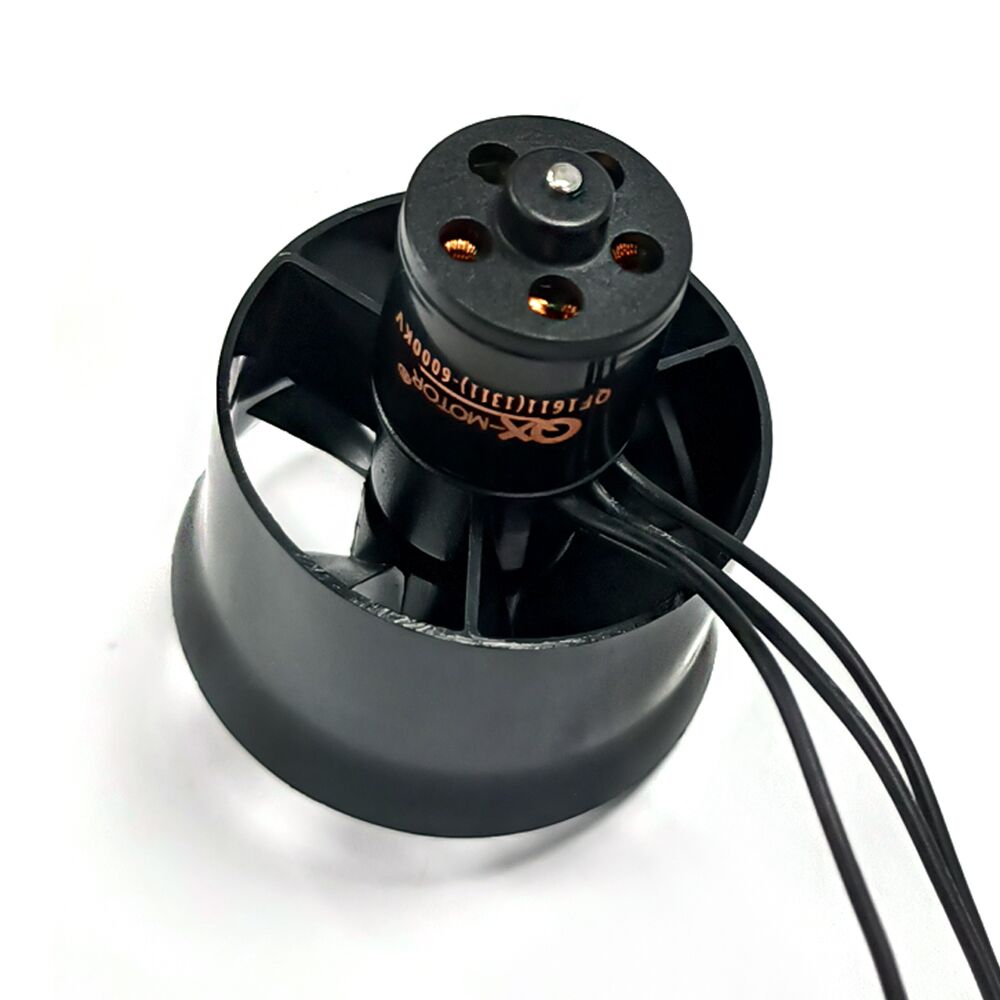

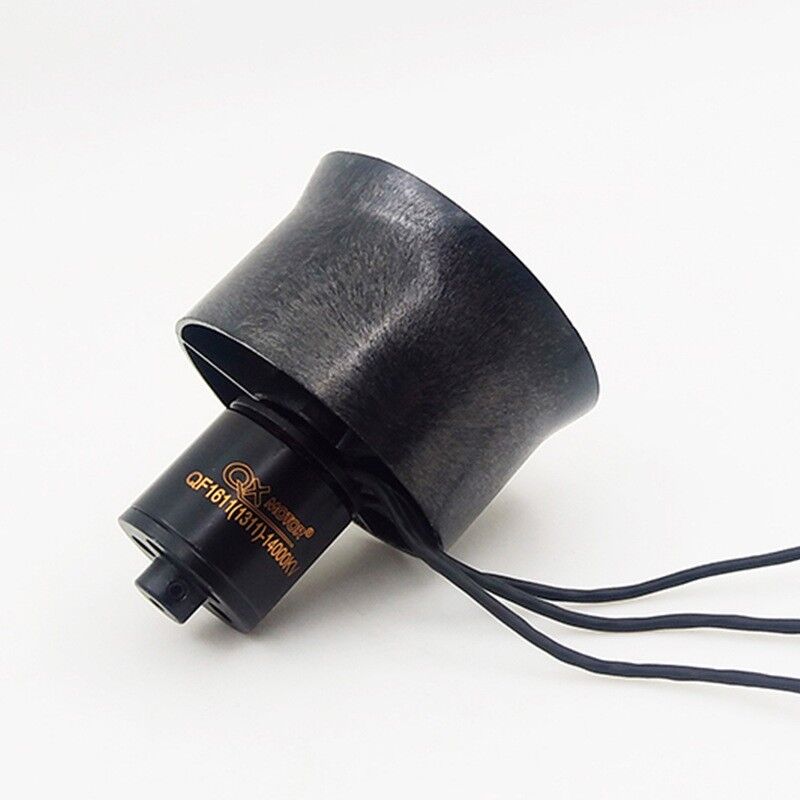

Ducted fan with motor
The advanced PC material, which is striking resistance and also high-temperature resistance that can guarantee stiffness and toughness, greatly decreases the damage ratio.
The combination is made of aluminum, which makes it more stable.
| (model) | QF1611 | |||||||||
| ＫＶ(rpm) | 5000KV 6000KV 7000KV 14000KV | |||||||||
| (Configu-ration) | 9Ｎ6Ｐ | |||||||||
| (Shaft Diameter) | 1.5mm | |||||||||

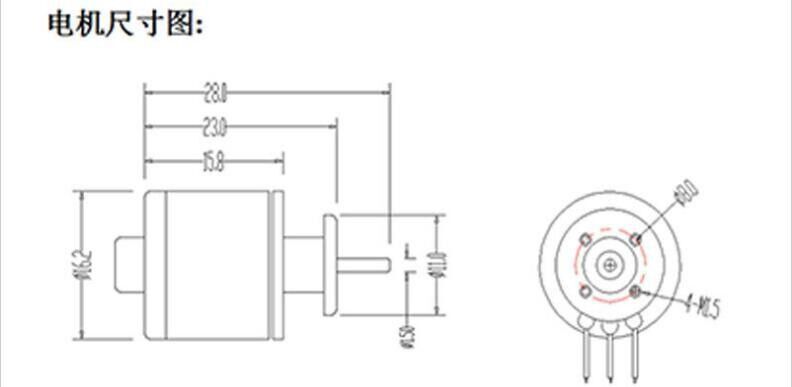

| (motor Diameter) | 16.3mm | |||||||||
| (weight(g)) | 21.8G | |||||||||
| (No.f cells) | 2-4ＳＬipo | |||||||||
| (Ｗ)(max continuous power)/10S | 160W | |||||||||
| (Ａ)(max continuous current)/10S | 20A | |||||||||
| Prop | Volts (V) | Amps (A) | Watts (W) | Thrust (g) | Thrust (oz) | Efficiency (g/W) |
Efficiency (oz/W) |
Throttle | motor model | ESC |

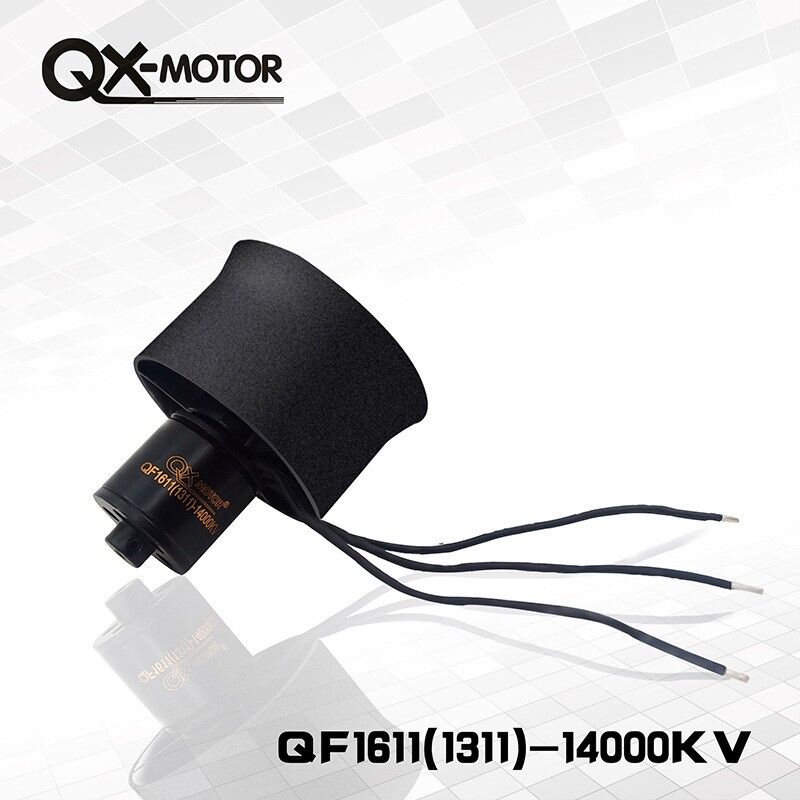

| 30mm EDF | 7.4 | 19.3 | 142.82 | 215 | 7.58 | 1.51 | 0.05 | 100% | QF1611-14000KV | 20A |
| 11.1 | 11.2 | 124.32 | 220 | 7.76 | 1.77 | 0.06 | 100% | QF1611-7000KV | 20A | |
| 14.8 | 6.5 | 96.2 | 200 | 7.05 | 2.08 | 0.07 | 100% | QF1611-5000KV | 20A/4S | |
| 14.8 | 9.7 | 143.56 | 265 | 9.35 | 1.85 | 0.07 | 100% | QF1611-6000KV | 20A/4S | |
| Model | 30mm EDF(6) outer-rotor brushless motor set |
|---|---|
| KV(RPM) | 14000KV, 5000KV, 6000KV, 7000KV |
| Configuration | 9N6P |
| Shaft Diameter | 1.5mm |
| Motor Diameter | 16.3mm |
| Weight | 21.8g |
| No. of Cells | 2-4S Lipo |
| Max Continuous Power/10S | 160W |
| Max Continuous Current/10S | 20A |
| Prop | Volts (V) | Amps (A) | Watts (W) | Thrust (g) | Thrust (oz) | Efficiency (g/W) | Efficiency (OZ/W) | Throttle | Motor model | ESC |
| 30mm EDF (6 blades) | 7.4 | 19.3 | 142.82 | 215 | 7.58 | 1.51 | 0.05 | 100% | QF1611-14000KV | 20A |
| 11.1 | 11.2 | 124.32 | 220 | 7.76 | 1.77 | 0.06 | 100% | QF1611-7000KV | 20A | |
| 14.8 | 6.5 | 96.2 | 200 | 7.05 | 2.08 | 0.07 | 100% | QF1611-5000KV | 20A/4S | |
| 14.8 | 9.7 | 143.56 | 265 | 9.35 | 1.85 | 0.07 | 100% | QF1611-6000KV | 20A/4S |
Ducted fan with motor
The advanced PC material, which is striking resistance and also high-temperature resistance that can guarantee stiffness and toughness, greatly decreases the damage ratio.
The combination is made of aluminum, which makes it more stable.
| (model) | QF1611 | |||||||||
| ＫＶ(rpm) | 5000KV 6000KV 7000KV 14000KV | |||||||||
| (Configu-ration) | 9Ｎ6Ｐ | |||||||||
| (Shaft Diameter) | 1.5mm | |||||||||
| (motor Diameter) | 16.3mm | |||||||||
| (weight(g)) | 21.8G | |||||||||
| (No.f cells) | 2-4ＳＬipo | |||||||||
| (Ｗ)(max continuous power)/10S | 160W | |||||||||
| (Ａ)(max continuous current)/10S | 20A | |||||||||
| Prop | Volts (V) | Amps (A) | Watts (W) | Thrust (g) | Thrust (oz) | Efficiency (g/W) |
Efficiency (oz/W) |
Throttle | motor model | ESC |
| 30mm EDF | 7.4 | 19.3 | 142.82 | 215 | 7.58 | 1.51 | 0.05 | 100% | QF1611-14000KV | 20A |
| 11.1 | 11.2 | 124.32 | 220 | 7.76 | 1.77 | 0.06 | 100% | QF1611-7000KV | 20A | |
| 14.8 | 6.5 | 96.2 | 200 | 7.05 | 2.08 | 0.07 | 100% | QF1611-5000KV | 20A/4S | |
| 14.8 | 9.7 | 143.56 | 265 | 9.35 | 1.85 | 0.07 | 100% | QF1611-6000KV | 20A/4S | |
The manufacturers of both brushless motor and EDF for RC Drone, and RC Jet airplane models. You will be here to find the promo things to save your cost
