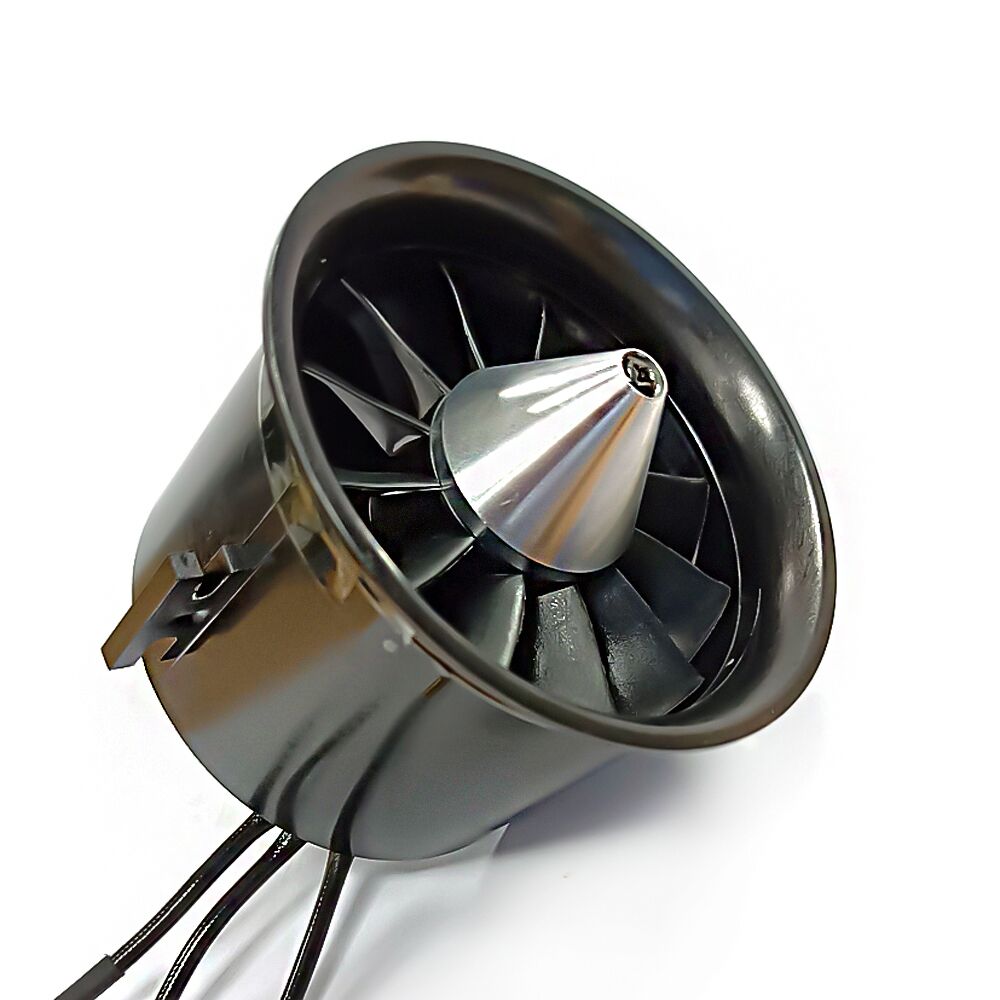

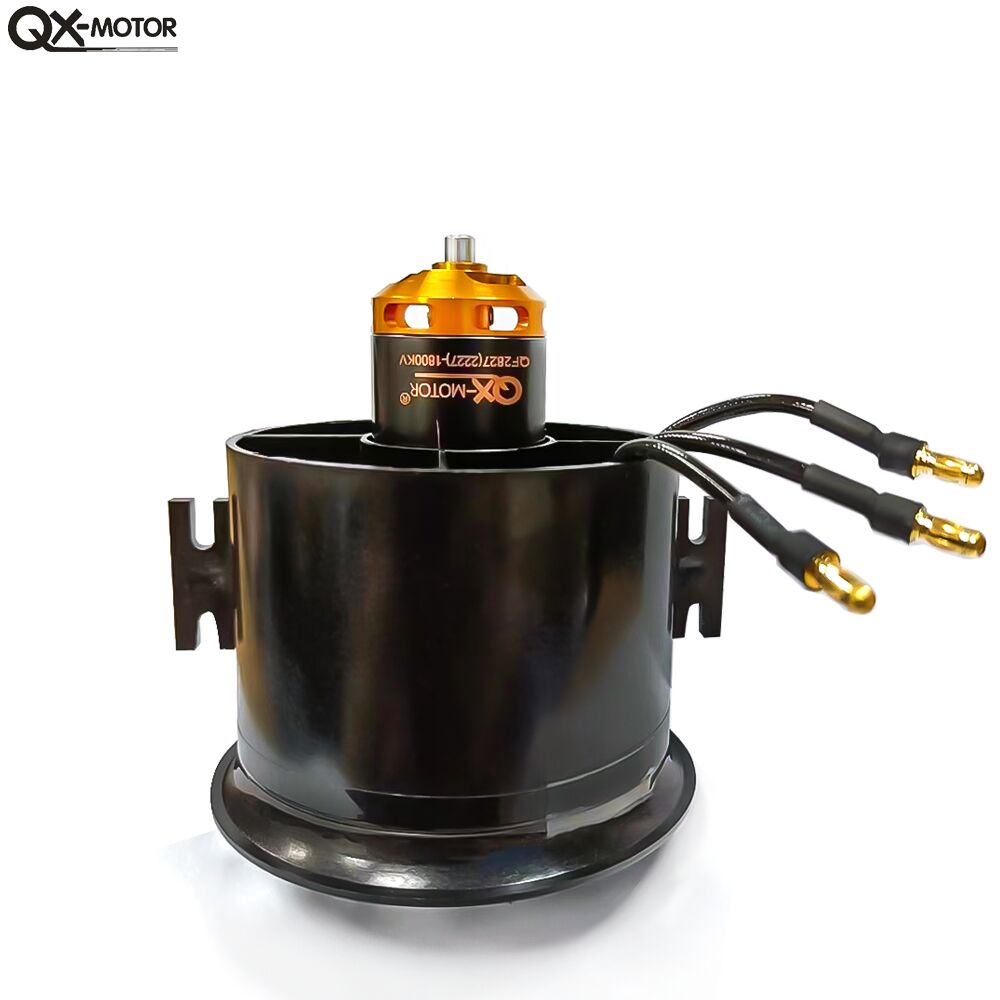

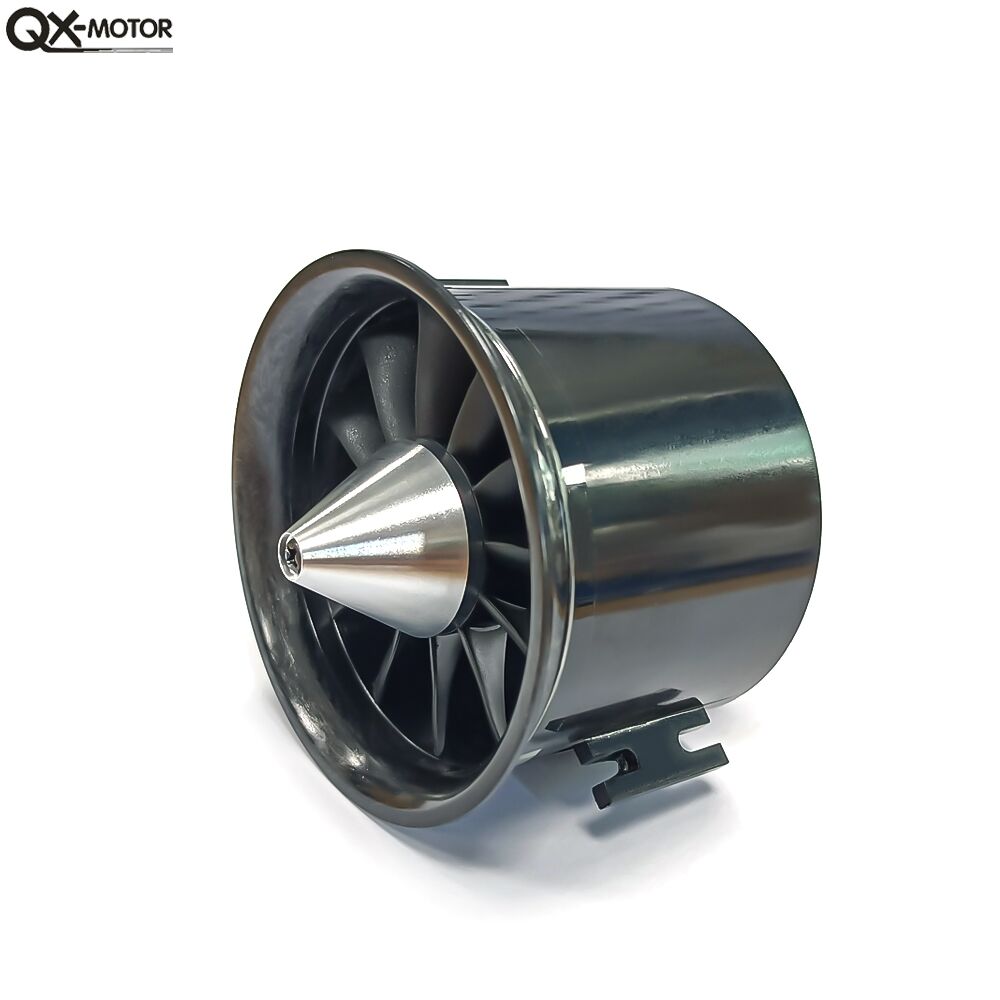

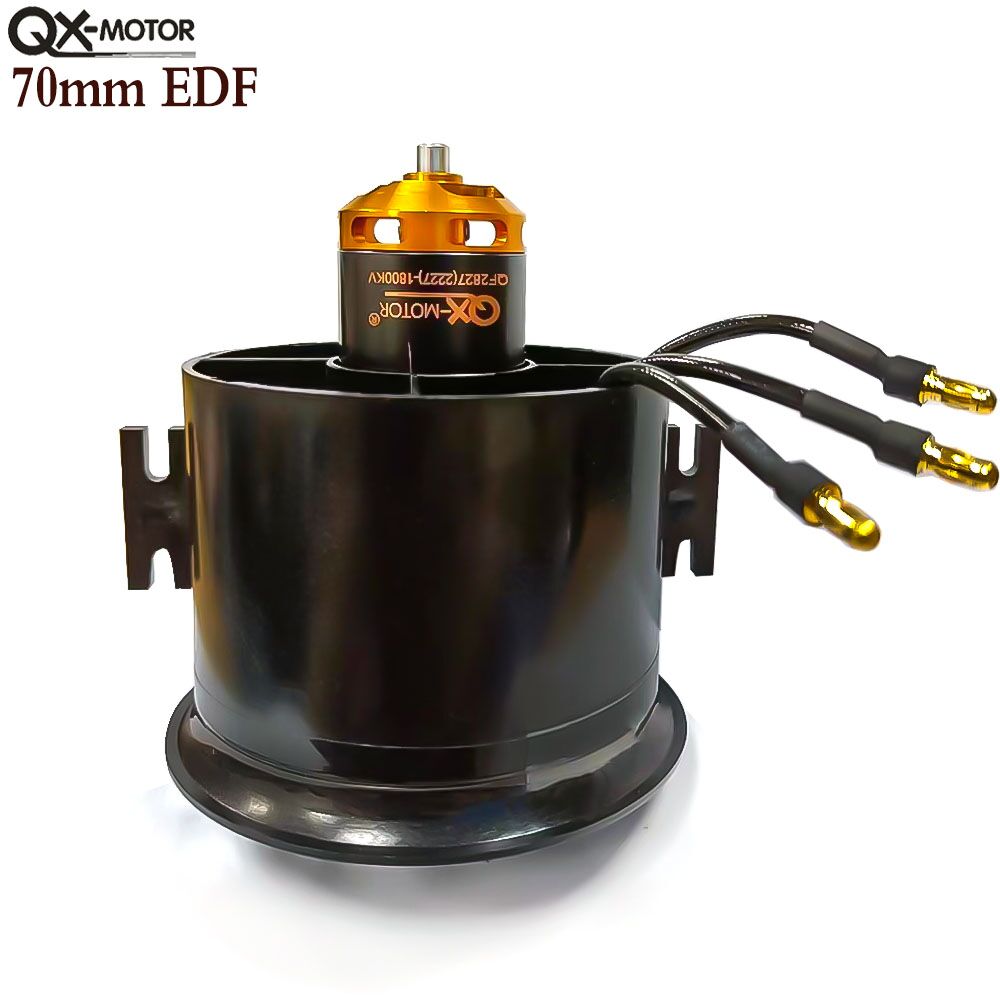

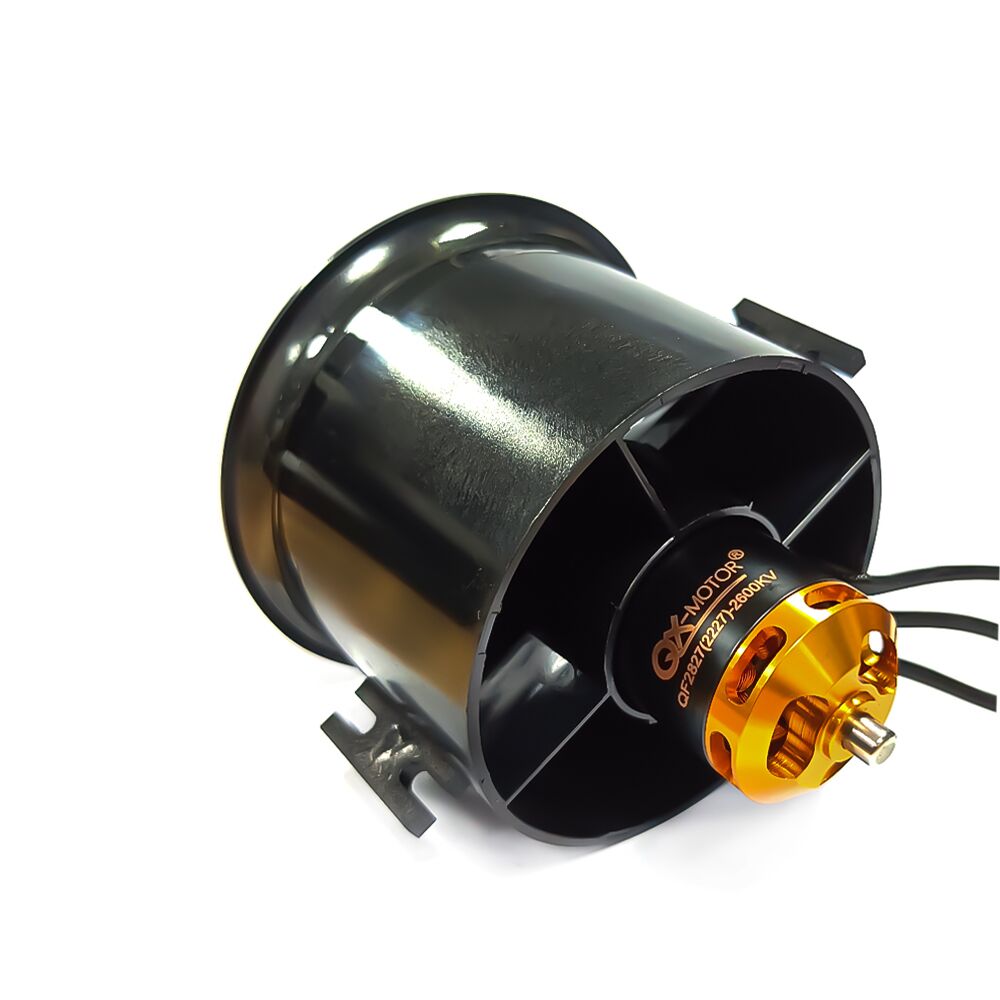

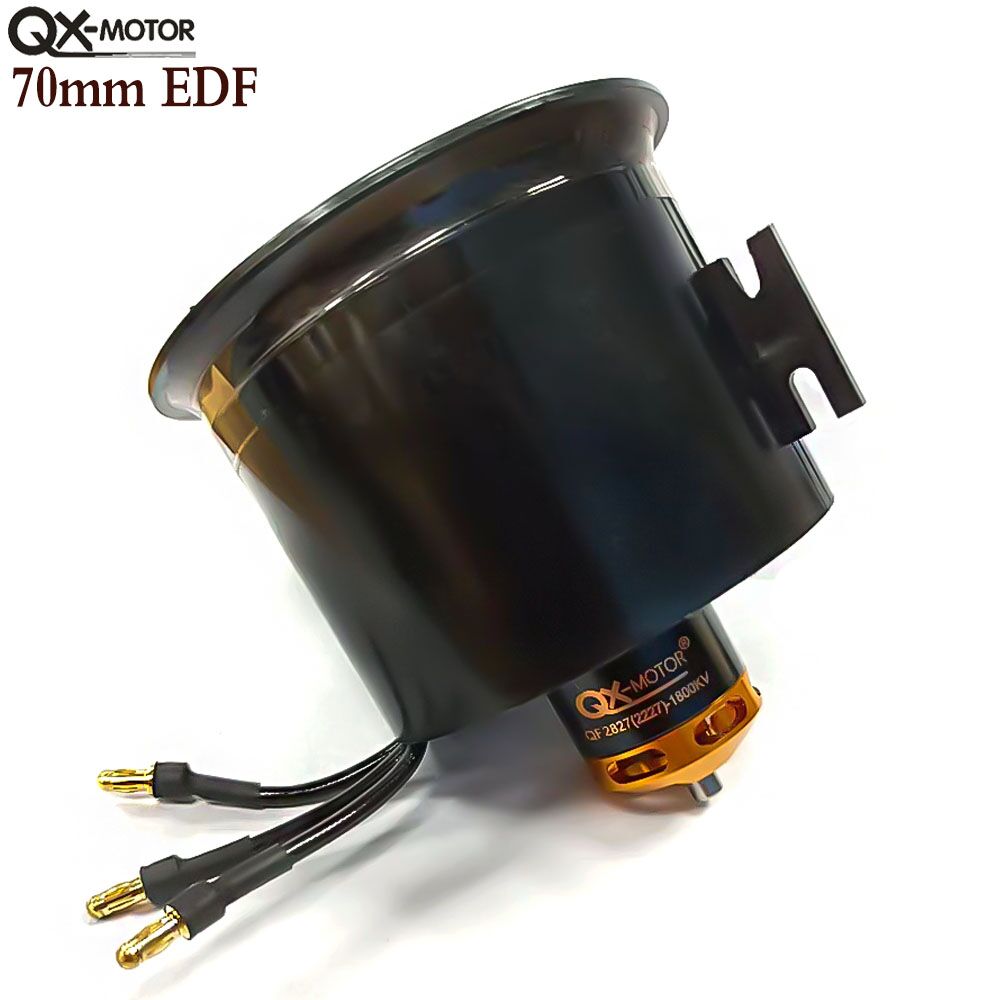

This 70mm ducted fan with 12-blade is equipped with QF2827-1800KV / 2600KV high-performance brushless DC motor which is powerful and efficient, and Low temperature. It is an ideal choice for the majority of model fans!
| Model | 70mm EDF(12) Outer-Rotor brushless motor Set |
|---|---|
| KV(RPM) | 1800KV, 2600KV |
| Configuration | 9N6P |
| Shaft Diameter | Φ4.0mm |
| Motor Diameter | 28mm |
| Weight | 175g |
| No. of Cells | 6S Lipo |
| Max Continuous Power/10S | 1100W |
| Max Continuous Current/10S | 65A |
| Prop | Volts (V) |
Amps (A) |
Watts (W) |
Thrust (g) |
Thrust (oz) |
Efficiency (g/W) |
Efficiency (OZ/W) |
Motor model | ESC |
| 70mm EDF (12 blades) |
16 | 62.0 | 992 | 1800 | 63.49 | 1.81 | 0.06 | QF2827-2600KV | 80A |
| 25 | 37.0 | 925 | 1927 | 67.97 | 2.08 | 0.07 | QF2827-1800KV | 60A |
