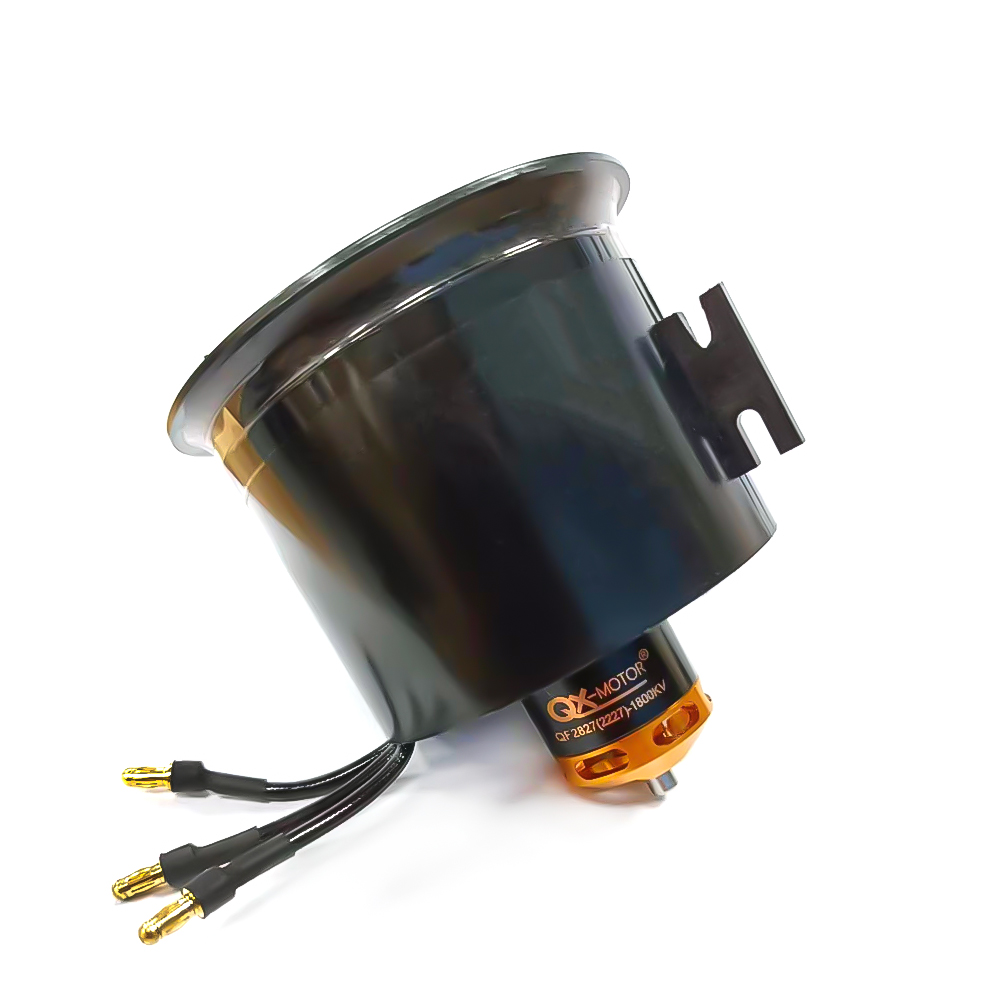

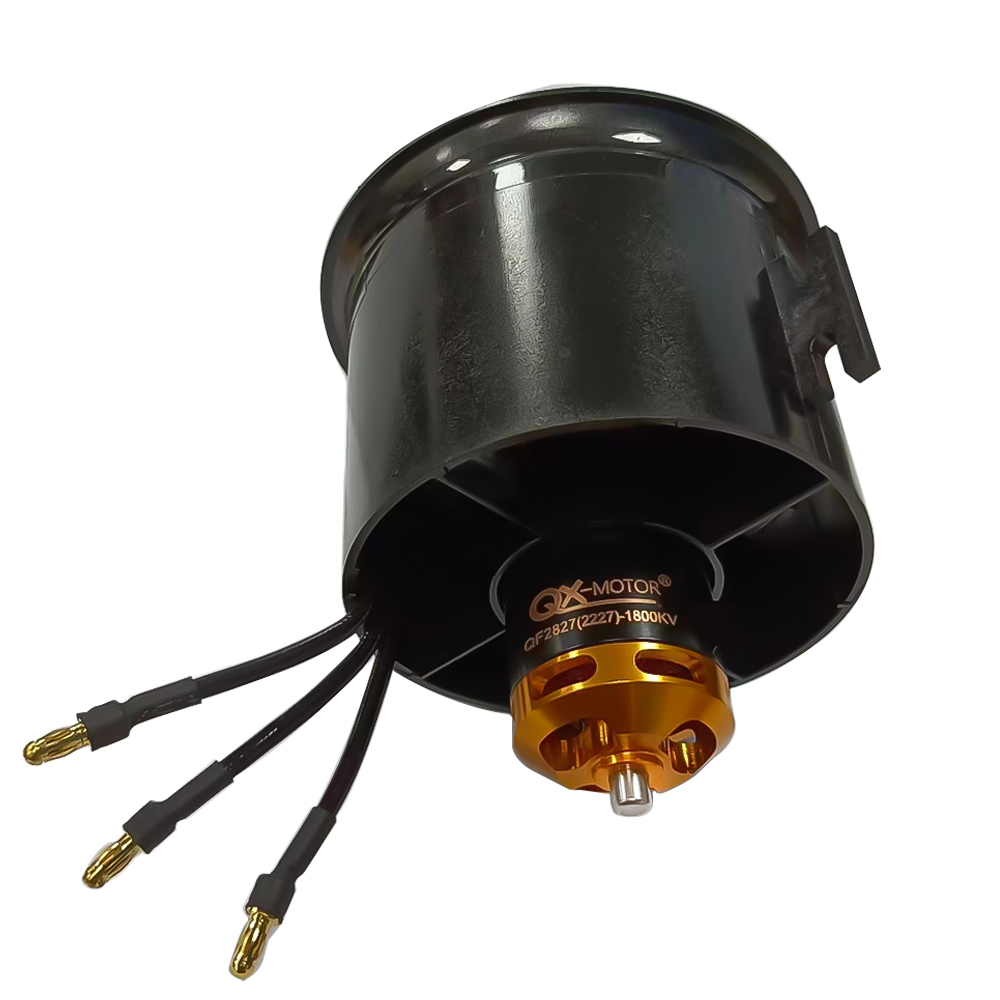

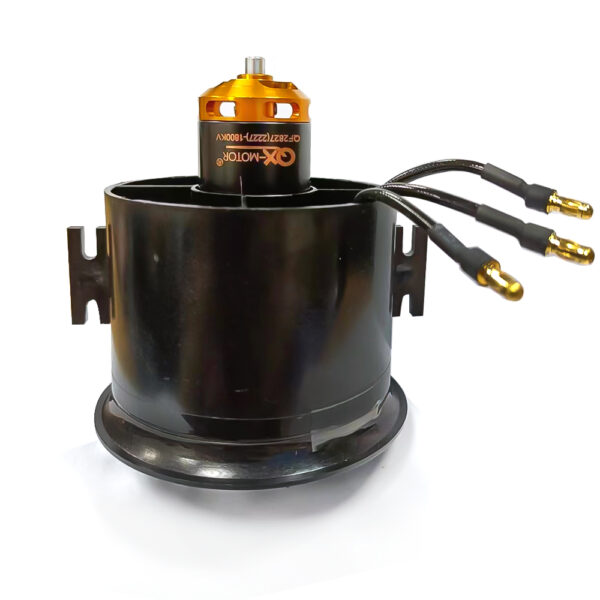

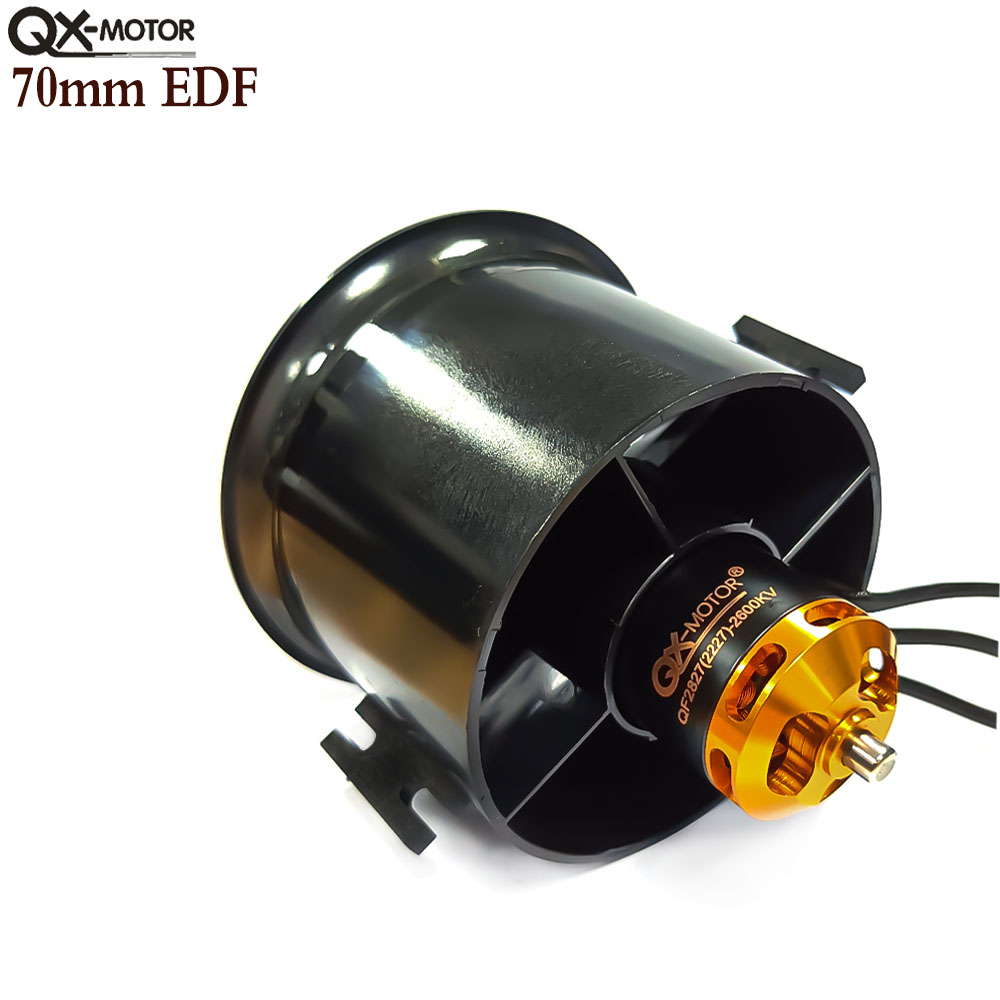

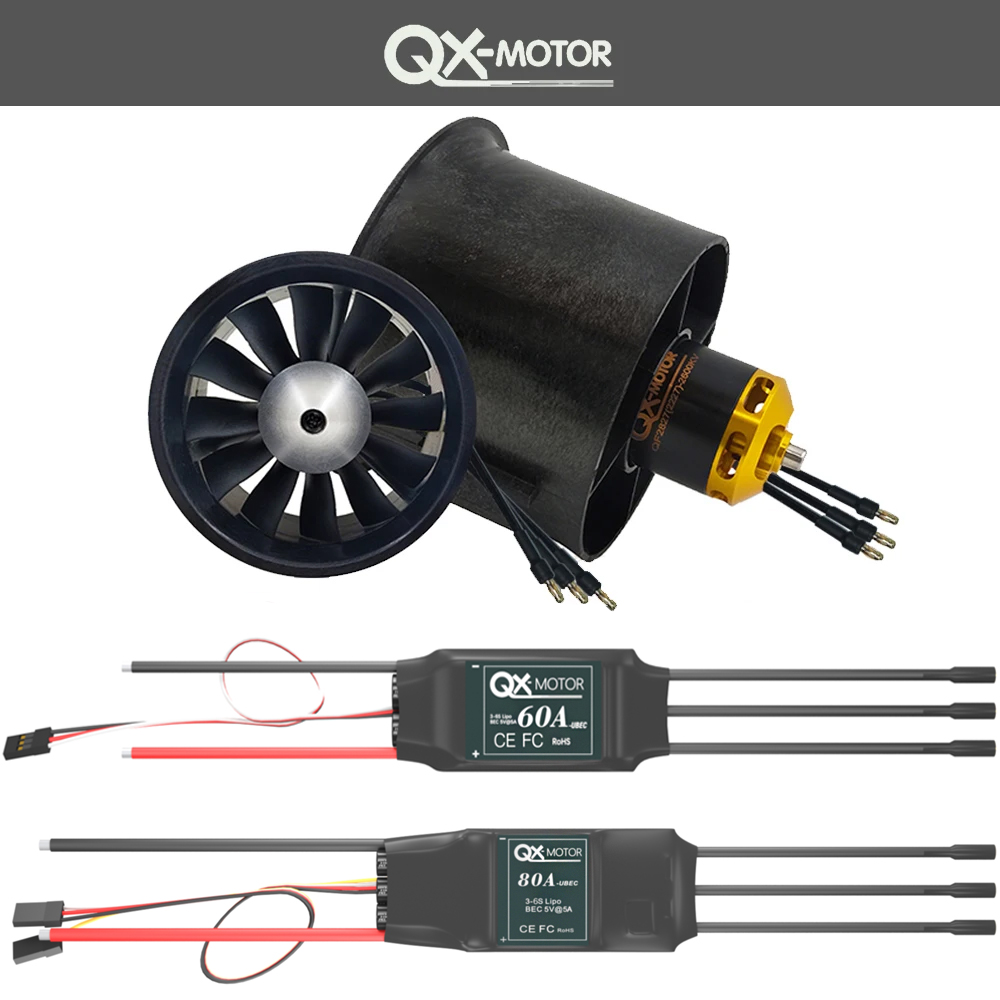

This 70mm EDF, equipped with 2827 brushless motors of 2600KV, has high efficiency, strong power, and stable balance. It is an ideal choice for you

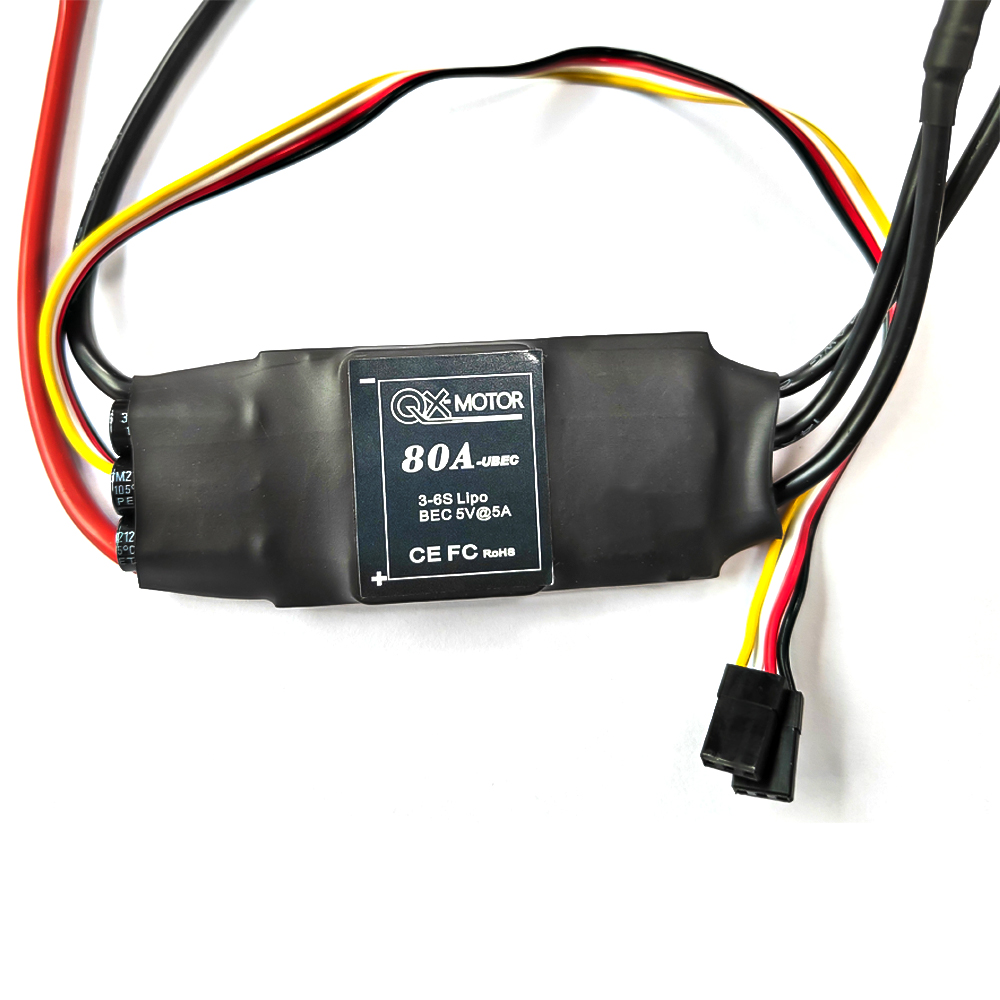

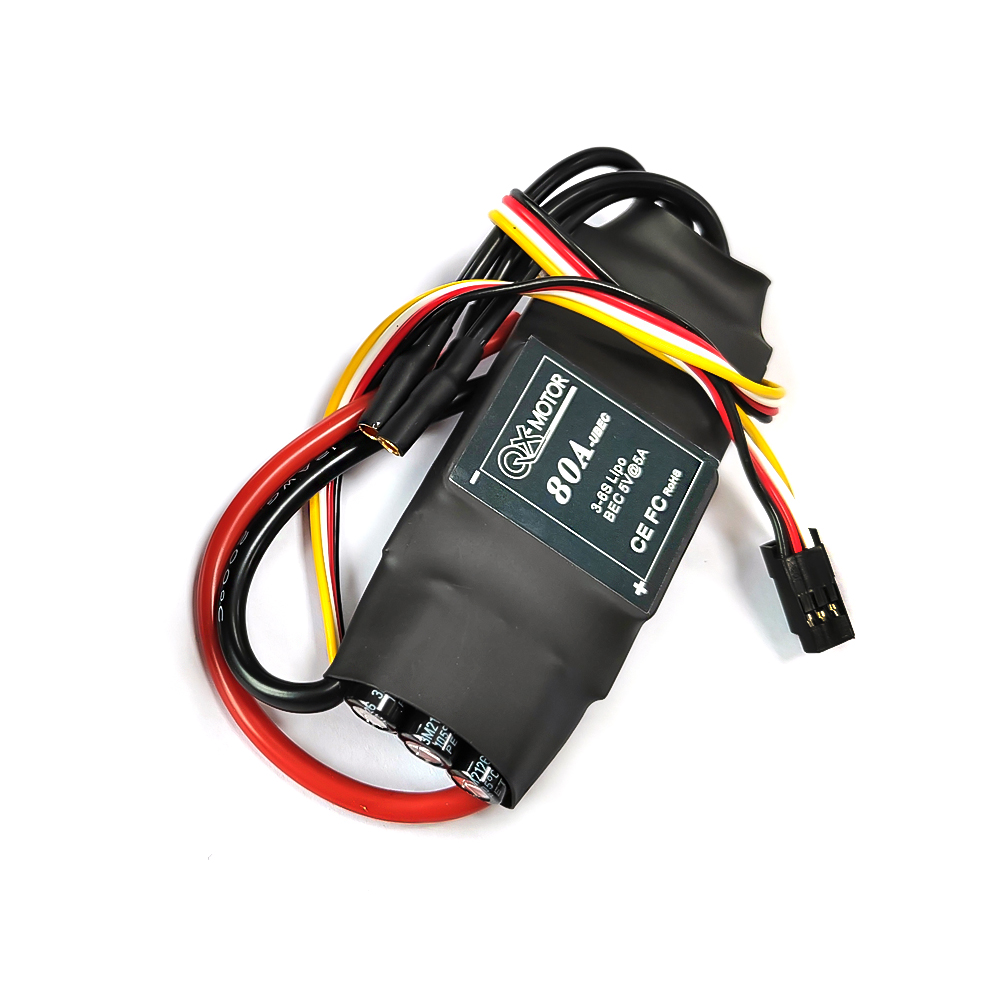

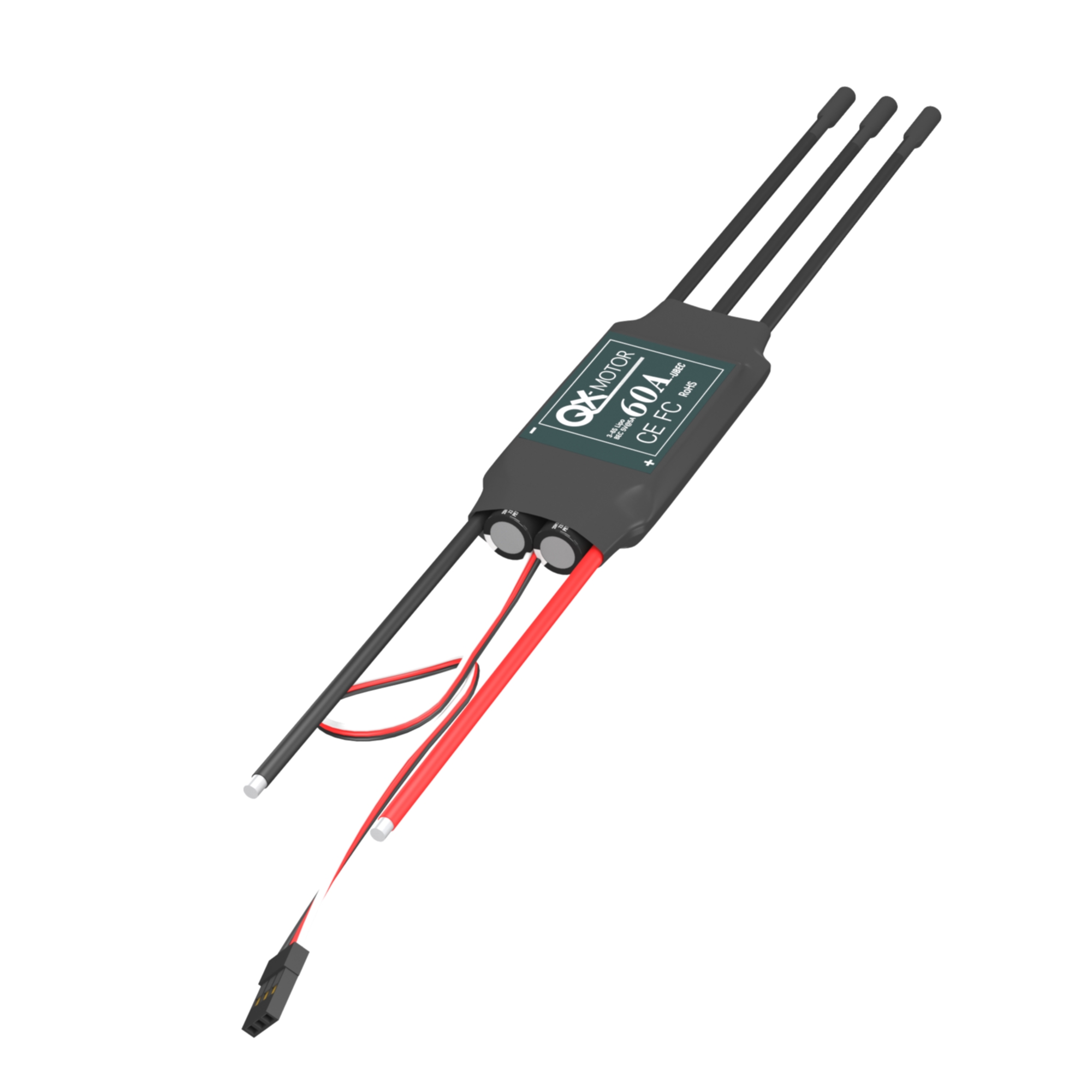

1.Our QX-MOTOR 80A ESC plug is a 3.5mm banana head.

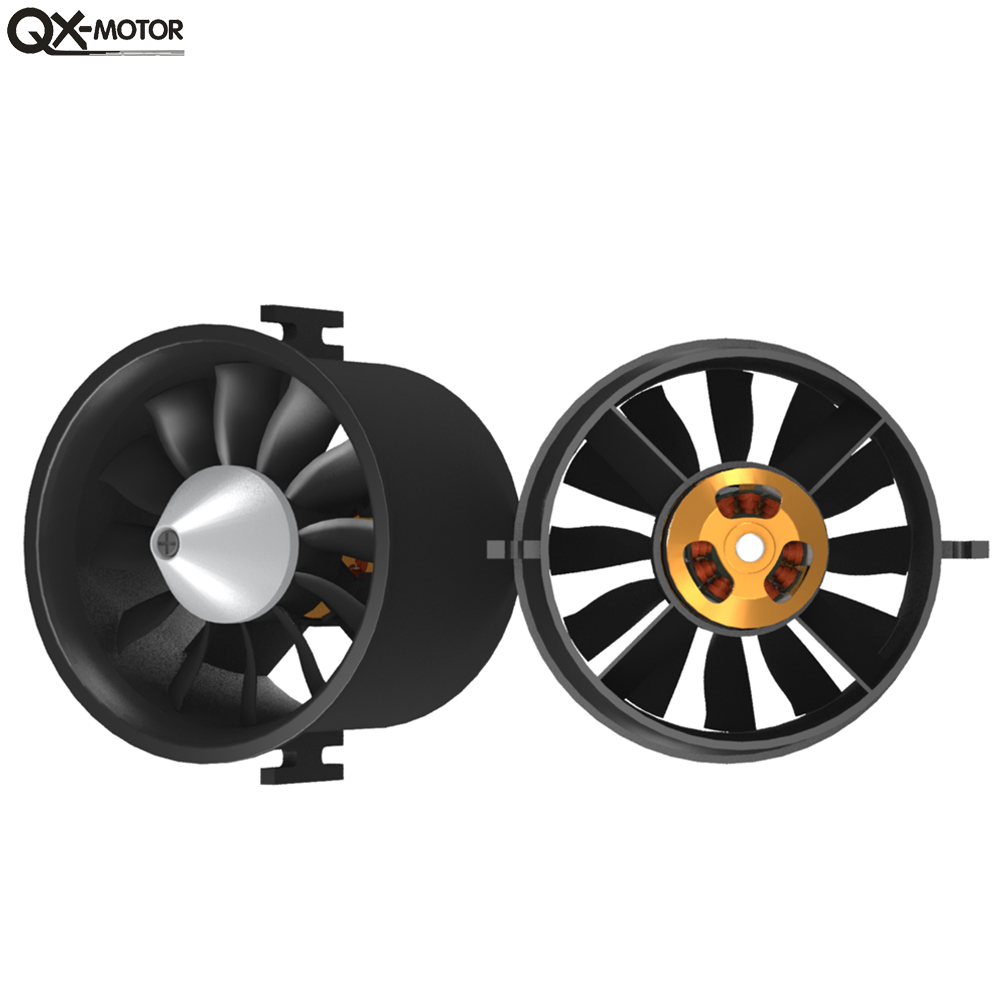

2.Our 70mm EDF leaves will experience some slight friction with the fan barrel, which is completely normal and does not affect its function. It can be used normally. If you are a friend who pursues perfection, please purchase with caution. We do not accept returns or disputes based on this reason.
3.Buyers, please pay attention! During the testing process of the EDF, please pay attention to safety and never allow anyone to stand in front of the EDF or reach out to the front end of the horn mouth (air inlet) to experience the suction force. The suction force of the EDF is quite amazing, and it can be accidentally sucked in. The wind blade is like a sharp knife, and if your fingers are sucked into the air duct that will be cut by the wind blade, which can have serious consequences. You will bear all the consequences yourself. Wishing everyone a happy time!

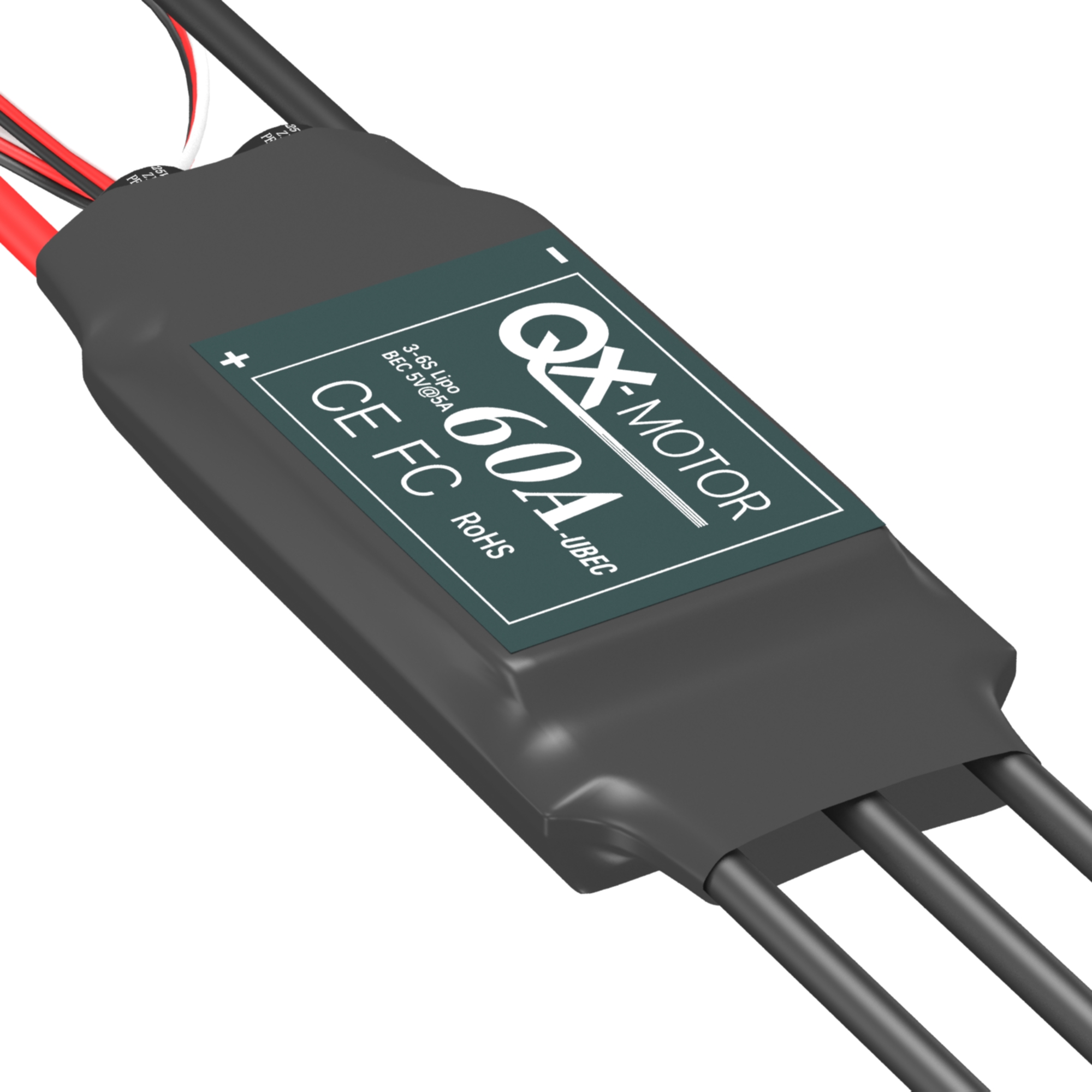

| Model | 70mm EDF Brushless Motor with 60A ESC |
|---|---|
| KV(RPM) | 1800KV, 2600KV |
| Configuration | 9N6P |
| Shaft Diameter | Φ4.0mm |
| Motor Diameter | 28mm |
| Weight | 175g |
| No. of Cells | 6S Lipo |
| Max Continuous Power/10S | 1500W |
| Max Continuous Current/10S | 65A |

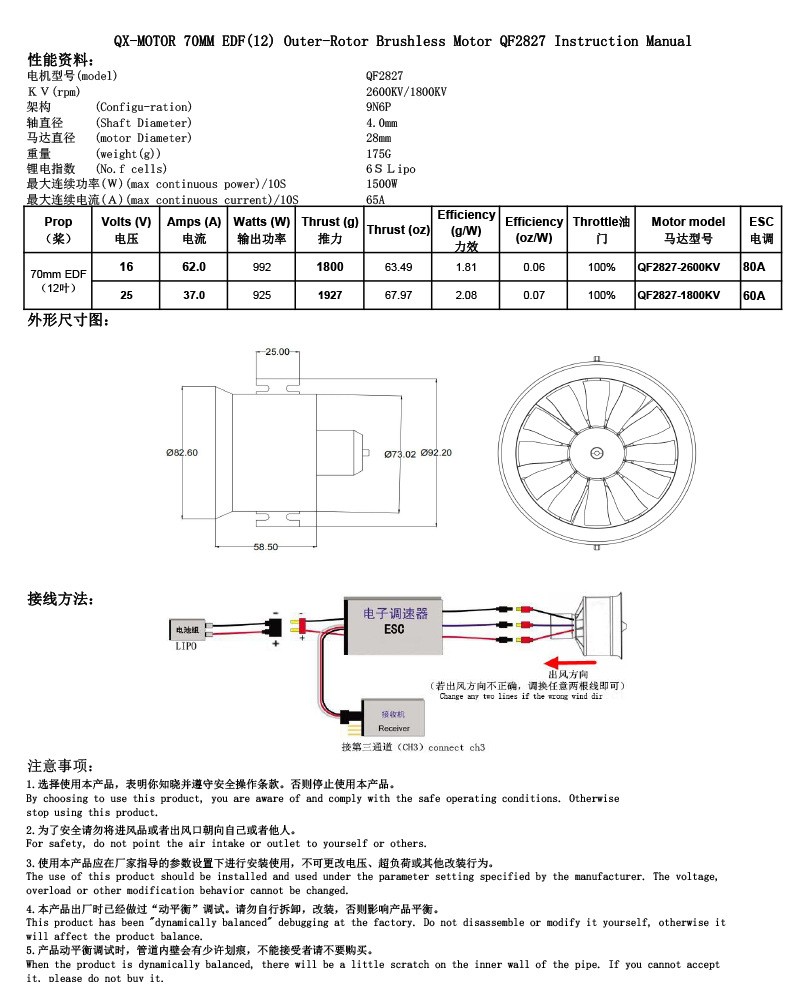

| Prop | Volts (V) | Amps (A) | Watts (W) | Thrust (g) | Thrust (oz) | Efficiency (g/W) | Efficiency (OZ/W) | Motor model | ESC |
| 70mm EDF (12 blades) | 16 | 62.0 | 992 | 1800 | 63.49 | 1.81 | 0.06 | QF2827-2600KV | 80A |
| 25 | 37.0 | 925 | 1927 | 67.97 | 2.08 | 0.07 | QF2827-1800KV | 60A |
1.Our QX-MOTOR 80A ESC plug is a 3.5mm banana head.
2.Our 70mm EDF leaves will experience some slight friction with the fan barrel, which is completely normal and does not affect its function. It can be used normally. If you are a friend who pursues perfection, please purchase with caution. We do not accept returns or disputes based on this reason.
3.Buyers, please pay attention! During the testing process of the EDF, please pay attention to safety and never allow anyone to stand in front of the EDF or reach out to the front end of the horn mouth (air inlet) to experience the suction force. The suction force of the EDF is quite amazing, and it can be accidentally sucked in. The wind blade is like a sharp knife, and if your fingers are sucked into the air duct that will be cut by the wind blade, which can have serious consequences. You will bear all the consequences yourself. Wishing everyone a happy time!
