The digital Servo is designed with a control angle of 180° and 270°, The scope of the application is model airplanes, car models, climbing cars, short trucks, rally, racing, flat running, off-road, gasoline engines, robots, aerial photography, gimbals, unmanned machines, robotic arms, etc., Meanwhile, compatible with JR/Futaba

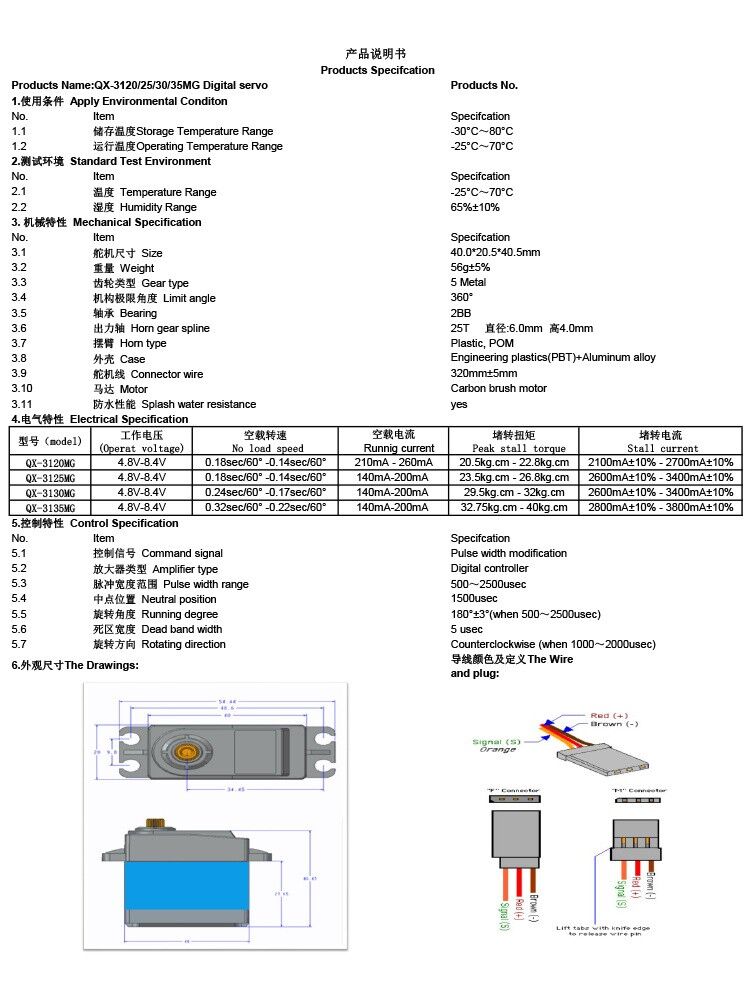

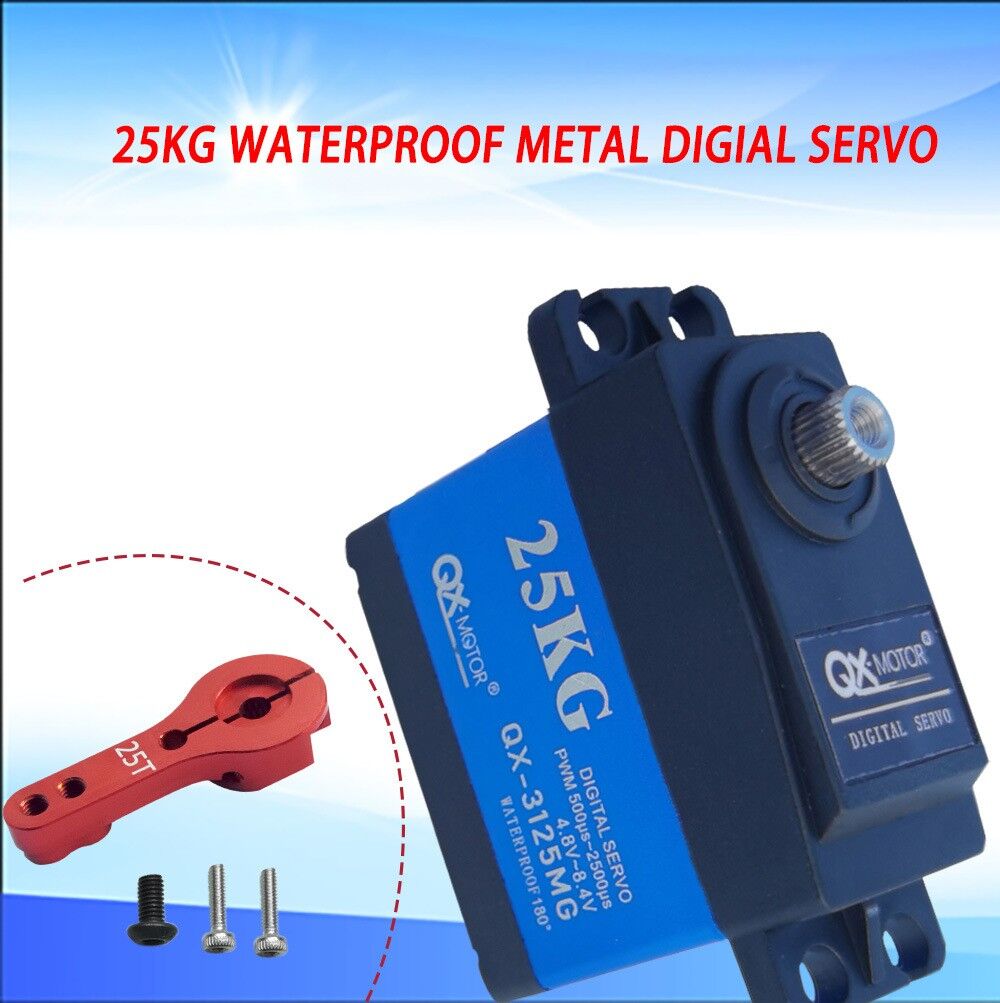

Model | QX-3125MG |
---|
Operating voltage: 4.8 – 8.4V
Operating speed ( 5.0V ): 0.18 sec/60 degree
Operating speed ( 8.4V ): 0.14 sec/60 degree
Stall torque ( 5.0V ): 23.5kg/cm
Stall torque ( 8.4V ): 26.8kg/cm
Limit angle: 180°
Dead band: 3 μ s
Working frequency: 50-333Hz

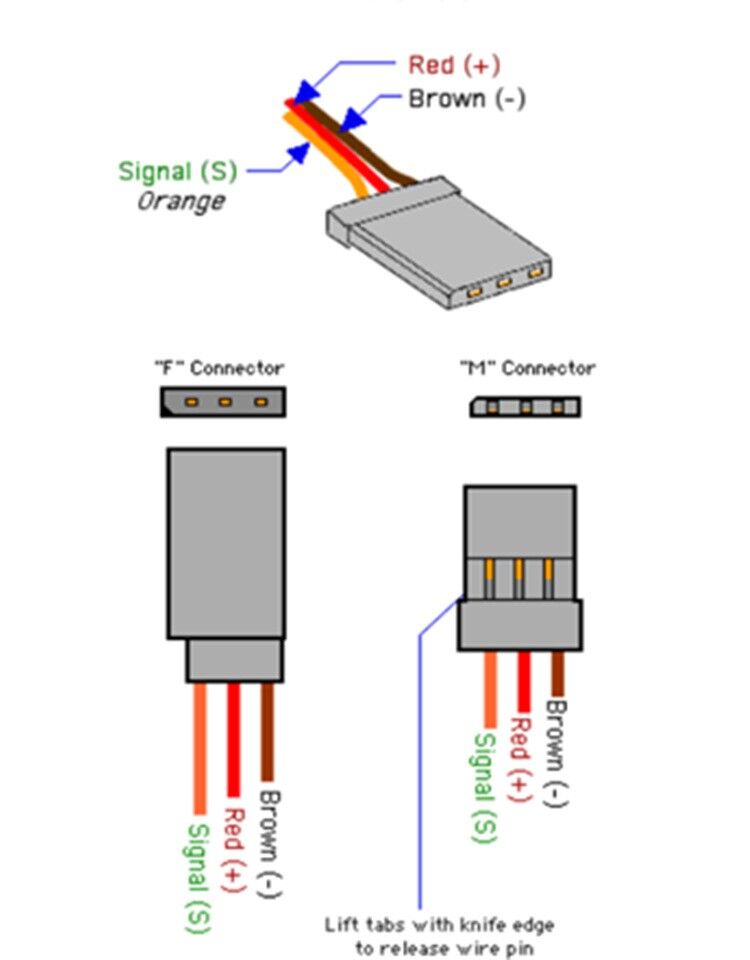

Connector wire: About 300mm

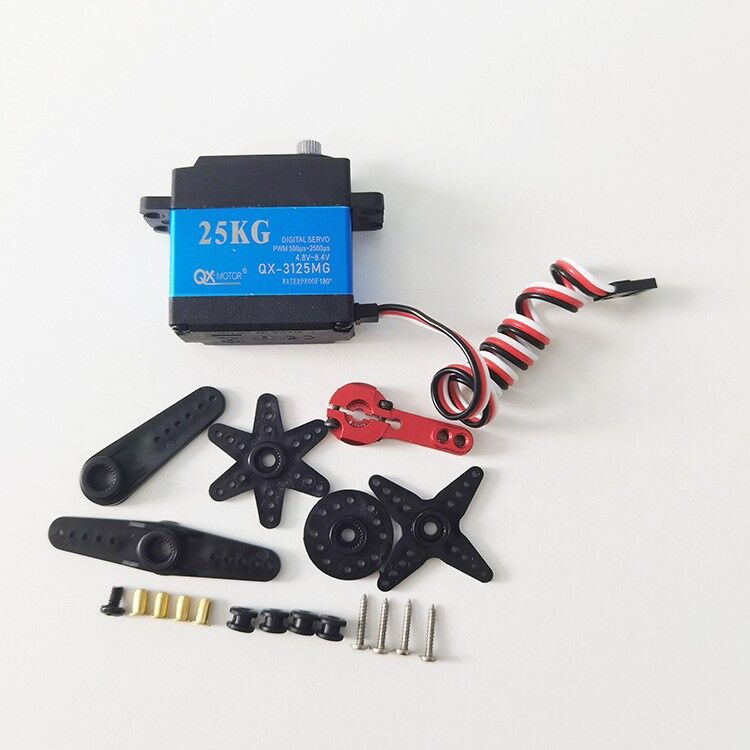

Gear type: Metal
Motor Type: DC motor

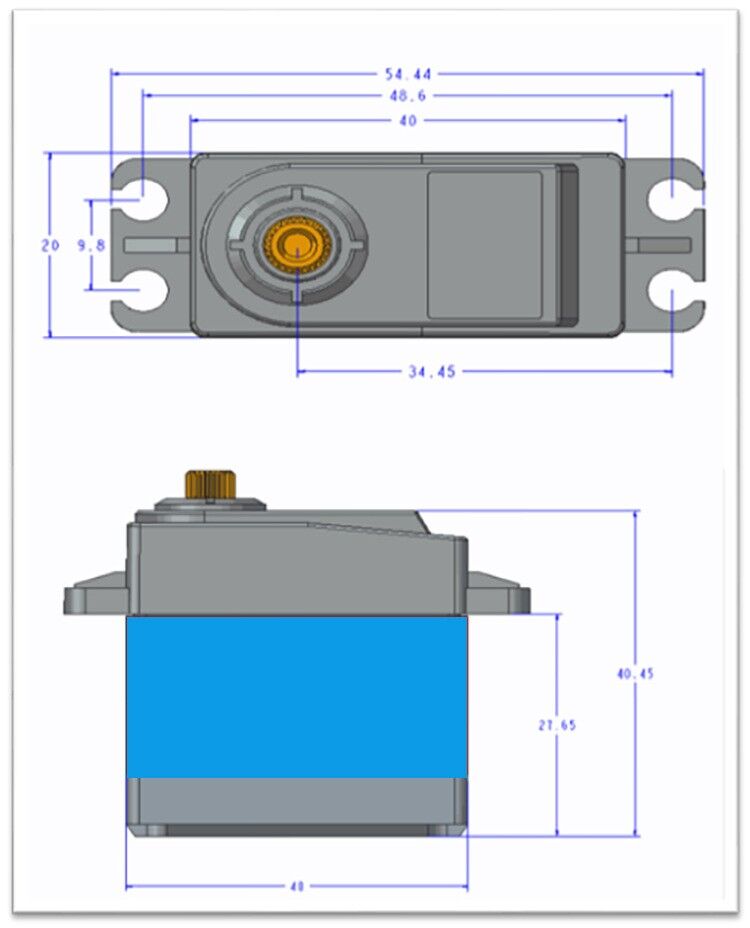

Size: 40 * 20 * 40.5mm
Weight: 62g
