The digital Servo is designed with a control angle of 180° and 270°, The scope of the application is model airplanes, car models, climbing cars, short trucks, rally, racing, flat running, off-road, gasoline engines, robots, aerial photography, gimbals, unmanned machines, robotic arms, etc., Meanwhile, compatible with JR/Futaba

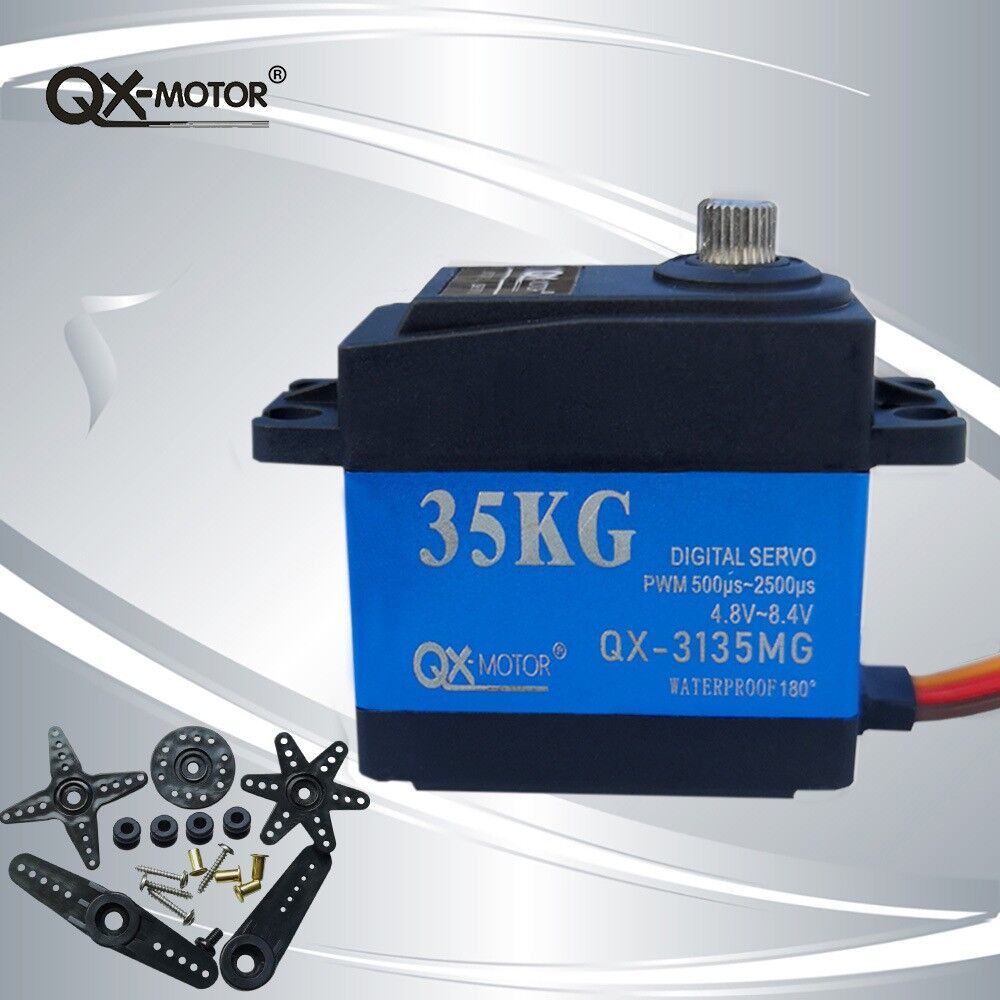

| Model | QX-3135MG |
|---|
Output gear: 25t
Torque(5V): 32.7kg-cm
Torque(8.4V): 35.2 kg-cm
Limit angle: 180°
Speed: 0.32 sec/60°(6V)│0.22 sec /60°(8.4V)
Operating Voltage：4.8 ~ 8.4 DC Volts
Weight: 67g
Bearing Type： Ball Bearing x 2
Motor type: hollow cup
Gear Type： Metal
Operating Temperature：-25℃~70℃
Working frequence：1500μsec / 50—330hz
Size：40 x 20 x 40.5 mm
