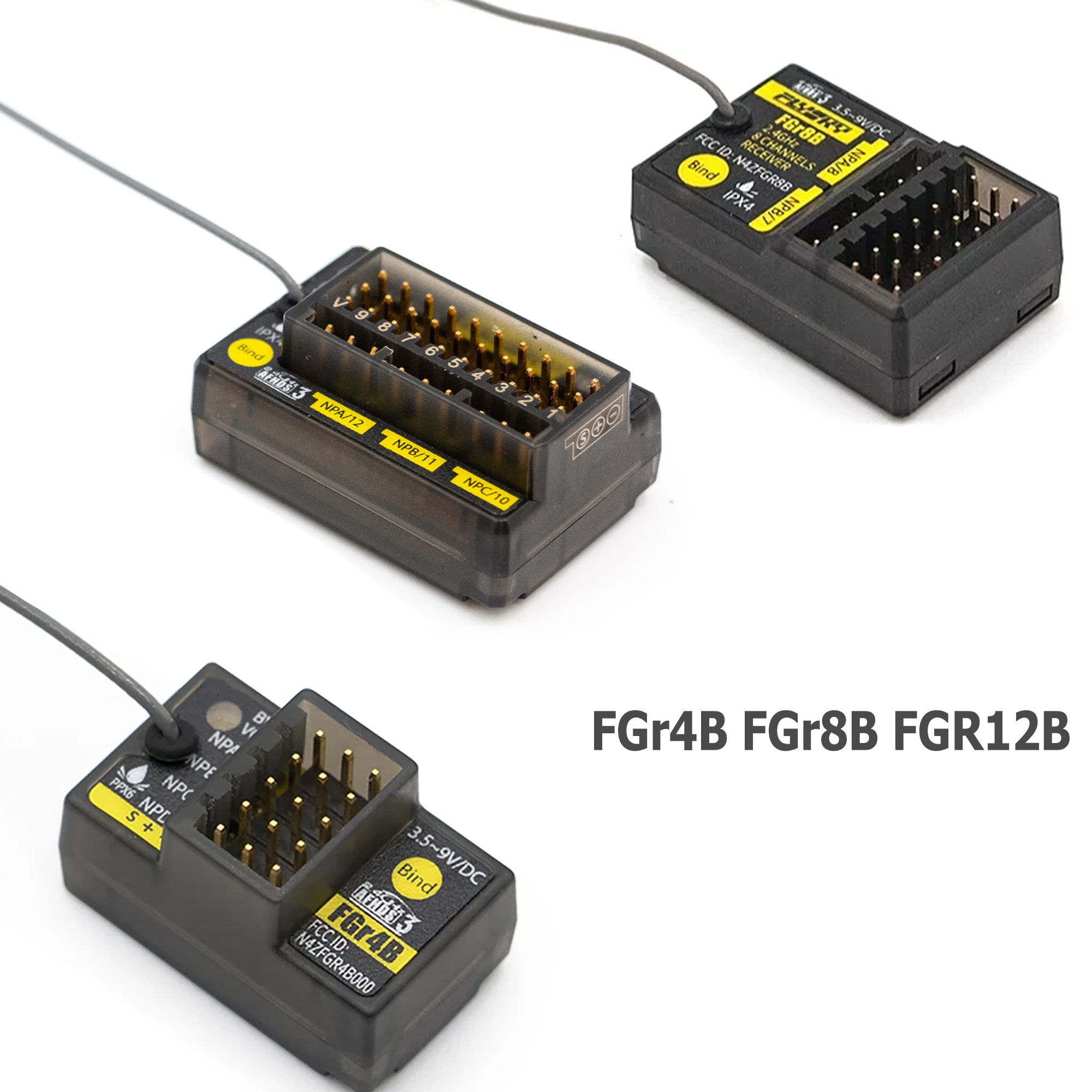

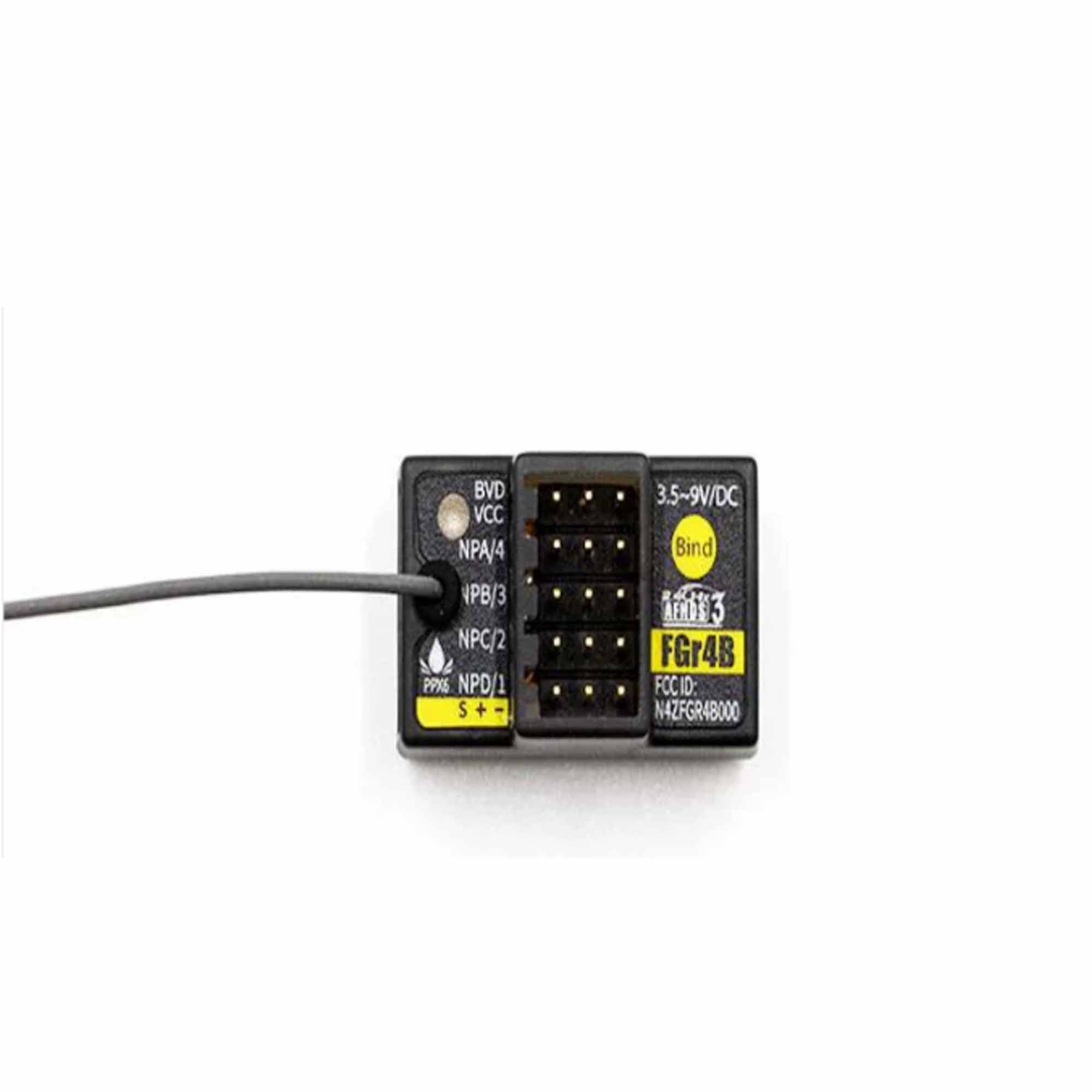

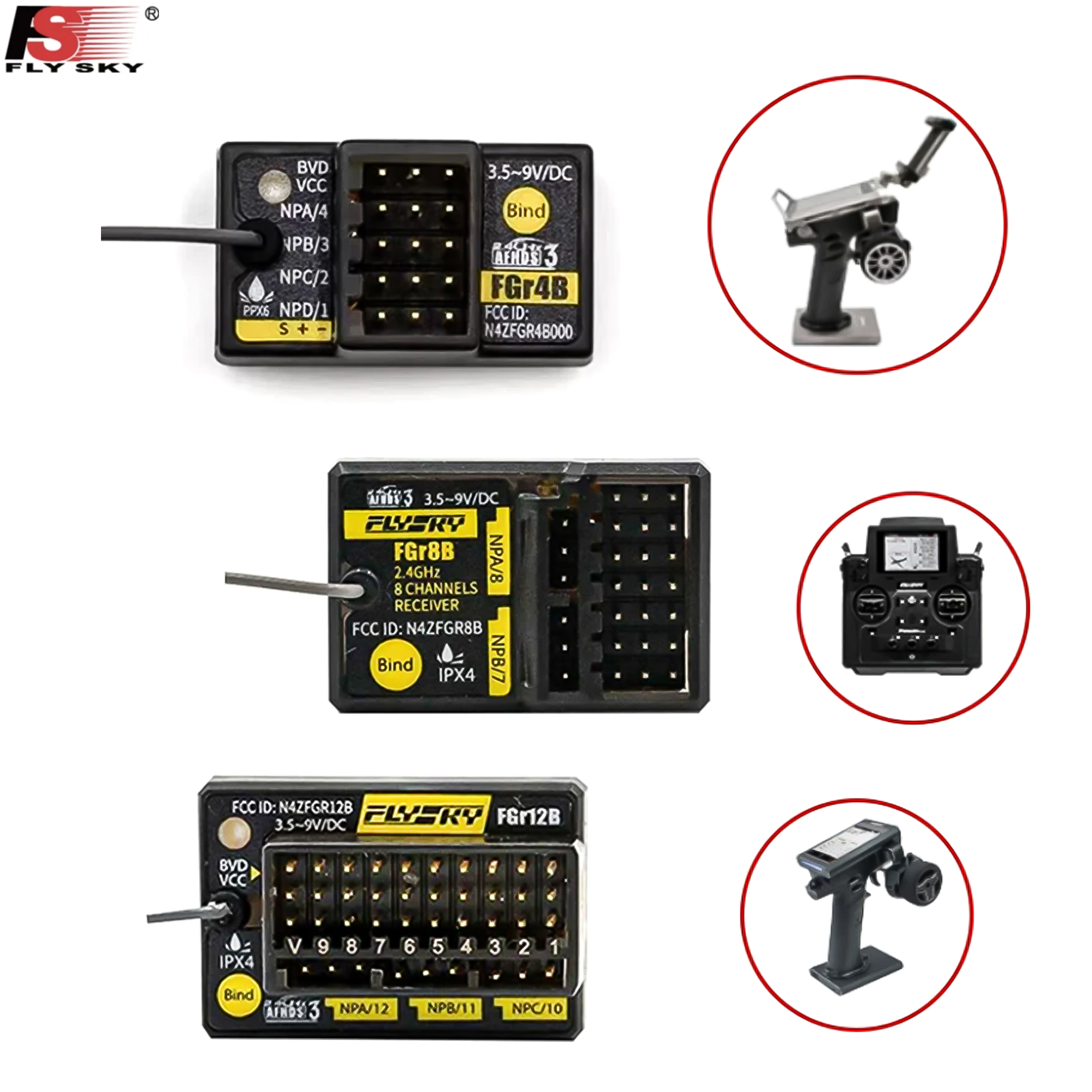

The FGr4B receiver adopts Flysky’s third-generation automatic frequencyhopping digital system (AFHDS 3).It uses a single-antenna bidirectionaltransmission system and is uniquely designed to install and output PWM/PPM/i-bus/S.BUS/i-bus2 in signals. It supports all AFHDS3 transmitter .
Product Designation: FGr4B
Compatible transmitters: all AFHDS 3 transmitters and RF Modules (PL18, Paladin EV, NB4, NB4 Lite, etc.)
Model Type: Car/boat etc
PWM Channels: 4
RF: 2.4GHz
Protocol: AFHDS 3
Antenna: Dual Antennas
Input Power: 3.5-9V
Data Output: PWM/PPM/i.BUS out/S.BUS
Temperature Range: -10℃ to +60℃
Humidity Limit: 20%-95%
Online Update: Yes
Dimensions: 17*29*16mm
Weight: 6.4g
Certification: CE，FCC ID:N4ZFGR4B
FGr8B Specification:

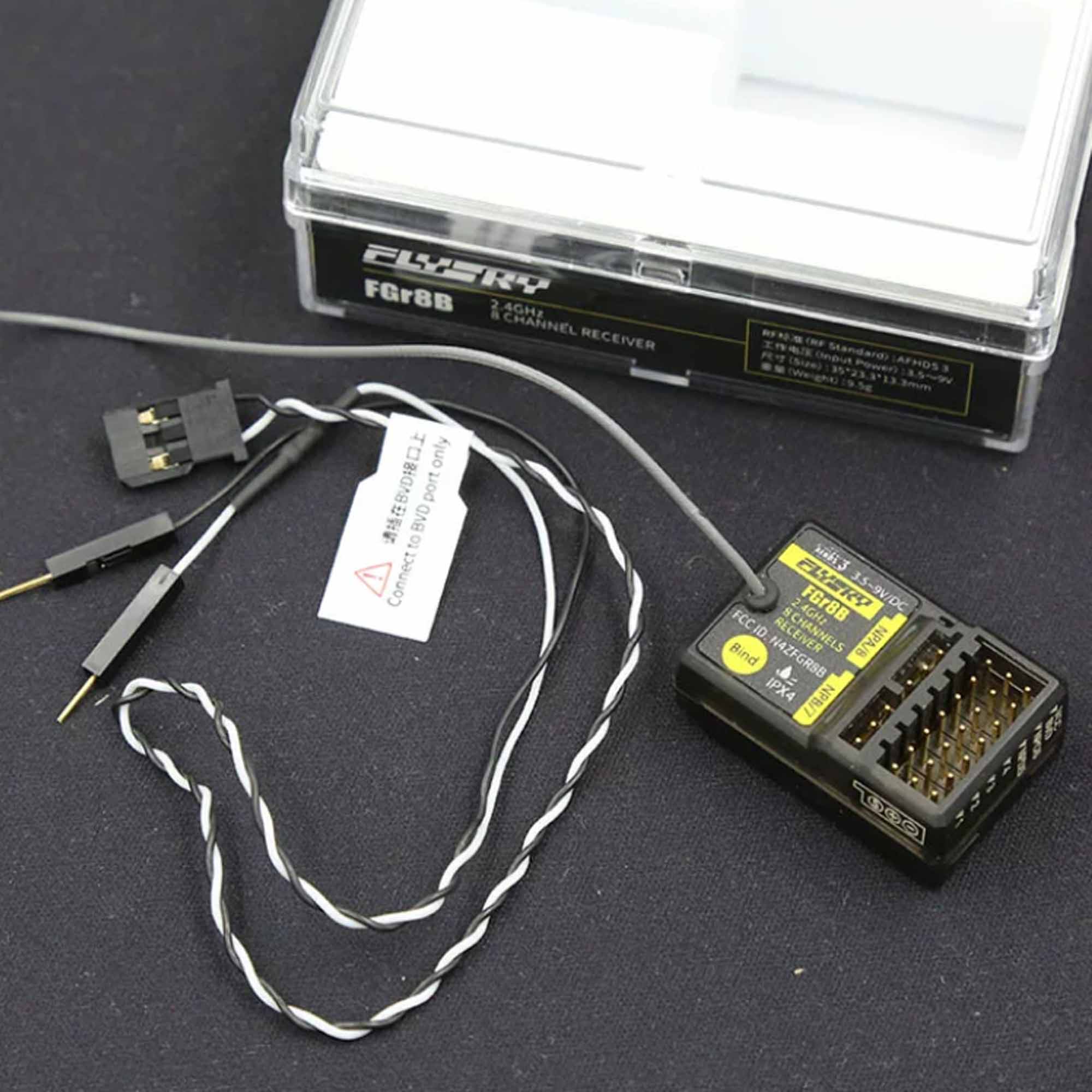

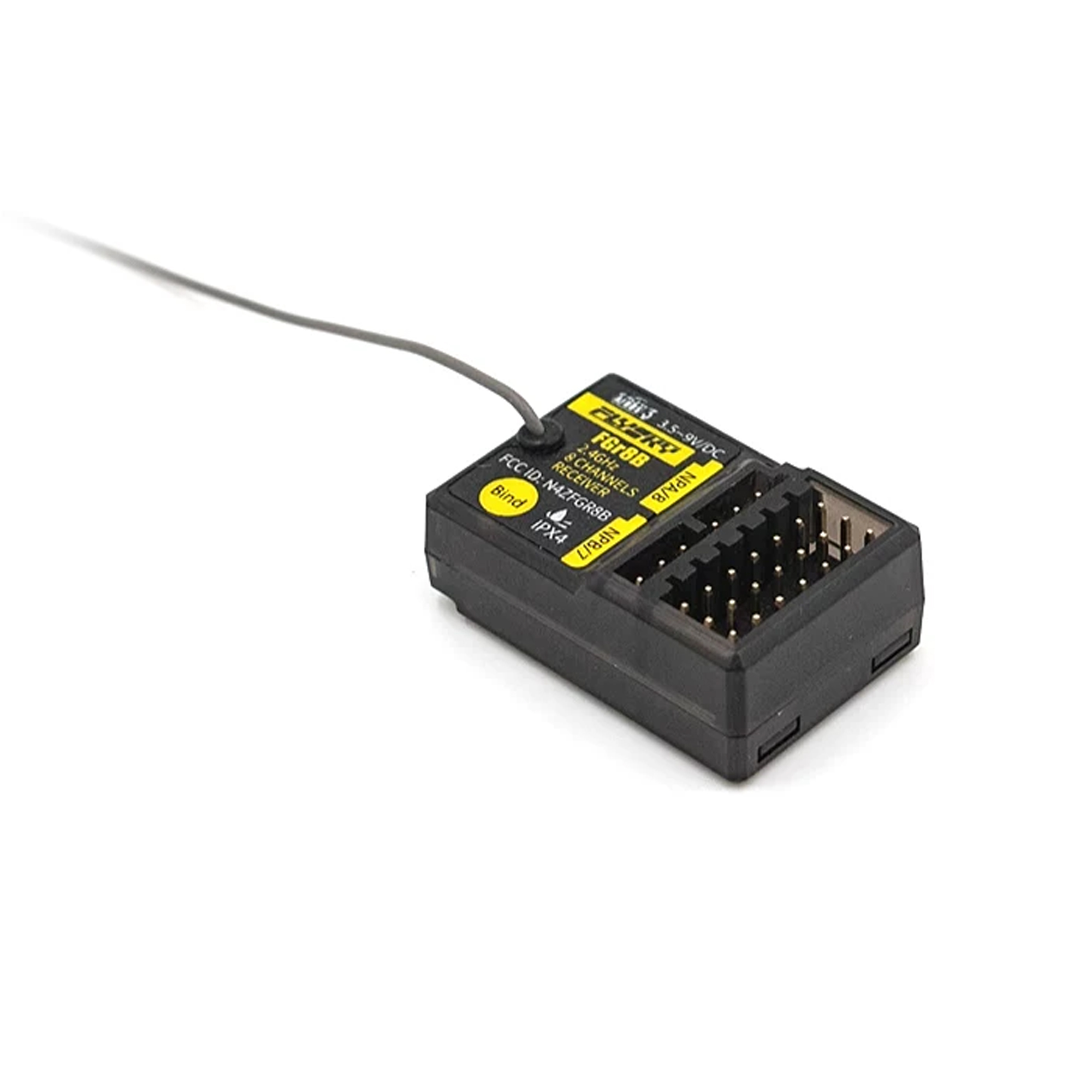

The FGr8B receiver adopts Flysky’s third-generation automatic frequency hopping digital system (AFHDS 3).It uses a single-antenna bidirectional transmission system and is uniquely designed to install and output PWM/PPM/ i-bus in signals. It supports all AFHDS3 transmitter and RF modules.Brand Name: FlySky
Item Name: FGr8B Receiver
Model: FGr8B
Weight: 9.4g
Dimensions: 35*23.3*13.3mm
RF: 2.4GHz
2.4G Protocol: AFHDS 3
Antenna: Single Antenna
Input Power: 3.5-9V
RSSI: Support
Data Output: PWMPPMi-bus in
Temperature Range: -10℃—+60℃
Humidity Limit: 20%-95%
Online Update: Yes
PWM Channels: 7 (Version 2.0 will be upgraded to 8 channels)
Certification: CE，FCC ID:N4ZFGR8B
The FGr8B receiver is compatible with all AFHDS 3 transmitters and RF modules (including PL18, NB4, NB4 Lite, FRM302 etc.)
FGr12B Specification:

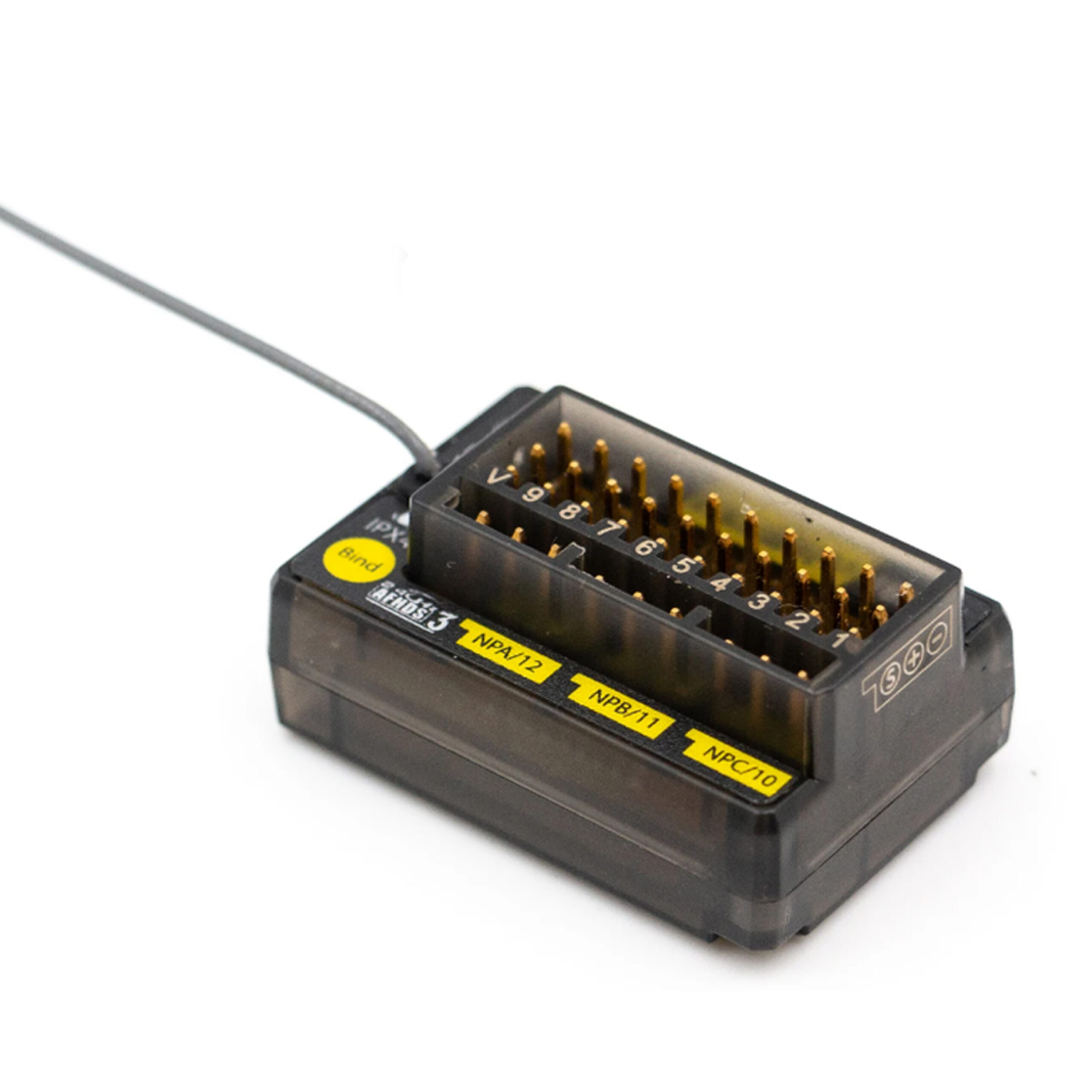

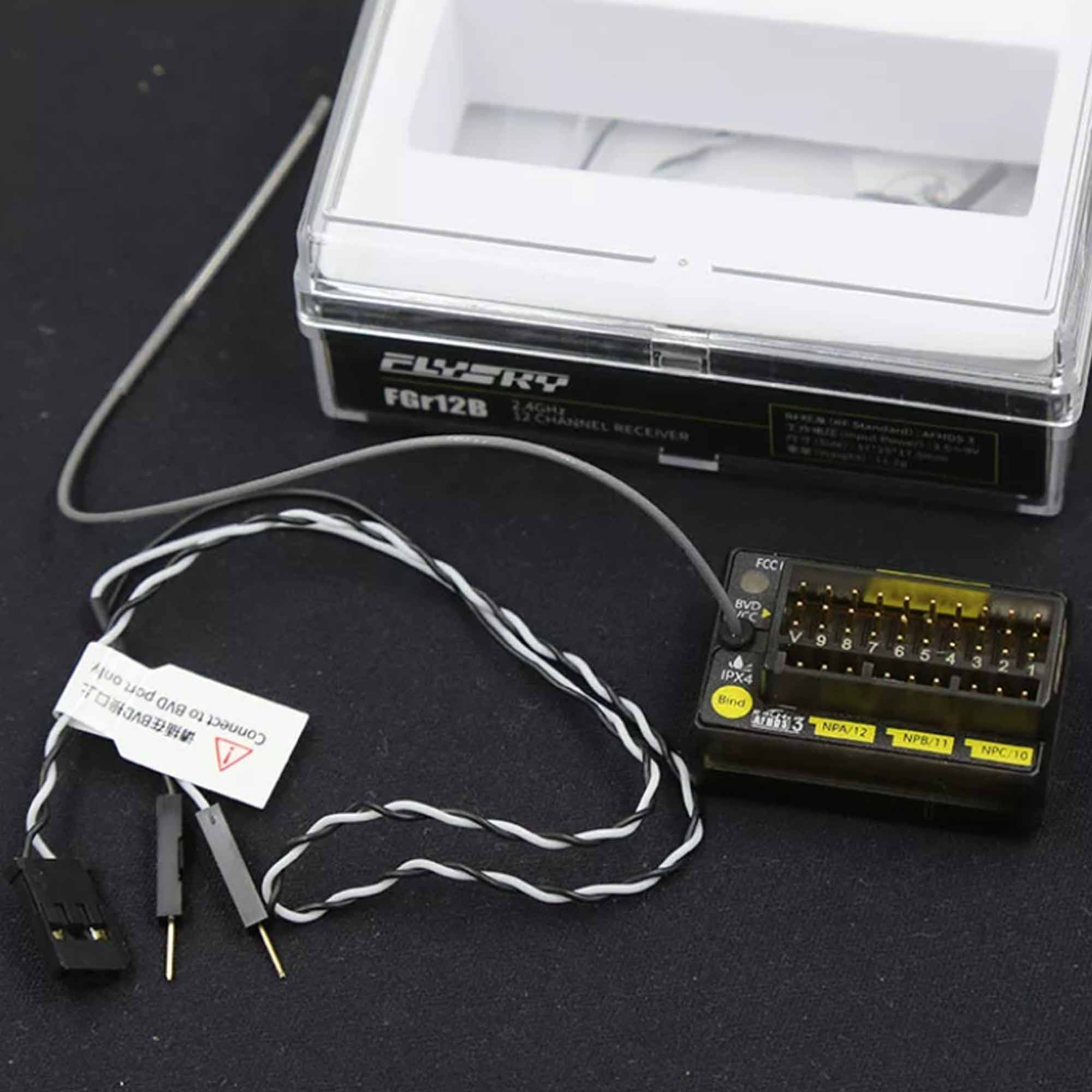

The FGr12B receiver adopts Flysky’s third-generation automatic frequency hopping digital system (AFHDS 3).It uses a single-antenna bidirectional transmission system and output PWM/PPM/ i-bus in signals. It supports all AFHDS3 transmitter and RF modules.
Product Model: FGr12B
Adaptive transmitter: all transmitter supporting AFHDS3 (PL18, NB4, NB4 Lite, etc.)
Model Type: Car/Boat ect.
PWM Channels: 11（Version 2.0 will be upgraded to 12 channels)
RF: 2.4GHz
2.4G Protocol: AFHDS 3
Antenna: Single Antenna
Input Power: 3.5-9V
Data Output: PWMPPMi-bus in
Temperature Range: -10℃—+60℃
Humidity Limit: 20%-95%
Online Update: Yes
Dimensions: 37*25*17.5mm
Weight: 11.2g
Certification: CE，FCC ID:N4ZFGR12B
| Weight | 0.12 kg |
|---|---|
| Dimensions | 18 × 15 × 8 cm |
| FGr4B Receiver | 54.5 |
| FGr8B Receiver | 58.2 |
| FGr12B Receiver | 60.7 |
The FGr4B receiver adopts Flysky’s third-generation automatic frequencyhopping digital system (AFHDS 3).It uses a single-antenna bidirectionaltransmission system and is uniquely designed to install and output PWM/PPM/i-bus/S.BUS/i-bus2 in signals. It supports all AFHDS3 transmitter .
Product Designation: FGr4B
Compatible transmitters: all AFHDS 3 transmitters and RF Modules (PL18, Paladin EV, NB4, NB4 Lite, etc.)
Model Type: Car/boat etc
PWM Channels: 4
RF: 2.4GHz
Protocol: AFHDS 3
Antenna: Dual Antennas
Input Power: 3.5-9V
Data Output: PWM/PPM/i.BUS out/S.BUS
Temperature Range: -10℃ to +60℃
Humidity Limit: 20%-95%
Online Update: Yes
Dimensions: 17*29*16mm
Weight: 6.4g
Certification: CE，FCC ID:N4ZFGR4B
FGr8B Specification:
The FGr8B receiver adopts Flysky’s third-generation automatic frequency hopping digital system (AFHDS 3).It uses a single-antenna bidirectional transmission system and is uniquely designed to install and output PWM/PPM/ i-bus in signals. It supports all AFHDS3 transmitter and RF modules.Brand Name: FlySky
Item Name: FGr8B Receiver
Model: FGr8B
Weight: 9.4g
Dimensions: 35*23.3*13.3mm
RF: 2.4GHz
2.4G Protocol: AFHDS 3
Antenna: Single Antenna
Input Power: 3.5-9V
RSSI: Support
Data Output: PWMPPMi-bus in
Temperature Range: -10℃—+60℃
Humidity Limit: 20%-95%
Online Update: Yes
PWM Channels: 7 (Version 2.0 will be upgraded to 8 channels)
Certification: CE，FCC ID:N4ZFGR8B
The FGr8B receiver is compatible with all AFHDS 3 transmitters and RF modules (including PL18, NB4, NB4 Lite, FRM302 etc.)
FGr12B Specification:
The FGr12B receiver adopts Flysky’s third-generation automatic frequency hopping digital system (AFHDS 3).It uses a single-antenna bidirectional transmission system and output PWM/PPM/ i-bus in signals. It supports all AFHDS3 transmitter and RF modules.
Product Model: FGr12B
Adaptive transmitter: all transmitter supporting AFHDS3 (PL18, NB4, NB4 Lite, etc.)
Model Type: Car/Boat ect.
PWM Channels: 11（Version 2.0 will be upgraded to 12 channels)
RF: 2.4GHz
2.4G Protocol: AFHDS 3
Antenna: Single Antenna
Input Power: 3.5-9V
Data Output: PWMPPMi-bus in
Temperature Range: -10℃—+60℃
Humidity Limit: 20%-95%
Online Update: Yes
Dimensions: 37*25*17.5mm
Weight: 11.2g
Certification: CE，FCC ID:N4ZFGR12B
