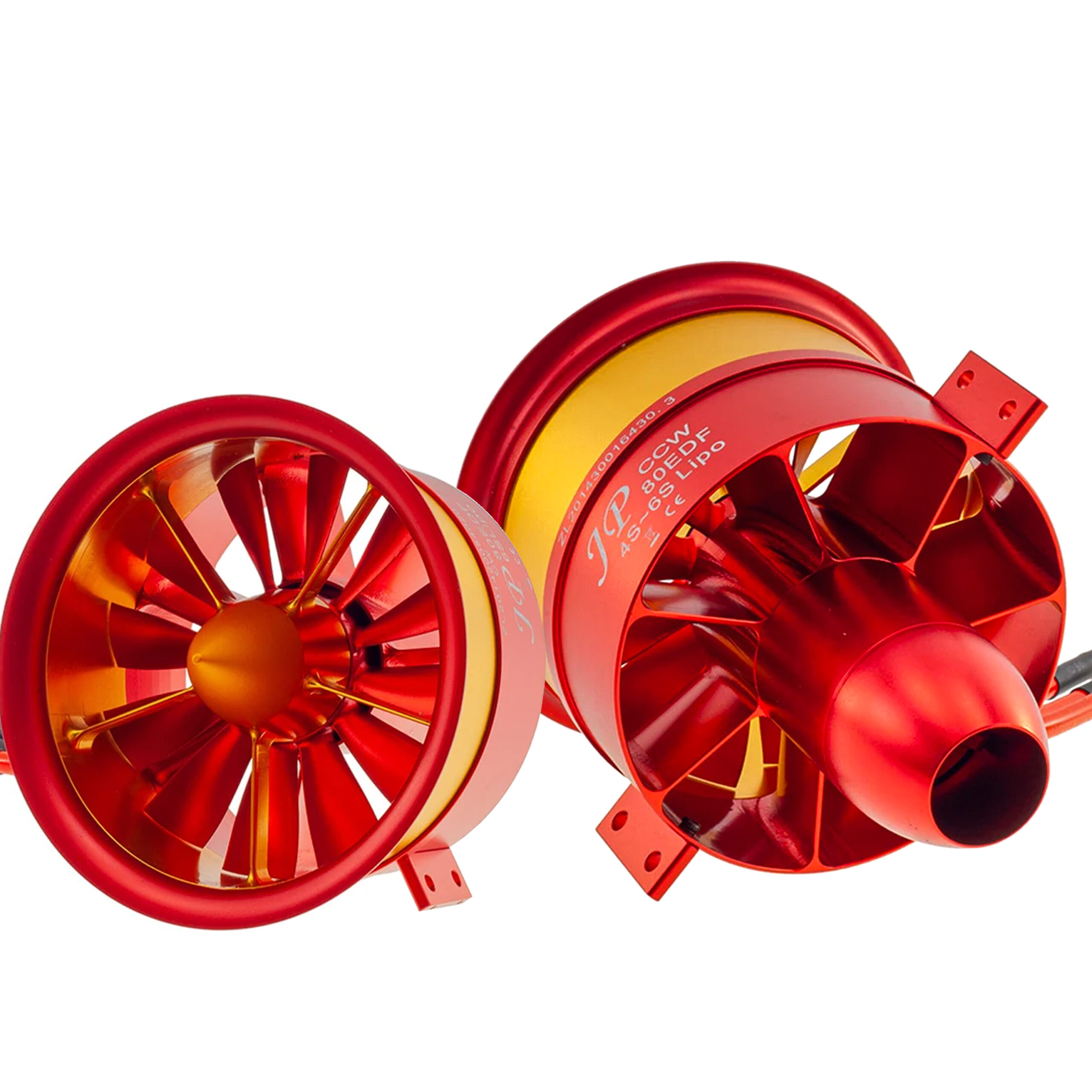

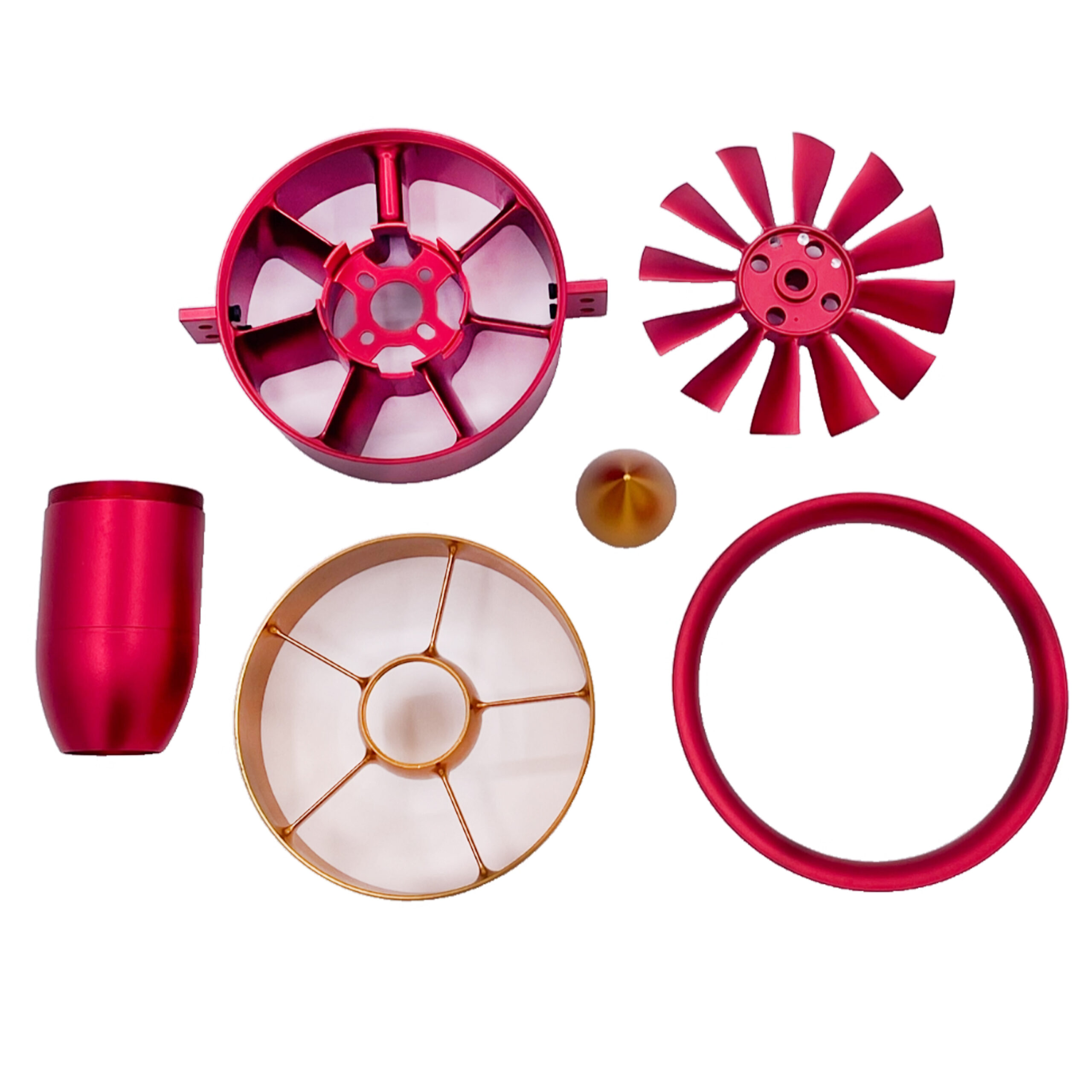

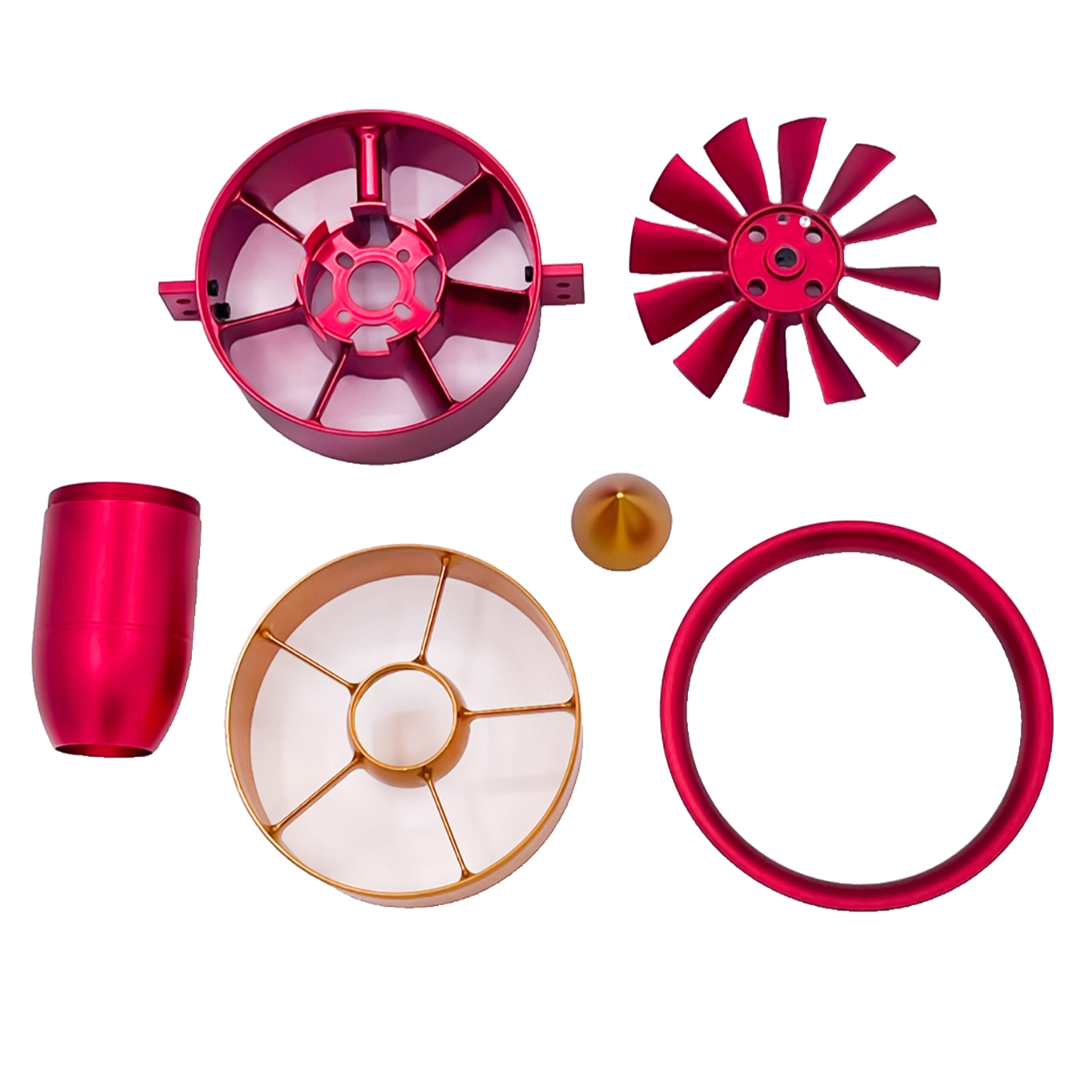

JP 70mm JP 80mm All-Metal EDF JP Metal Ducted 70mm 80mm Fan EDF Set Parts 12 Blade Motor Electric for RC Airplane Model Parts

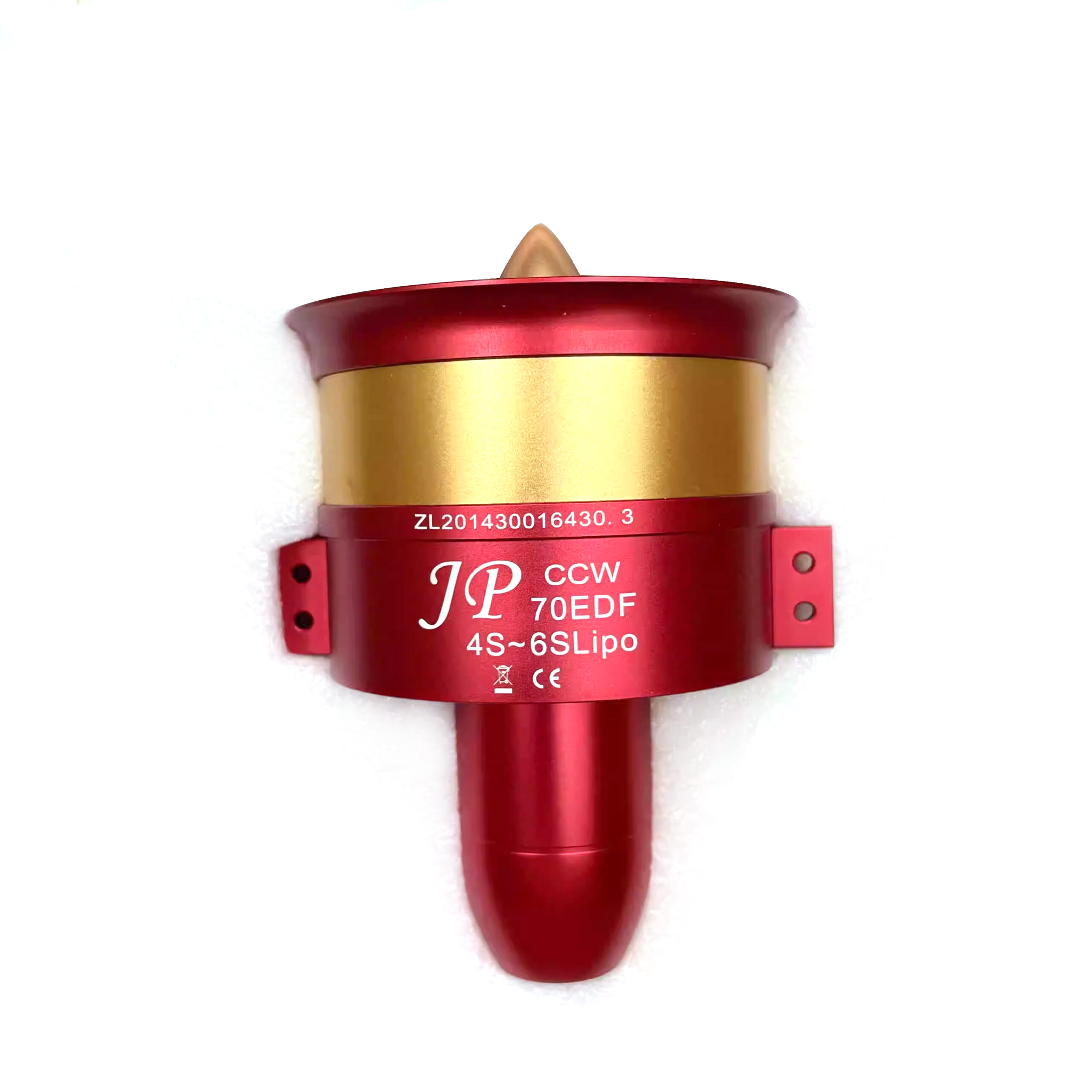

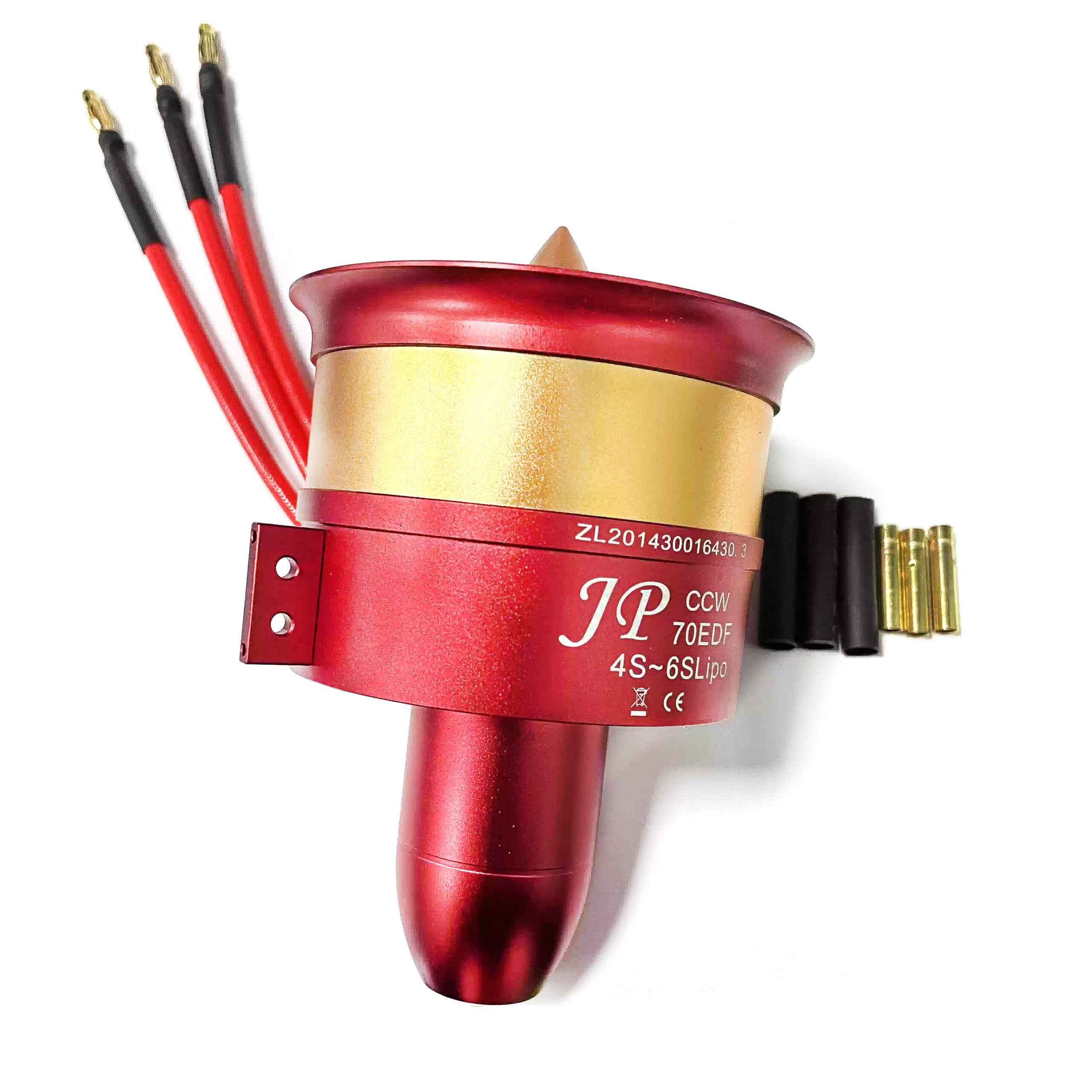

JP70mm All-Metal EDF
Specifications:
Operating voltage: 4S~6S lithium battery
Shell material: aluminum alloy
Fan blade: (fully metal 12-blade) dynamically balanced
Motor: 3055 2250KV
Weight: (232g)
Thrust: 22.2V, 72A, 2.3KG (test platform)
24V 82A 2.6KG (test platform)
Battery capacity: 6S 3300mah (improper use of excess capacity may burn the motor)

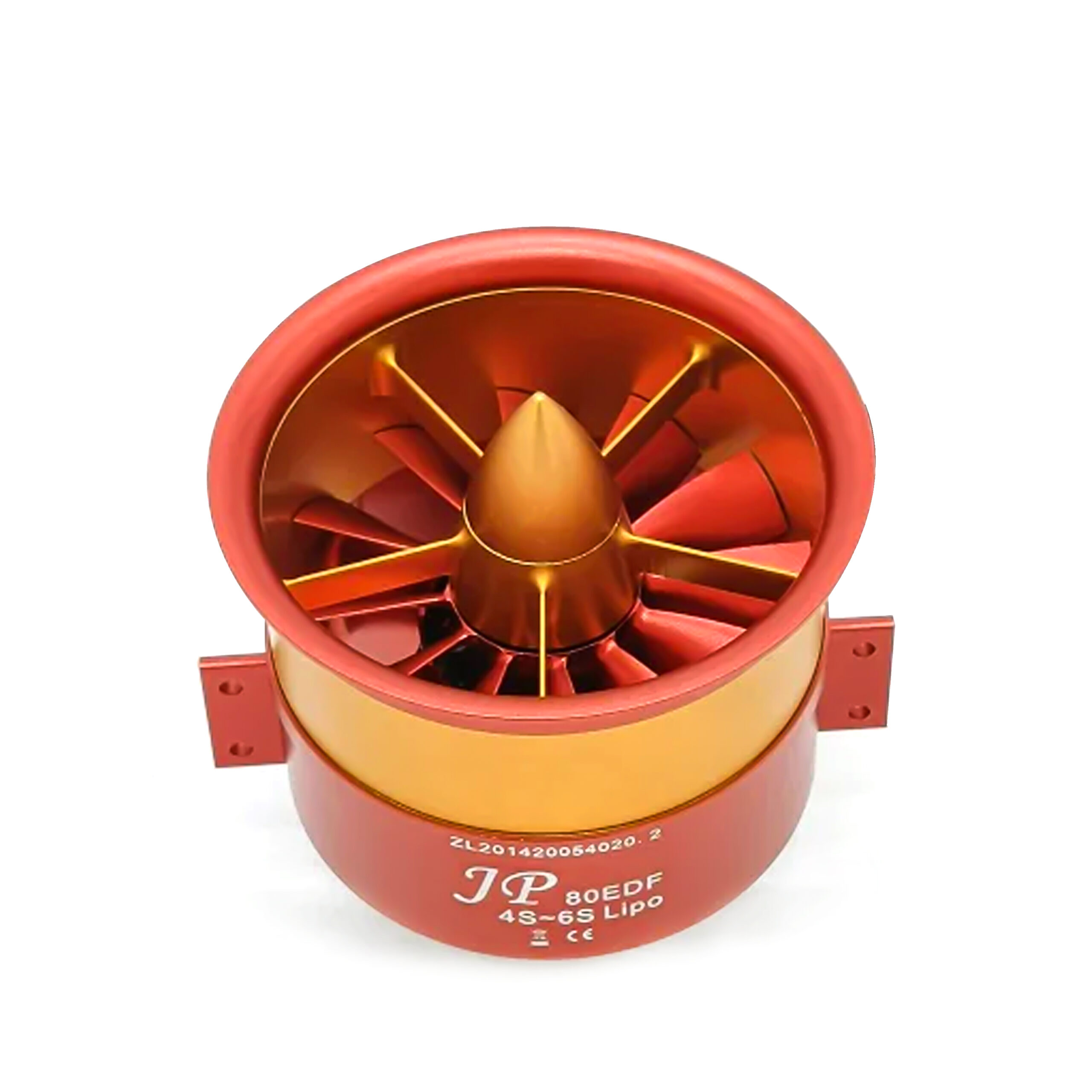

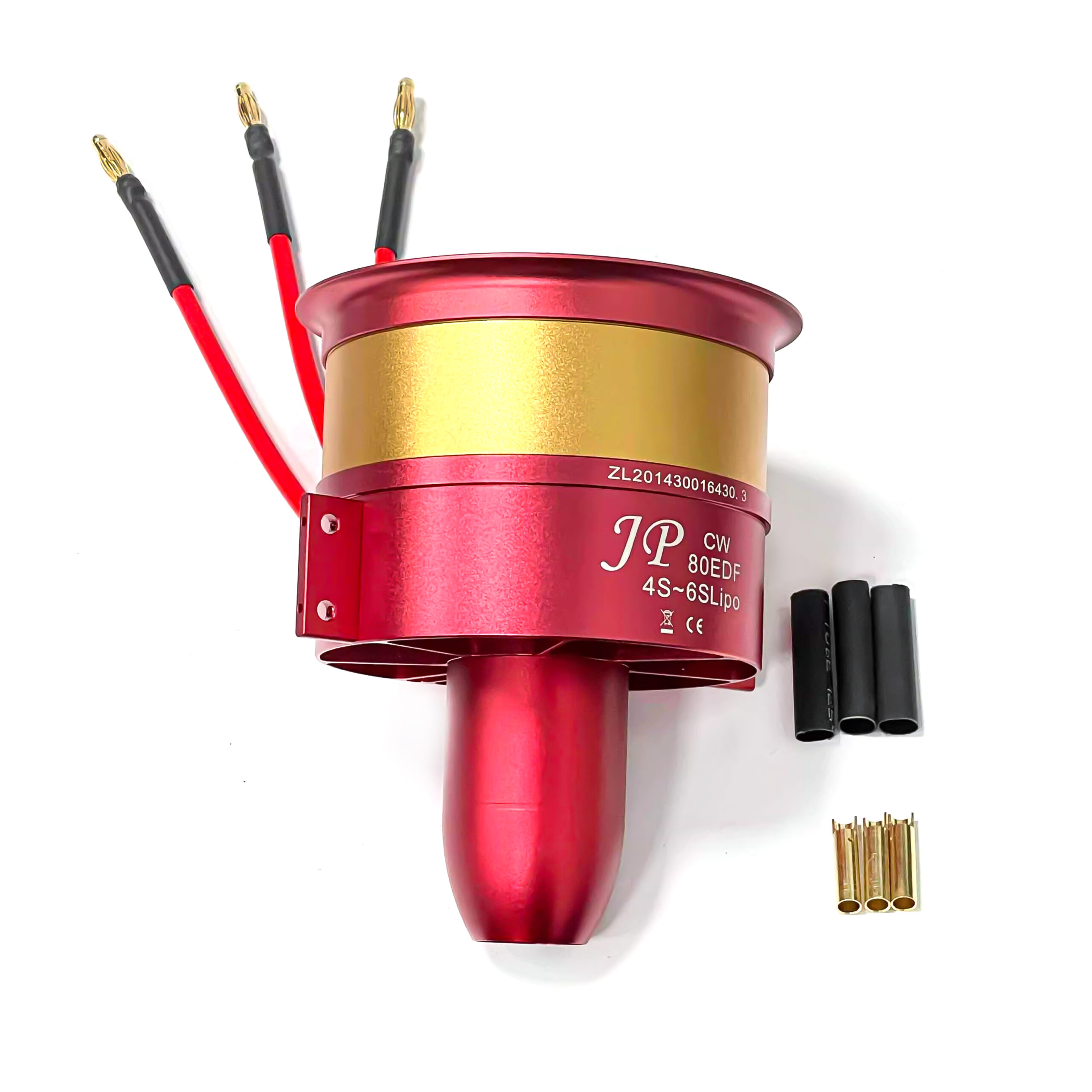

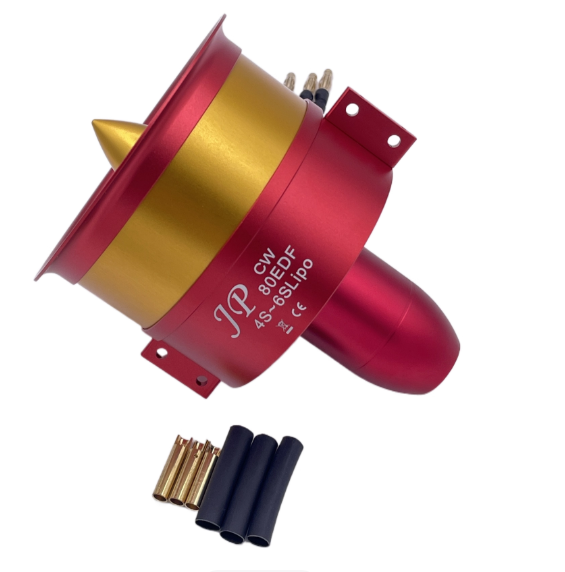

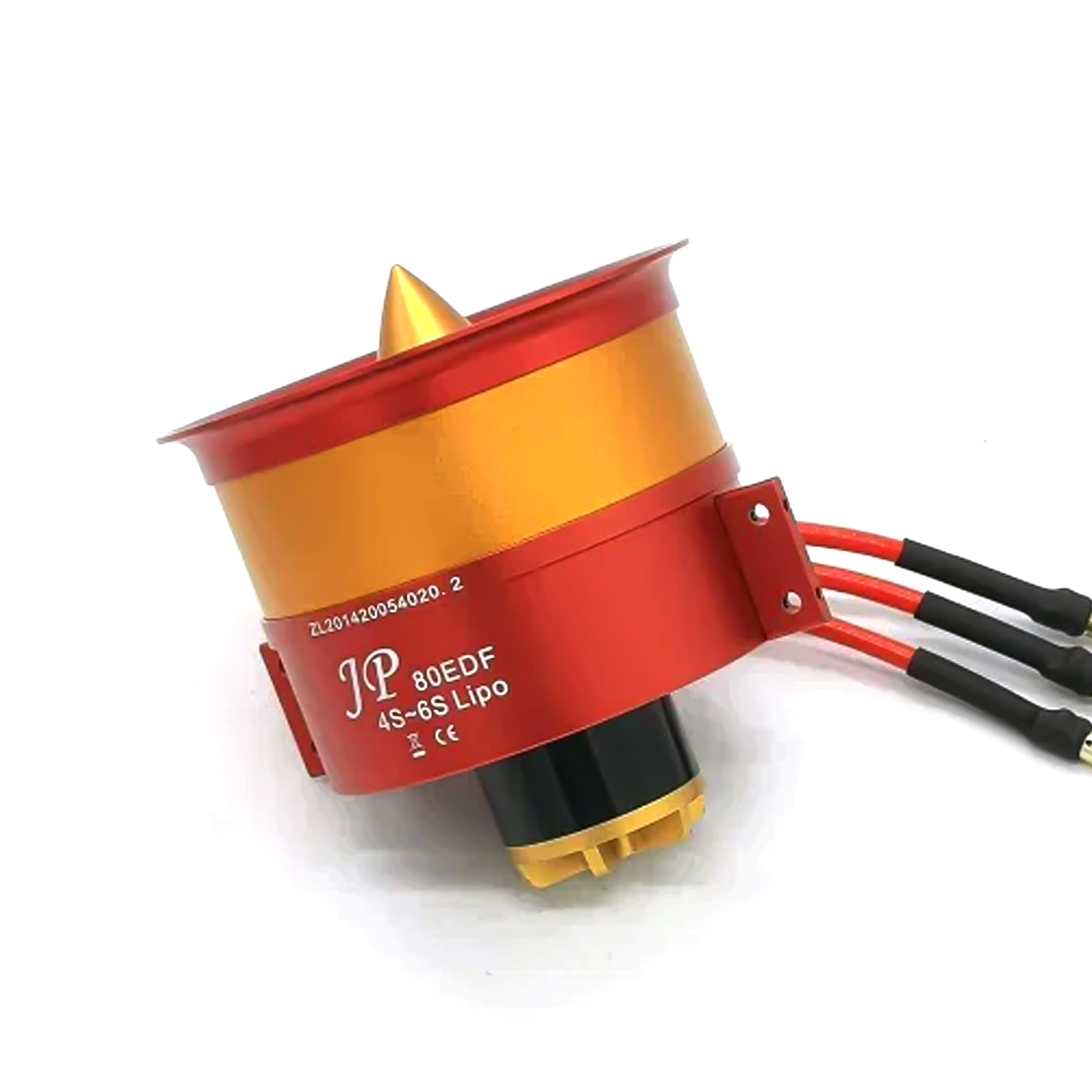

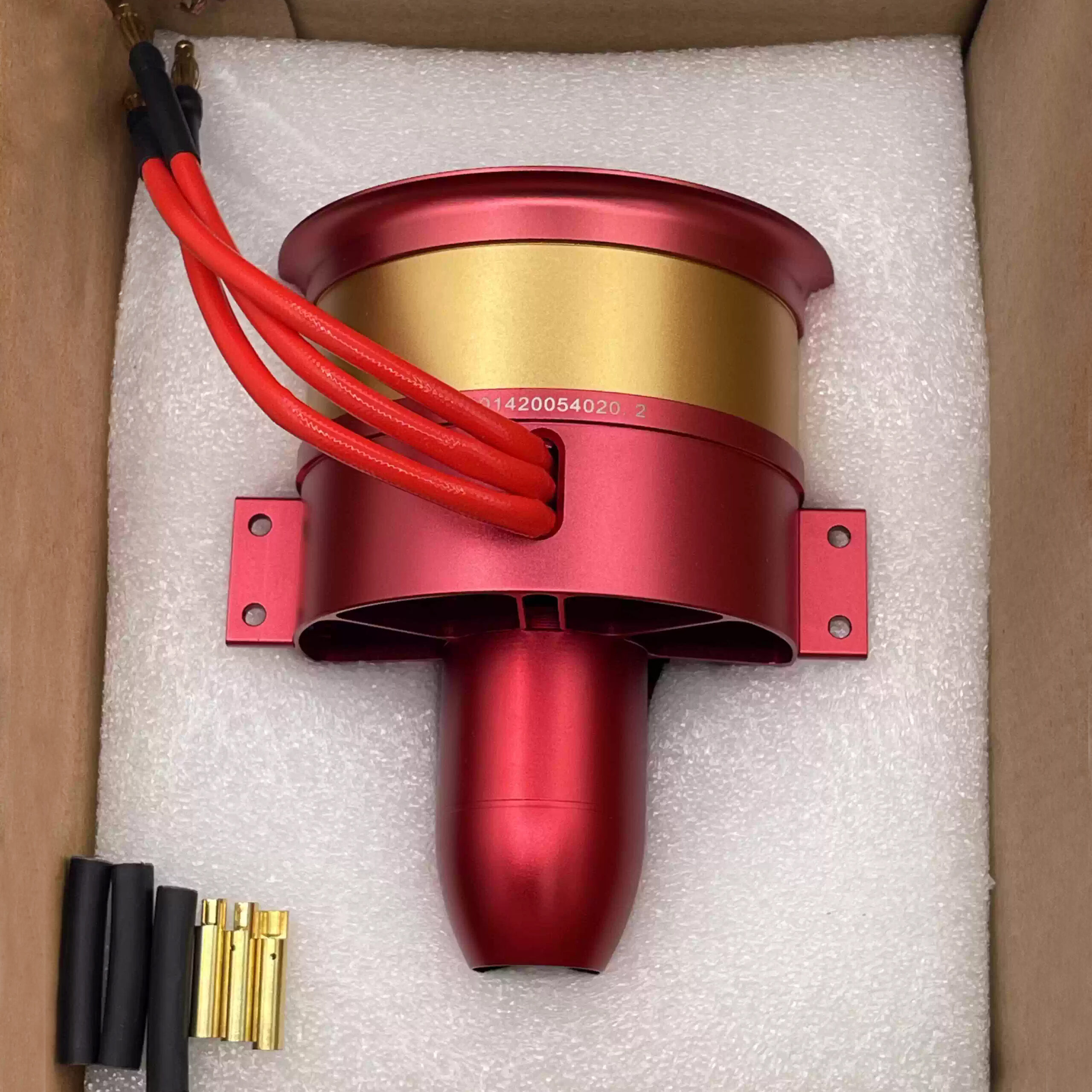

Model: JP80mm all-metal EDF
Operating voltage: 4S-6S lithium battery
Shell material: aluminum alloy
Fan blade: (fully metal 12-blade) dynamically balanced
Motor: 3055 2200KV
Weight: (250g)
Thrust: 22.2V, 92A, 2042W, 2.9KG (test platform)
24V, 103A, 2472W, 3.3KG (test platform)
Battery capacity: 6S 3300mah (improper use of excess capacity may burn the motor)
| Weight | 0.55 kg |
|---|---|
| Dimensions | 25 × 22 × 20 cm |
