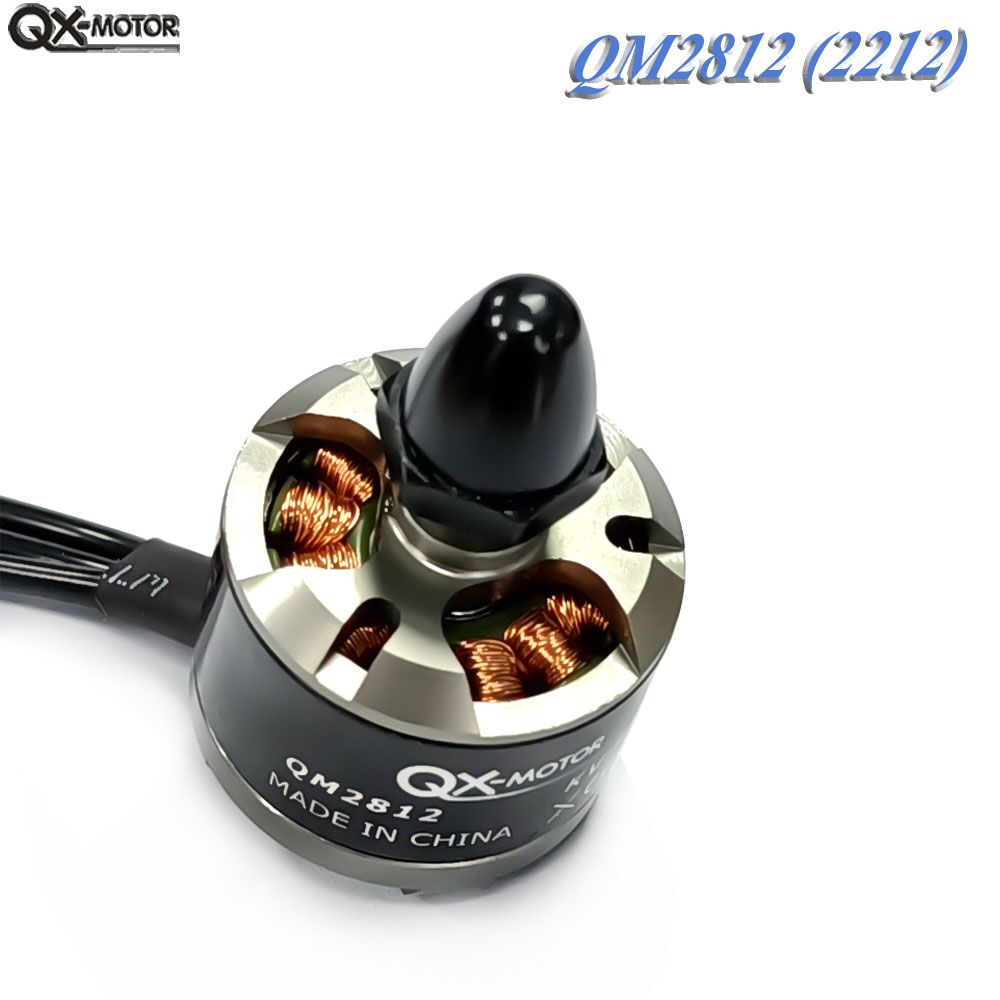

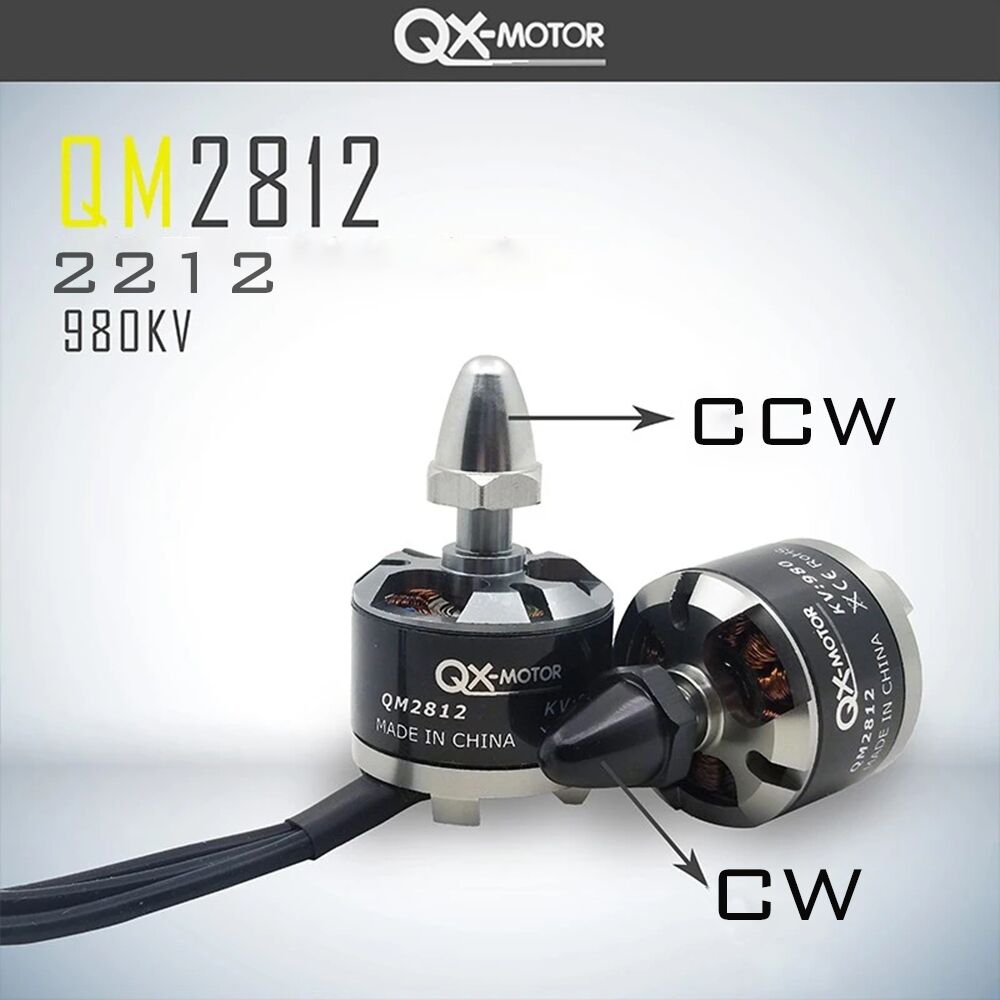

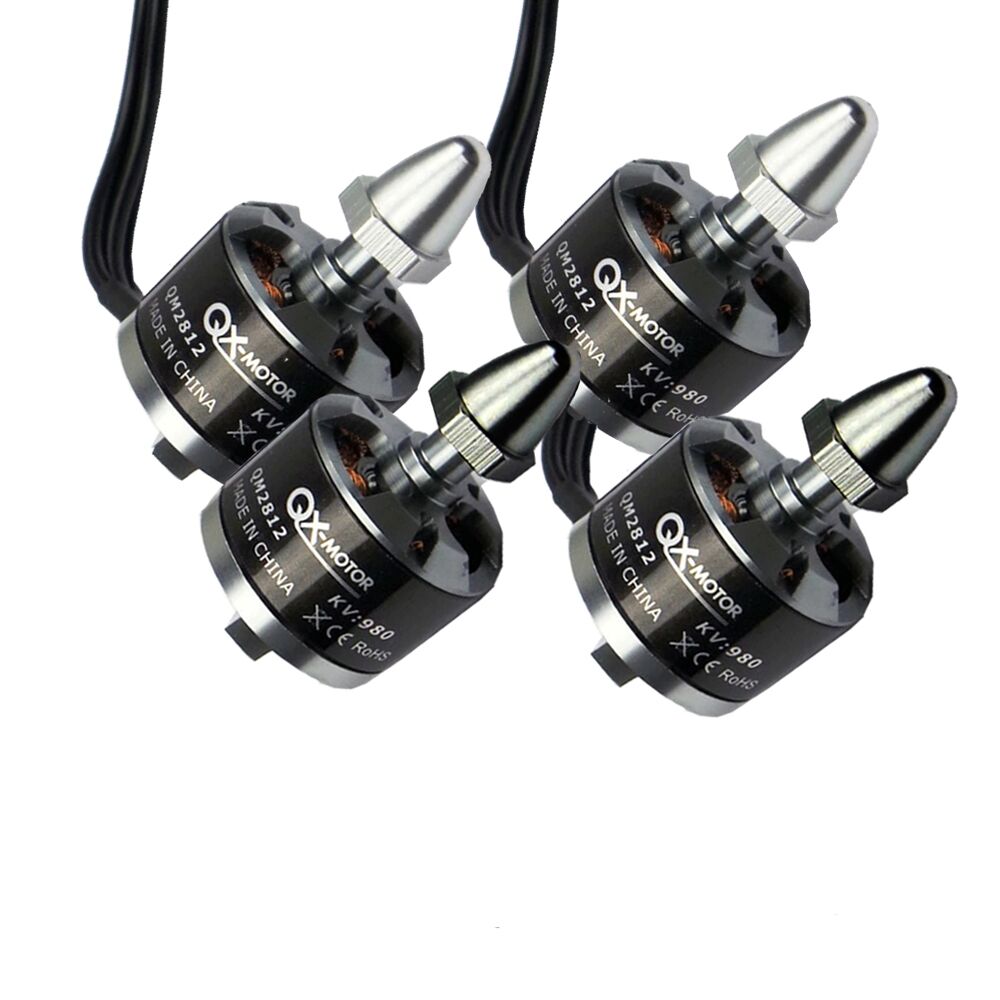

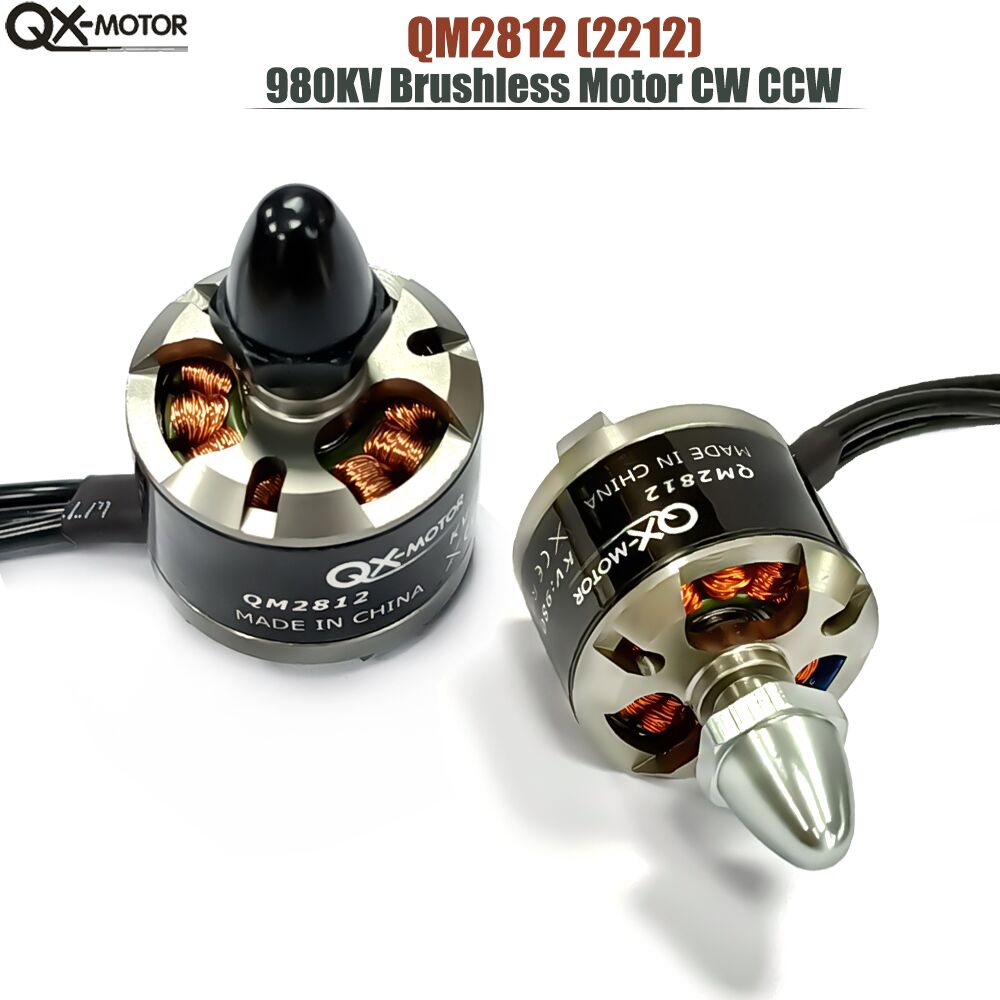

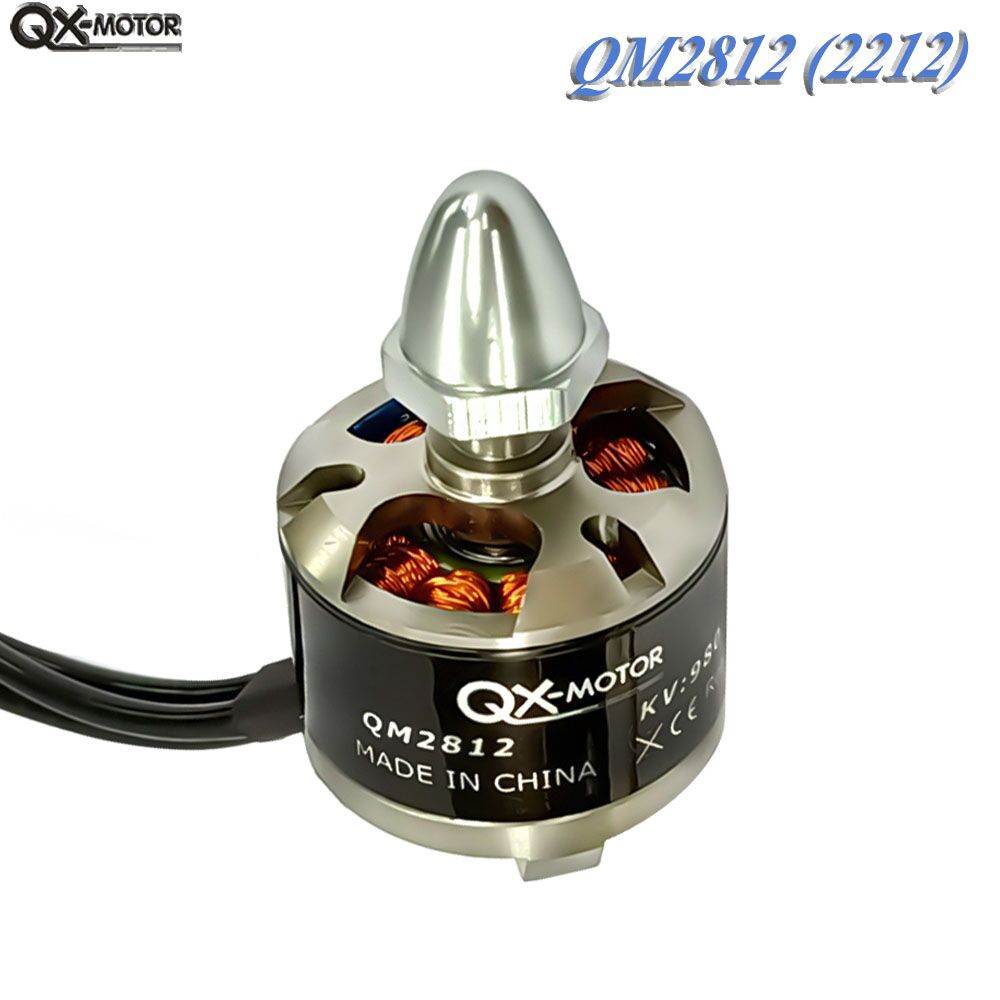

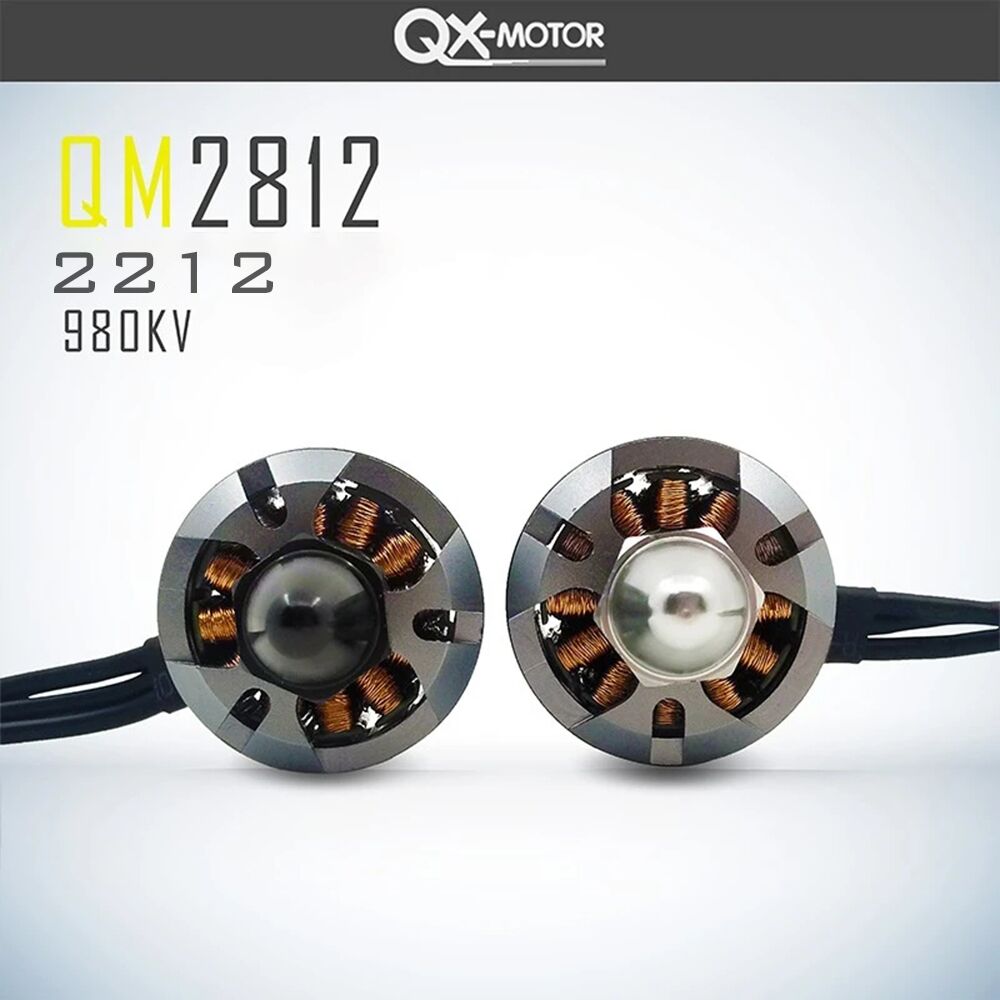

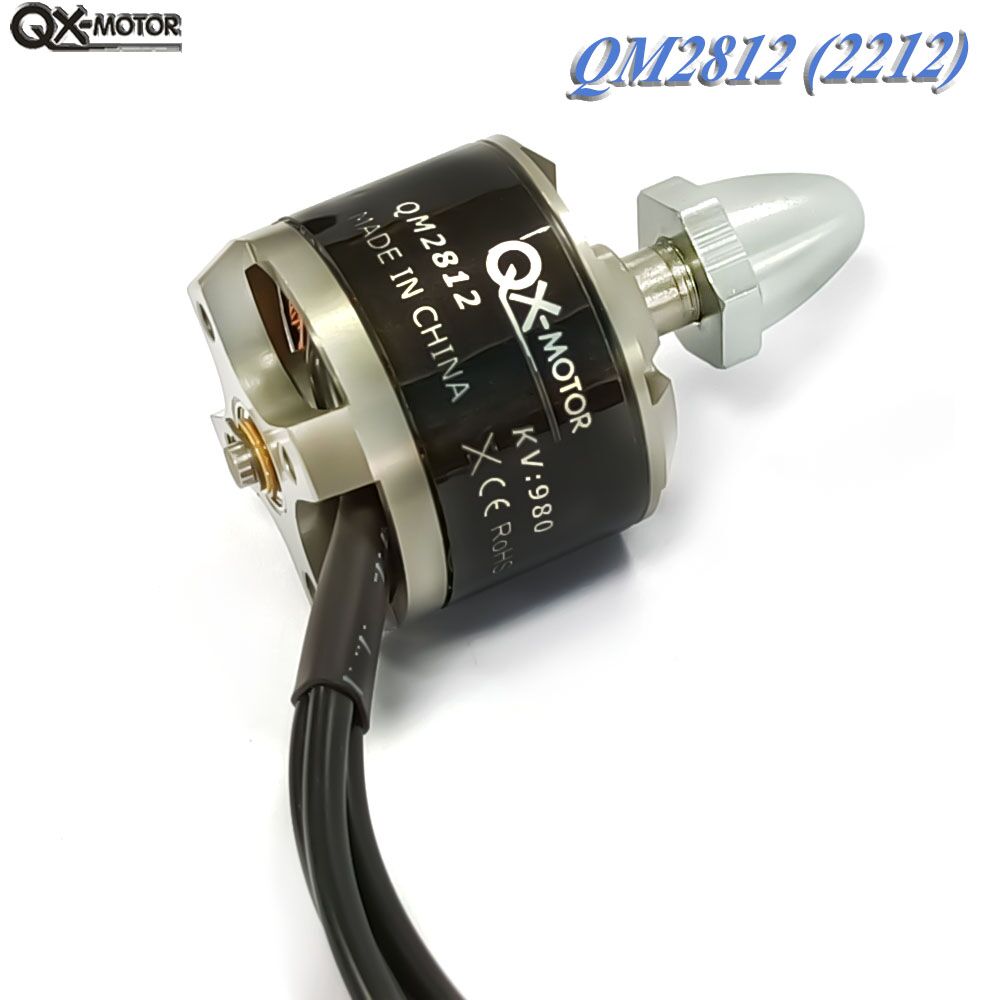

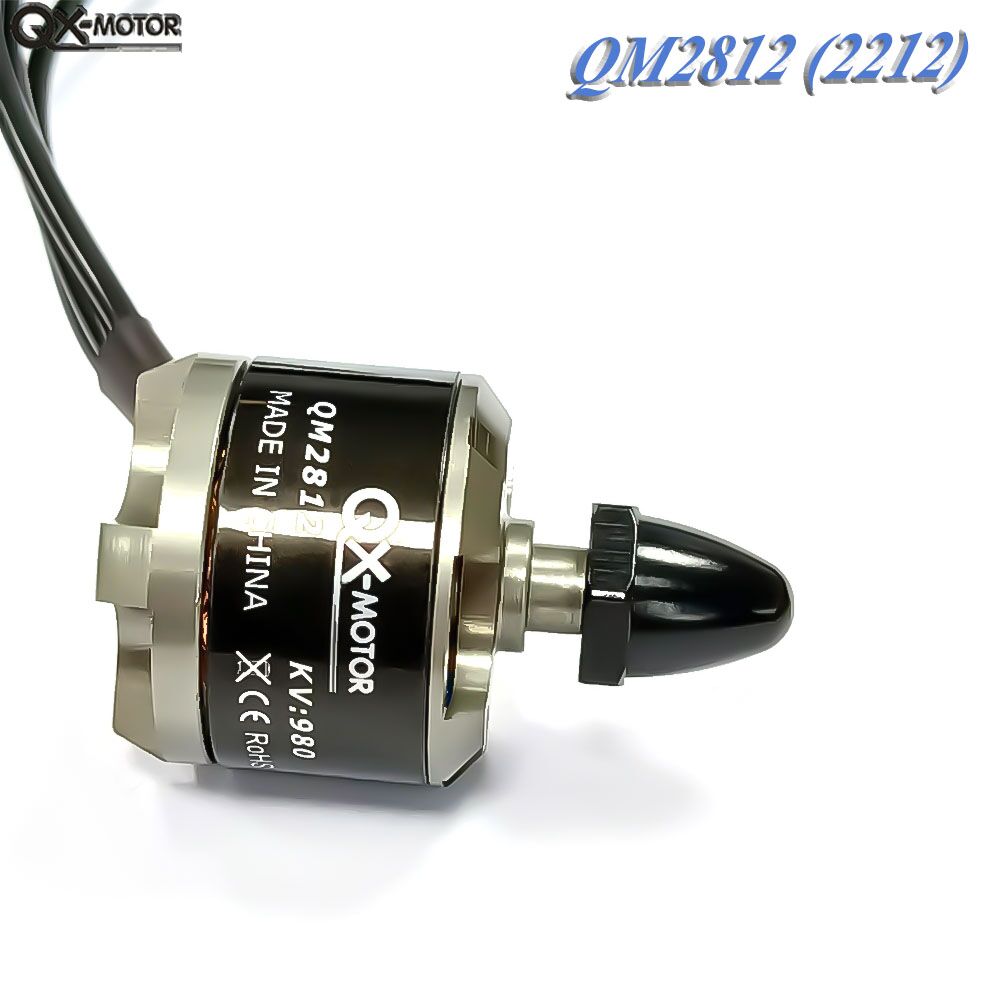

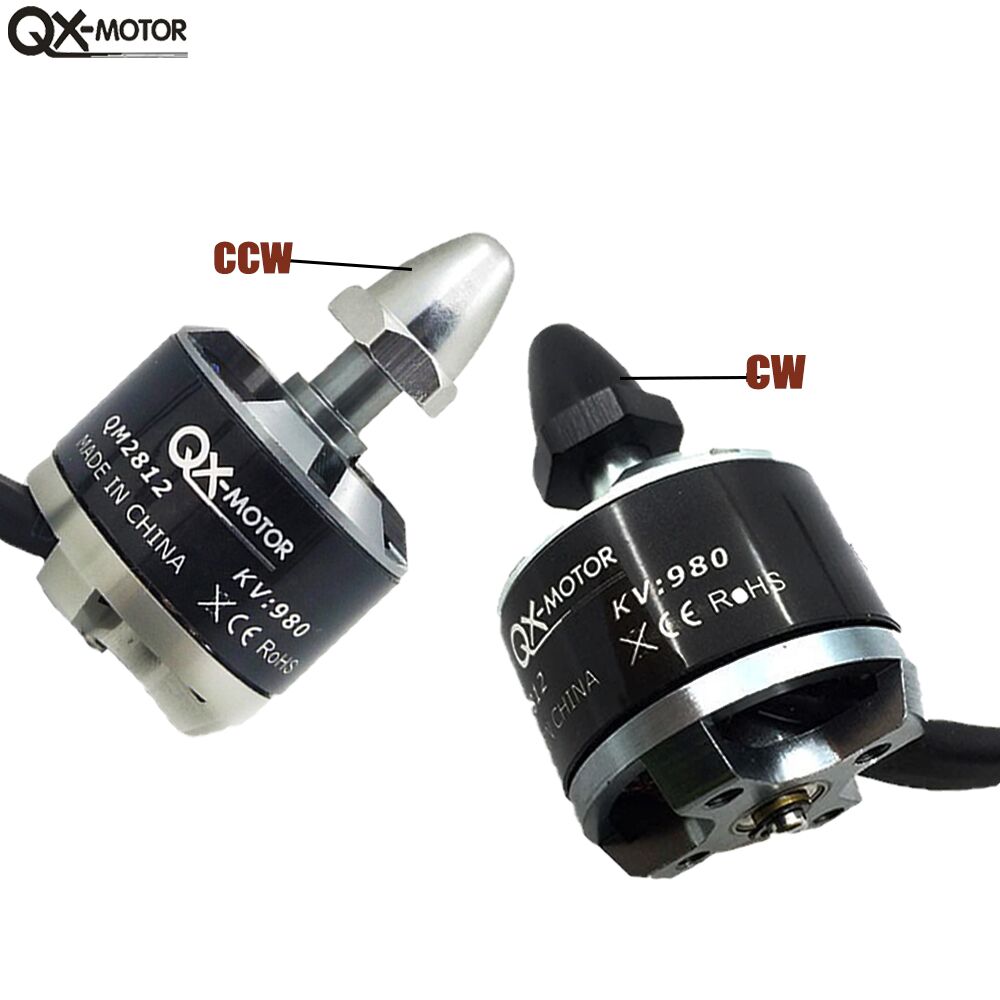

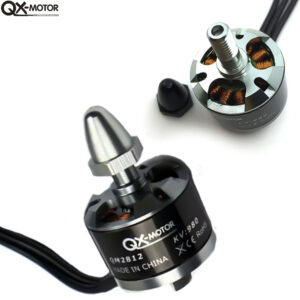

QX-Motor QM2812 2212 980KV Brushless Motor CW CCW for F330 F450 F550 Multicopter RC Drone Motor Parts
Model : QM2812
RPM ： 980KV
Configu -Ration : 12N14P
Shaft Diameter : 22mm
Stator Length : 12mm
Motor Diamension (Diaxl) : 28×40
Weight : 46g
Idle Current @10.0V : 0.4A
No.f cells : 2/4s Lipo
Max Continuous Power : 250W
Max Continuous Current : 21A
| Weight | 0.19 kg |
|---|---|
| Dimensions | 8 × 8 × 8 cm |

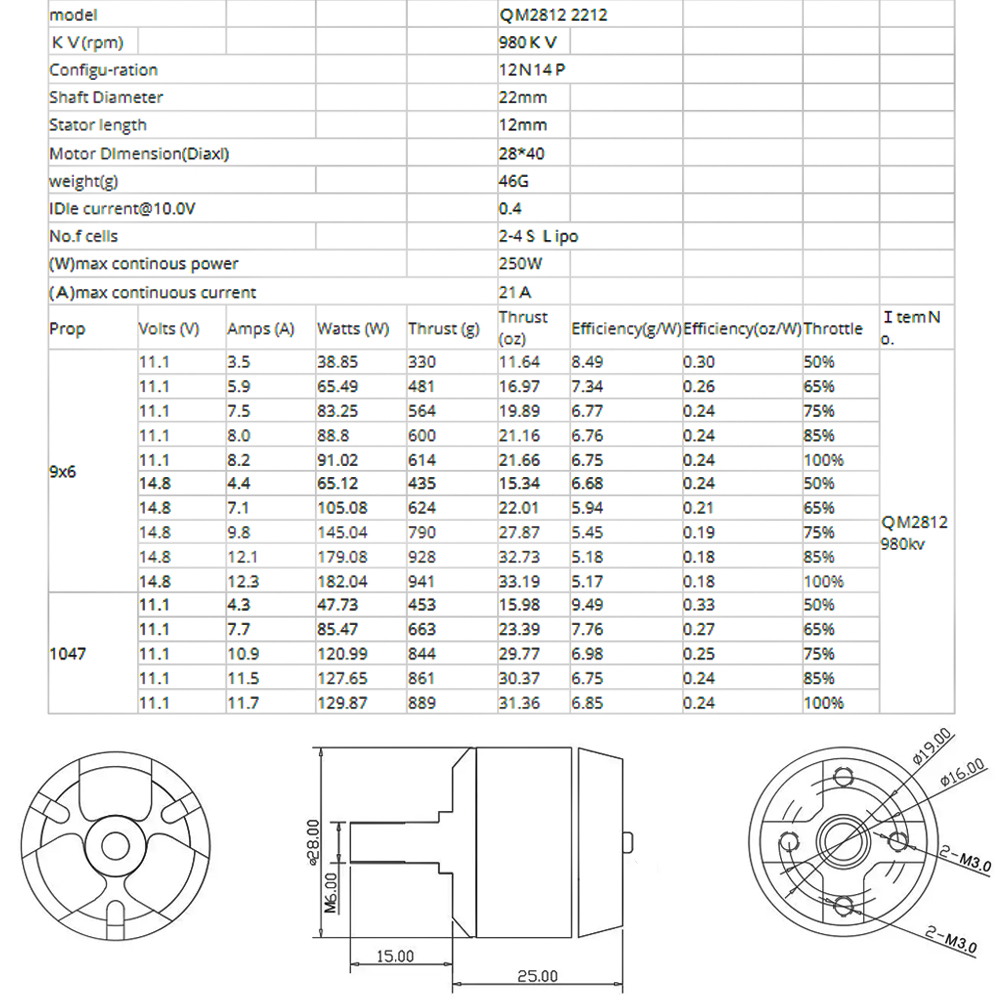

QX-Motor QM2812 2212 980KV Brushless Motor CW CCW for F330 F450 F550 Multicopter RC Drone Motor Parts
Model : QM2812
RPM ： 980KV
Configu -Ration : 12N14P
Shaft Diameter : 22mm
Stator Length : 12mm
Motor Diamension (Diaxl) : 28×40
Weight : 46g
Idle Current @10.0V : 0.4A
No.f cells : 2/4s Lipo
Max Continuous Power : 250W
Max Continuous Current : 21A
|

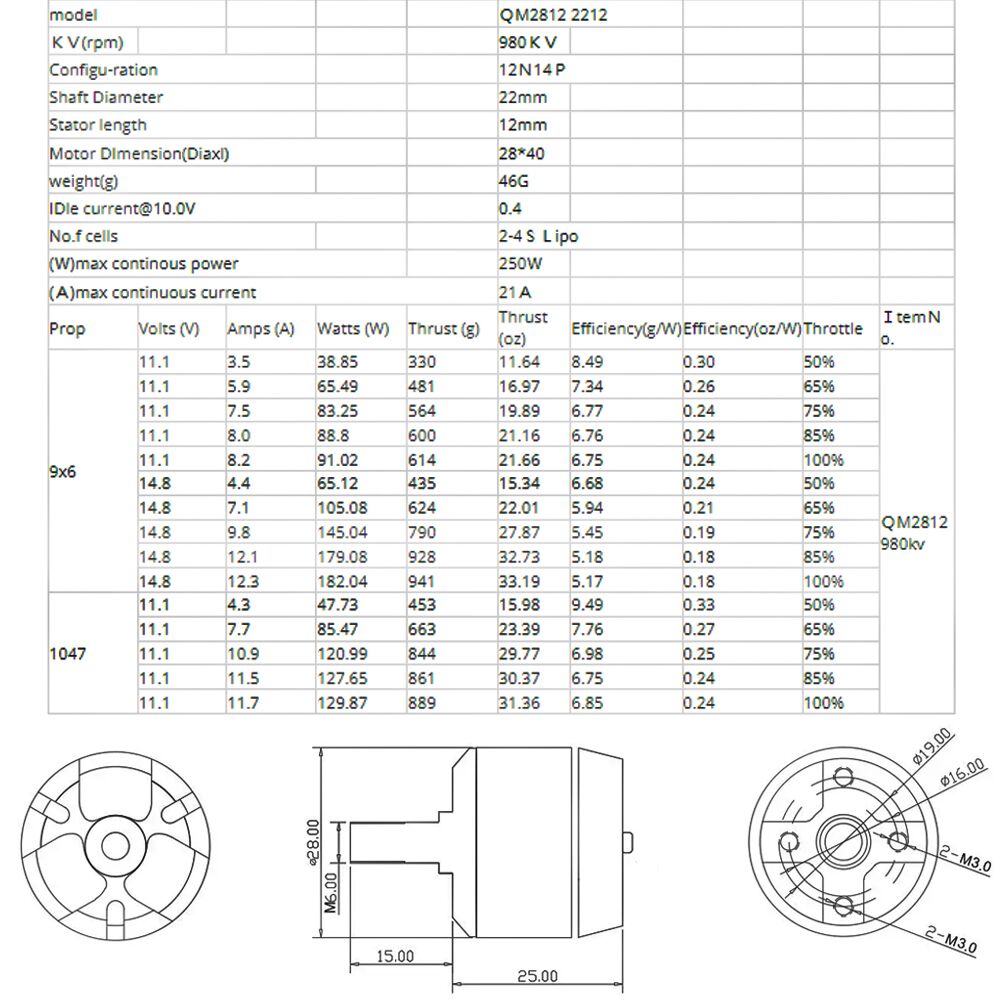

Prop |
Volts (V) |
Amps (A) |
Watts (W) |
Thrust (g) |
Thrust (oz) |
Efficiency (g/W) |
Efficiency (oz/W) |
Throttle |
ＩtemＮo. |
|
9×6 |
11.1 |
3.5 |
38.85 |
330 |
11.64 |
8.49 |
0.30 |
50% |
ＱM2812 980kv |
|
11.1 |
5.9 |
65.49 |
481 |
16.97 |
7.34 |
0.26 |
65% |
||
|
11.1 |
7.5 |
83.25 |
564 |
19.89 |
6.77 |
0.24 |
75% |
||
|
11.1 |
8.0 |
88.8 |
600 |
21.16 |
6.76 |
0.24 |
85% |
||
|
11.1 |
8.2 |
91.02 |
614 |
21.66 |
6.75 |
0.24 |
100% |
||
|
14.8 |
4.4 |
65.12 |
435 |
15.34 |
6.68 |
0.24 |
50% |
||
|
14.8 |
7.1 |
105.08 |
624 |
22.01 |
5.94 |
0.21 |
65% |
||
|
14.8 |
9.8 |
145.04 |
790 |
27.87 |
5.45 |
0.19 |
75% |
||
|
14.8 |
12.1 |
179.08 |
928 |
32.73 |
5.18 |
0.18 |
85% |
||
|
14.8 |
12.3 |
182.04 |
941 |
33.19 |
5.17 |
0.18 |
100% |
||
|
1047 |
11.1 |
4.3 |
47.73 |
453 |
15.98 |
9.49 |
0.33 |
50% |
|
|
11.1 |
7.7 |
85.47 |
663 |
23.39 |
7.76 |
0.27 |
65% |
||
|
11.1 |
10.9 |
120.99 |
844 |
29.77 |
6.98 |
0.25 |
75% |
||
|
11.1 |
11.5 |
127.65 |
861 |
30.37 |
6.75 |
0.24 |
85% |
||
|
11.1 |
11.7 |
129.87 |
889 |
31.36 |
6.85 |
0.24 |
100% |
