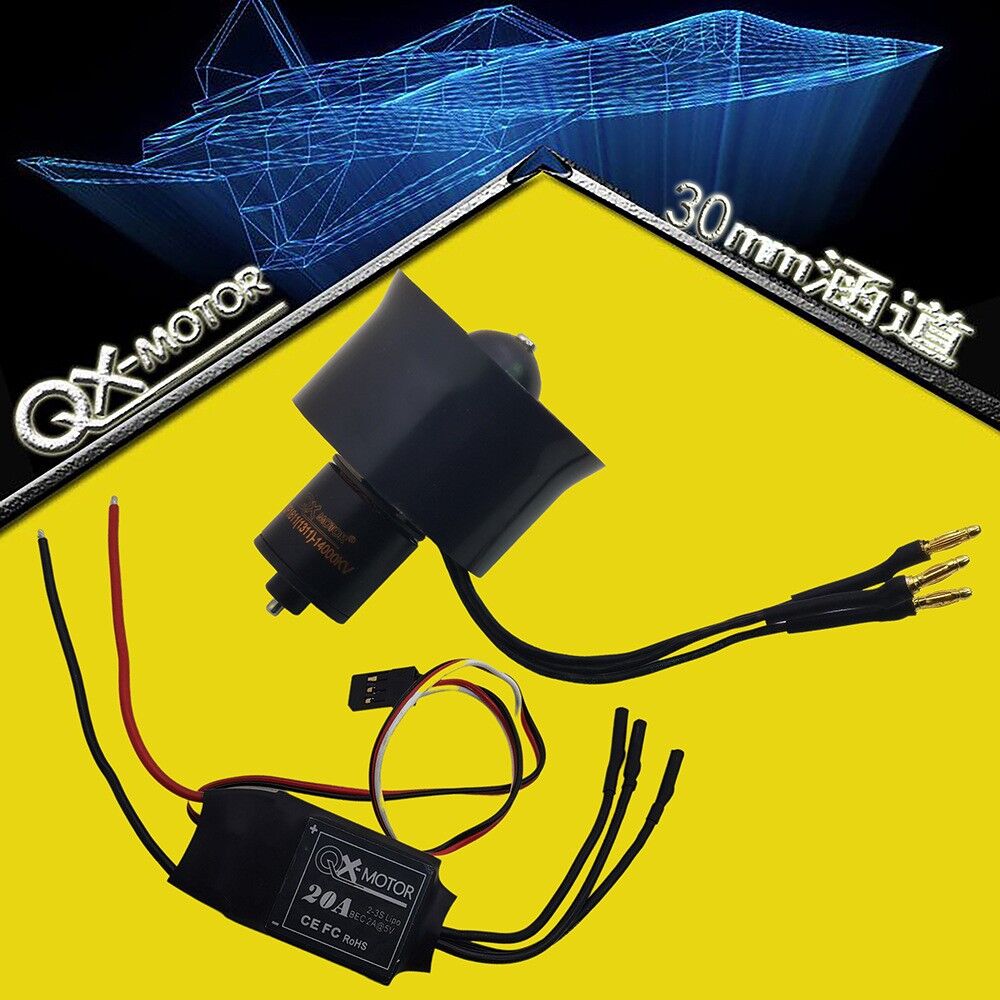

This 30mm EDF, equipped with 1611 motors of 5000KV, 6000KV, 7000KV, and 14000KV, has high efficiency, strong power, and stable balance.
| (model) | QF1611 | |||||||||
| ＫＶ(rpm) | 5000KV 6000KV 7000KV 14000KV | |||||||||
| (Configu-ration) | 9Ｎ6Ｐ | |||||||||
| (Shaft Diameter) | 1.5mm | |||||||||
| (motor Diameter) | 16.3mm | |||||||||
| (weight(g)) | 21.8G | |||||||||
| (No.f cells) | 2-4ＳＬipo | |||||||||
| (Ｗ)(max continuous power)/10S | 160W | |||||||||
| (Ａ)(max continuous current)/10S | 20A | |||||||||
| Prop | Volts (V) | Amps (A) | Watts (W) | Thrust (g) | Thrust (oz) | Efficiency (g/W) | Efficiency (oz/W) | Throttle | motor model | ESC |
| 30mm EDF | 7.4 | 19.3 | 142.82 | 215 | 7.58 | 1.51 | 0.05 | 100% | QF1611-14000KV | 20A |
| 11.1 | 11.2 | 124.32 | 220 | 7.76 | 1.77 | 0.06 | 100% | QF1611-7000KV | 20A | |
| 14.8 | 6.5 | 96.2 | 200 | 7.05 | 2.08 | 0.07 | 100% | QF1611-5000KV | 20A/4S | |
| 14.8 | 9.7 | 143.56 | 265 | 9.35 | 1.85 | 0.07 | 100% | QF1611-6000KV | 20A/4S | |
| Model | 30mm EDF with 20A ESC |
|---|---|
| KV(RPM) | 14000KV, 5000KV, 6000KV, 7000KV |
| Configuration | 9N6P |
| Shaft Diameter | 1.5mm |
| Motor Diameter | 16.3mm |
| Weight | 21.8g |
| No. of Cells | 2-4S Lipo |
| Max Continuous Power/10S | 160W |
| Max Continuous Current/10S | 20A |
| Prop | Volts (V) | Amps (A) | Watts (W) | Thrust (g) | Thrust (oz) | Efficiency (g/W) | Efficiency (OZ/W) | Throttle | Motor model | ESC |
| 30mm EDF (6 blades) | 7.4 | 19.3 | 142.82 | 215 | 7.58 | 1.51 | 0.05 | 100% | QF1611-14000KV | 20A |
| 11.1 | 11.2 | 124.32 | 220 | 7.76 | 1.77 | 0.06 | 100% | QF1611-7000KV | 20A | |
| 14.8 | 6.5 | 96.2 | 200 | 7.05 | 2.08 | 0.07 | 100% | QF1611-5000KV | 20A/4S | |
| 14.8 | 9.7 | 143.56 | 265 | 9.35 | 1.85 | 0.07 | 100% | QF1611-6000KV | 20A/4S |
| (model) | QF1611 | |||||||||
| ＫＶ(rpm) | 5000KV 6000KV 7000KV 14000KV | |||||||||
| (Configu-ration) | 9Ｎ6Ｐ | |||||||||
| (Shaft Diameter) | 1.5mm | |||||||||
| (motor Diameter) | 16.3mm | |||||||||
| (weight(g)) | 21.8G | |||||||||
| (No.f cells) | 2-4ＳＬipo | |||||||||
| (Ｗ)(max continuous power)/10S | 160W | |||||||||
| (Ａ)(max continuous current)/10S | 20A | |||||||||
| Prop | Volts (V) | Amps (A) | Watts (W) | Thrust (g) | Thrust (oz) | Efficiency (g/W) | Efficiency (oz/W) | Throttle | motor model | ESC |
| 30mm EDF | 7.4 | 19.3 | 142.82 | 215 | 7.58 | 1.51 | 0.05 | 100% | QF1611-14000KV | 20A |
| 11.1 | 11.2 | 124.32 | 220 | 7.76 | 1.77 | 0.06 | 100% | QF1611-7000KV | 20A | |
| 14.8 | 6.5 | 96.2 | 200 | 7.05 | 2.08 | 0.07 | 100% | QF1611-5000KV | 20A/4S | |
| 14.8 | 9.7 | 143.56 | 265 | 9.35 | 1.85 | 0.07 | 100% | QF1611-6000KV | 20A/4S | |
