Dynamic balance within 10mg
High-efficiency value
Resistant to 180° high temperature

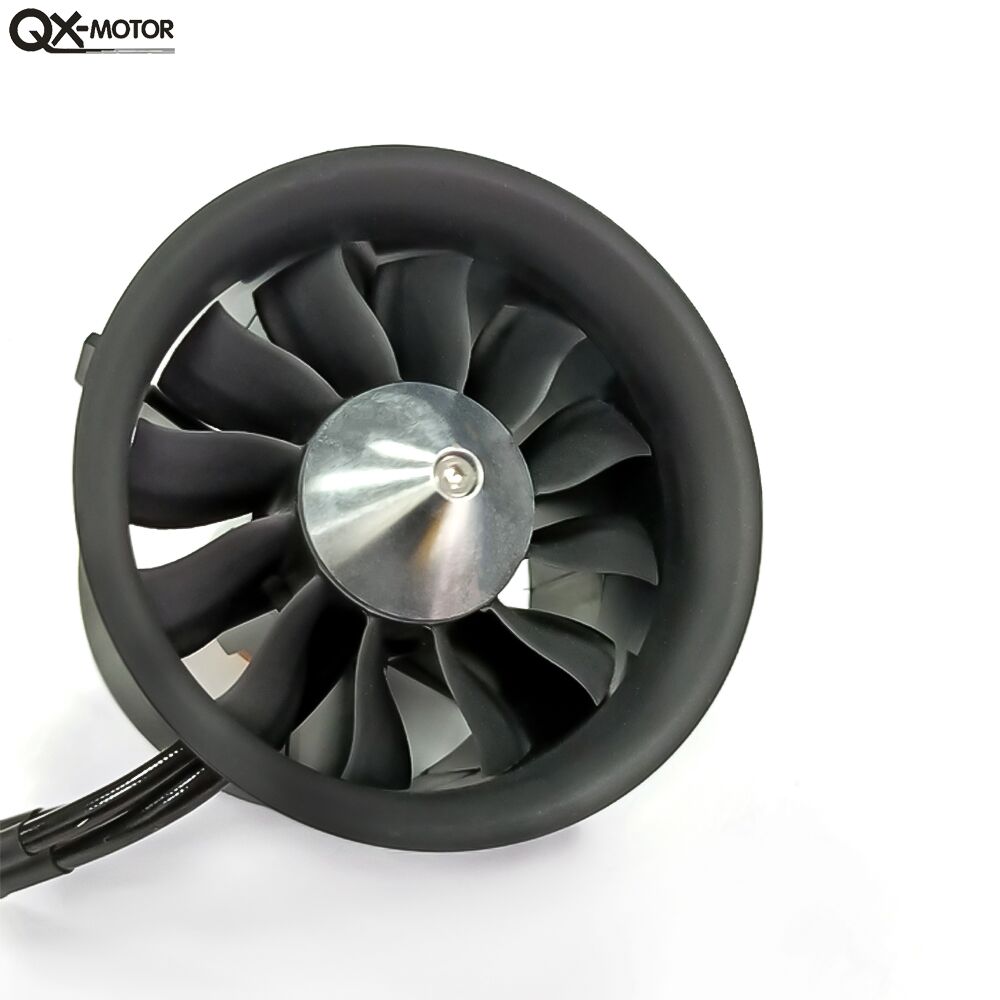

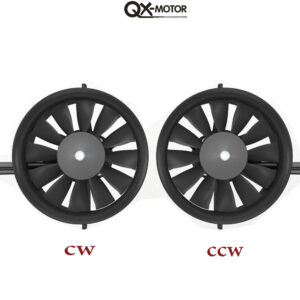

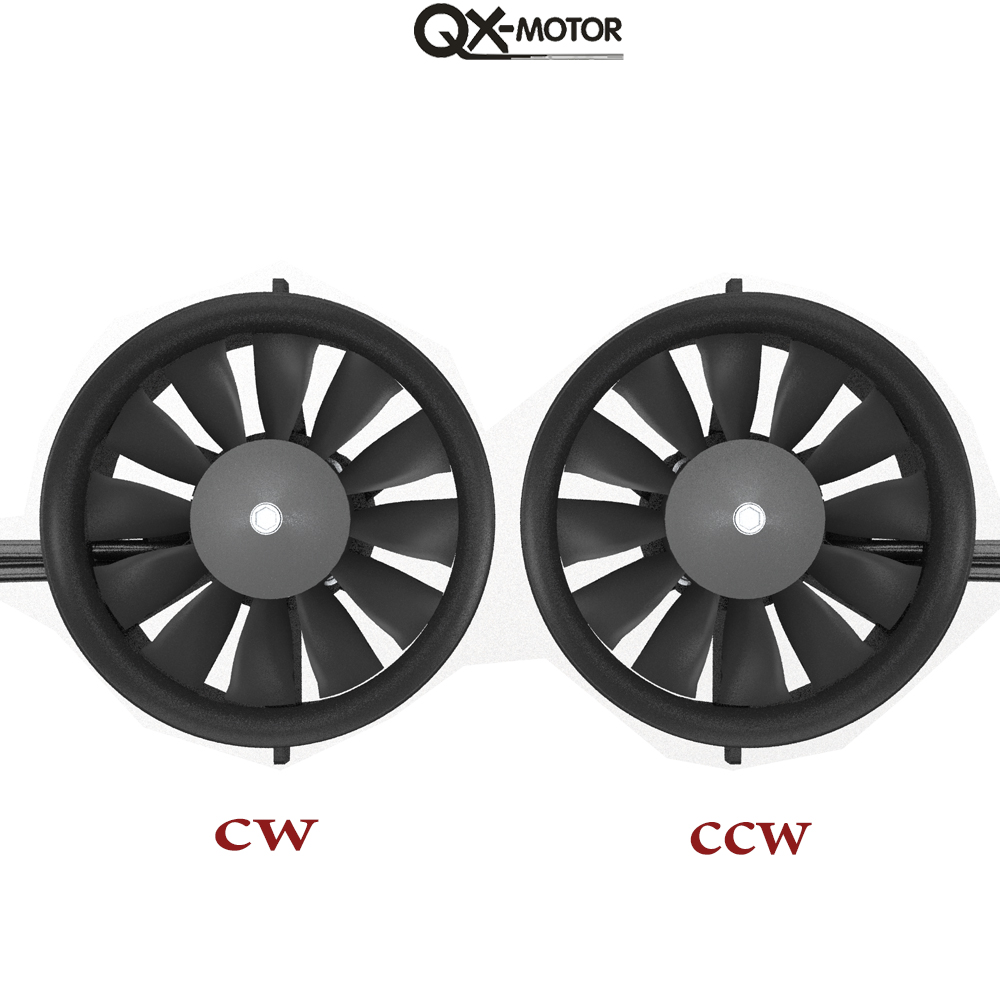

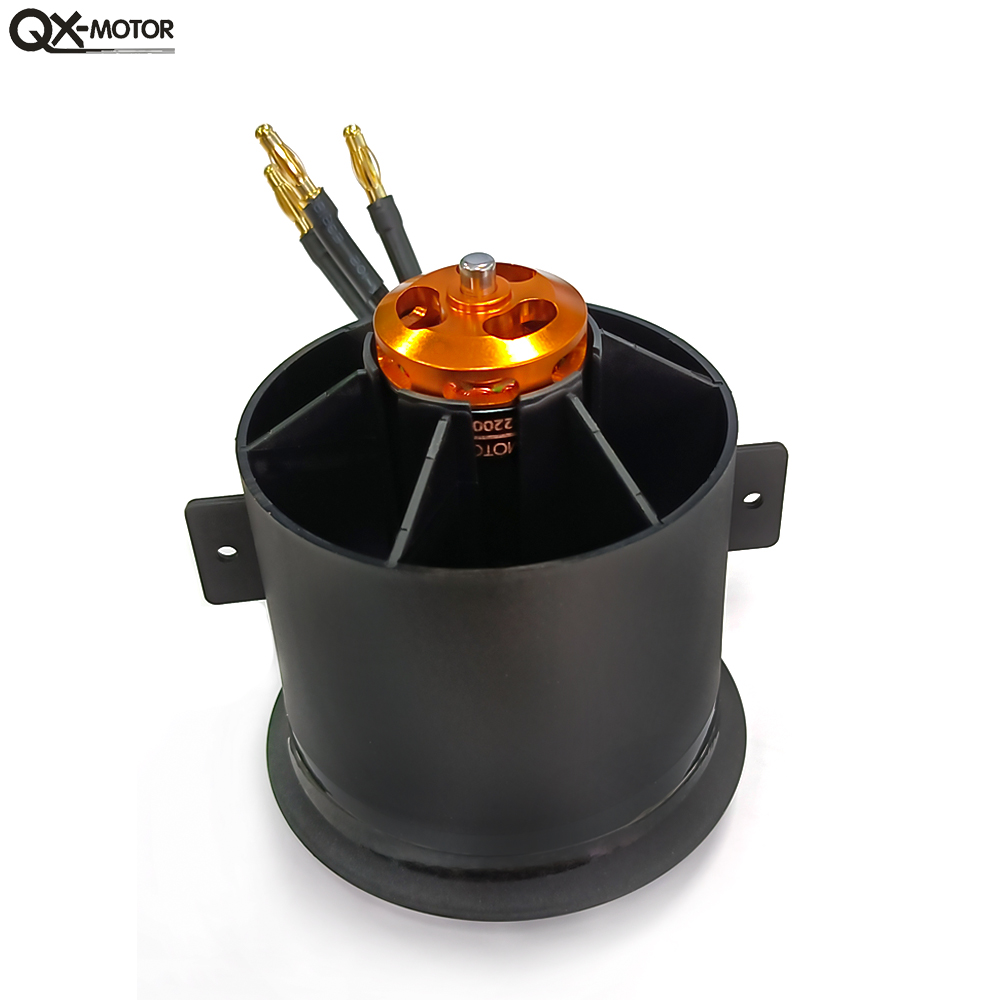

Can be used with a 70mm ducted fan with 12-blade positive and negative blade

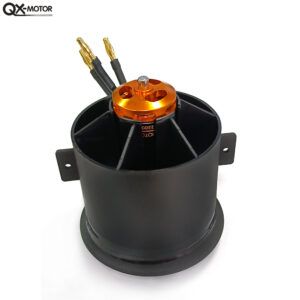

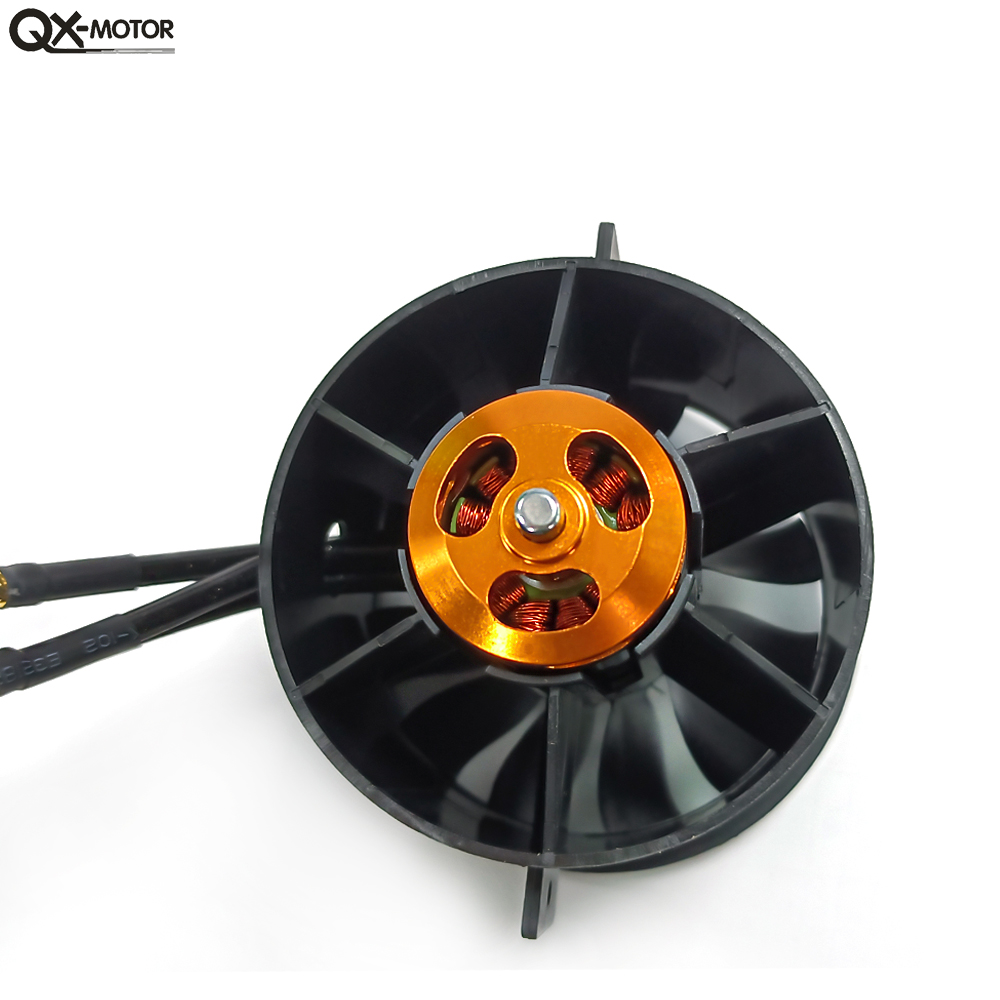

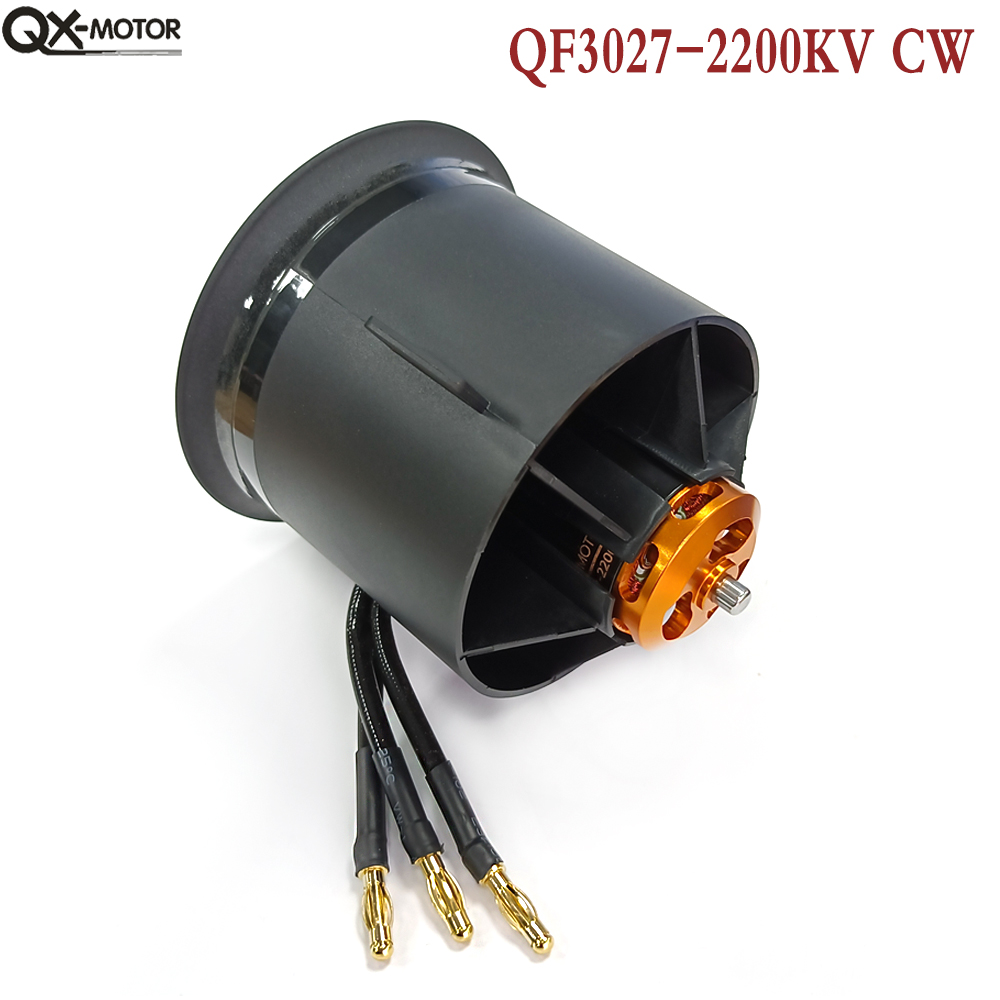

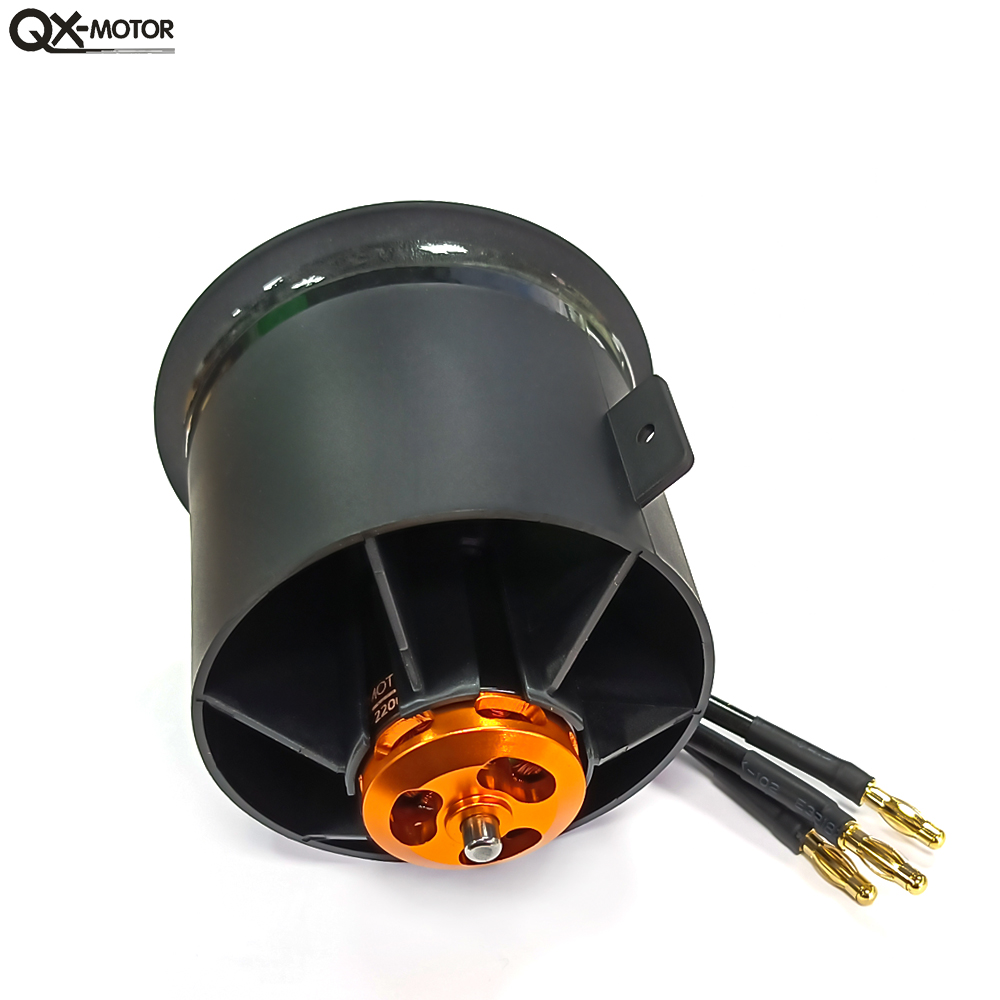

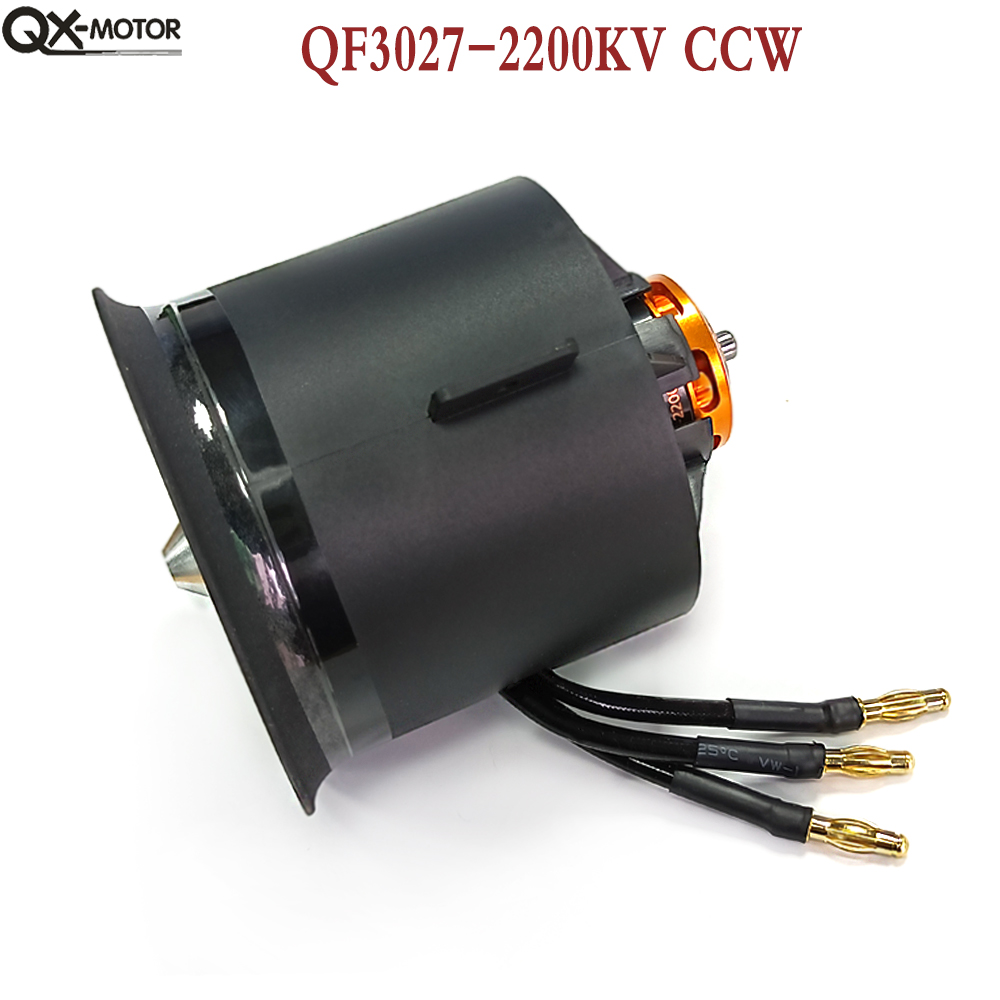

Model | QF3027-2200KV Brushless Motor |
---|---|
KV(RPM) | 2200KV |
Configuration | 9N6P |
Shaft Diameter | Φ4.0mm |
Motor Diameter | 30mm |
Weight | 209g |
No. of Cells | 6S Lipo |
Max Continuous Power/10S | 220W |
Max Continuous Current/10S | 88A |
Prop | Volts (V) |
Amps (A) |
Watts (W) |
Thrust (g) |
Thrust (oz) |
Efficiency (g/W) |
Efficiency (OZ/W) |
Motor model | ESC |
70mm EDF (12 blades) |
14.8 | 37.0 | 547.6 | 1290 | 45.5 | 2.36 | 0.08 | QF3027-2200KV | 100A |
22.2 | 72.0 | 1598.4 | 2700 | 95.24 | 1.69 | 0.06 | |||
25.2 | 89.0 | 2242.8 | 3300 | 116.4 | 1.47 | 0.05 |
