| Prop | Volts (V) |
Amps (A) |
Watts (W) |
Thrust (g) |
Thrust (oz) |
Efficiency (g/W) |
Efficiency (OZ/W) |
Motor model | ESC |
| 64mm EDF (12 blades) |
11.1 | 16.6 | 184.28 | 576 | 20.32 | 3.13 | 0.11 | QF2822-2200KV | 60A |
| 14.8 | 25.0 | 370 | 951 | 33.54 | 2.57 | 0.09 | |||
| 22.2 | 47.0 | 1043.4 | 1870 | 65.96 | 1.79 | 0.06 | |||
| 11.1 | 19.0 | 210.9 | 678 | 23.92 | 3.21 | 0.11 | QF2822-2400KV | 60A | |
| 14.8 | 30.0 | 444 | 1130 | 39.86 | 2.55 | 0.09 | |||
| 22.2 | 57.0 | 1265.4 | 2135 | 75.31 | 1.69 | 0.06 | |||
| 14.8 | 55.0 | 814 | 1570 | 55.38 | 1.93 | 0.07 | QF2822-3500KV | 80A | |
| 16 | 66.0 | 1056 | 1810 | 63.84 | 1.71 | 0.06 | |||
| 11.1 | 40.0 | 444 | 1045 | 36.86 | 2.35 | 0.08 | QF2822-3800KV | 80A | |
| 12.6 | 49.3 | 621.18 | 1296 | 45.71 | 2.09 | 0.07 | |||
| 14.8 | 63.5 | 939.8 | 1702 | 60.04 | 1.81 | 0.06 | |||
| 16 | 70.0 | 1120 | 1925 | 67.9 | 1.72 | 0.06 | |||
| 11.1 | 55.0 | 610.5 | 1230 | 43.39 | 2.01 | 0.07 | QF2822-4300KV | 80A | |
| 12.6 | 68.0 | 856.8 | 1550 | 54.67 | 1.81 | 0.06 |
| Weight | 0.39 kg |
|---|---|
| Dimensions | 15 × 12 × 10 cm |

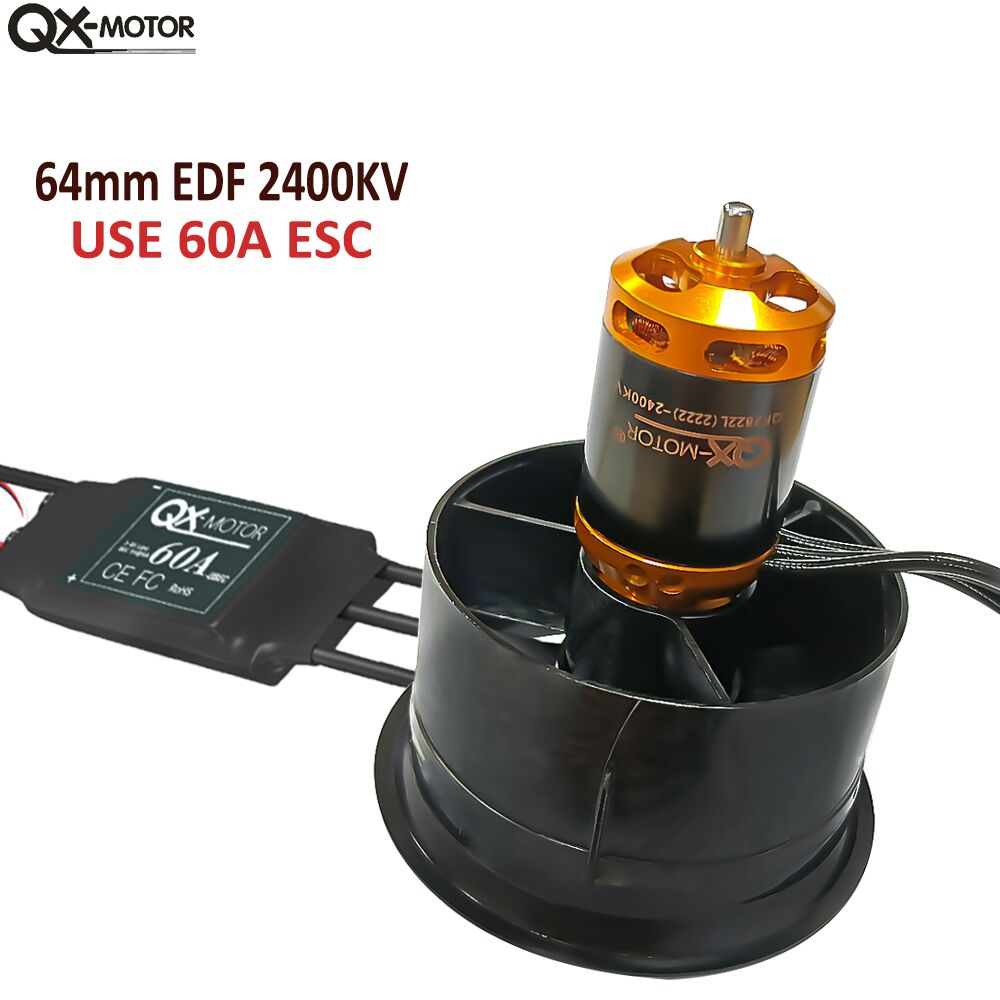

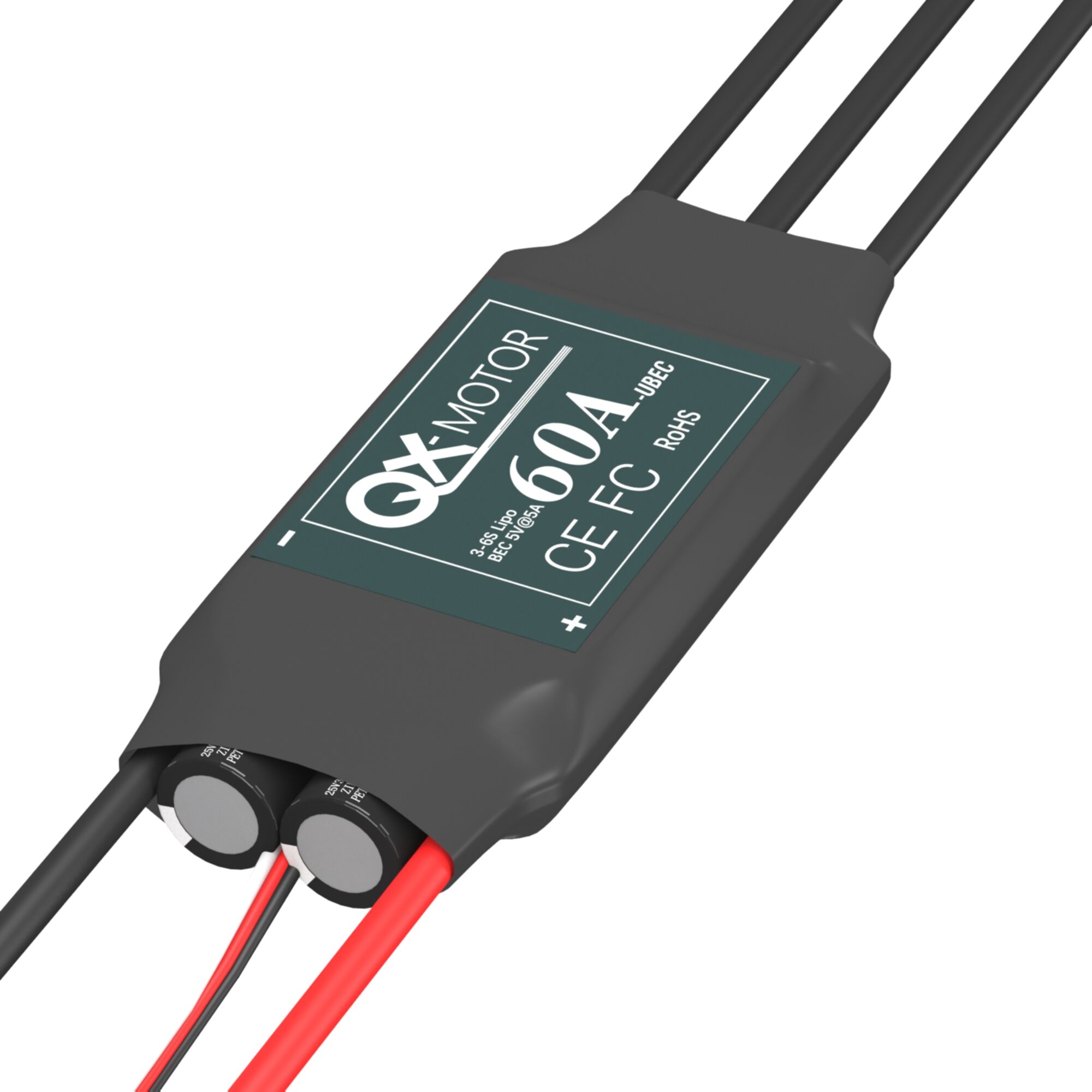

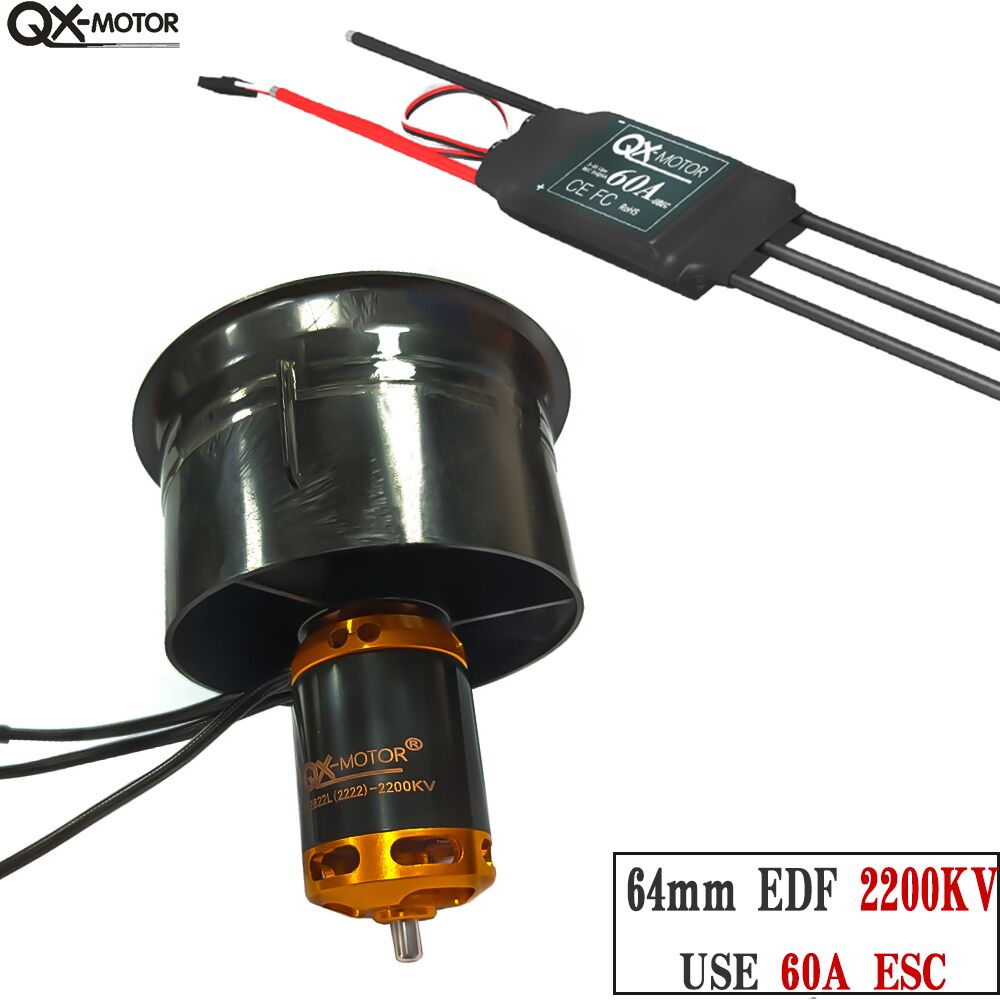

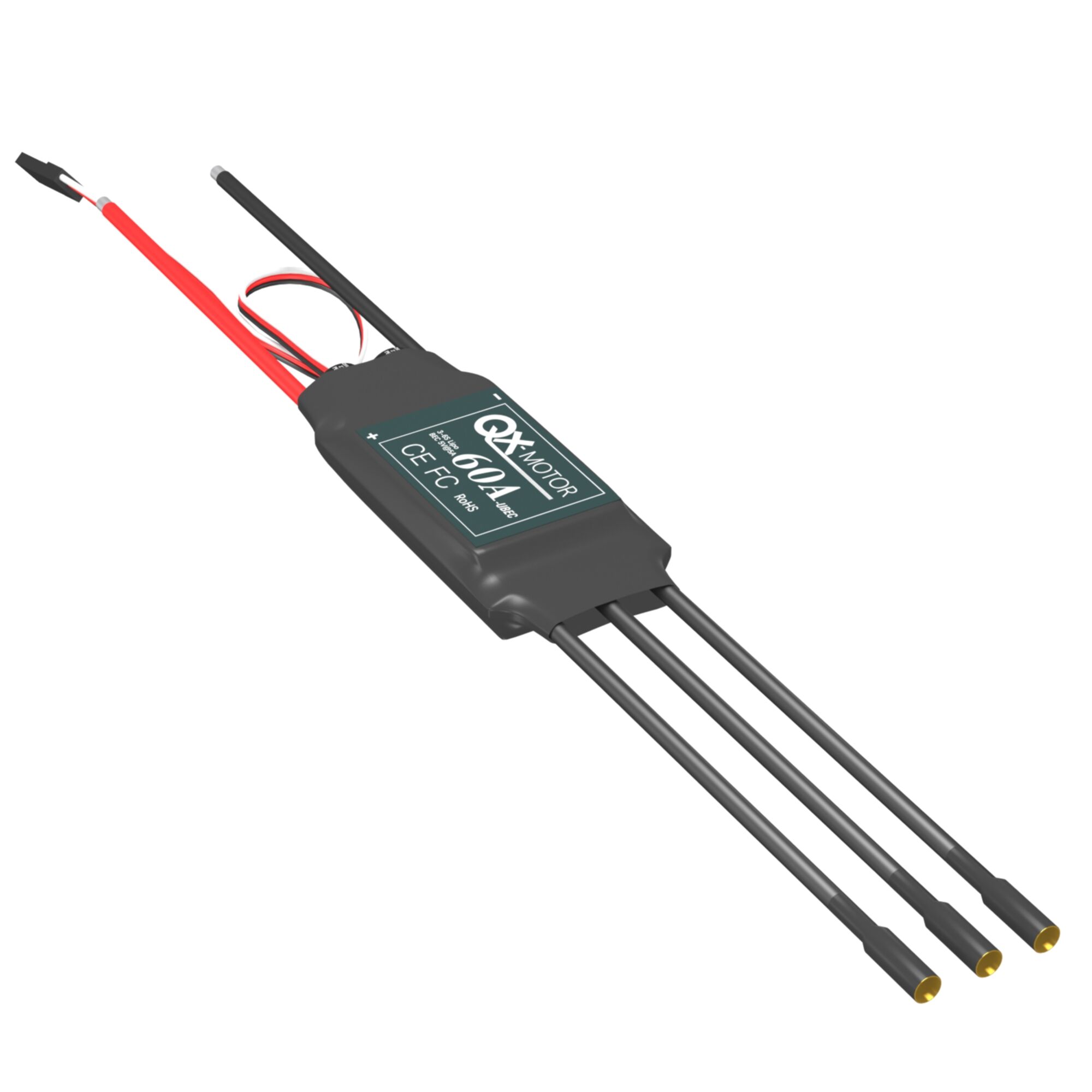

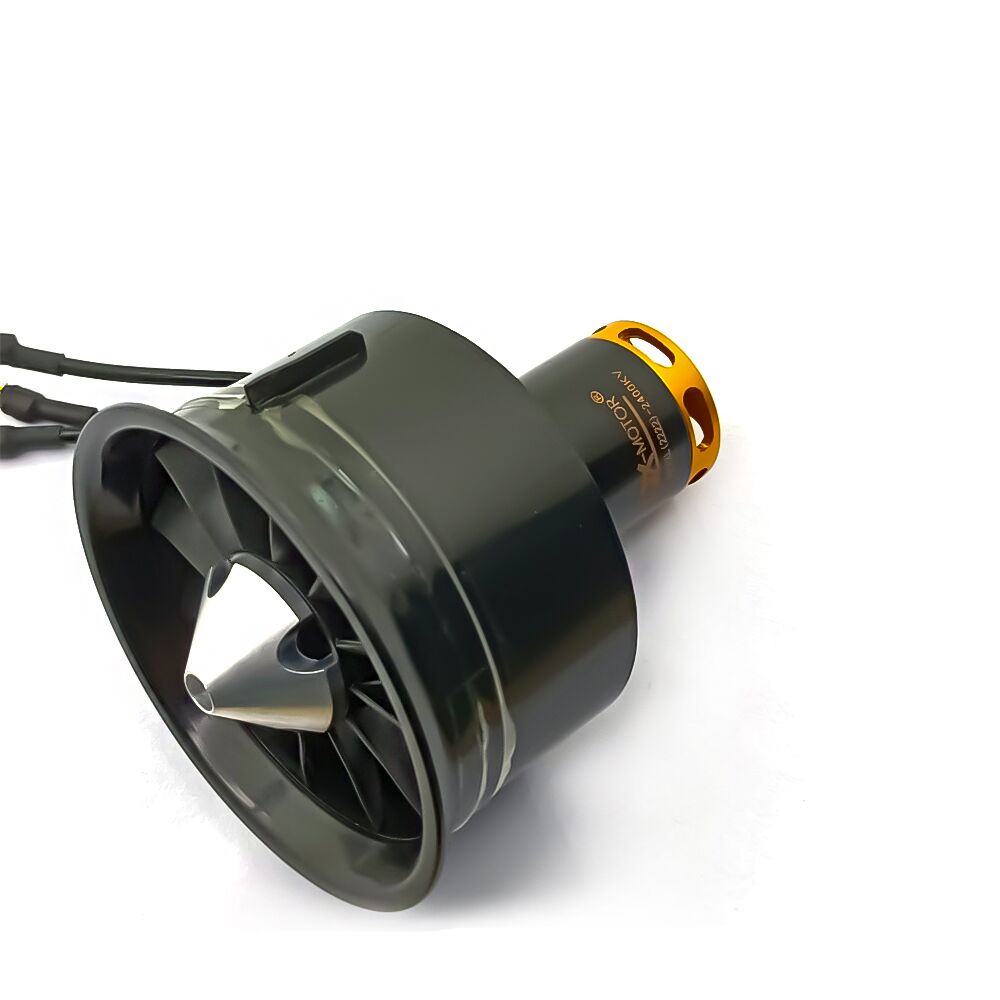

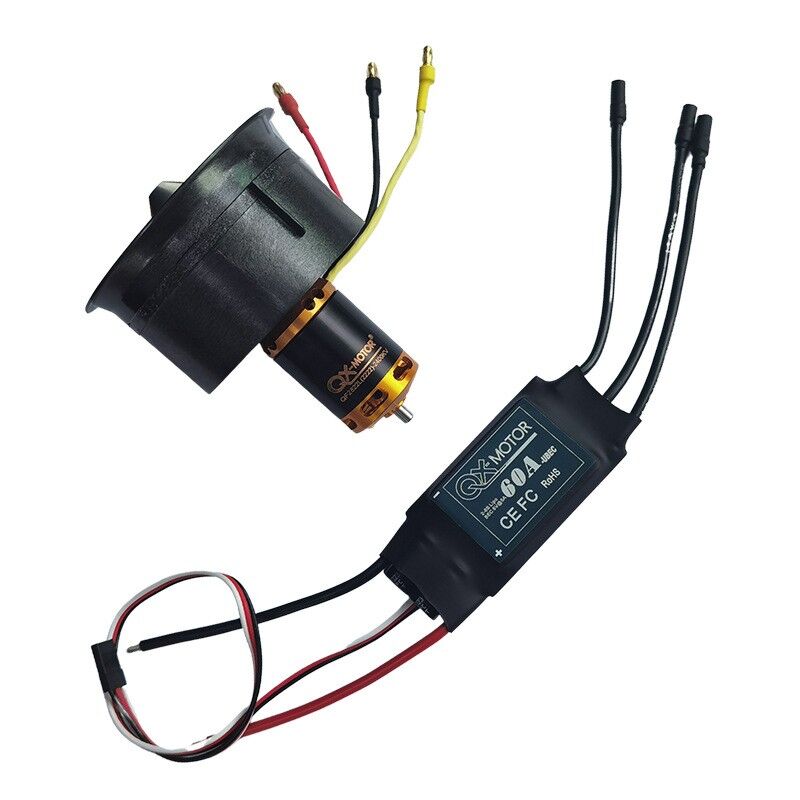

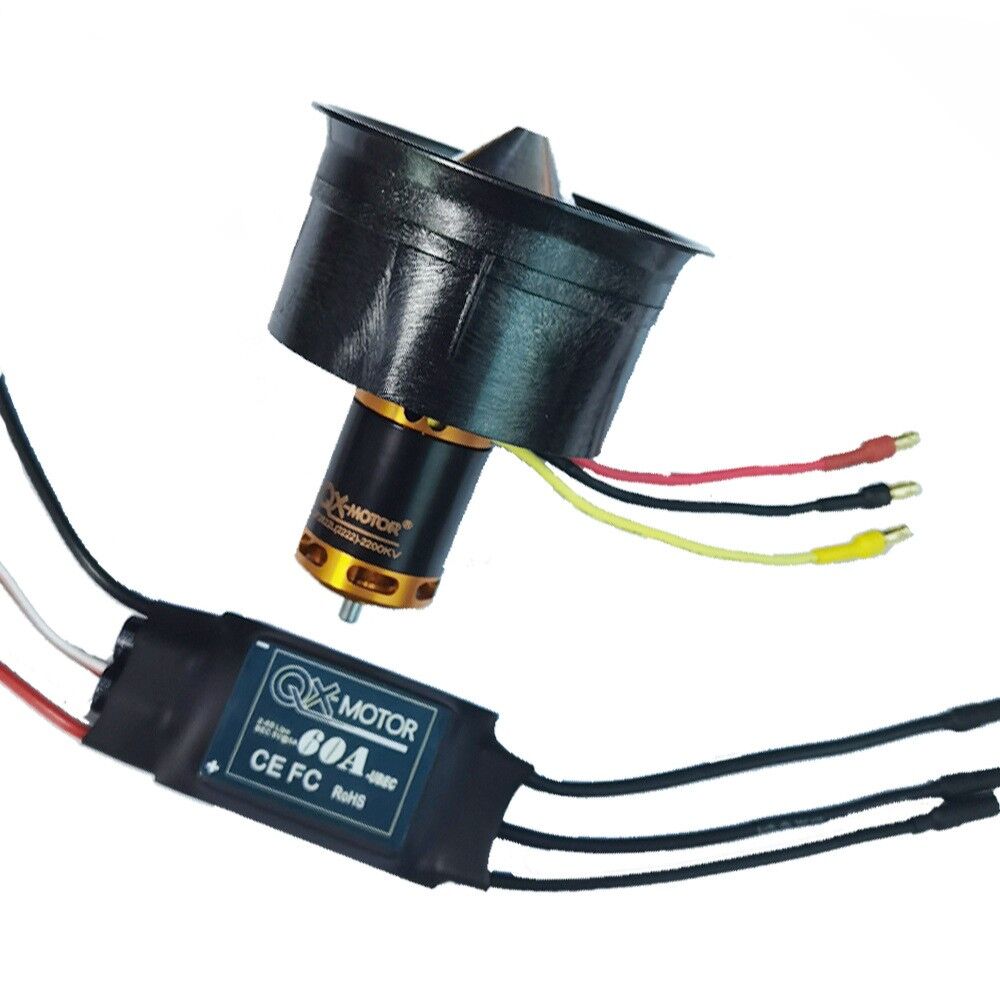

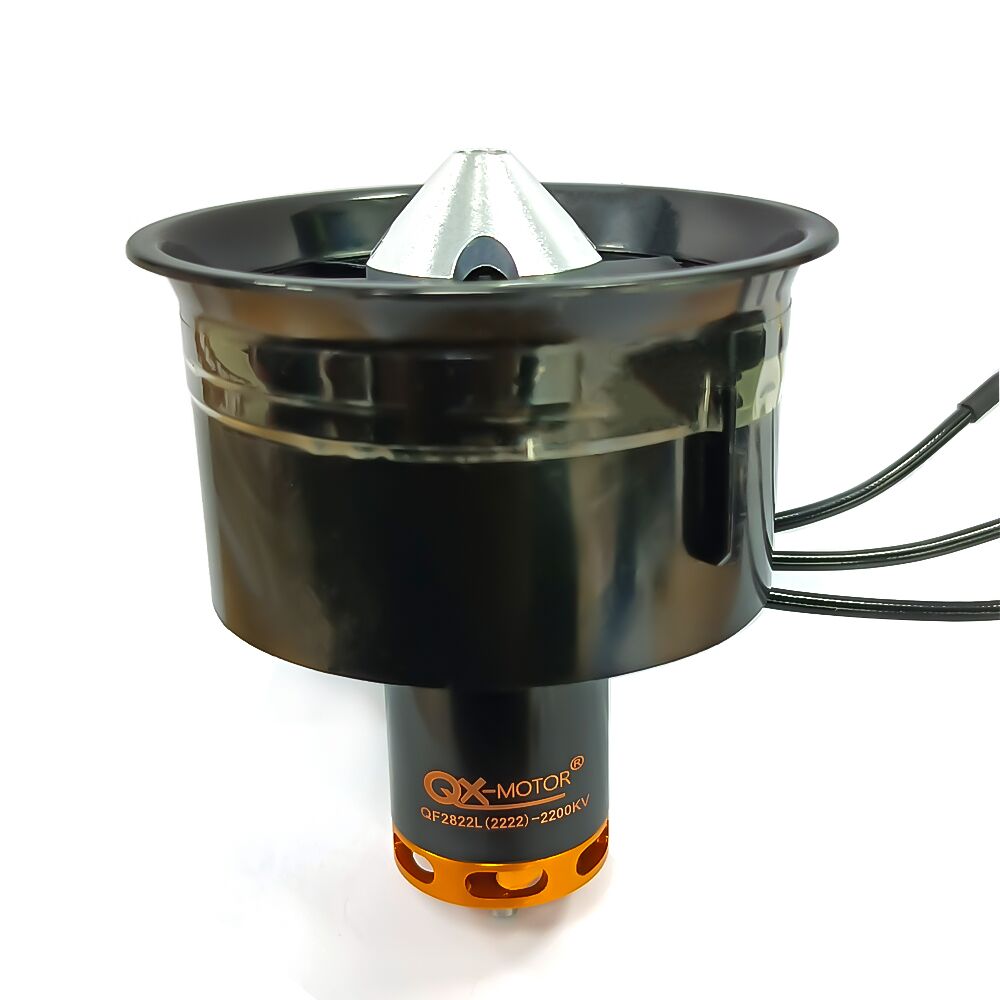

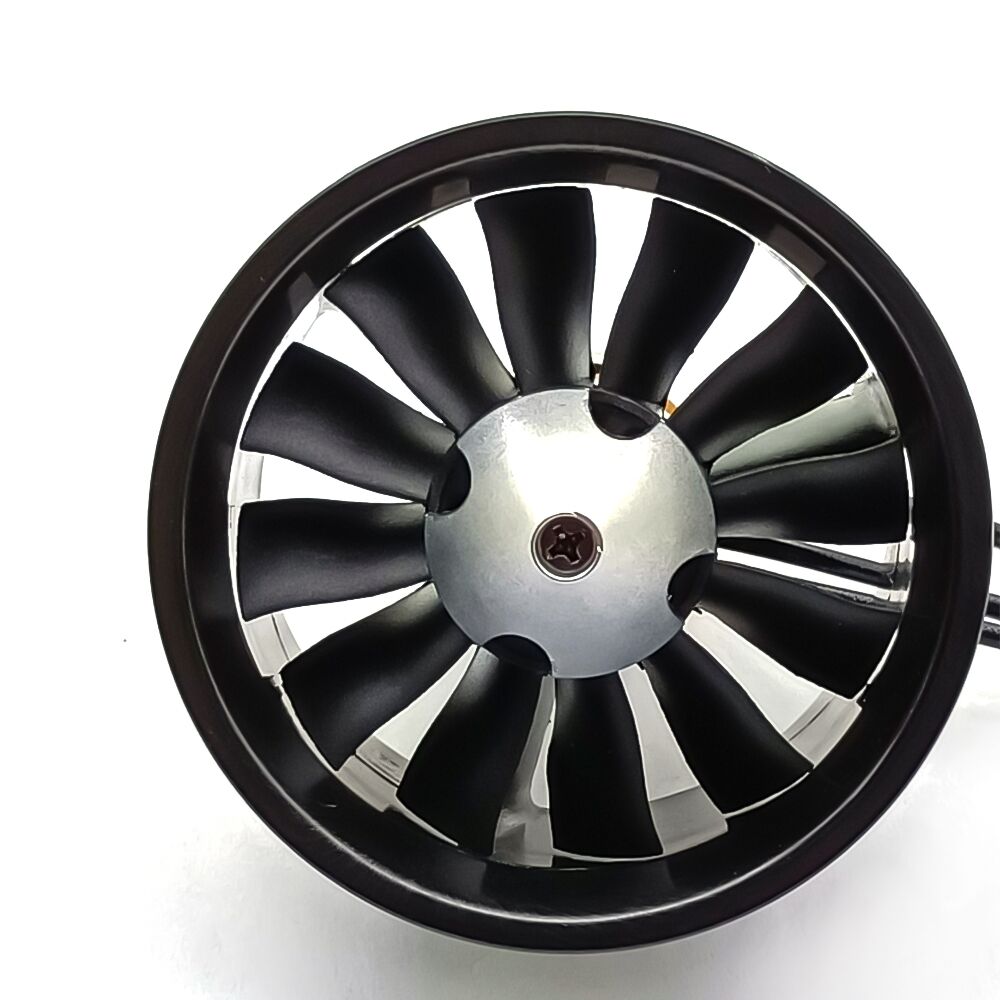

| Model | 64mm EDF Brushless Motor with 60A ESC |
| KV(RPM) | 2200KV, 2400KV, 3500KV, 3800KV, 4300KV |
| Configuration | 9N6P |
| Shaft Diameter | 3.0mm |
| Motor Diameter | 28mm |
| Weight | 135g |
| No. of Cells | 3-6S Lipo |
| Max Continuous Power/10S | 1000W, 1100W, 1200W, 1300W |
| Max Continuous Current/10S | 100A |
| Prop | Volts (V) |
Amps (A) |
Watts (W) |
Thrust (g) |
Thrust (oz) |
Efficiency (g/W) |
Efficiency (OZ/W) |
Motor model | ESC |
| 64mm EDF (12 blades) |
11.1 | 16.6 | 184.28 | 576 | 20.32 | 3.13 | 0.11 | QF2822-2200KV | 60A |
| 14.8 | 25.0 | 370 | 951 | 33.54 | 2.57 | 0.09 | |||
| 22.2 | 47.0 | 1043.4 | 1870 | 65.96 | 1.79 | 0.06 | |||
| 11.1 | 19.0 | 210.9 | 678 | 23.92 | 3.21 | 0.11 | QF2822-2400KV | 60A | |
| 14.8 | 30.0 | 444 | 1130 | 39.86 | 2.55 | 0.09 | |||
| 22.2 | 57.0 | 1265.4 | 2135 | 75.31 | 1.69 | 0.06 | |||
| 14.8 | 55.0 | 814 | 1570 | 55.38 | 1.93 | 0.07 | QF2822-3500KV | 80A | |
| 16 | 66.0 | 1056 | 1810 | 63.84 | 1.71 | 0.06 | |||
| 11.1 | 40.0 | 444 | 1045 | 36.86 | 2.35 | 0.08 | QF2822-3800KV | 80A | |
| 12.6 | 49.3 | 621.18 | 1296 | 45.71 | 2.09 | 0.07 | |||
| 14.8 | 63.5 | 939.8 | 1702 | 60.04 | 1.81 | 0.06 | |||
| 16 | 70.0 | 1120 | 1925 | 67.9 | 1.72 | 0.06 | |||
| 11.1 | 55.0 | 610.5 | 1230 | 43.39 | 2.01 | 0.07 | QF2822-4300KV | 80A | |
| 12.6 | 68.0 | 856.8 | 1550 | 54.67 | 1.81 | 0.06 |
