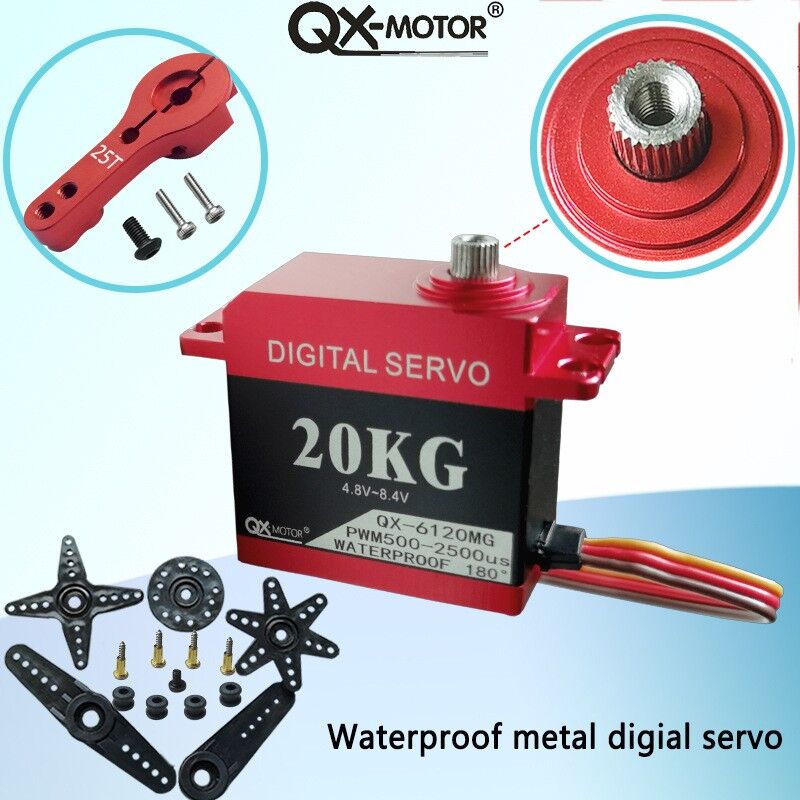

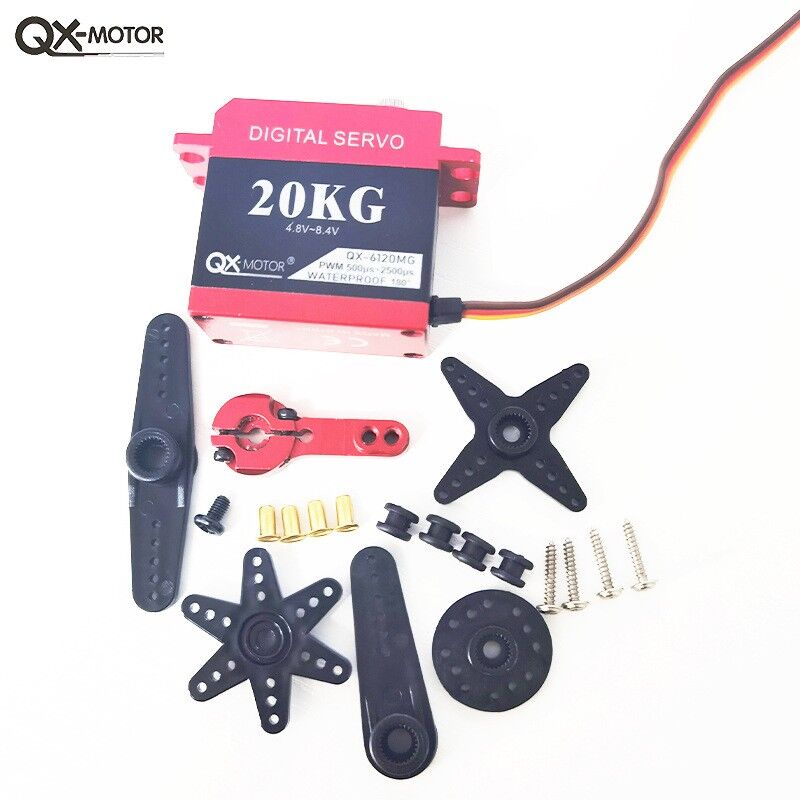

8.4V high-voltage full metal gear digital servo, 20kg, 40kg, 60kg super large torque, used for industrial robots, cars, drone model

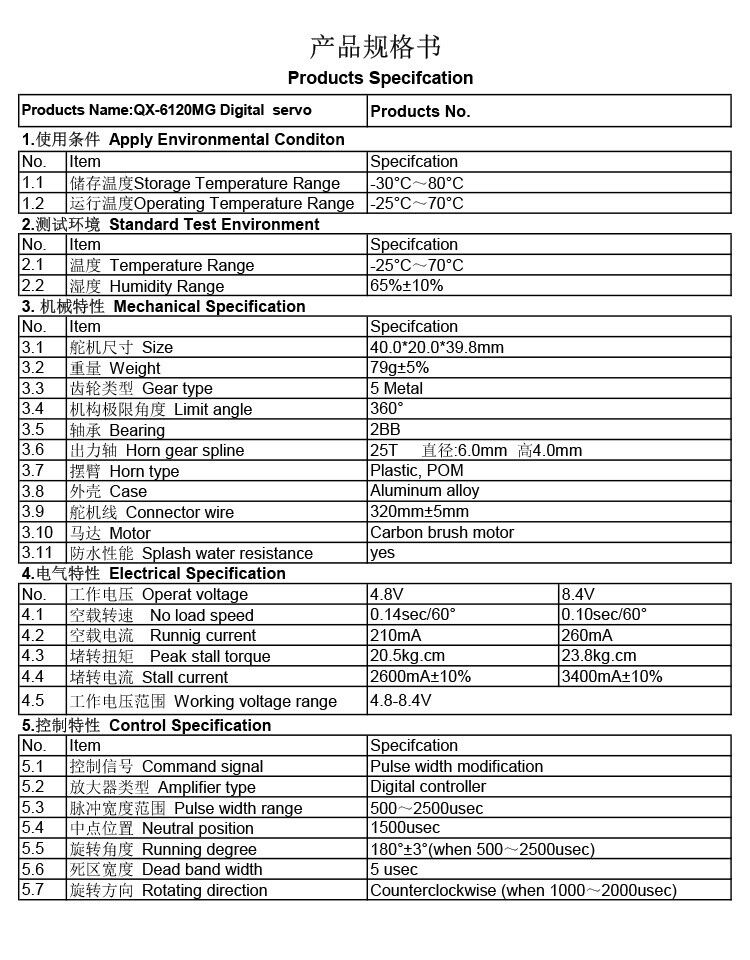

| Model | QX-6120MG |
|---|
1. CNC full metal shell-Aluminium
2. High-precision metal gear
3. Double ball bearing
4.8.4V high voltage digital brushless servo
Output gear: 25t
Torque(6V): 20.5kg-cm
Torque(8.4V): 23.8 kg-cm
Limit angle: 180°
Bearing Type： Ball Bearing x 2
Speed: 0.13 sec/60°(6V)│0.1 sec /60°(8.4V)
Operating Voltage：4.8 ~ 8.4 DC Volts
Weight: 79g
Motor type: Carbon brush motor
Gear Type： Metal
Operating Temperature：-25℃~70℃
Working frequence：1500μsec / 50—330hz

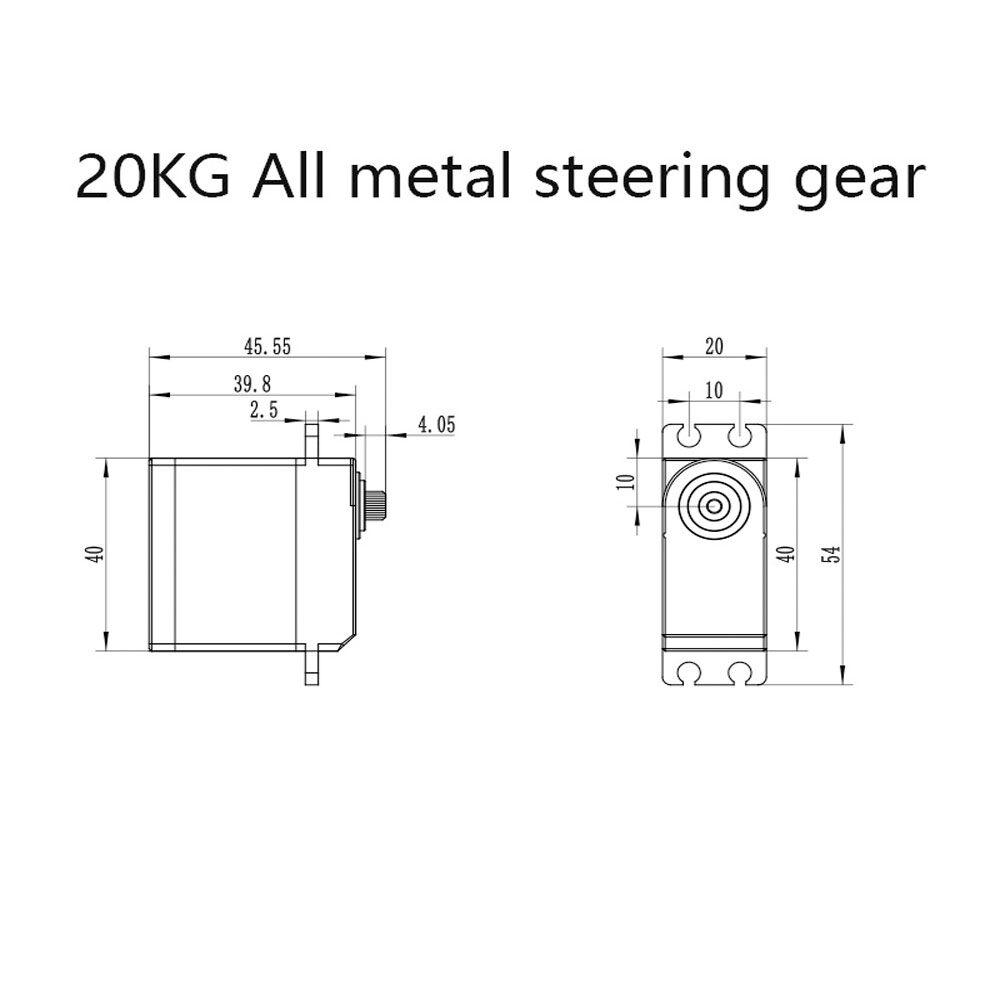

Size：40 x 20 x 39.8mm
