8.4V Digital Servo 40kg

8.4V Digital Servo 40kg

8.4V high-voltage full metal gear digital servo, 20kg, 40kg, 60kg super large torque, used for industrial robots, cars, drone model

Additional information

Model

QX-6140MG

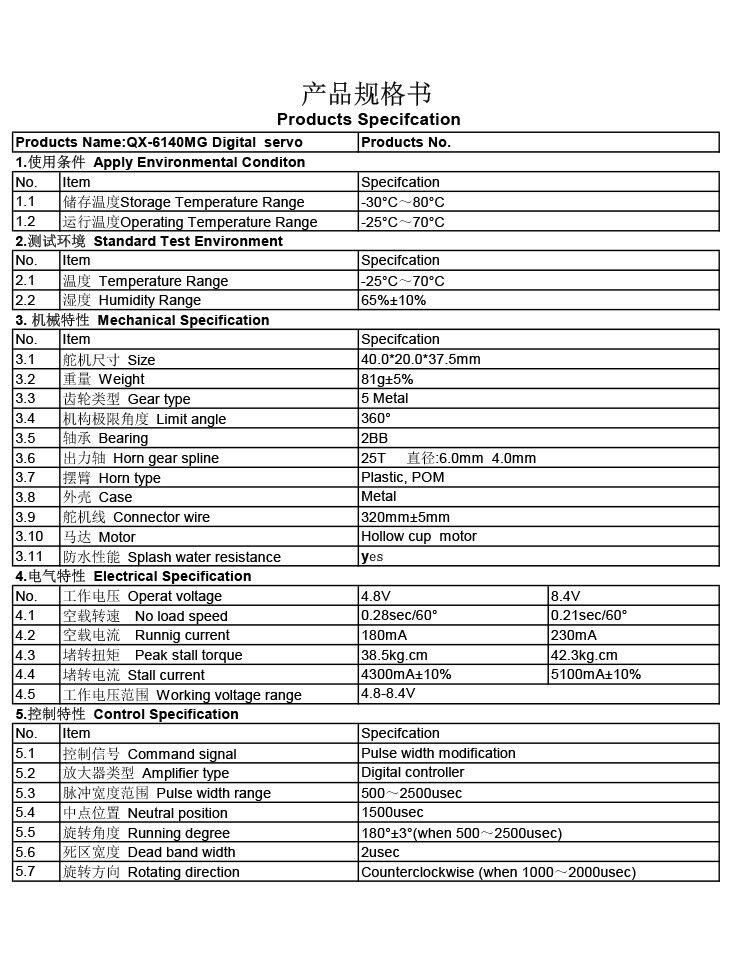

Product Details

1. CNC full metal shell-Aluminium
2. High-precision metal gear
3. Double ball bearing
4.8.4V high voltage digital brushless servo

Output gear: 25t

Torque(6V): 38.5kg-cm

Torque(8.4V): 42.3 kg-cm

Limit angle: 180°

Bearing Type: Ball Bearing x 2

Speed: 0.28 sec/60°(6V)│0.21 sec /60°(8.4V)

Operating Voltage:4.8 ~ 8.4 DC Volts

Weight: 81g

Motor type: hollow cup

Gear Type: Metal

Operating Temperature:-25℃~70℃

Working frequence:1500μsec / 50—330hz

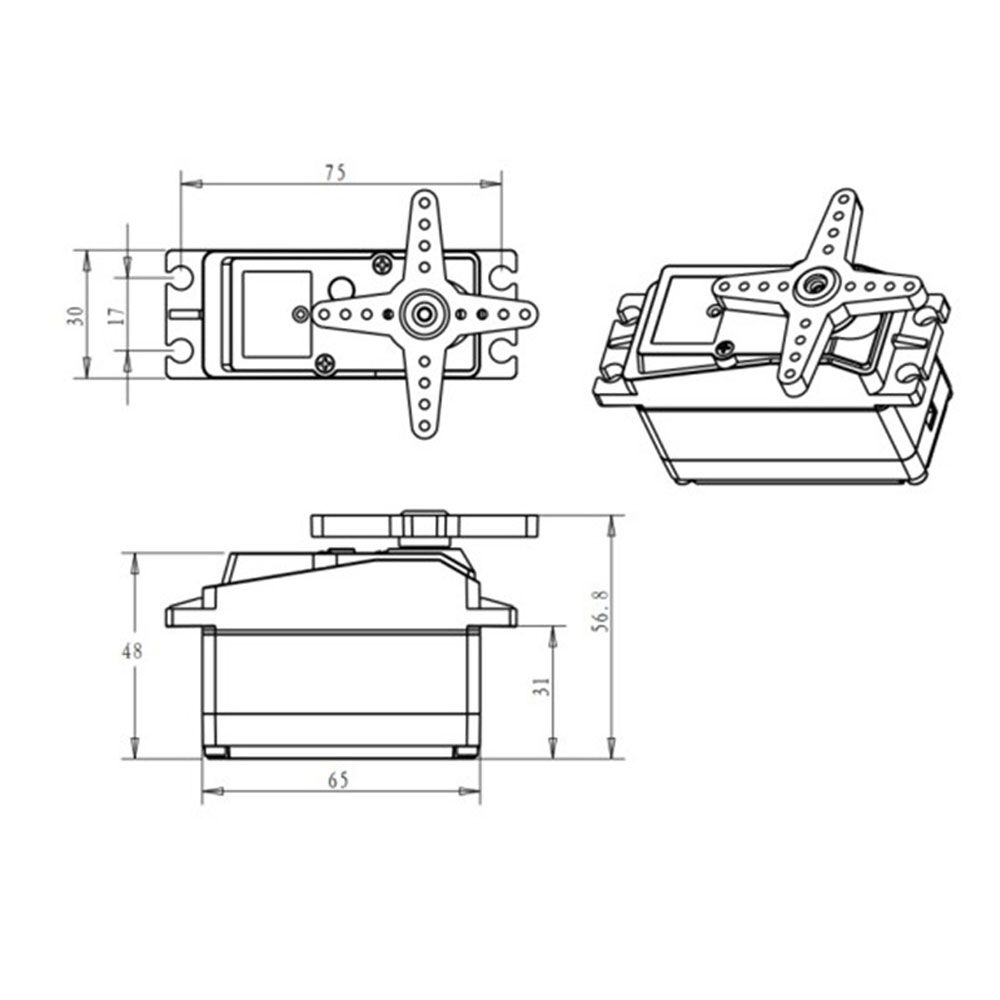

Size:40 x 20 x 37.5mm
