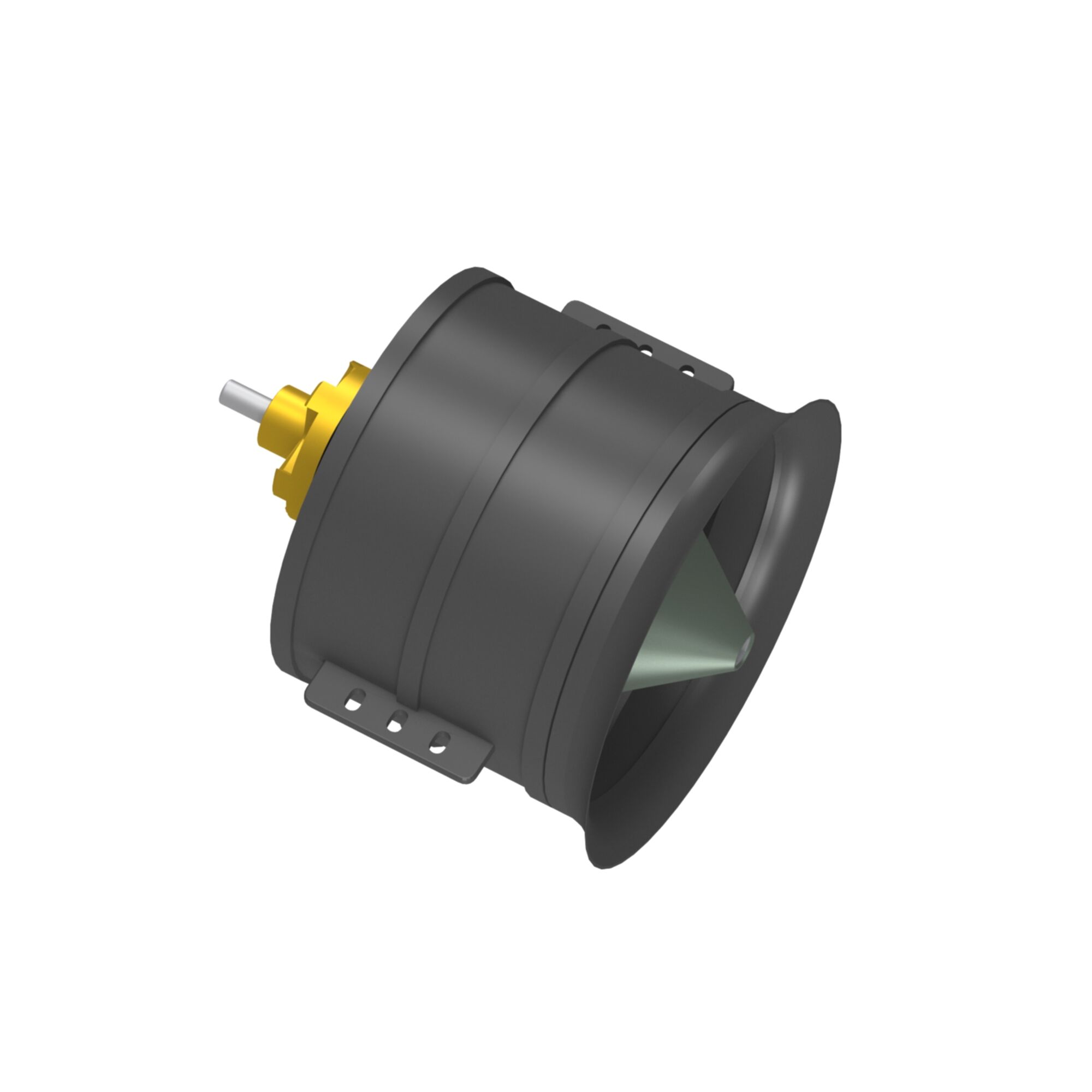

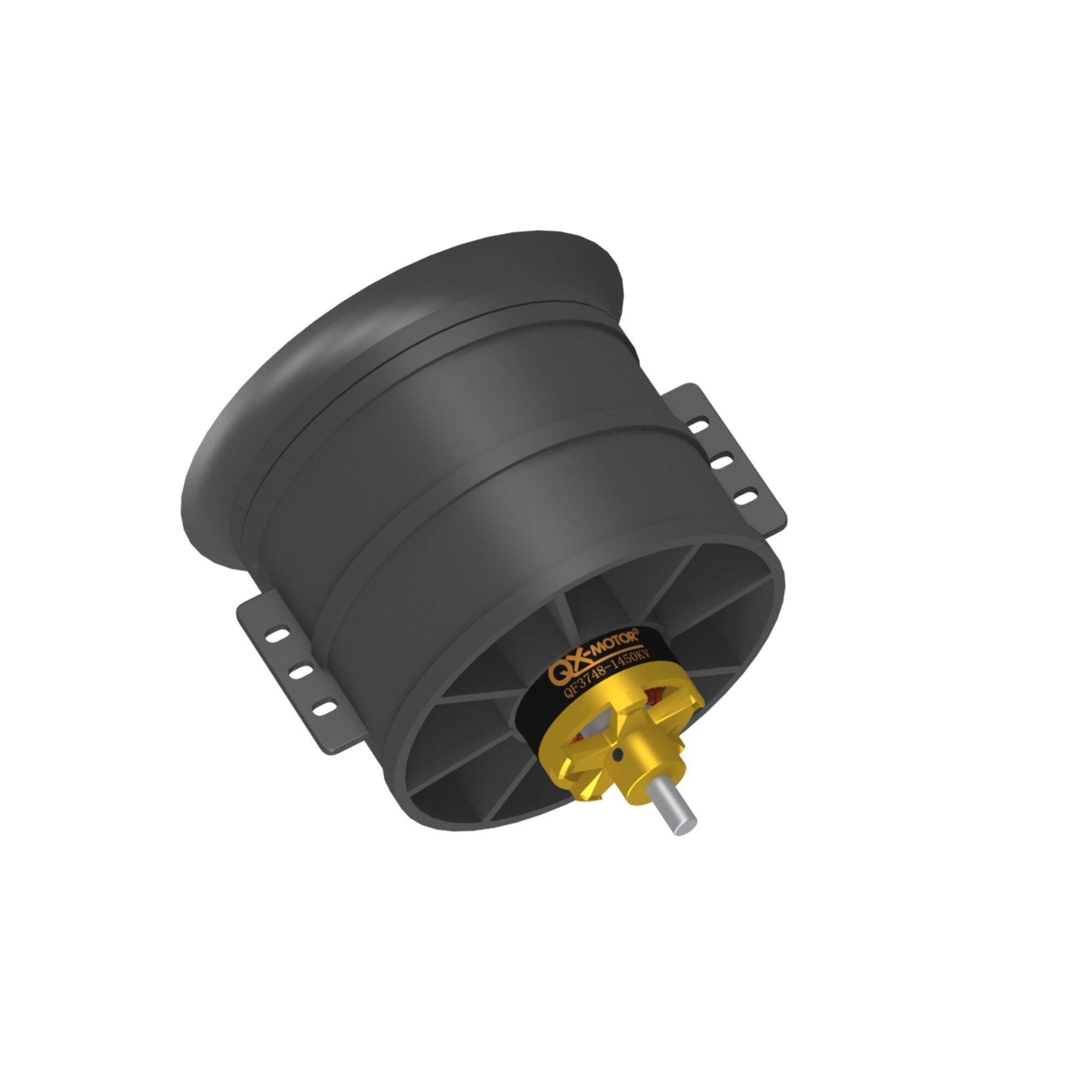

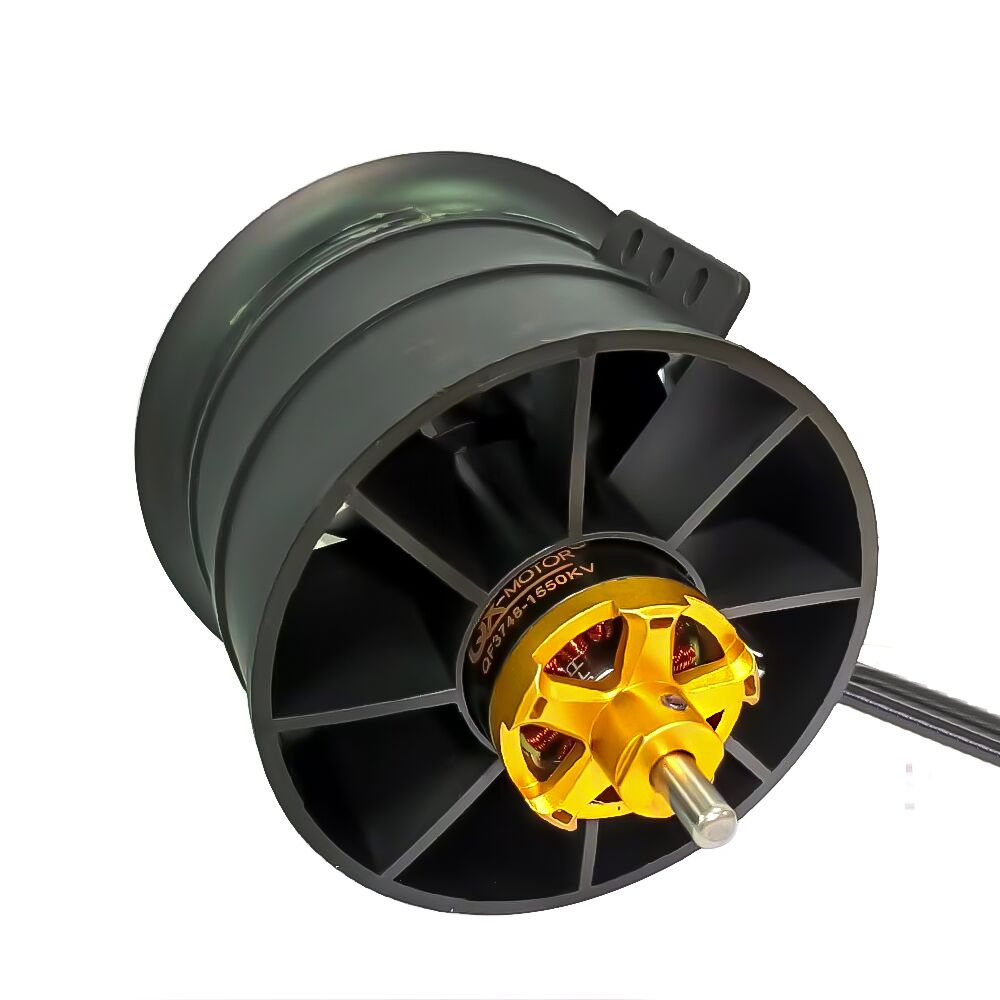

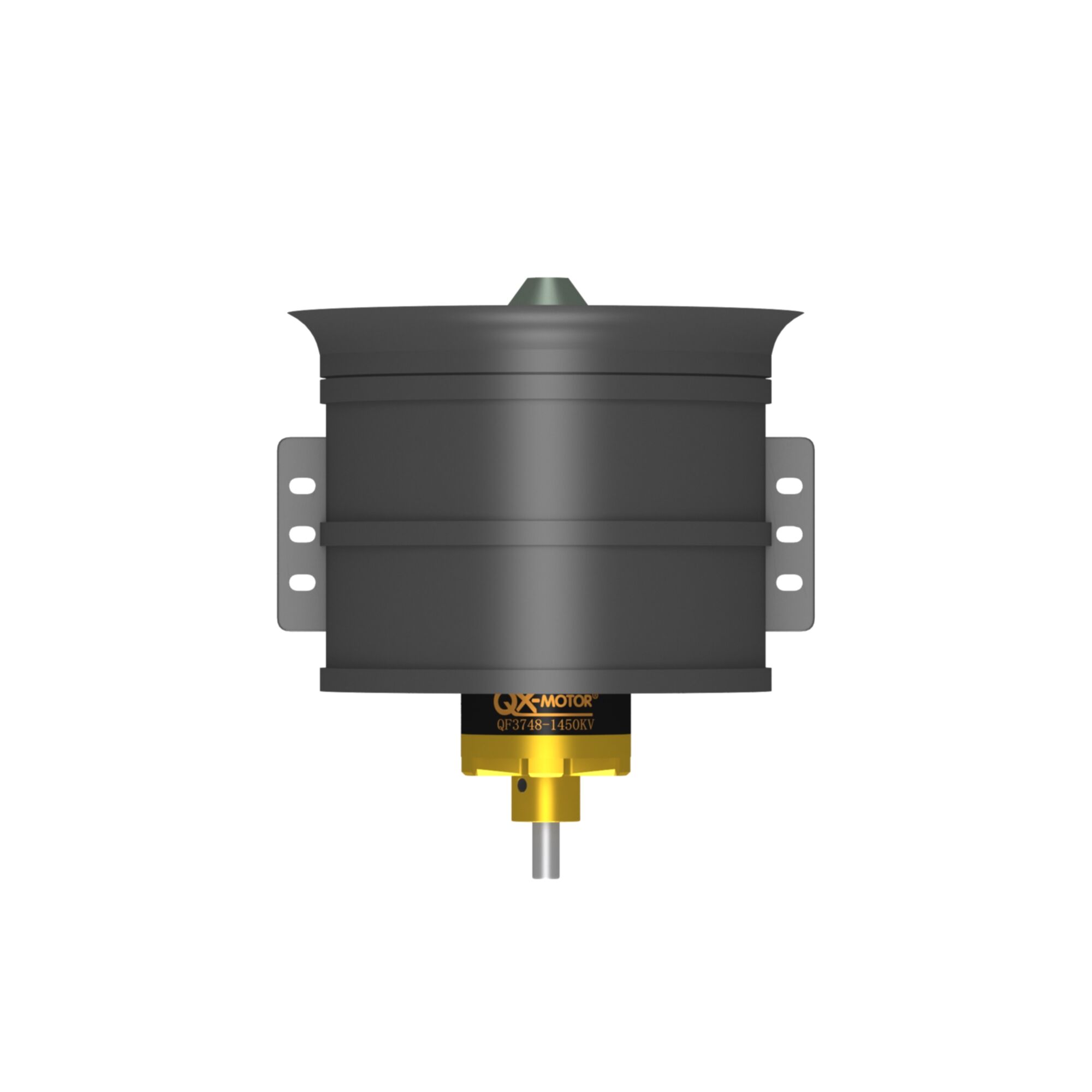

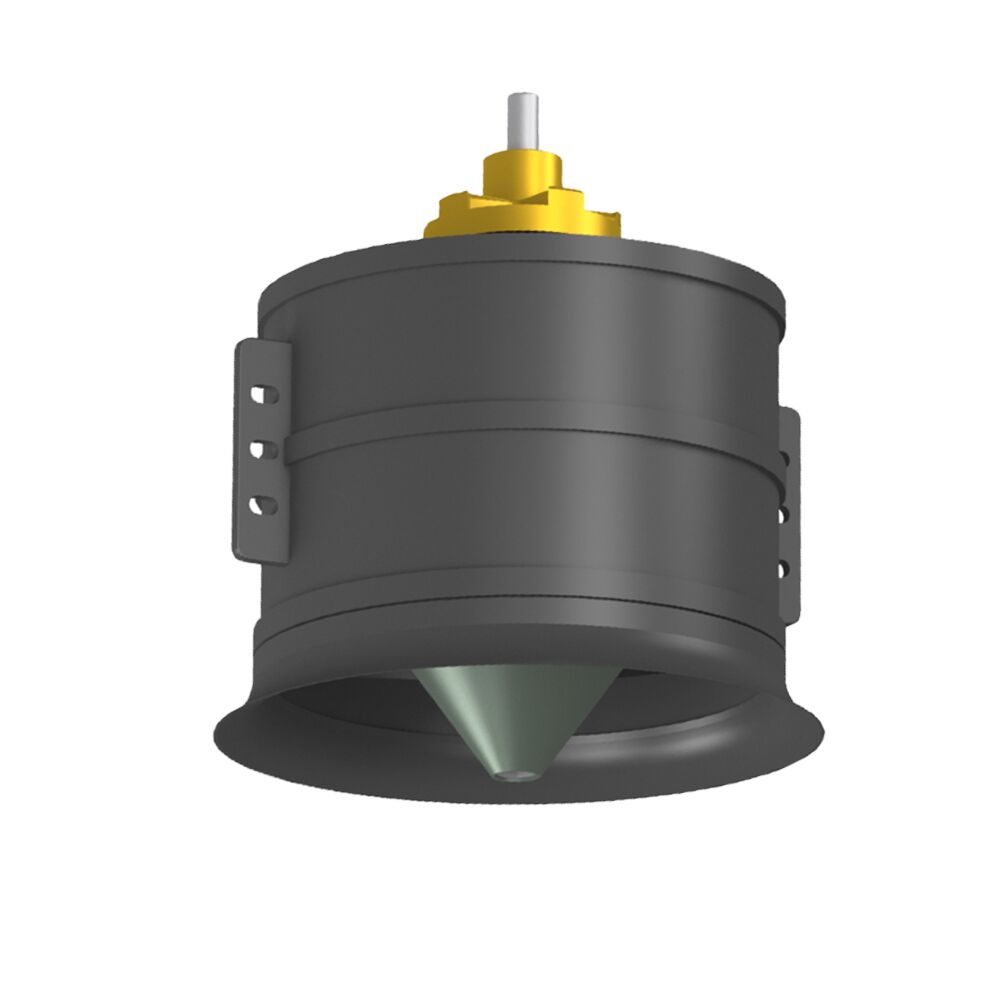

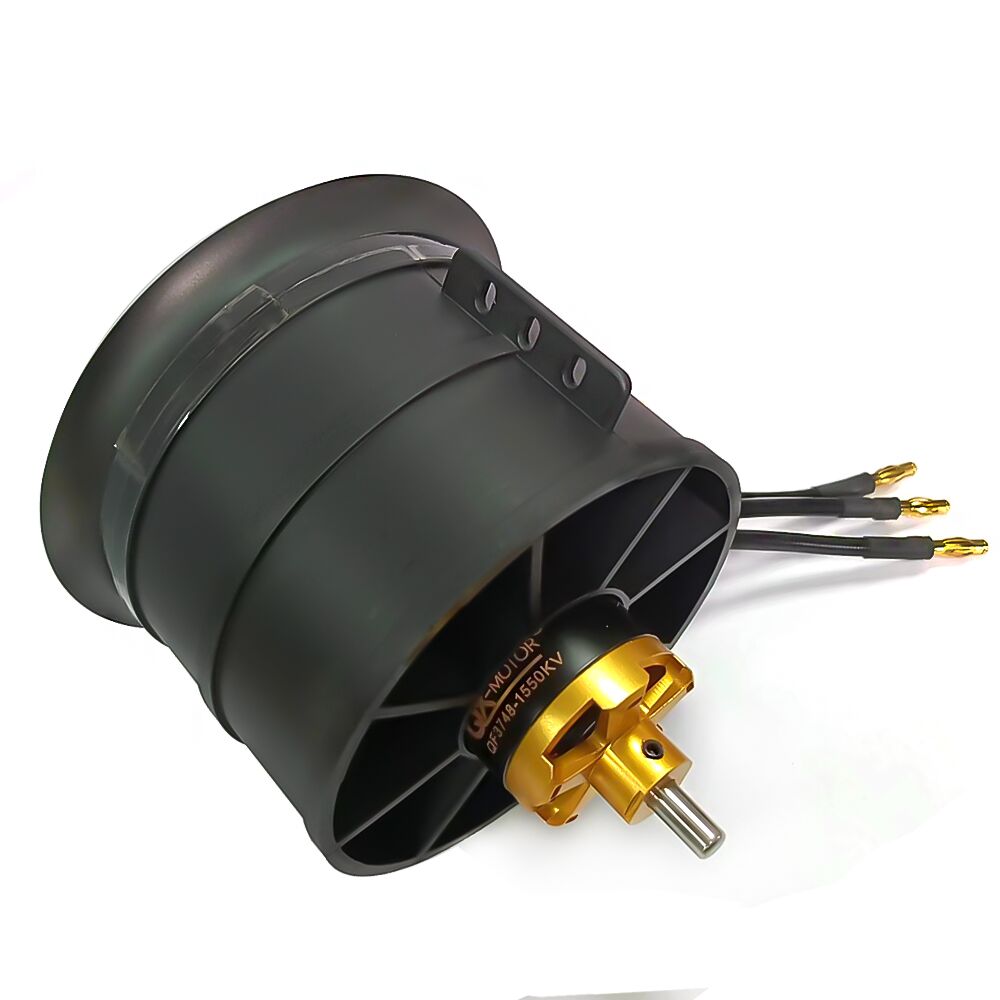

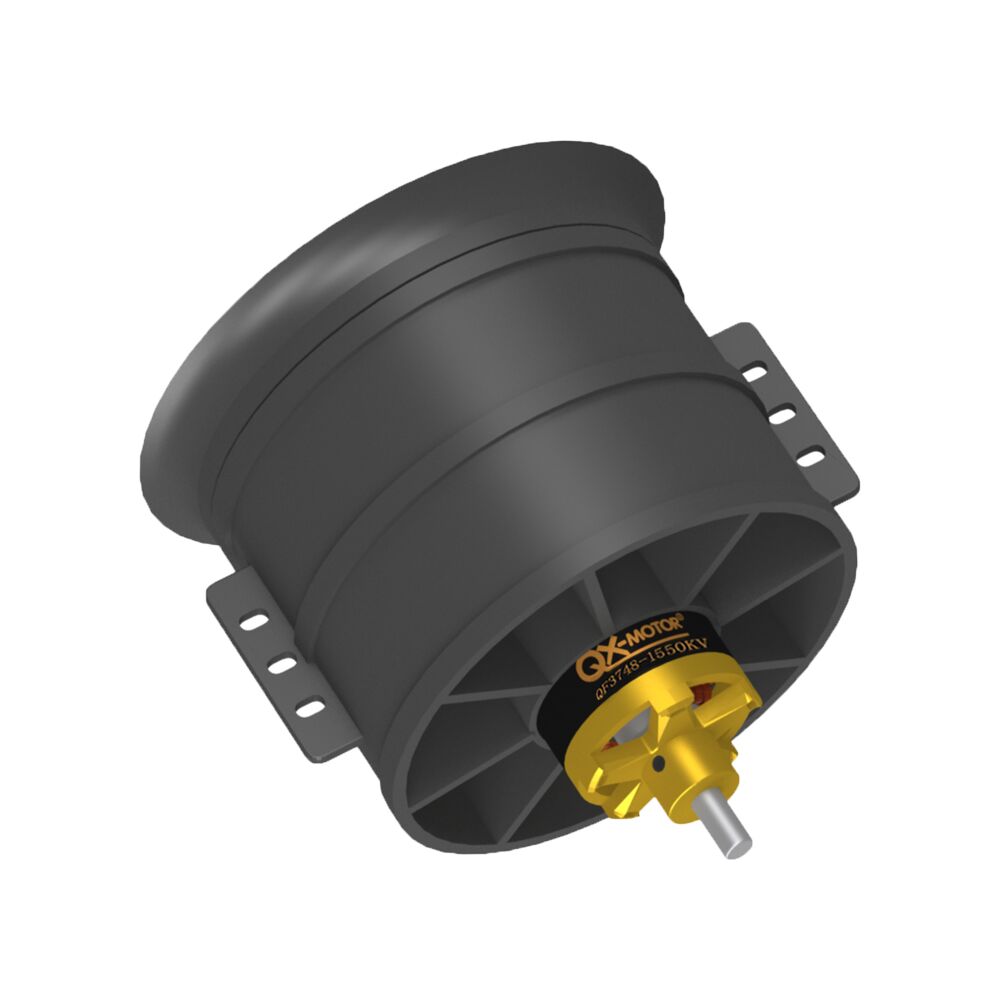

This 90mm duct with 12-blade is equipped with QF3748-1450KV / 1550KV high-performance brushless RC motor which is powerful and efficient and Low temperature. It is an ideal choice for the majority of model fans!
| Prop | Volts (V) |
Amps (A) |
Watts (W) |
Thrust (g) |
Thrust (oz) |
Efficiency (g/W) |
Efficiency (OZ/W) |
Motor model | ESC |
| 90mm EDF (12 blades) |
22.2 | 88.0 | 1953.6 | 3500 | 123.46 | 1.79 | 0.06 | QF3748-1450KV | 100A |
| 22.2 | 100.0 | 2220 | 3800 | 134.04 | 1.71 | 0.06 | QF3748-1550KV | 120A |
| Weight | 0.7 kg |
|---|---|
| Dimensions | 20 × 18 × 18 cm |
| Model | 90mm EDF(12) Outer-rator brushless motor set-6S |
| KV(RPM) | 1450KV, 1550KV |
| Configuration | 12N10P |
| Shaft Diameter | 6.0mm |
| Motor Diameter | 37mm |
| Weight | 372g |
| No. of Cells | 6S Lipo |
| Max Continuous Power/10S | 2300W |
| Max Continuous Current/10S | 100A |
| Prop | Volts (V) |
Amps (A) |
Watts (W) |
Thrust (g) |
Thrust (oz) |
Efficiency (g/W) |
Efficiency (OZ/W) |
Motor model | ESC |
| 90mm EDF (12 blades) |
22.2 | 88.0 | 1953.6 | 3500 | 123.46 | 1.79 | 0.06 | QF3748-1450KV | 100A |
| 22.2 | 100.0 | 2220 | 3800 | 134.04 | 1.71 | 0.06 | QF3748-1550KV | 120A |
