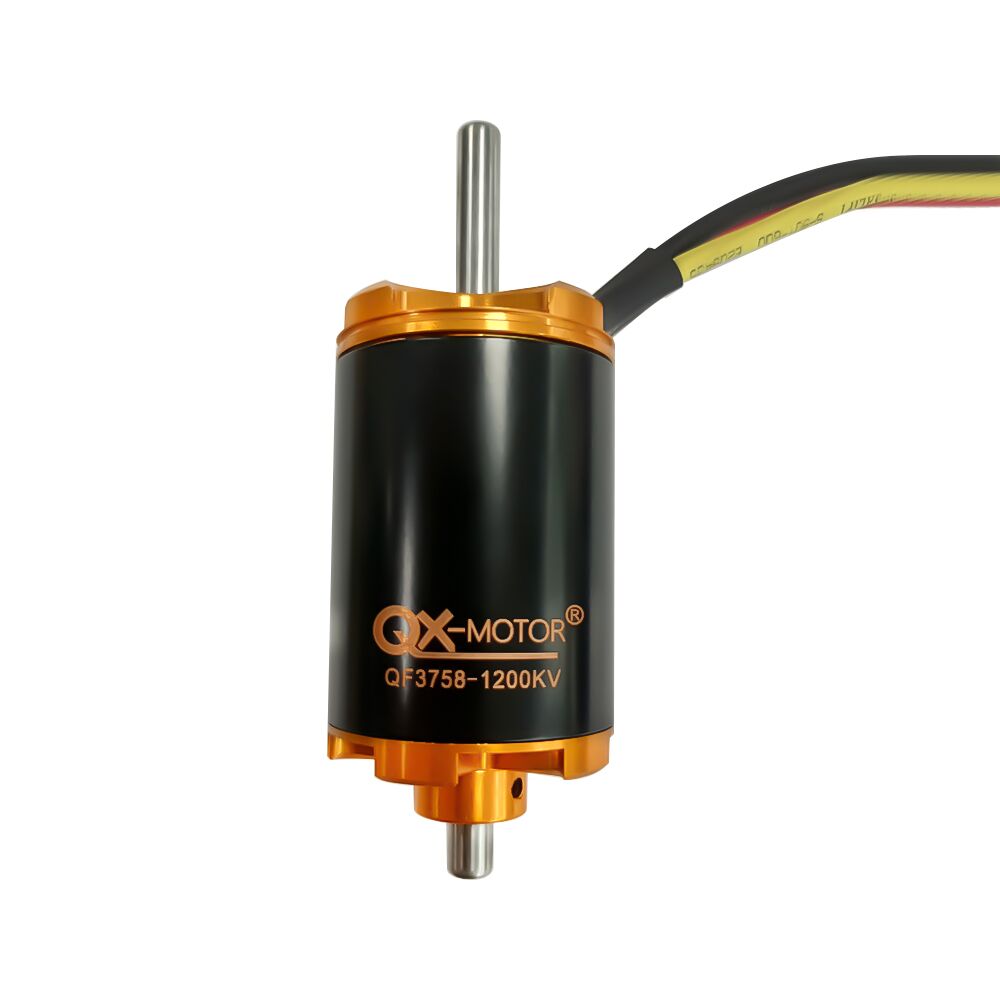

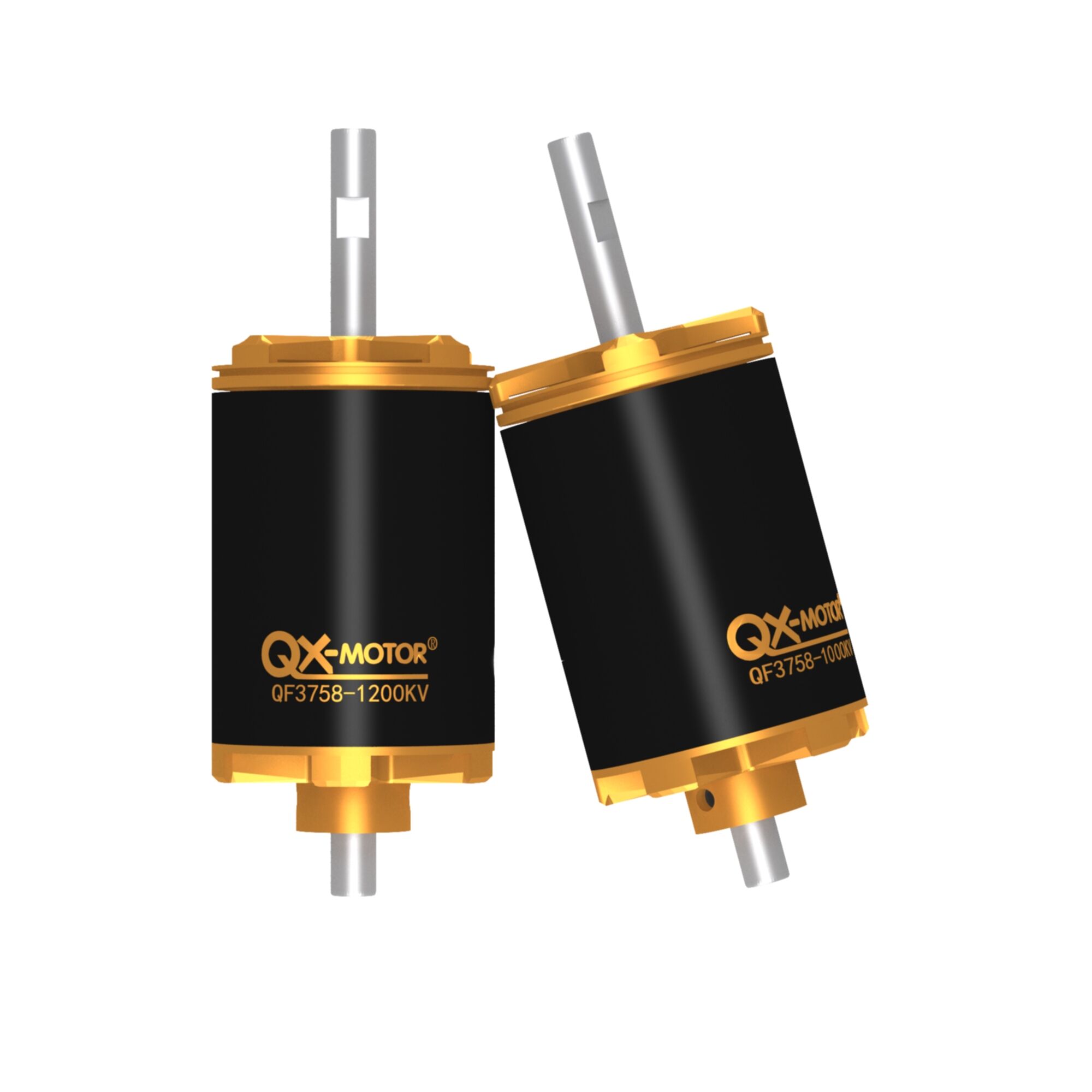

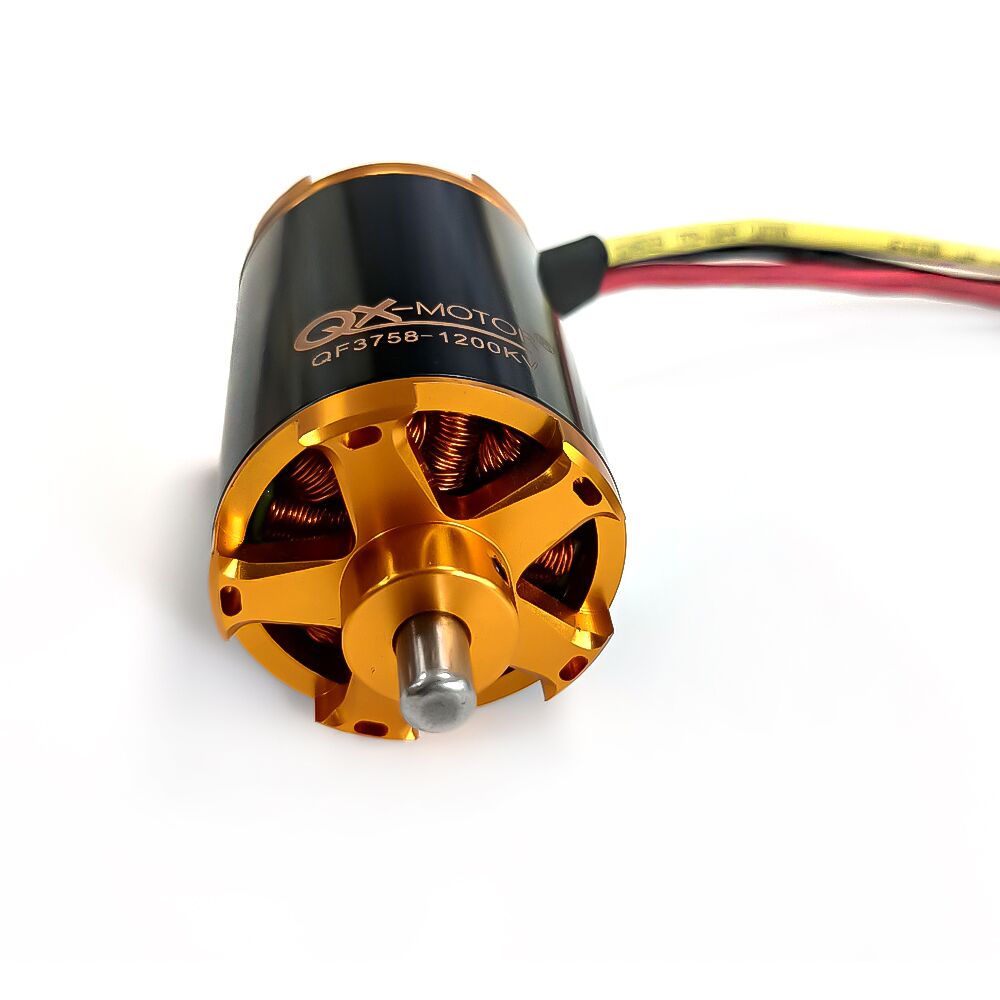

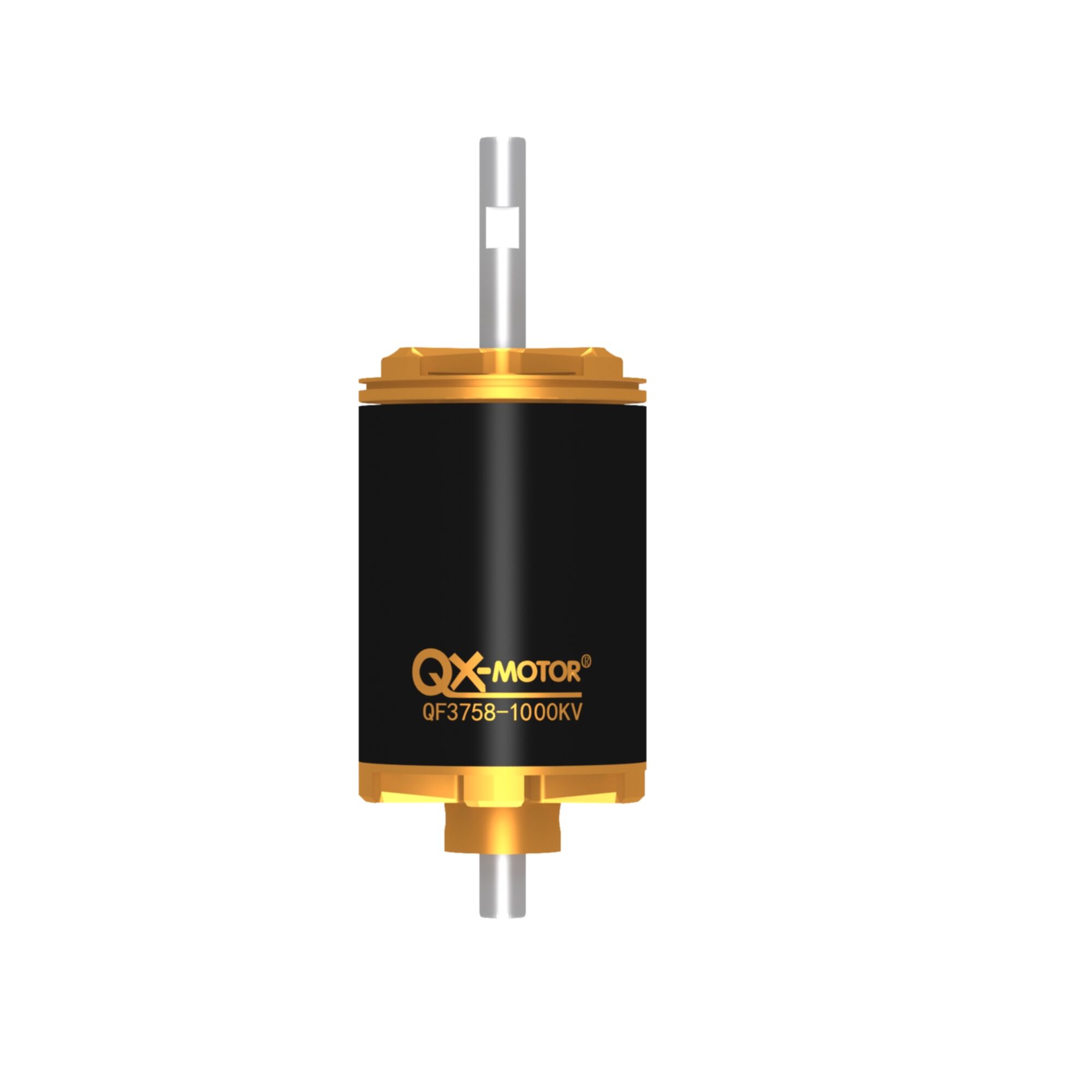

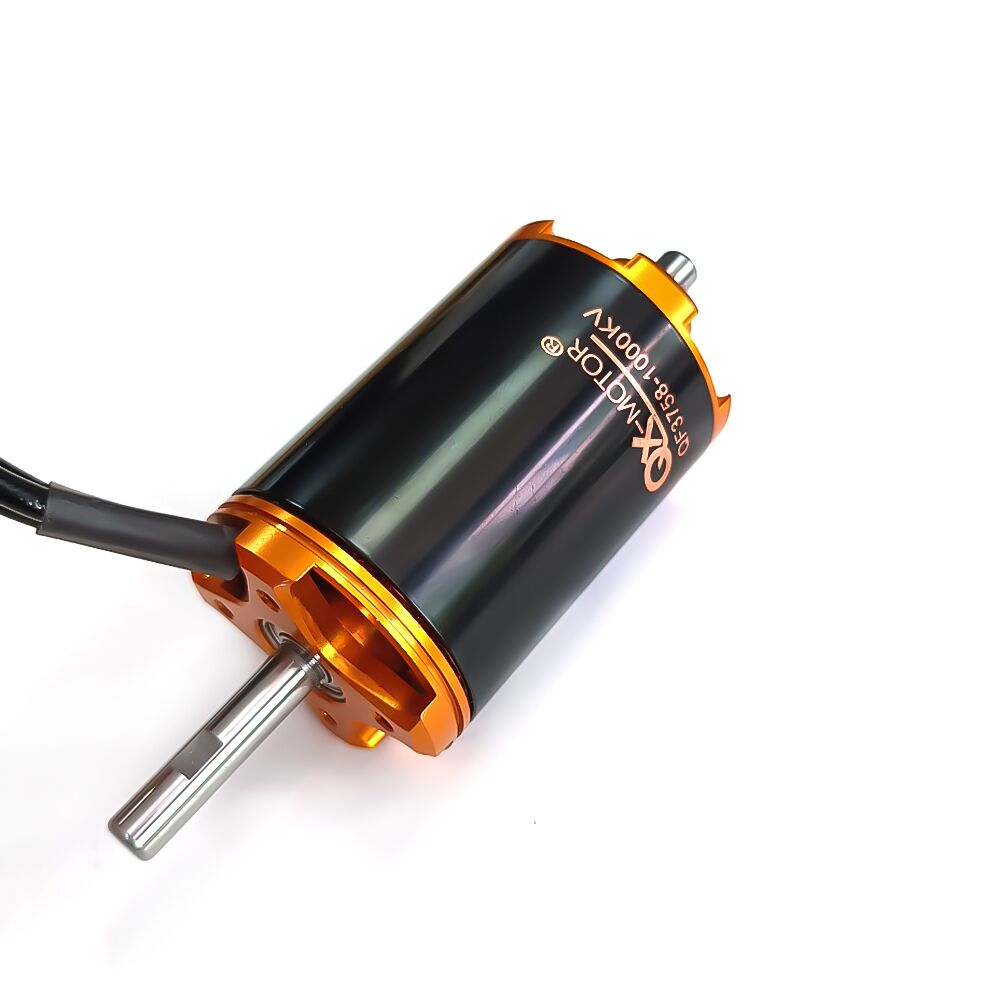

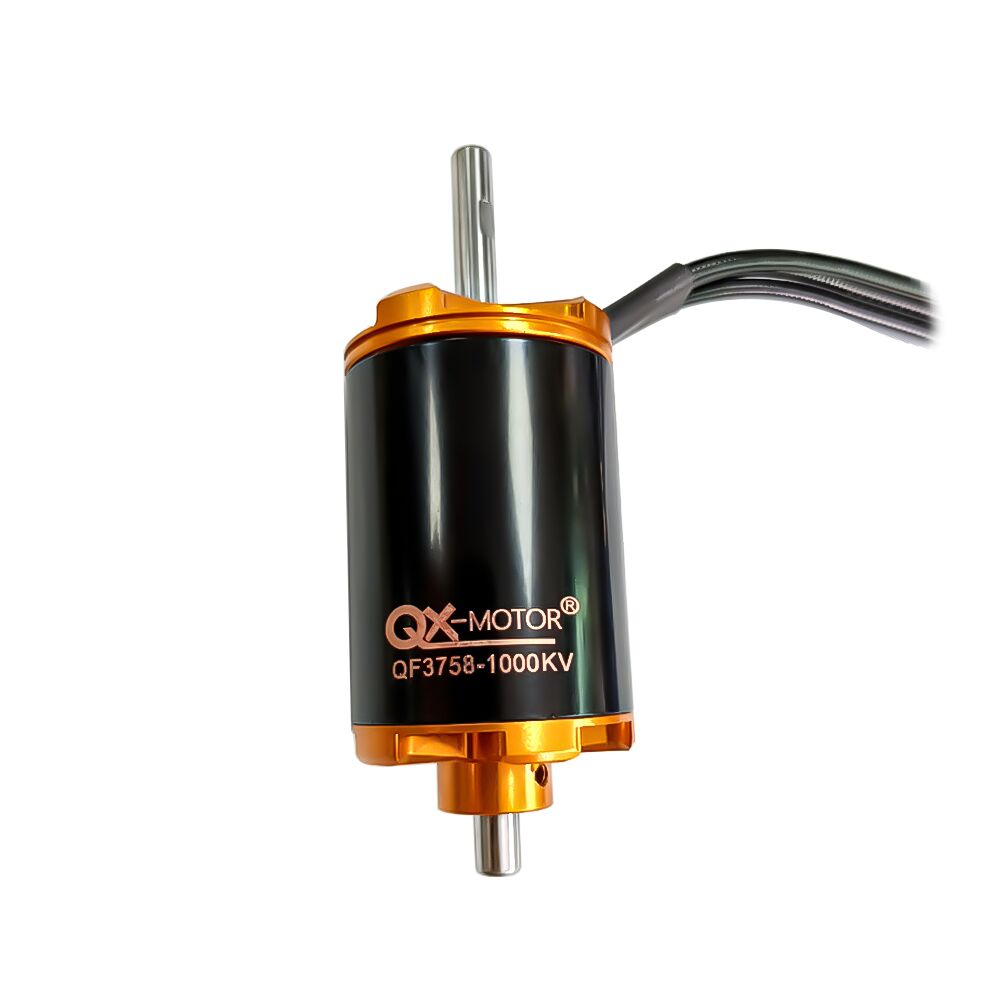

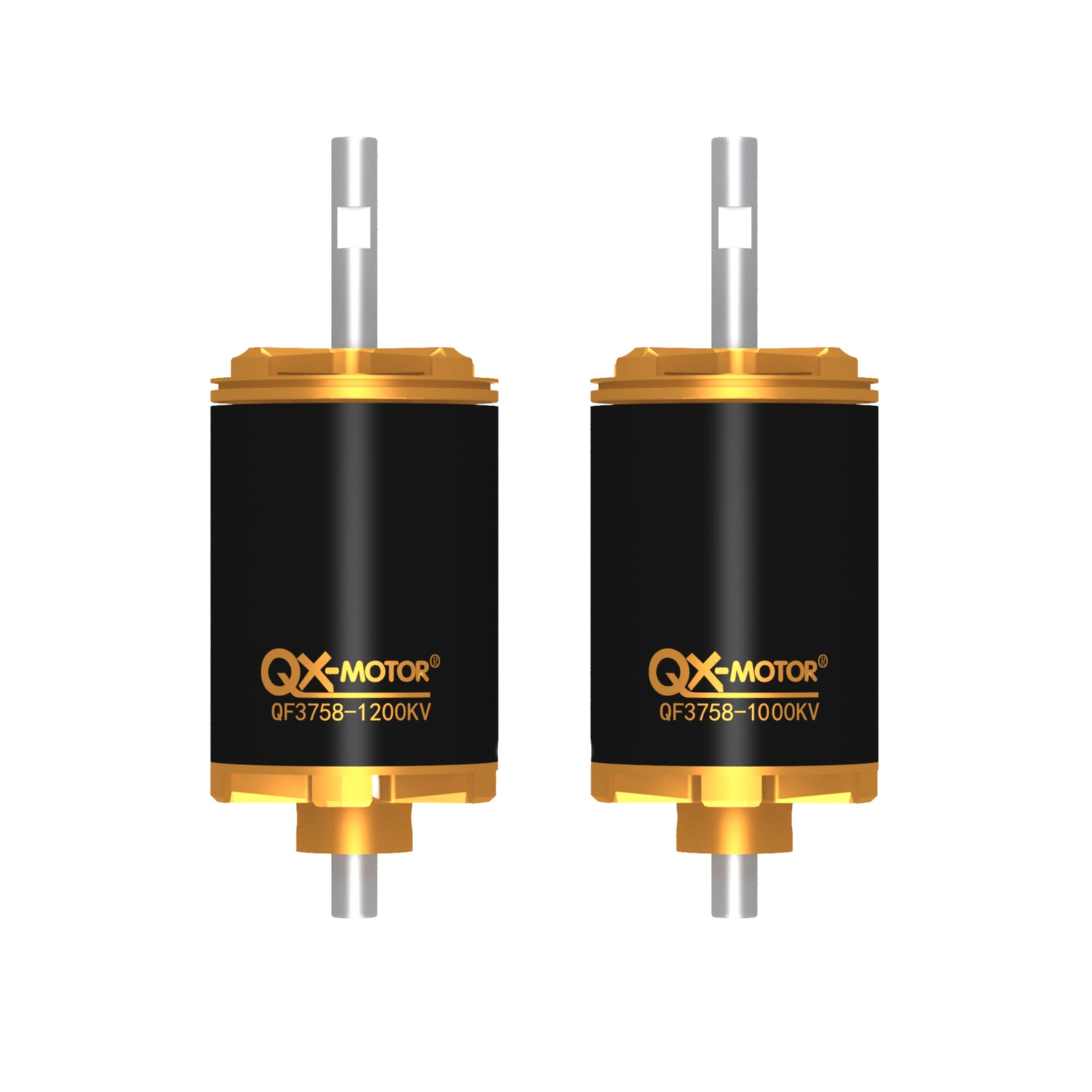

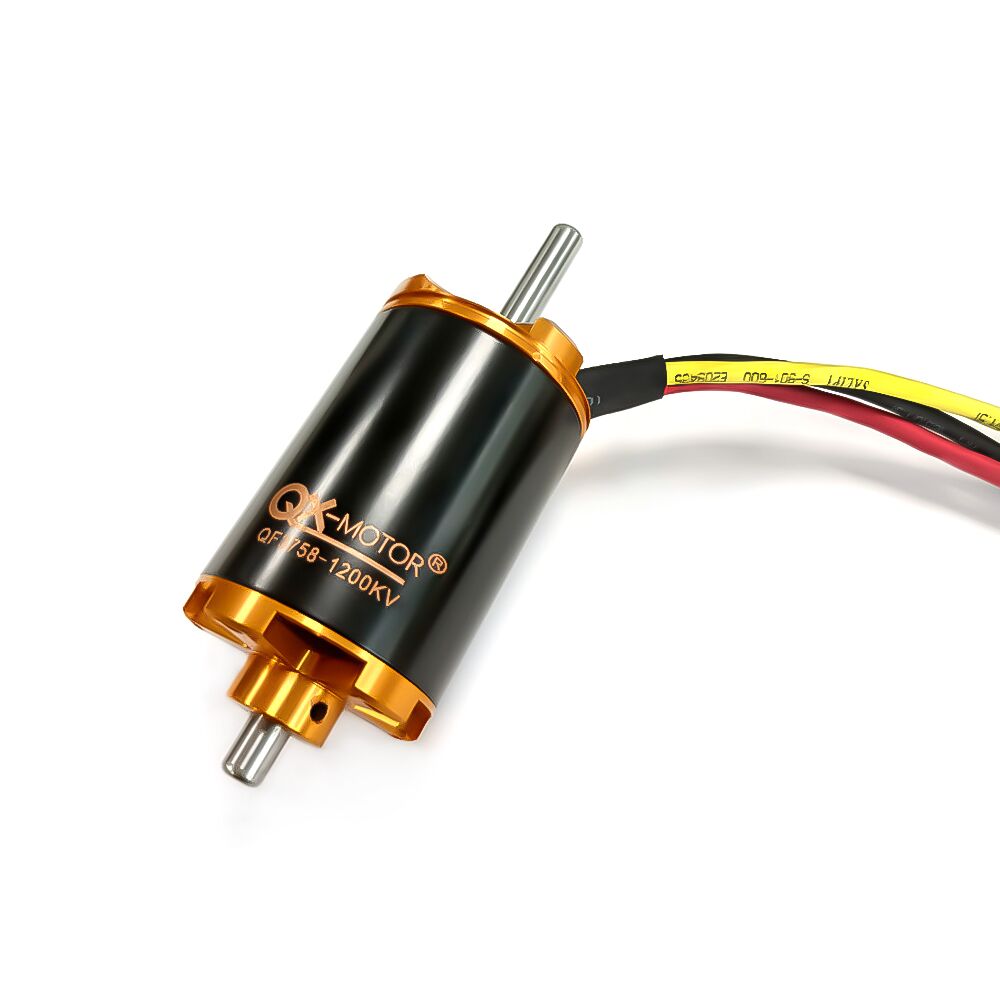

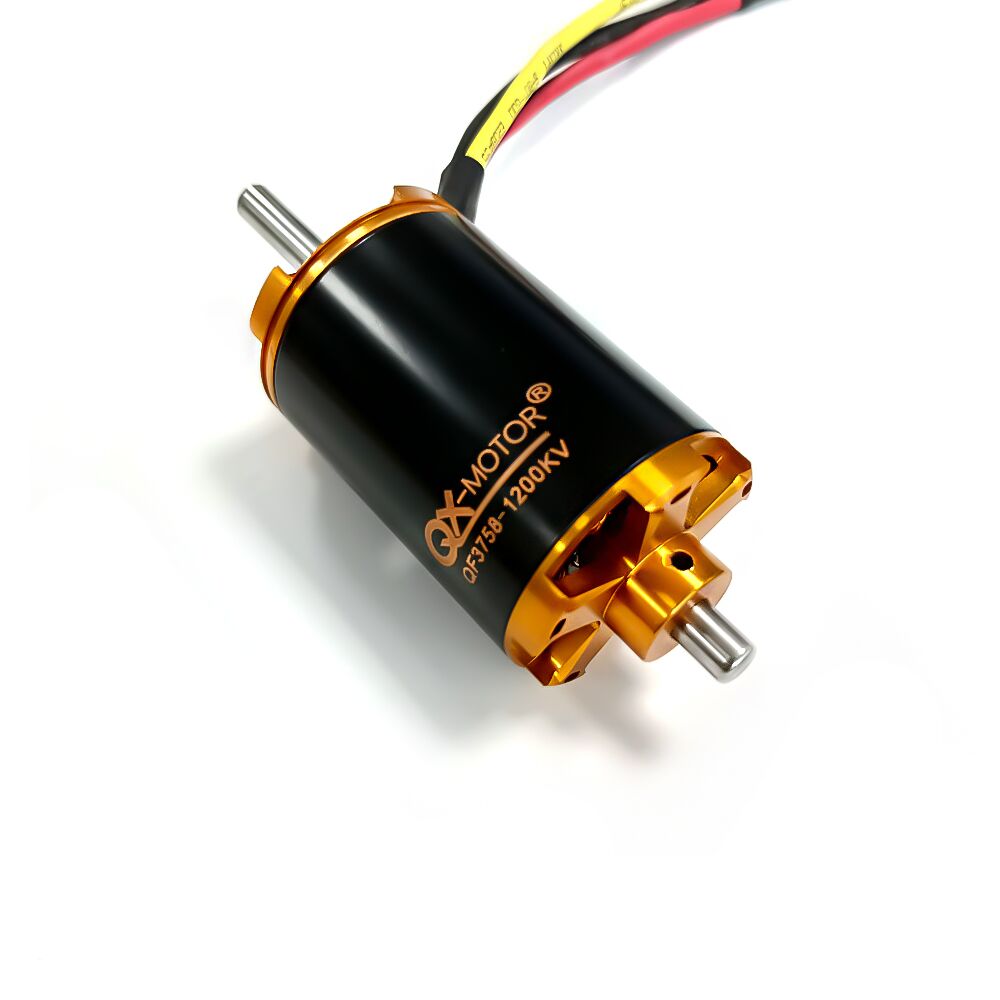

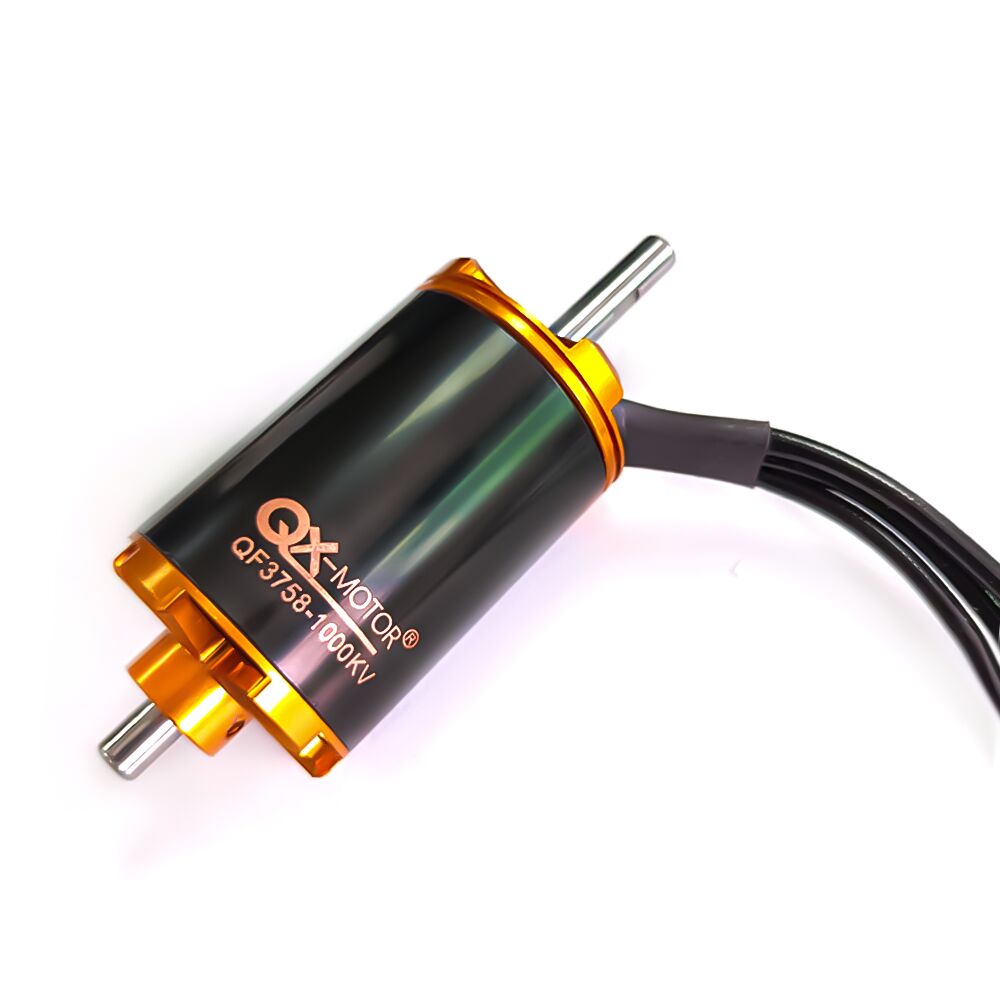

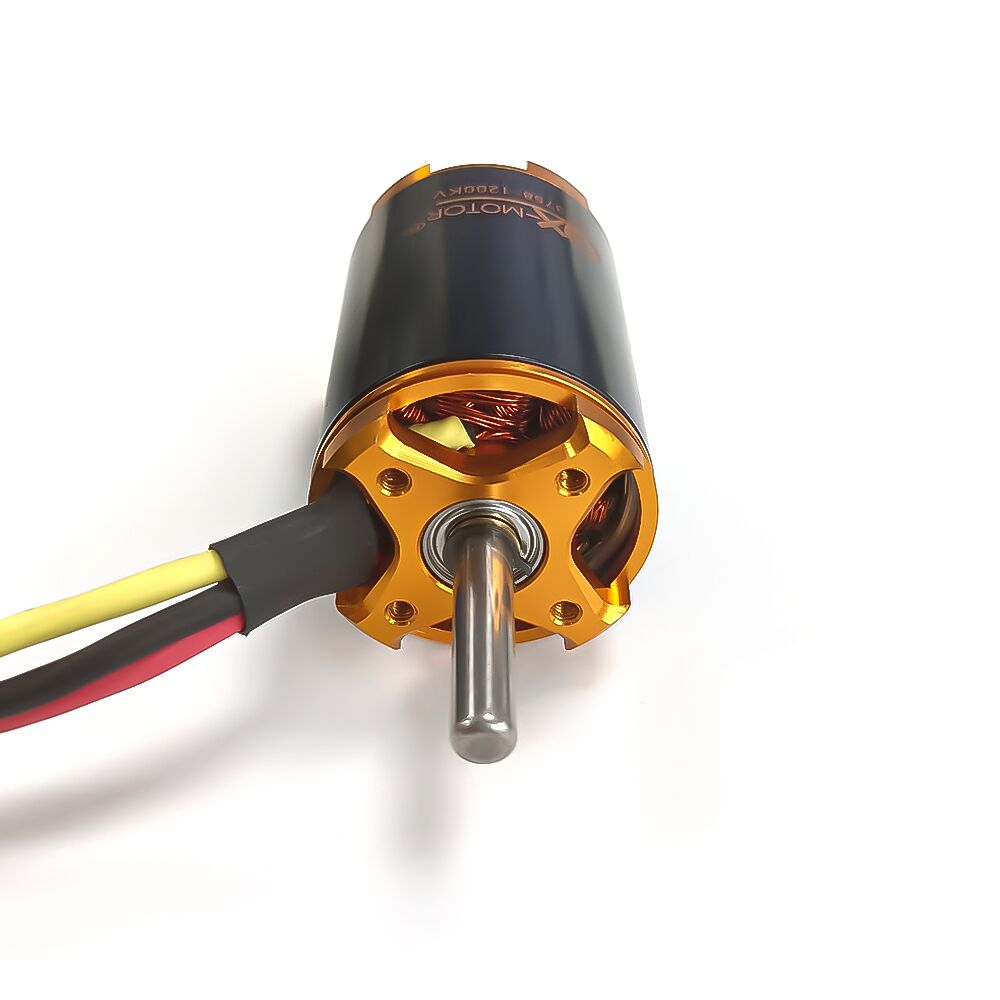

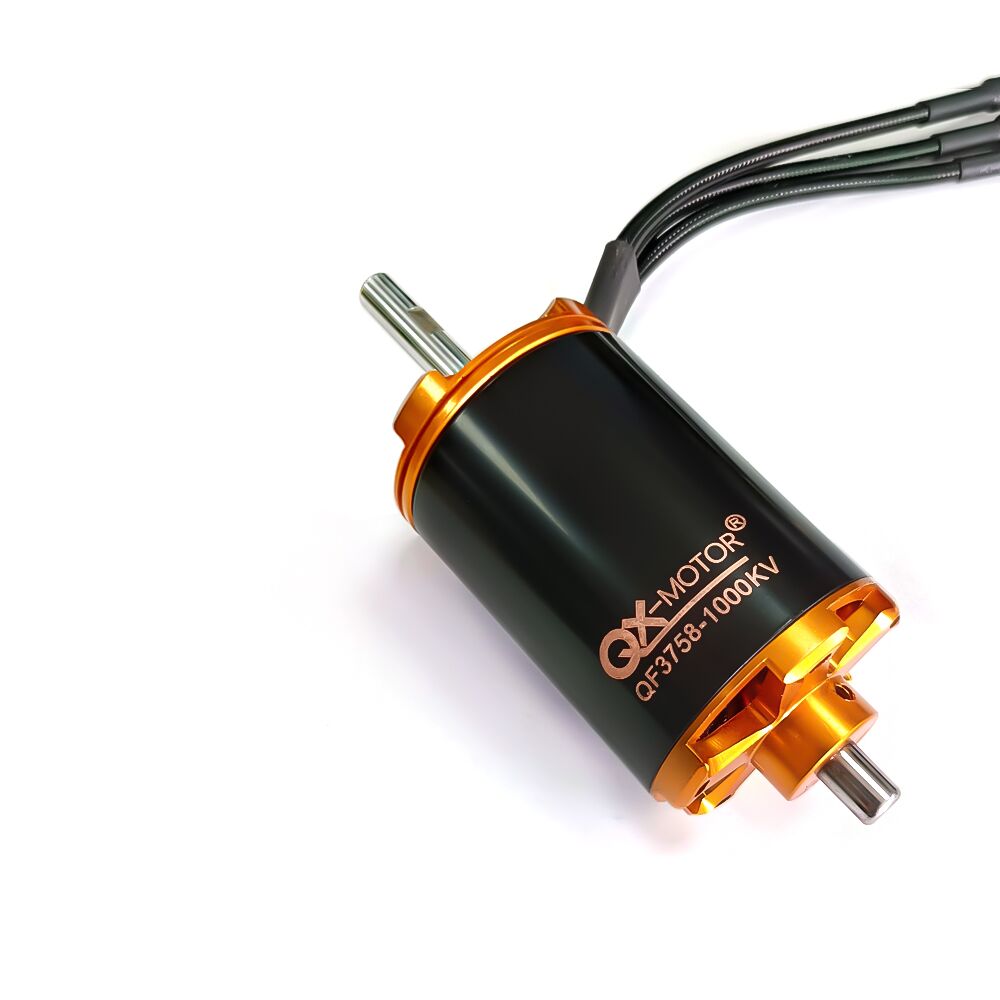

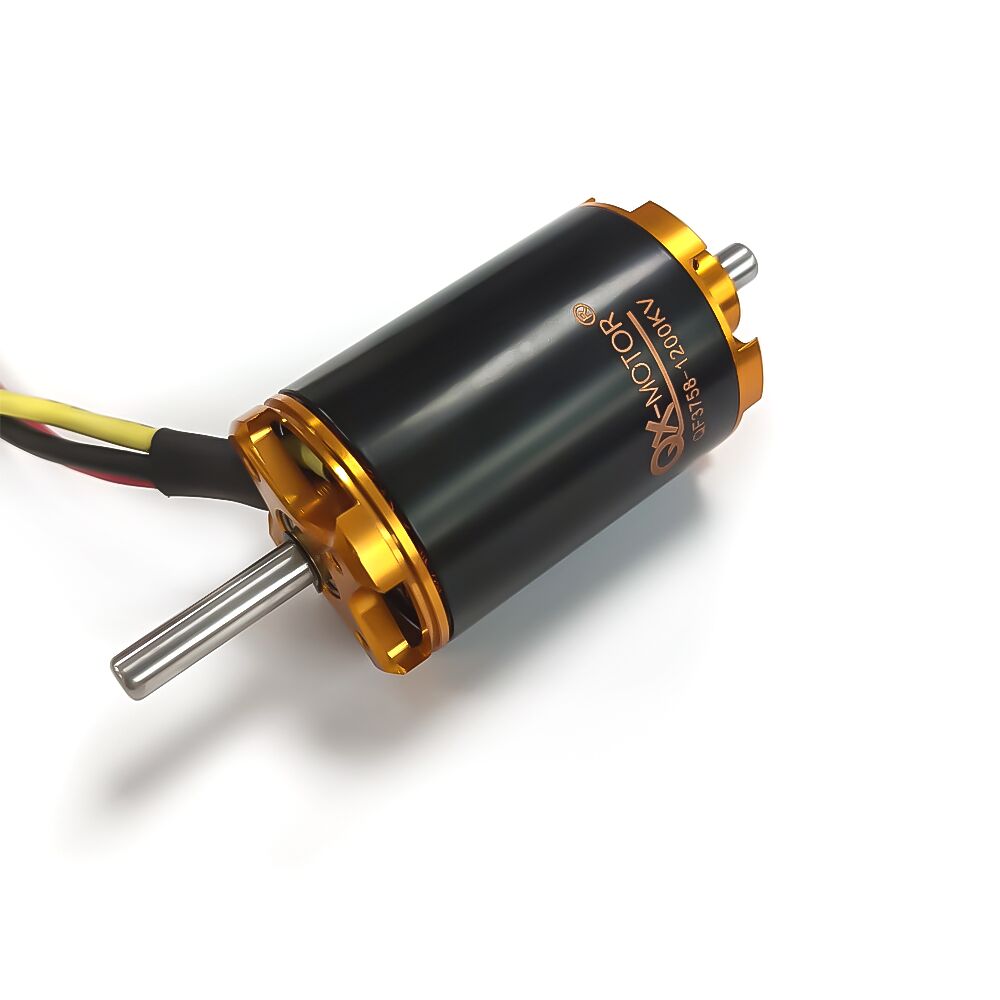

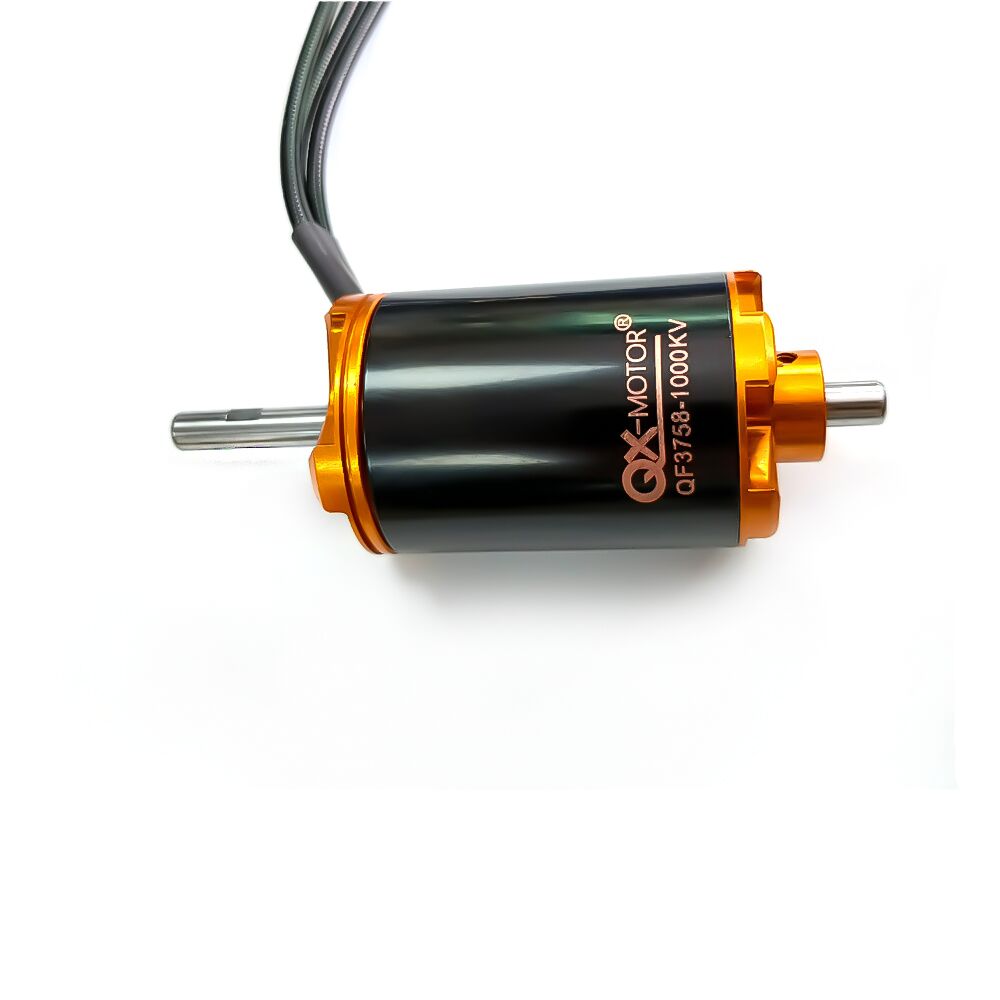

QF3758-1000KV/1200KV brushless DC motor is equipped with a 90MM ducted 12-blade fan, which is powerful and efficient, with good balance. It is an ideal choice for the majority of model fans.
| Prop | Volts (V) |
Amps (A) |
Watts (W) |
Thrust (g) |
Thrust (oz) |
Efficiency (g/W) |
Efficiency (OZ/W) |
Motor model | ESC |
| 90mm EDF (12 blades) |
29.6 | 93.0 | 2752.8 | 4500 | 158.73 | 1.63 | 0.06 | QF3758-1200KV | 120A |
| 44.4 | 72.0 | 3196.8 | 4900 | 172.84 | 1.53 | 0.05 | QF3758-1000KV | 100A |
| Weight | 0.45 kg |
|---|---|
| Dimensions | 15 × 12 × 10 cm |
| Model | QF3758 Brushless Motor |
| KV(RPM) | 1000KV, 1200KV |
| Configuration | 12N8P |
| Shaft Diameter | 6.0mm |
| Motor Diameter | 37mm |
| No. of Cells | 8-12S Lipo |
| Weight | 430g |
| Max Continuous Power/10S | 3200W |
| Max Continuous Current/10S | 100A |
| Prop | Volts (V) |
Amps (A) |
Watts (W) |
Thrust (g) |
Thrust (oz) |
Efficiency (g/W) |
Efficiency (OZ/W) |
Motor model | ESC |
| 90mm EDF (12 blades) |
29.6 | 93.0 | 2752.8 | 4500 | 158.73 | 1.63 | 0.06 | QF3758-1200KV | 120A |
| 44.4 | 72.0 | 3196.8 | 4900 | 172.84 | 1.53 | 0.05 | QF3758-1000KV | 100A |
