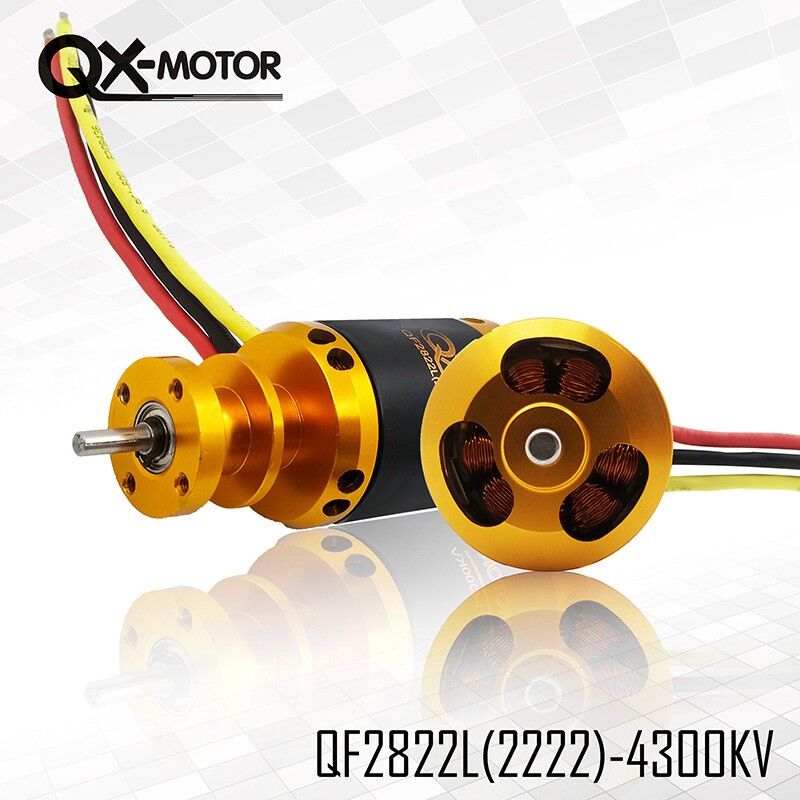

QF2822 2200KV( 2400KV / 3500KV / 3800KV / 4300KV) brushless motor, can be equipped with 64mm 12-blade EDF, has high efficiency, strong power, and stable balance. It is an ideal choice for you.
| Prop | Volts (V) | Amps (A) | Watts (W) | Thrust (g) | Thrust (oz) | Efficiency (g/W) | Efficiency (OZ/W) | Motor model |
| 64mm EDF (12 blades) | 11.1 | 16.6 | 184.28 | 576 | 20.32 | 3.13 | 0.11 | QF2822-2200KV |
| 14.8 | 25.0 | 370 | 951 | 33.54 | 2.57 | 0.09 | ||
| 22.2 | 47.0 | 1043.4 | 1870 | 65.96 | 1.79 | 0.06 | ||
| 11.1 | 19.0 | 210.9 | 678 | 23.92 | 3.21 | 0.11 | QF2822-2400KV | |
| 14.8 | 30.0 | 444 | 1130 | 39.86 | 2.55 | 0.09 | ||
| 22.2 | 57.0 | 1265.4 | 2135 | 75.31 | 1.69 | 0.06 | ||

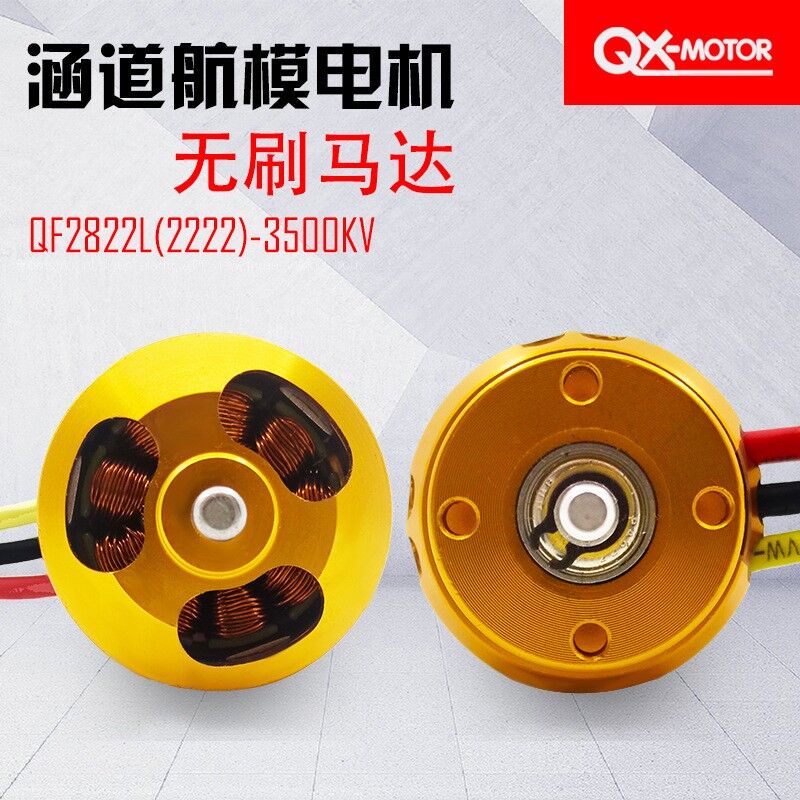

| 14.8 | 55.0 | 814 | 1570 | 55.38 | 1.93 | 0.07 | QF2822-3500KV | |
| 16 | 66.0 | 1056 | 1810 | 63.84 | 1.71 | 0.06 | ||
| 11.1 | 40.0 | 444 | 1045 | 36.86 | 2.35 | 0.08 | QF2822-3800KV | |
| 12.6 | 49.3 | 621.18 | 1296 | 45.71 | 2.09 | 0.07 | ||
| 14.8 | 63.5 | 939.8 | 1702 | 60.04 | 1.81 | 0.06 | ||
| 16 | 70.0 | 1120 | 1925 | 67.9 | 1.72 | 0.06 | ||

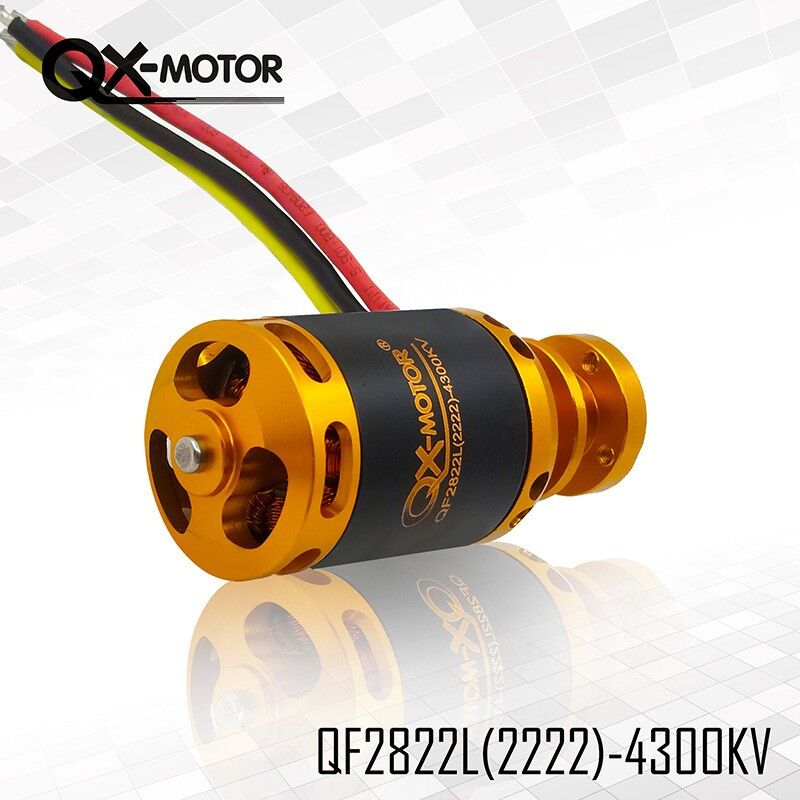

| 11.1 | 55.0 | 610.5 | 1230 | 43.39 | 2.01 | 0.07 | QF2822-4300KV | |
| 12.6 | 68.0 | 856.8 | 1550 | 54.67 | 1.81 | 0.06 |
| Weight | 0.05 kg |
|---|---|
| Dimensions | 8 × 6 × 5 cm |
| Model | QF2822 Brushless Motor |
| KV(RPM) | 2200KV, 2400KV, 3500KV, 3800KV, 4300KV |
| Configuration | 9N6P |

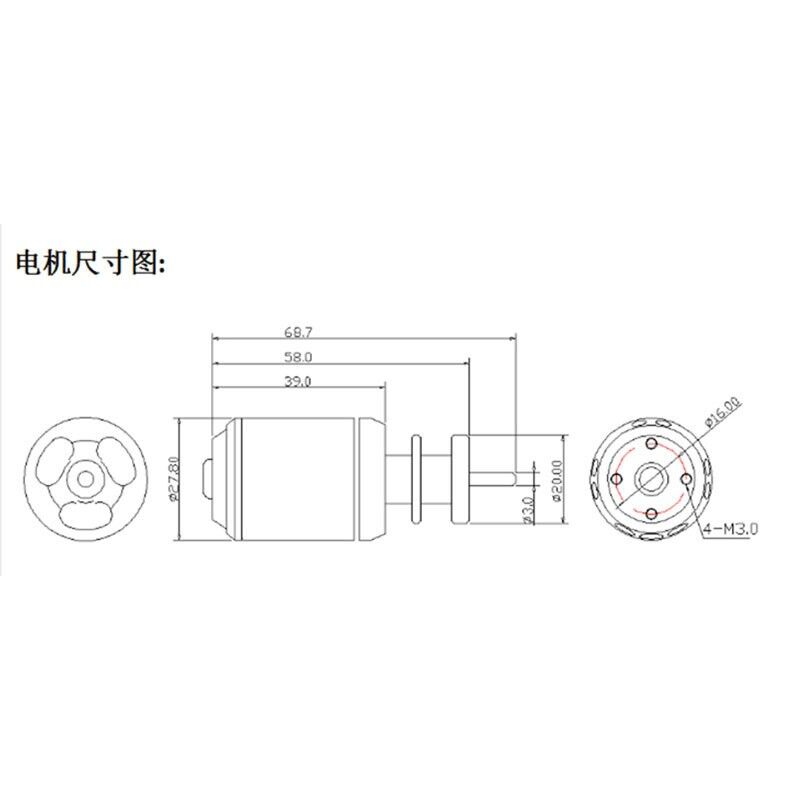

| Motor Diameter | 28x60mm |
| Weight | 90g |
| No. of Cells | 3-6S Lipo |
| Max Continuous Power/10S | 1000W, 1050W, 1110W, 1300W, 860W |
| Max Continuous Current/10S | 50A, 60A, 66A, 68A, 70A |
| Prop | Volts (V) | Amps (A) | Watts (W) | Thrust (g) | Thrust (oz) | Efficiency (g/W) | Efficiency (OZ/W) | Motor model |
| 64mm EDF (12 blades) | 11.1 | 16.6 | 184.28 | 576 | 20.32 | 3.13 | 0.11 | QF2822-2200KV |
| 14.8 | 25.0 | 370 | 951 | 33.54 | 2.57 | 0.09 | ||
| 22.2 | 47.0 | 1043.4 | 1870 | 65.96 | 1.79 | 0.06 | ||
| 11.1 | 19.0 | 210.9 | 678 | 23.92 | 3.21 | 0.11 | QF2822-2400KV | |
| 14.8 | 30.0 | 444 | 1130 | 39.86 | 2.55 | 0.09 | ||
| 22.2 | 57.0 | 1265.4 | 2135 | 75.31 | 1.69 | 0.06 | ||
| 14.8 | 55.0 | 814 | 1570 | 55.38 | 1.93 | 0.07 | QF2822-3500KV | |
| 16 | 66.0 | 1056 | 1810 | 63.84 | 1.71 | 0.06 | ||
| 11.1 | 40.0 | 444 | 1045 | 36.86 | 2.35 | 0.08 | QF2822-3800KV | |
| 12.6 | 49.3 | 621.18 | 1296 | 45.71 | 2.09 | 0.07 | ||
| 14.8 | 63.5 | 939.8 | 1702 | 60.04 | 1.81 | 0.06 | ||
| 16 | 70.0 | 1120 | 1925 | 67.9 | 1.72 | 0.06 | ||
| 11.1 | 55.0 | 610.5 | 1230 | 43.39 | 2.01 | 0.07 | QF2822-4300KV | |
| 12.6 | 68.0 | 856.8 | 1550 | 54.67 | 1.81 | 0.06 |
