Prop | Volts (V) | Amps (A) | Watts (W) | Thrust (g) | Thrust (oz) | Efficiency (g/W) | Efficiency (OZ/W) | Motor model |
1555 Propeller | 22.2 | 4.0 | 88.80 | 980 | 34.57 | 11.04 | 0.39 | QM5010-380KV |
22.2 | 5.8 | 128.76 | 1300 | 45.86 | 10.10 | 0.36 | ||
22.2 | 8.5 | 188.70 | 1650 | 58.20 | 8.74 | 0.31 | ||
22.2 | 12.0 | 266.40 | 2010 | 70.90 | 7.55 | 0.27 | ||
22.2 | 16.0 | 355.20 | 2320 | 81.83 | 6.53 | 0.23 | ||
22.2 | 19.0 | 421.80 | 2700 | 95.24 | 6.40 | 0.23 | ||
1755 Propeller | 22.2 | 4.8 | 106.56 | 1180 | 41.62 | 11.07 | 0.39 | QM5010-320KV |
22.2 | 6.7 | 148.74 | 1400 | 49.38 | 9.41 | 0.33 | ||
22.2 | 10.0 | 222.00 | 1815 | 64.02 | 8.18 | 0.29 | ||
22.2 | 13.0 | 288.60 | 2220 | 78.31 | 7.69 | 0.27 | ||
22.2 | 17.2 | 381.84 | 2640 | 93.12 | 6.91 | 0.24 | ||
22.2 | 19.8 | 439.56 | 2840 | 100.18 | 6.46 | 0.23 | ||
1555 Propeller | 15 | 7.2 | 108.00 | 947 | 33.40 | 8.77 | 0.31 | QM5010-600KV |
15 | 12.9 | 193.50 | 1450 | 51.15 | 7.49 | 0.26 | ||
15 | 18.9 | 283.50 | 1900 | 67.02 | 6.70 | 0.24 | ||
15 | 29.0 | 435.00 | 2600 | 91.71 | 5.98 | 0.21 | ||
1238 Propeller | 22.2 | 8.9 | 197.58 | 1320 | 46.56 | 6.68 | 0.24 | |
22.2 | 16.7 | 370.74 | 2030 | 71.60 | 5.48 | 0.19 | ||
22.2 | 24.9 | 552.78 | 2700 | 95.24 | 4.88 | 0.17 | ||
22.2 | 34.0 | 754.80 | 3300 | 116.40 | 4.37 | 0.15 | ||
22.2 | 35.3 | 783.66 | 3500 | 123.46 | 4.47 | 0.16 |
Weight | 0.19 kg |
---|---|
Dimensions | 12 × 10 × 10 cm |

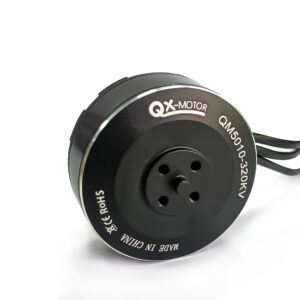

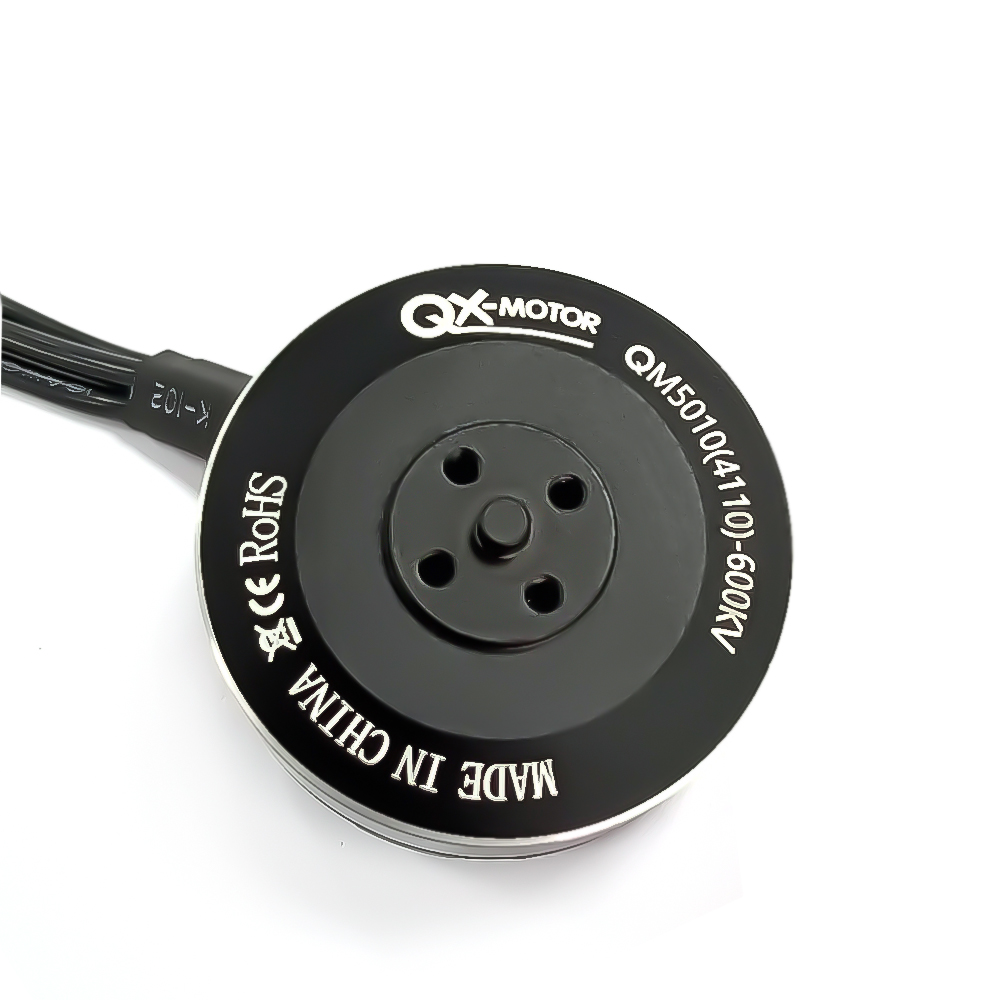

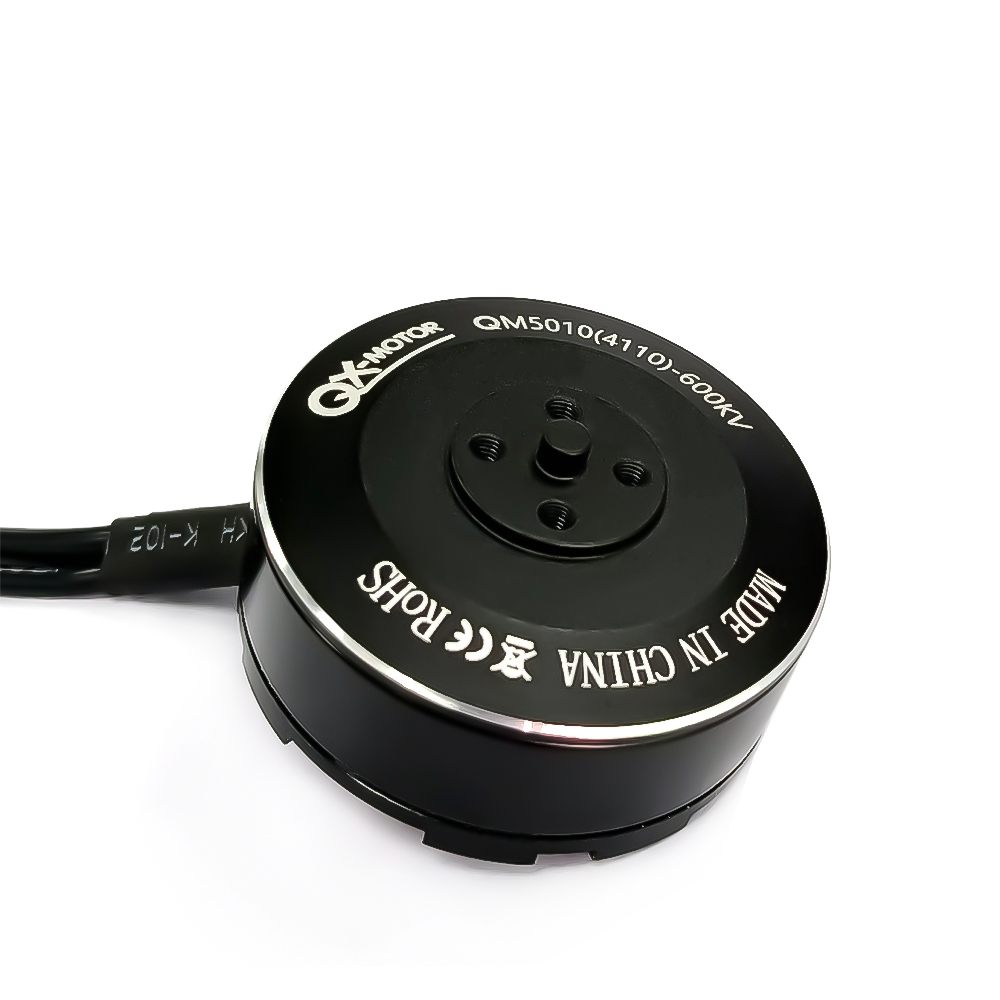

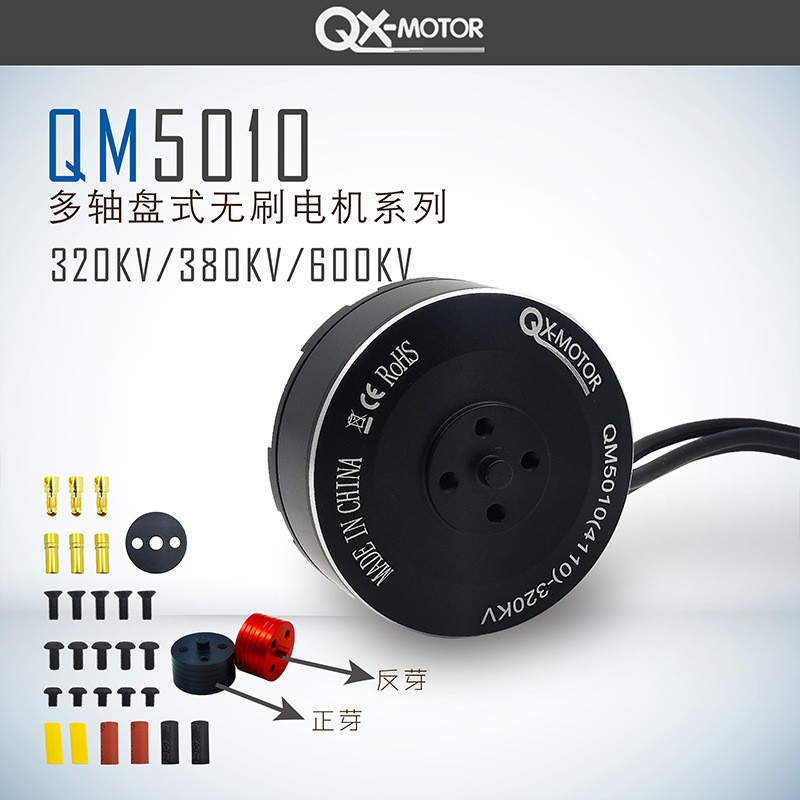

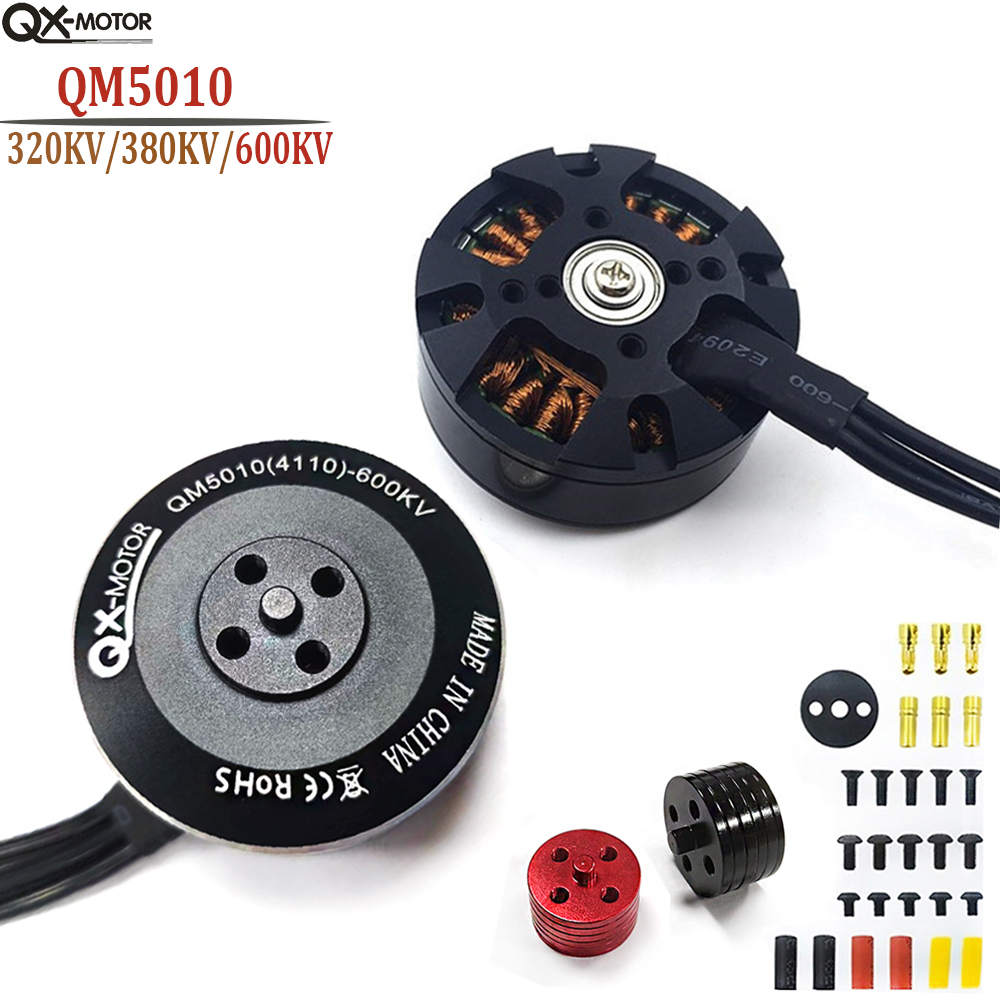

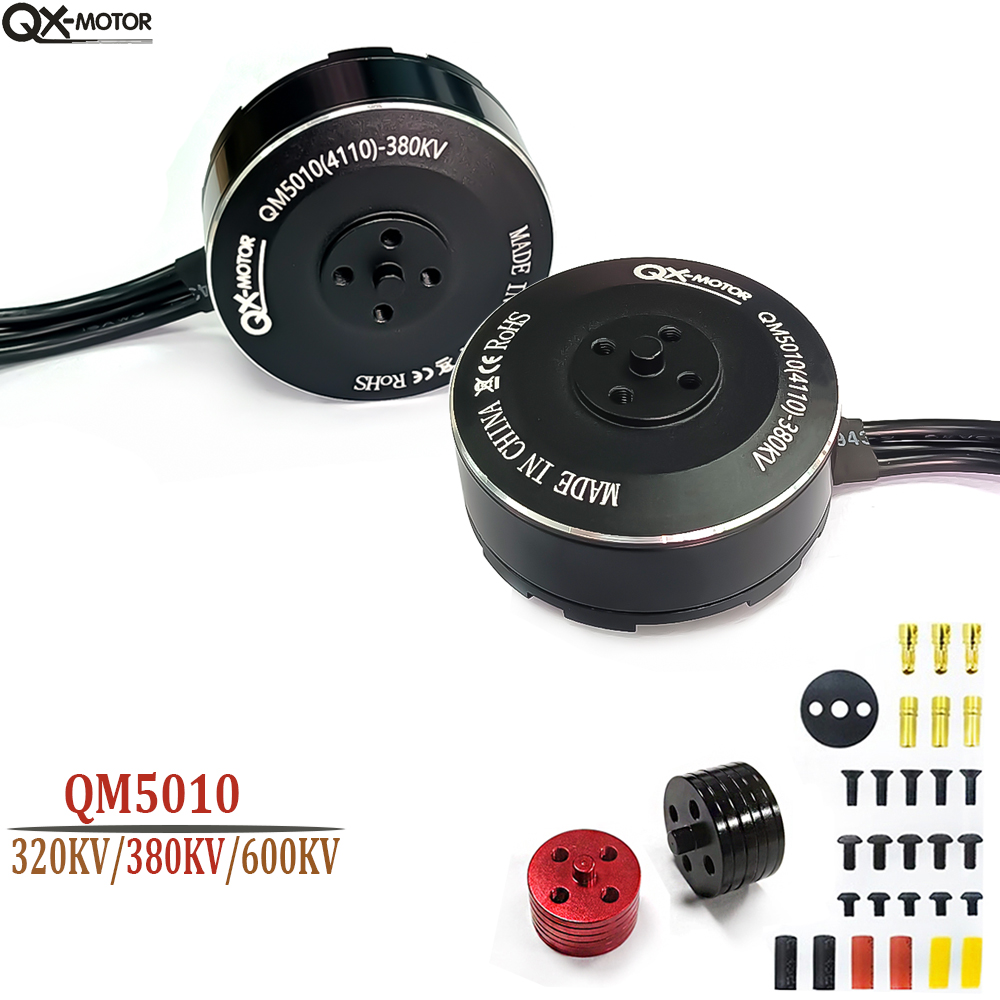

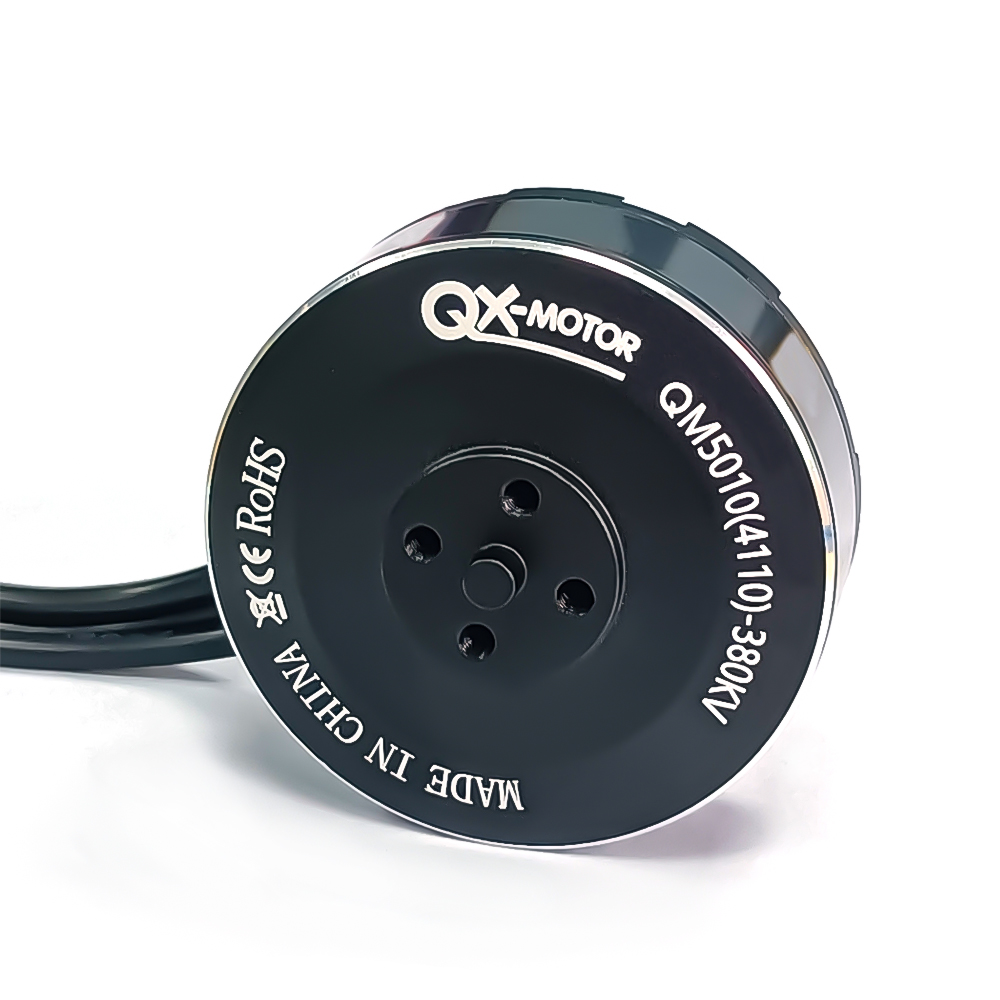

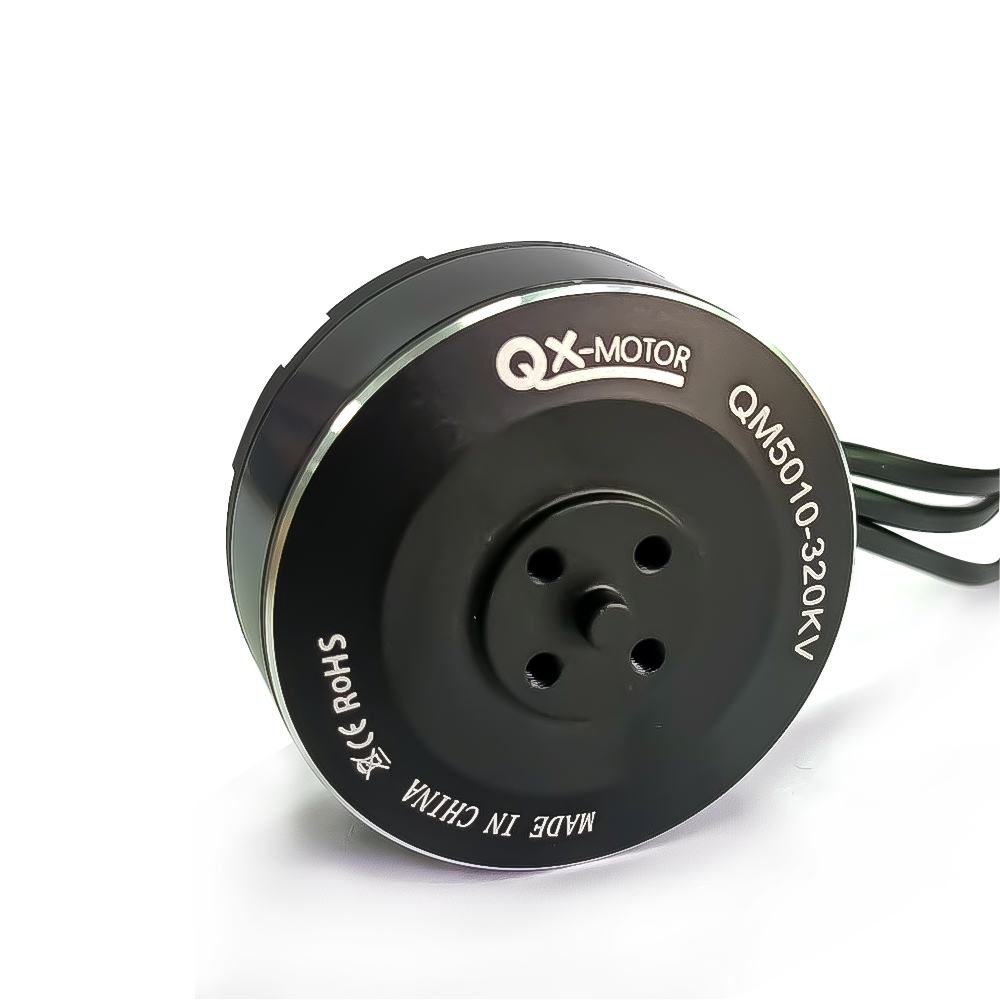

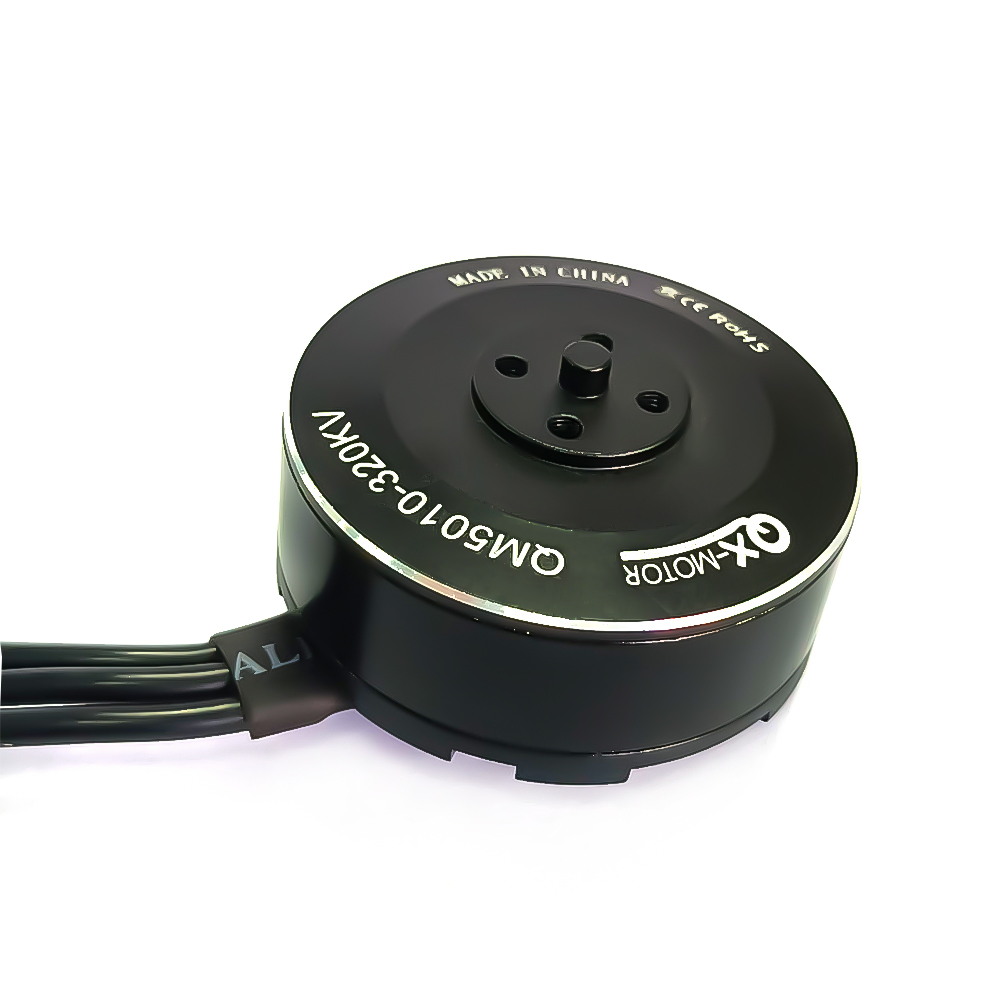

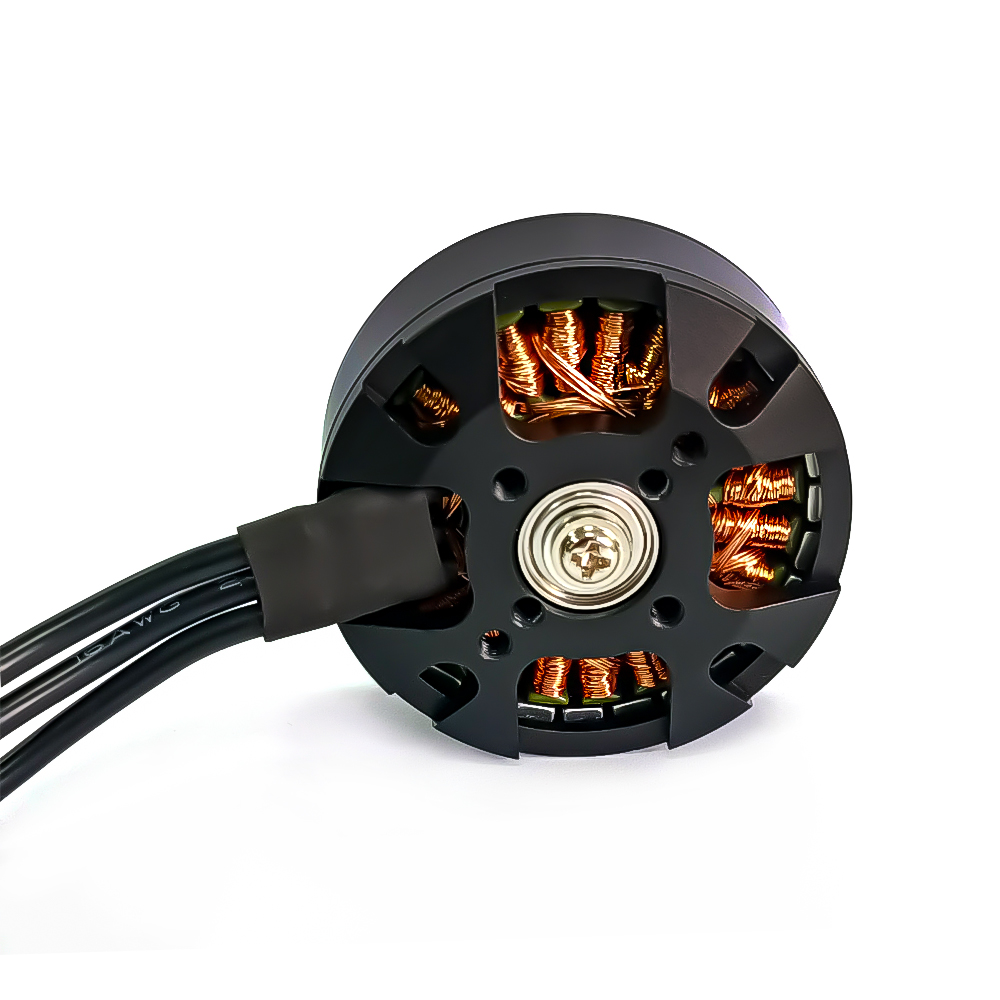

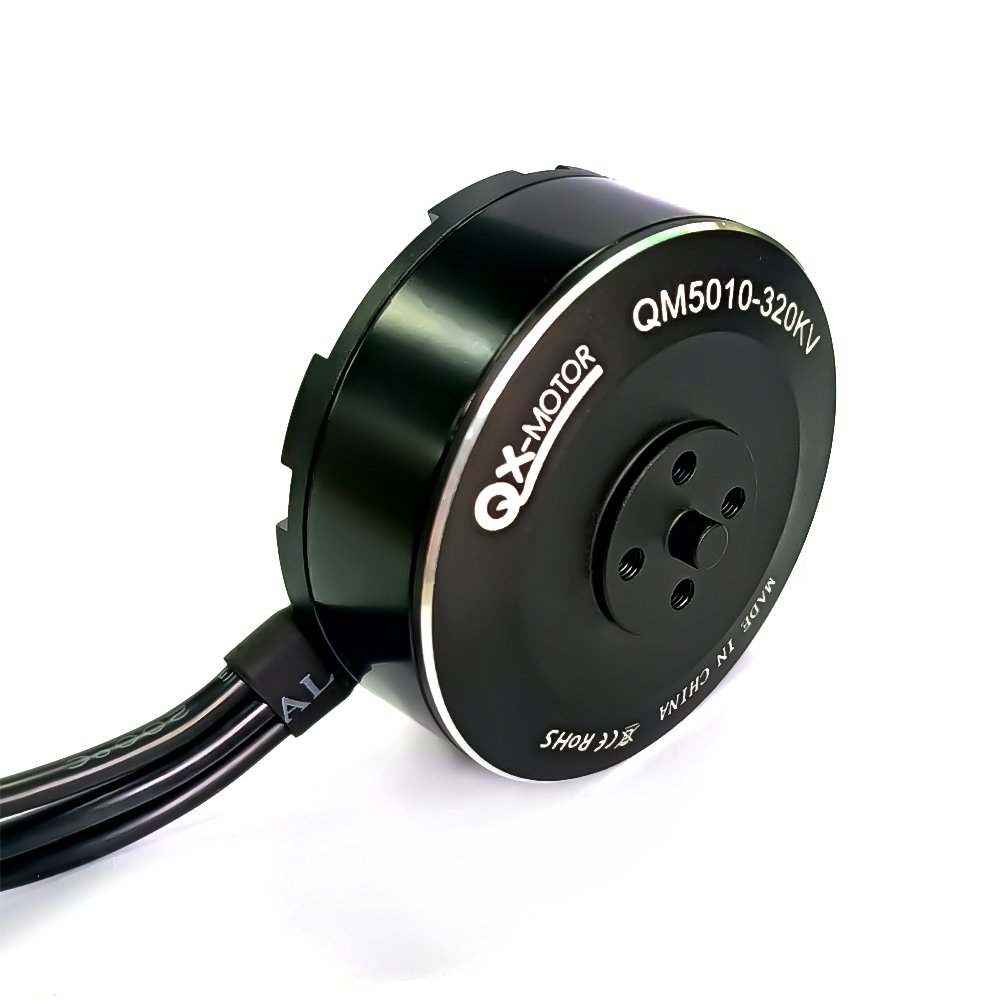

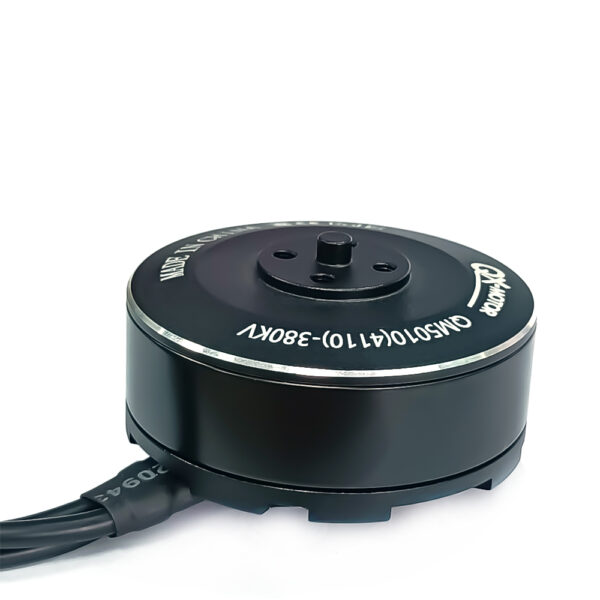

Model | QM5010 Brushless Motor |

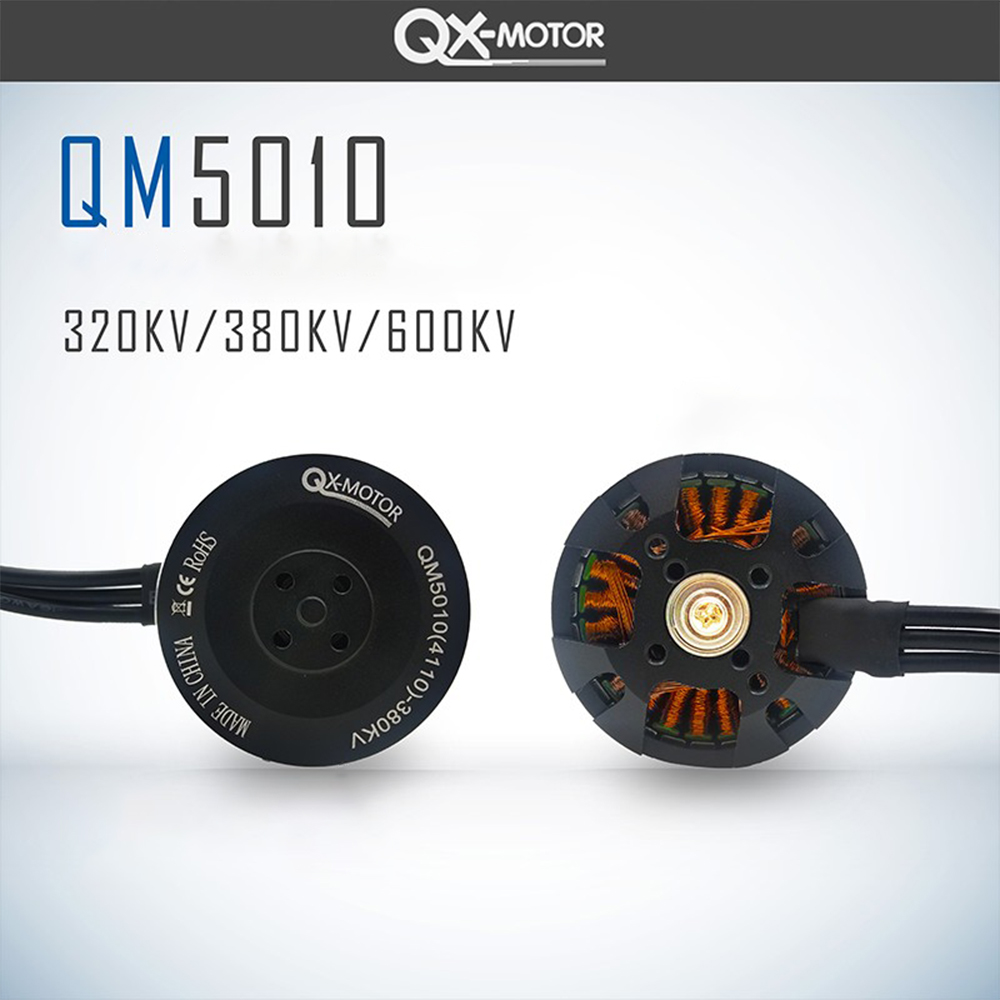

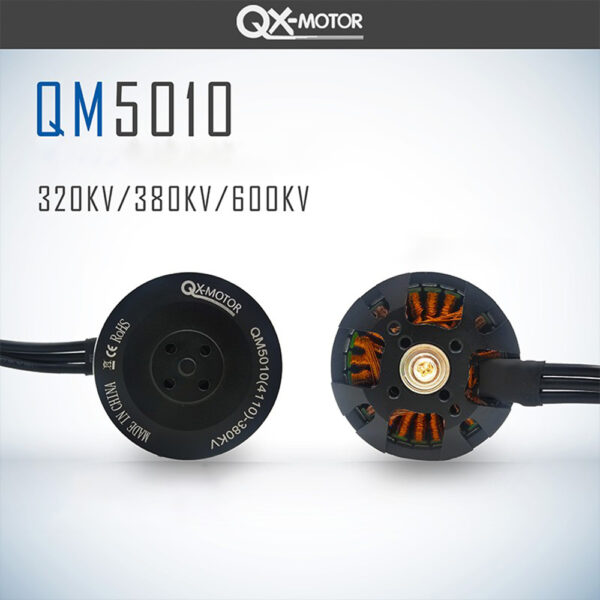

KV(RPM) | 320KV, 380KV, 600KV |
Configuration | 24N28P |
Shaft Diameter | 40.6mm |

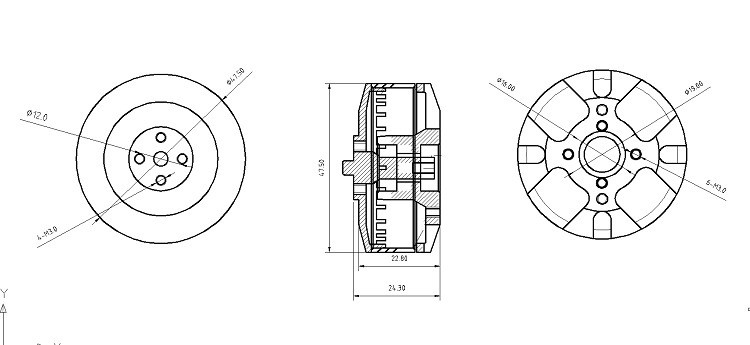

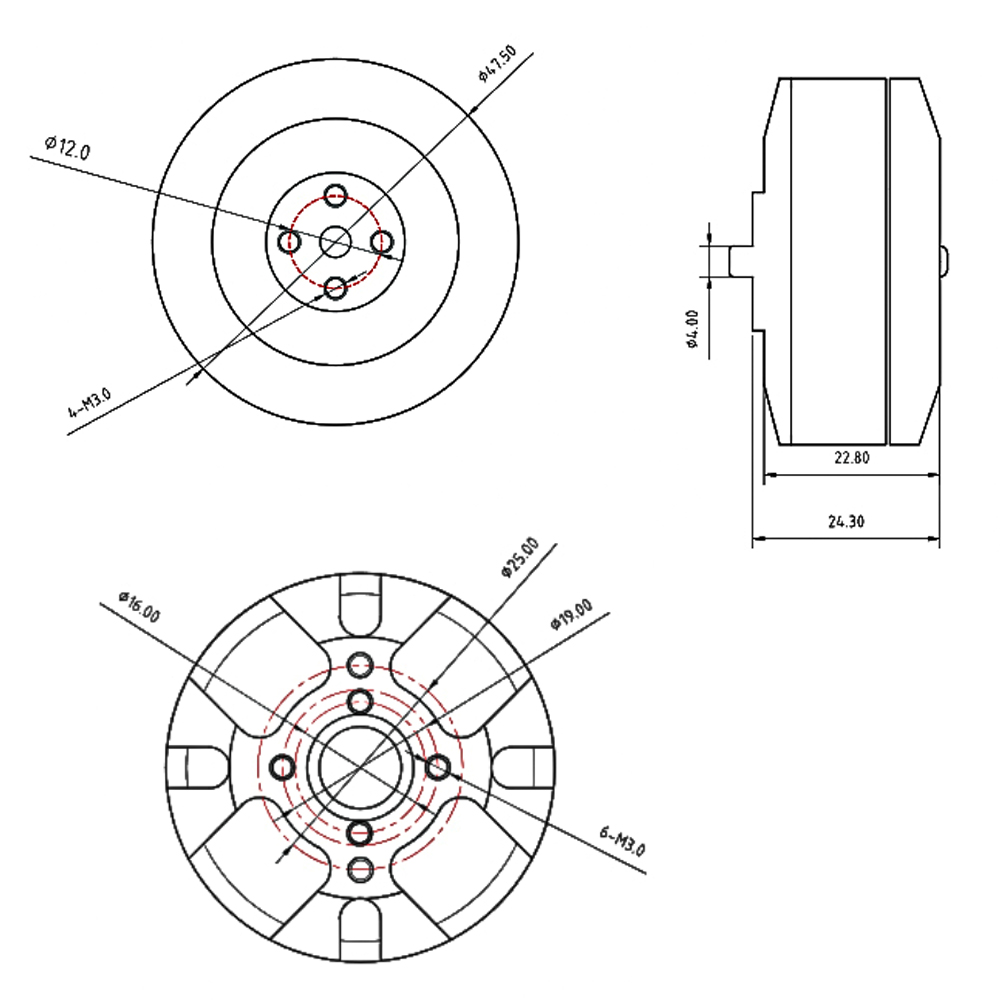

Motor Diameter | 47.5×24.3 |
Weight | 90g |
No. of Cells | 6S Lipo |
Max Continuous Power/10S | 430W, 450W |
Max Continuous Current/10S | 19.8A, 19A, 35.3A |
Prop | Volts (V) | Amps (A) | Watts (W) | Thrust (g) | Thrust (oz) | Efficiency (g/W) | Efficiency (OZ/W) | Motor model |
1555 Propeller | 22.2 | 4.0 | 88.80 | 980 | 34.57 | 11.04 | 0.39 | QM5010-380KV |
22.2 | 5.8 | 128.76 | 1300 | 45.86 | 10.10 | 0.36 | ||
22.2 | 8.5 | 188.70 | 1650 | 58.20 | 8.74 | 0.31 | ||
22.2 | 12.0 | 266.40 | 2010 | 70.90 | 7.55 | 0.27 | ||
22.2 | 16.0 | 355.20 | 2320 | 81.83 | 6.53 | 0.23 | ||
22.2 | 19.0 | 421.80 | 2700 | 95.24 | 6.40 | 0.23 | ||
1755 Propeller | 22.2 | 4.8 | 106.56 | 1180 | 41.62 | 11.07 | 0.39 | QM5010-320KV |
22.2 | 6.7 | 148.74 | 1400 | 49.38 | 9.41 | 0.33 | ||
22.2 | 10.0 | 222.00 | 1815 | 64.02 | 8.18 | 0.29 | ||
22.2 | 13.0 | 288.60 | 2220 | 78.31 | 7.69 | 0.27 | ||
22.2 | 17.2 | 381.84 | 2640 | 93.12 | 6.91 | 0.24 | ||
22.2 | 19.8 | 439.56 | 2840 | 100.18 | 6.46 | 0.23 | ||
1555 Propeller | 15 | 7.2 | 108.00 | 947 | 33.40 | 8.77 | 0.31 | QM5010-600KV |
15 | 12.9 | 193.50 | 1450 | 51.15 | 7.49 | 0.26 | ||
15 | 18.9 | 283.50 | 1900 | 67.02 | 6.70 | 0.24 | ||
15 | 29.0 | 435.00 | 2600 | 91.71 | 5.98 | 0.21 | ||
1238 Propeller | 22.2 | 8.9 | 197.58 | 1320 | 46.56 | 6.68 | 0.24 | |
22.2 | 16.7 | 370.74 | 2030 | 71.60 | 5.48 | 0.19 | ||
22.2 | 24.9 | 552.78 | 2700 | 95.24 | 4.88 | 0.17 | ||
22.2 | 34.0 | 754.80 | 3300 | 116.40 | 4.37 | 0.15 | ||
22.2 | 35.3 | 783.66 | 3500 | 123.46 | 4.47 | 0.16 |
