The digital Servo is designed with a control angle of 180° and 270°, The scope of the application is model airplanes, car models, climbing cars, short trucks, rally, racing, flat running, off-road, gasoline engines, robots, aerial photography, gimbals, unmanned machines, robotic arms, etc., Meanwhile, compatible with JR/Futaba
| Model | QX-3120MG |
|---|

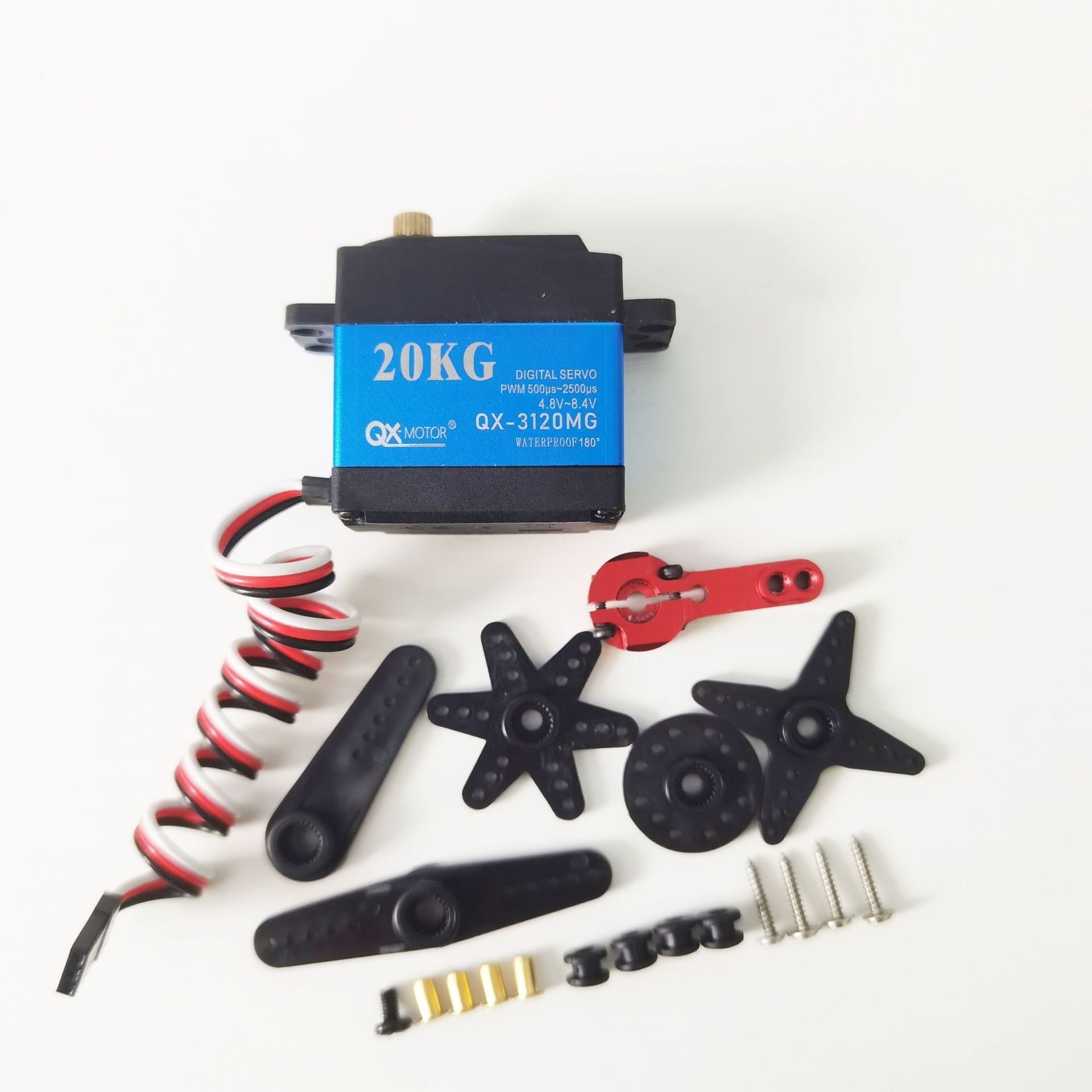

Item: QX-MOTOR QX-3120MG Digital Servo
Apply Environmental Conditions:
Storage Temperature Range:-30°C~80°C
Operating Temperature Range:-25°C~70°C
Torque(6V): 20.5kg-cm
Torque(8.4V): 22.8 kg-cm
Mechanical Specification:
Size: 40.0*20*40.5mm
Weight: 67g±2g
Limit angle: 180°
Bearing: Double bearing
Horn gear spline: 25T
Case: Engineering plastics+Aluminum alloy
Connector wire: 300mm±5mm
Motor Type: DC motor
Gear type: Metal
Electrical Specification:
Working voltage range: 4.8 – 8.4V
Pulse width range: 500～2500usec
Neutral position: 1500usec
Running degree: 180±3°(PWM 500～2500usec)
Dead band width: 3 usec
