GPS Module BN-220 BN-880 GPS Positioning with Compass For Fixed Wing Crossing Aircraft Remote control toy parts

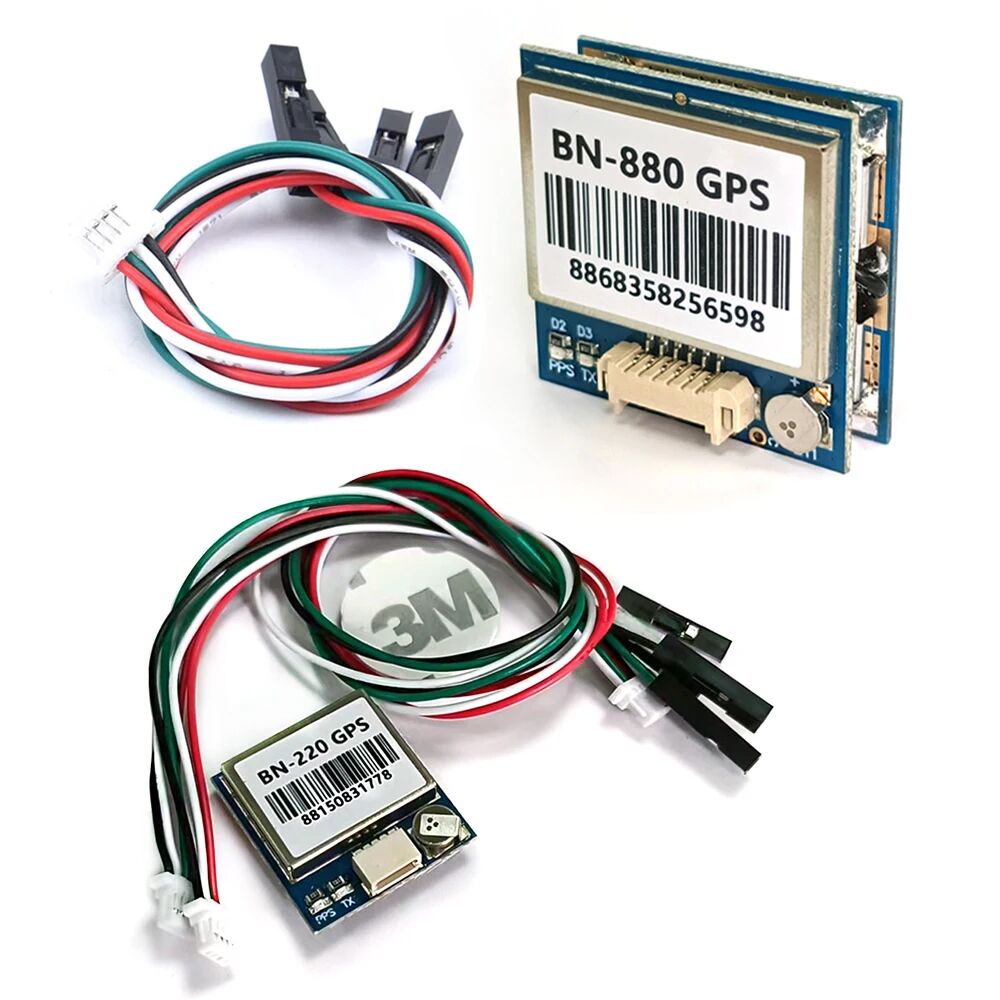

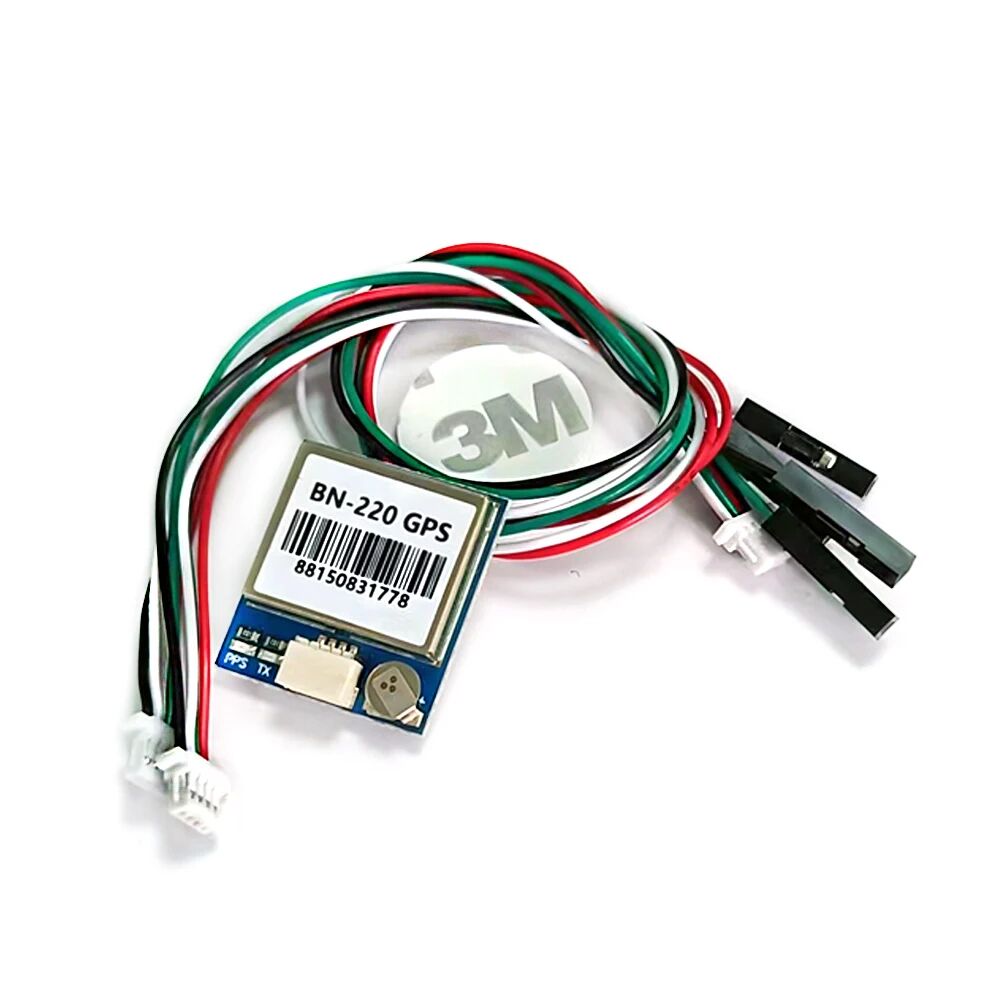

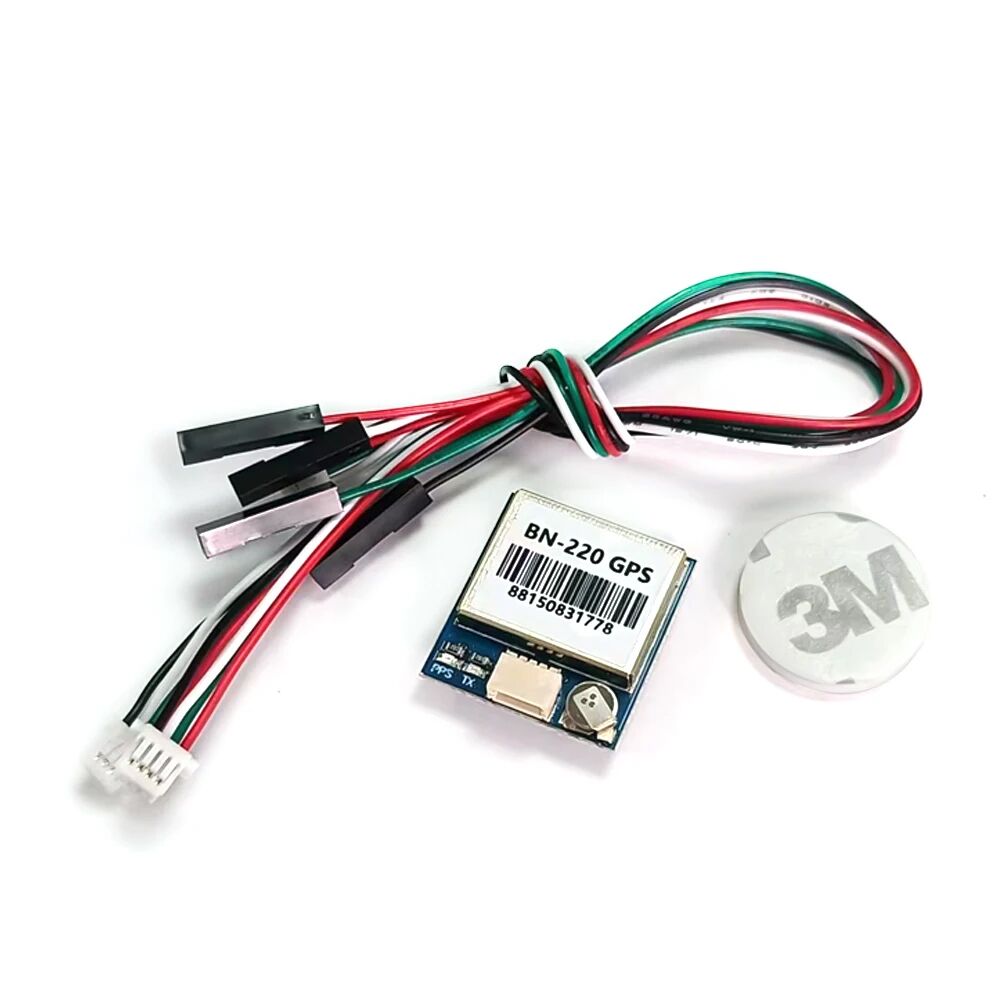

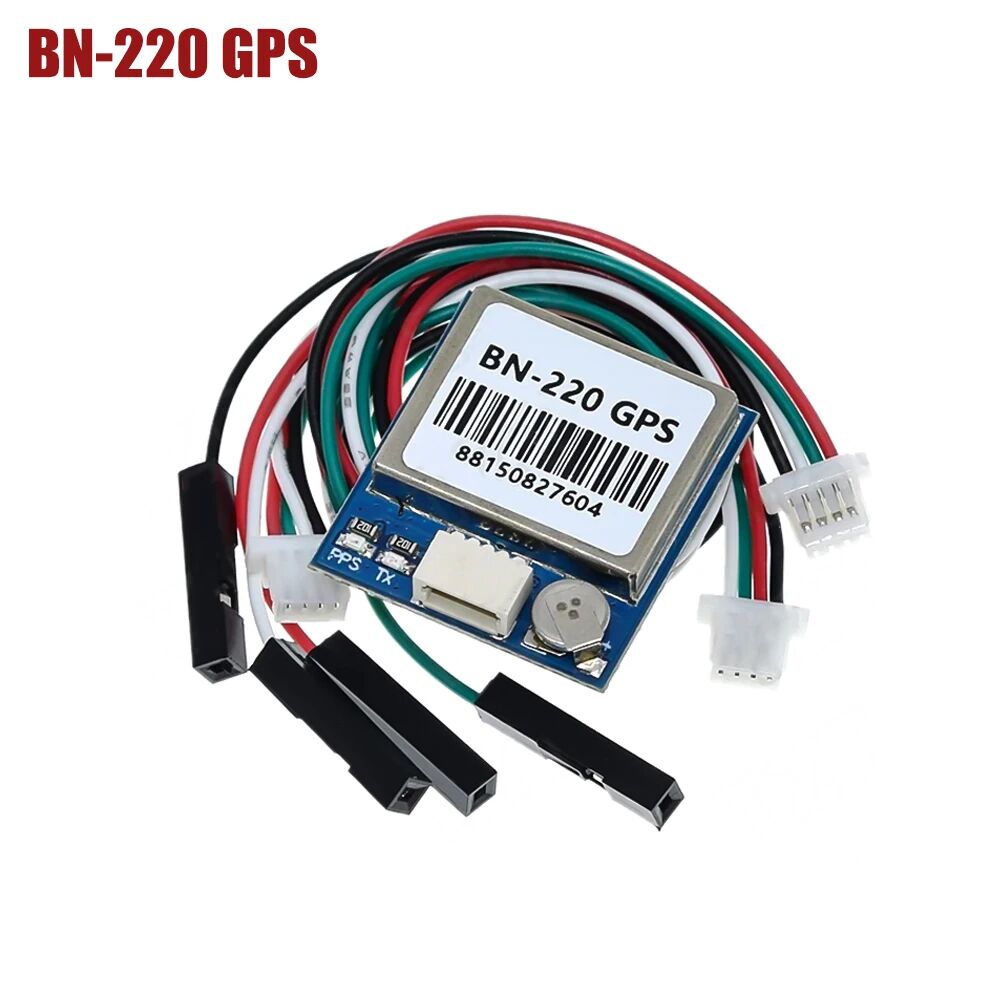

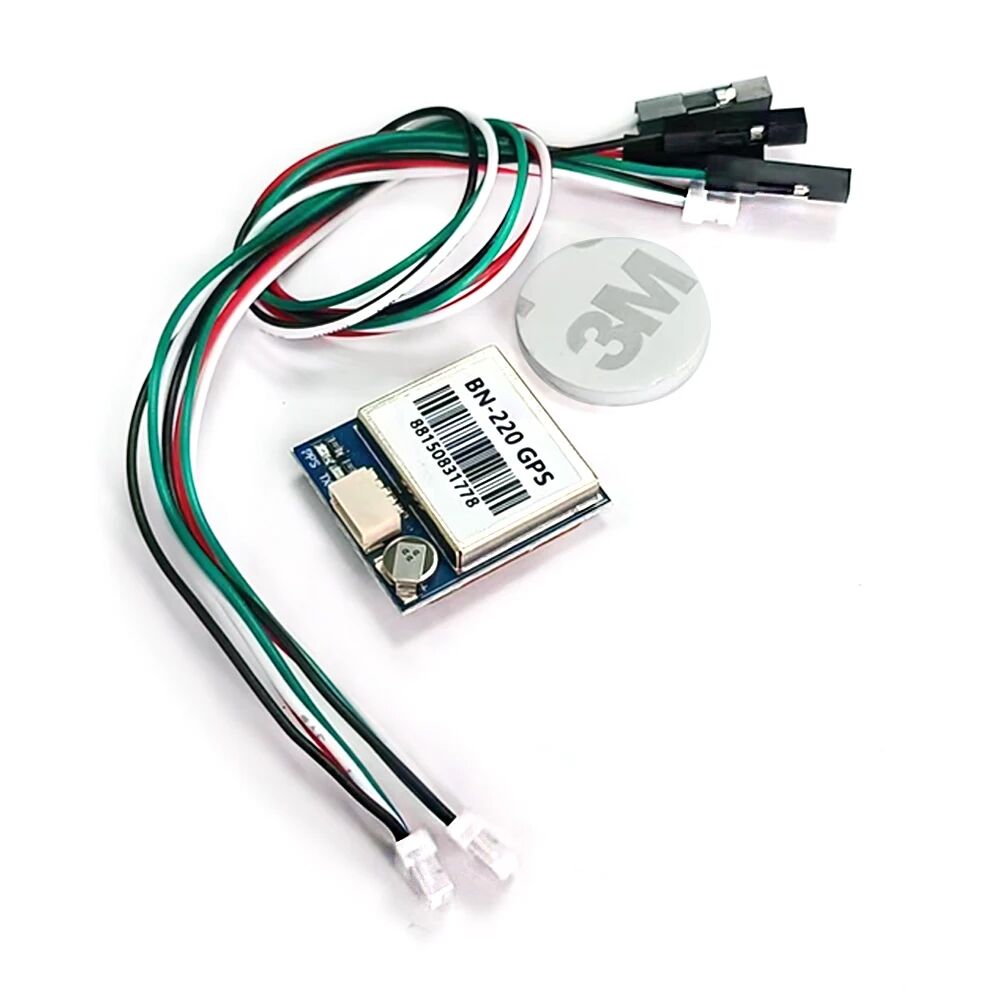

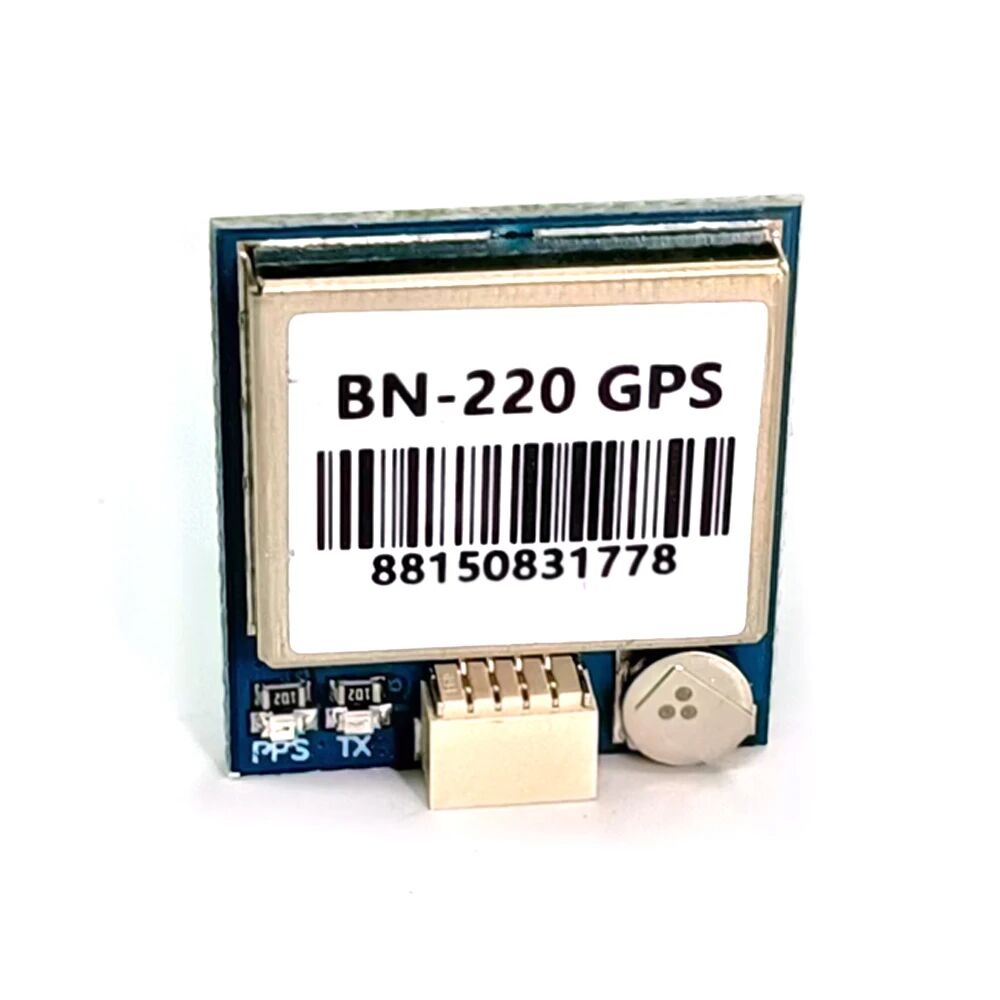

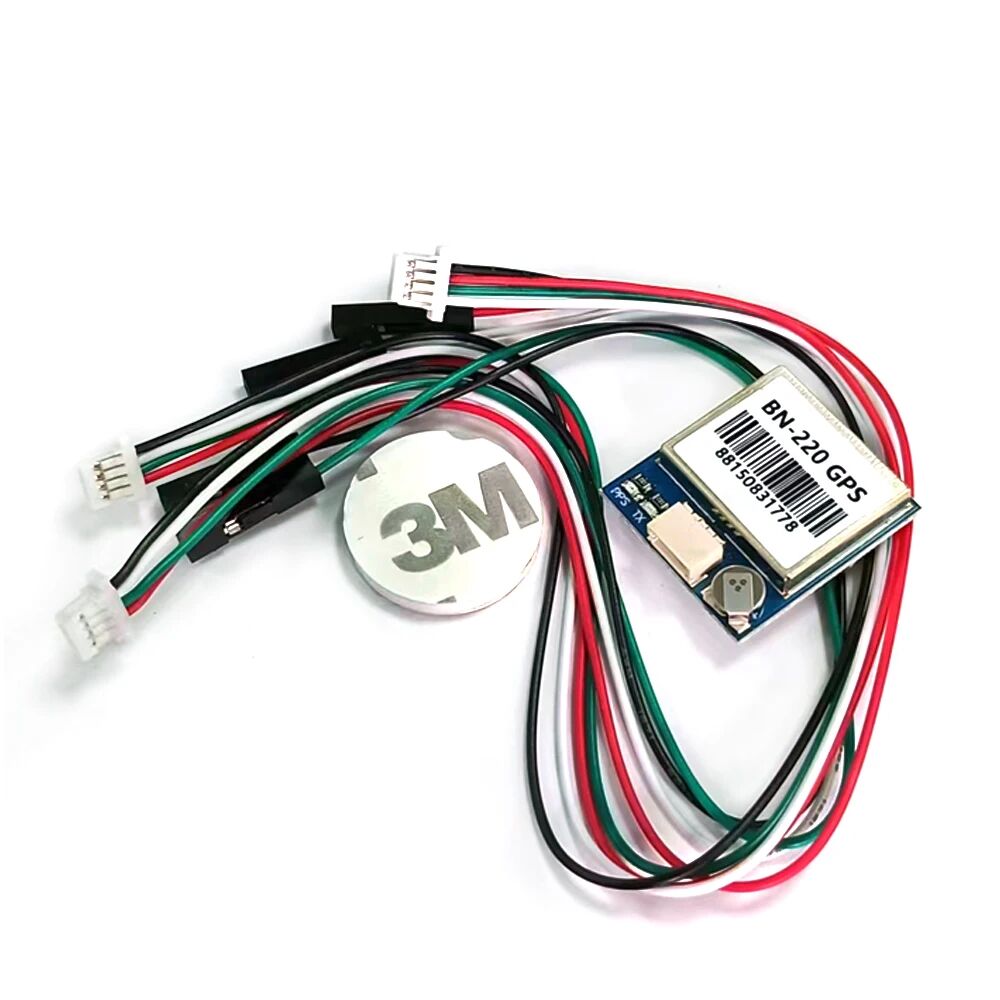

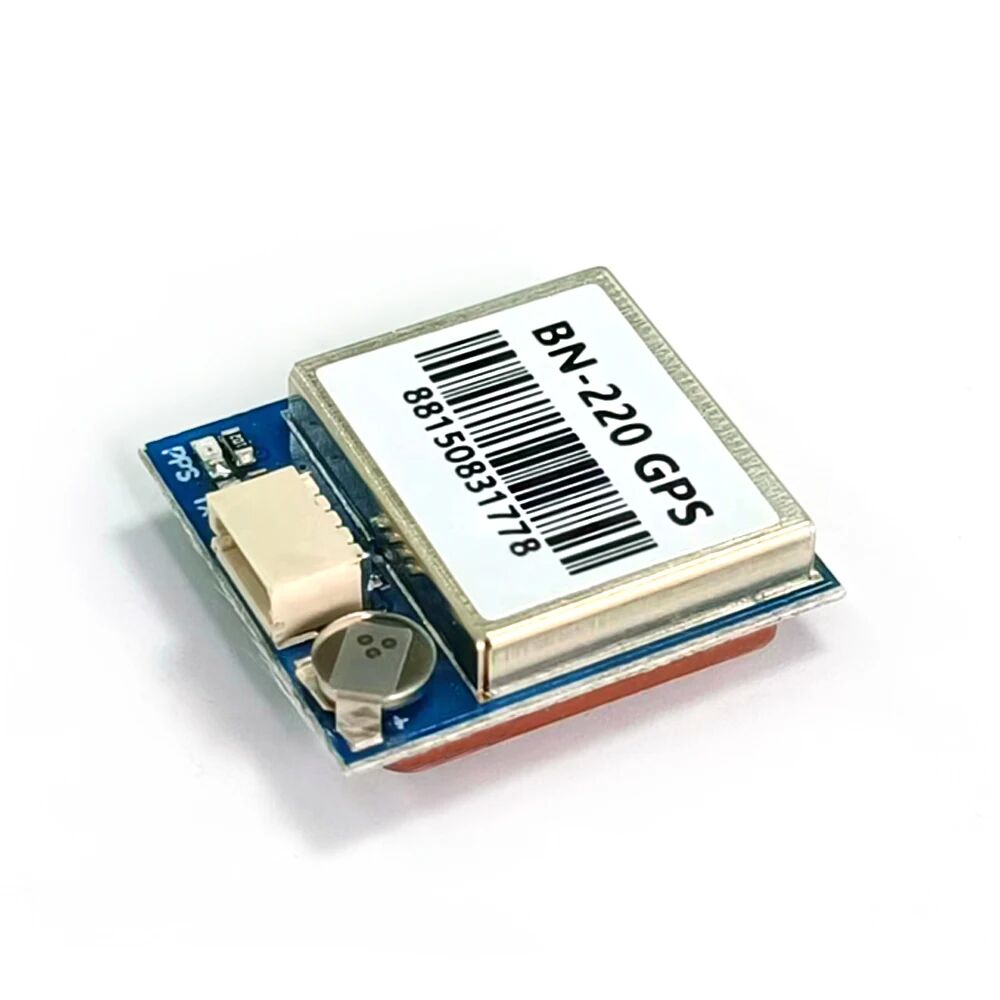

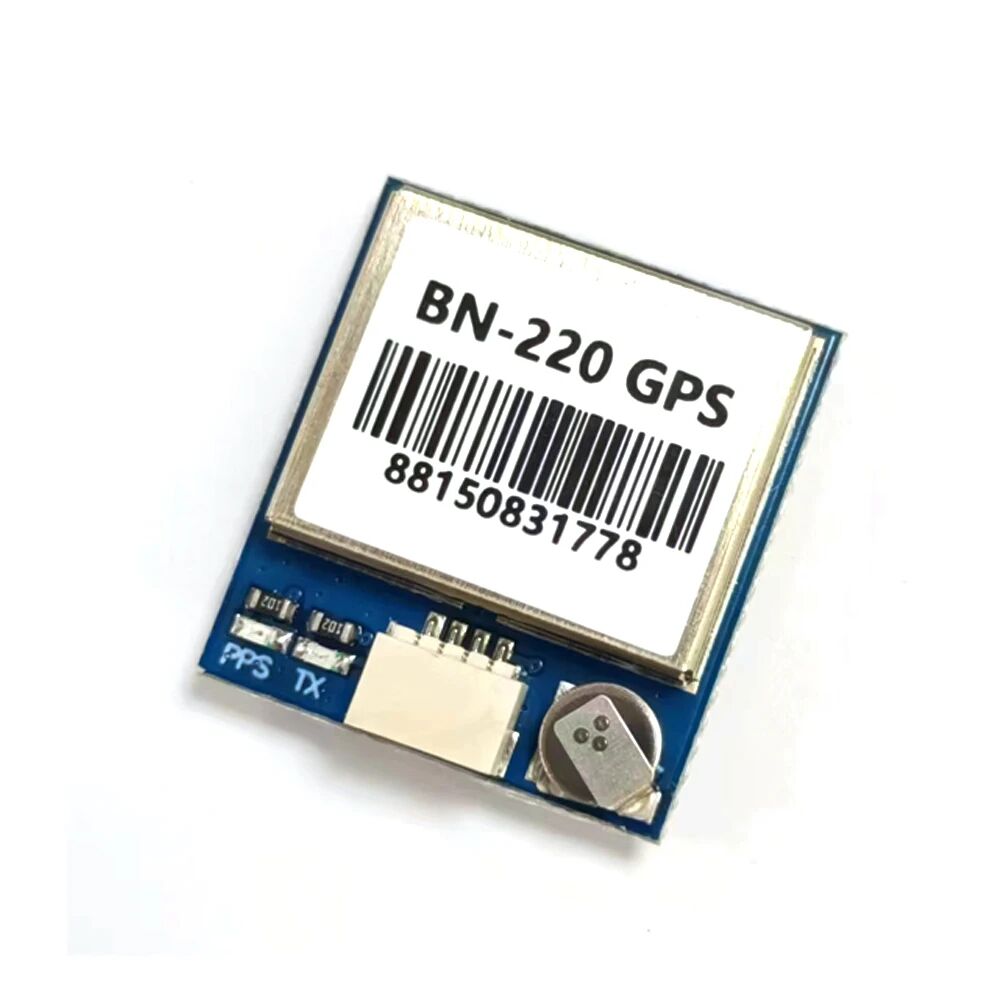

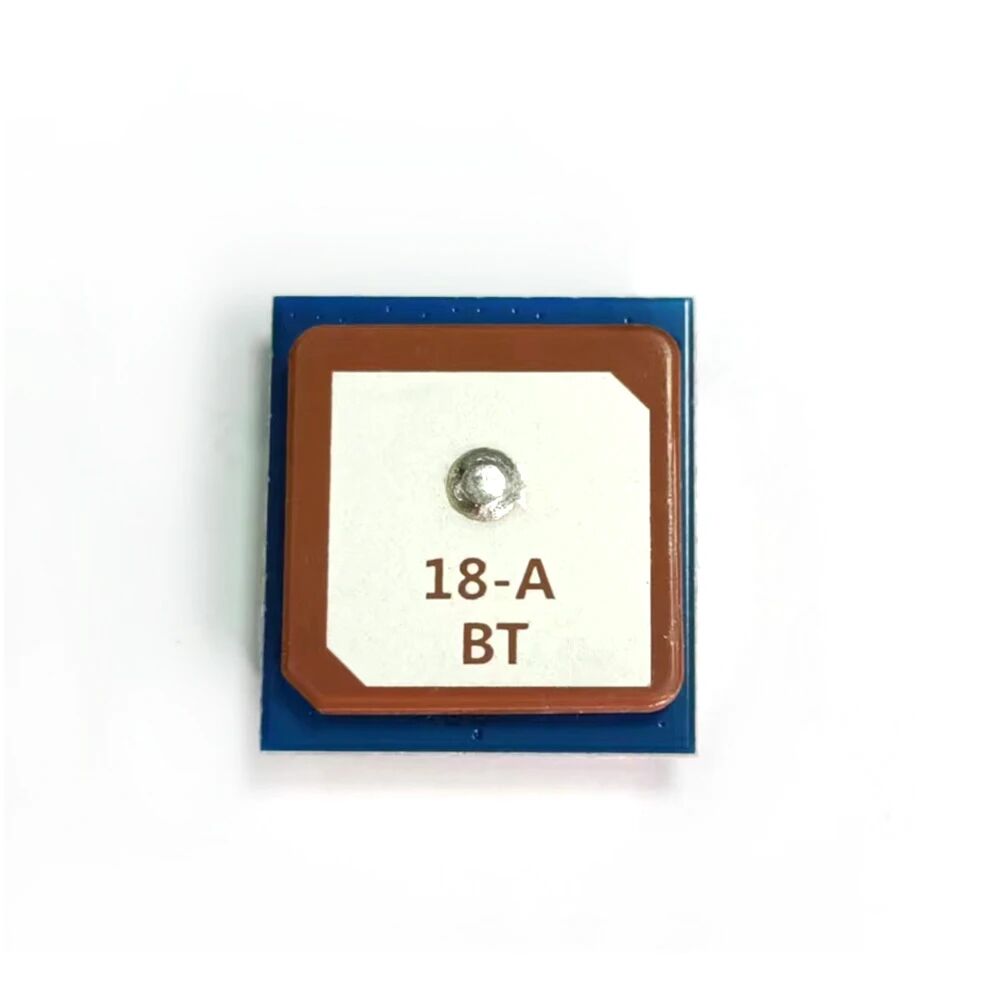

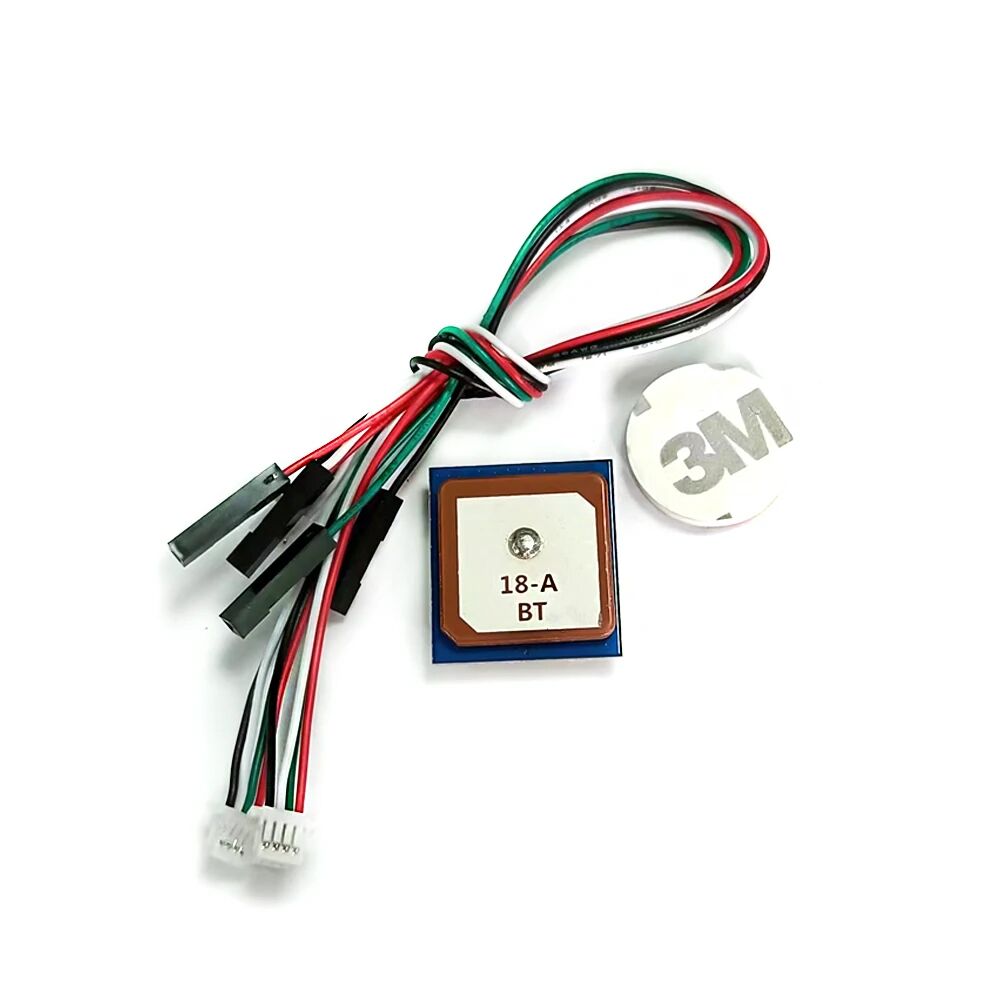

BN-220 GPS Module:

Dimension : 22mm*20mm*6mm

Weight :10g

Connector : 1.00mm spacing between the 4pins patch seat

Specification:

Electrical Characteristics

Chipset : M8030-KT

Receiving Format : GPS,GLONASS,BeiDou,QZSS and SBAS

Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1

Channels : 72 Searching Channel

Sensitivity

Tracking : -167dBm

Reacquisition : -160dBm

Cold start : -148dBm

Hot start : -156dBm

Accuracy

Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)

Velocity : 0.1m/sec 95% (SA off)

Timing : 1us synchronized to GPS time

Acquisition Time

Cold Start : 26s

Warm start : 25s

Hot start : 1s

Data and Update Rate

Support Rate : 4800bps to 921600bps,Default 9600bps

Data Level : TTL or RS-232,Default TTL level

Data Protocol : NMEA-0183, Default NMEA-0183

Single GNSS : 1Hz-18Hz

Concurrent GNSS : 1Hz-10Hz,Default 1Hz

Operational Limits

Altitude : 50,000m Max

Velocity : 515m/s Max

Acceleration : Less than 4g

Power consumption

VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V

Current : Capture 50mA/5.0V

Operating temp : -40 °C ~ +85°C

Storage Temp : -40°C ~ +105°C

Indicator :

TX LED:blue.The data output, TX LED flashing

PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed

Wiring:

GND,TX output,RX input,VCC(3.0v-5.5v)

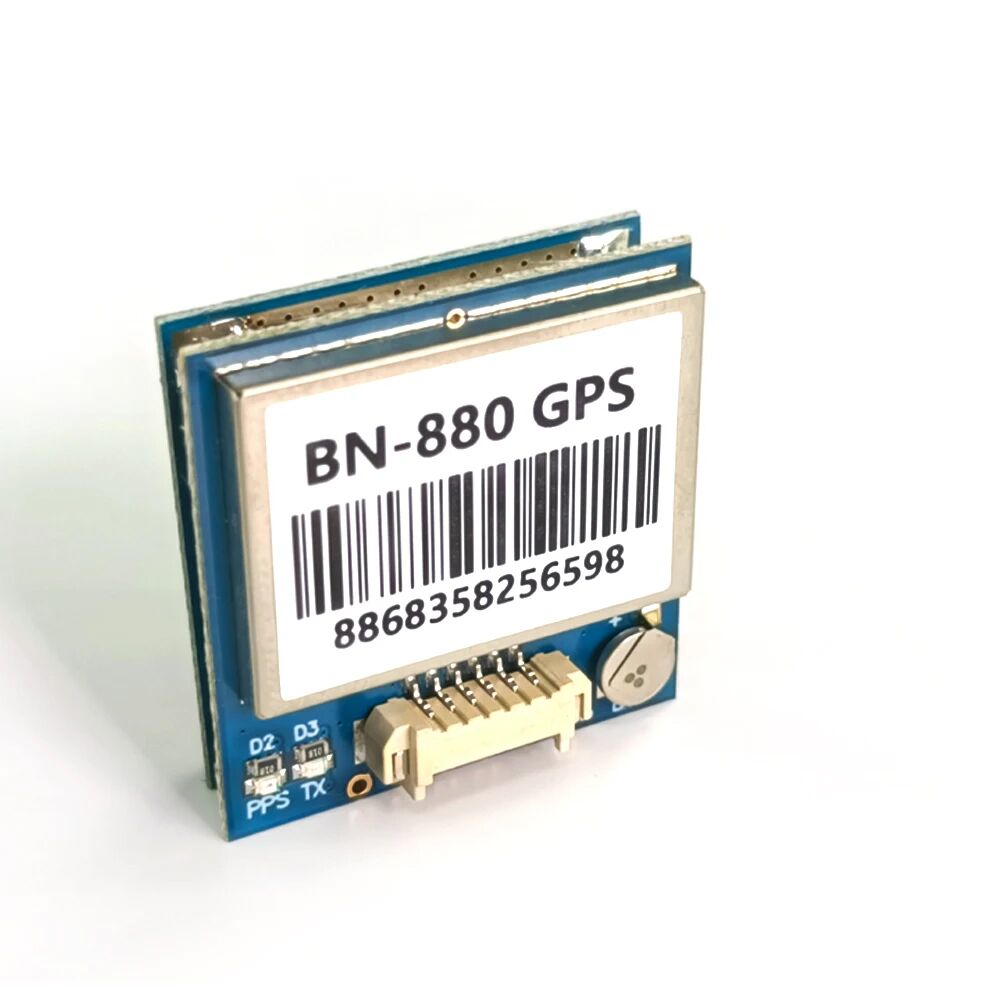

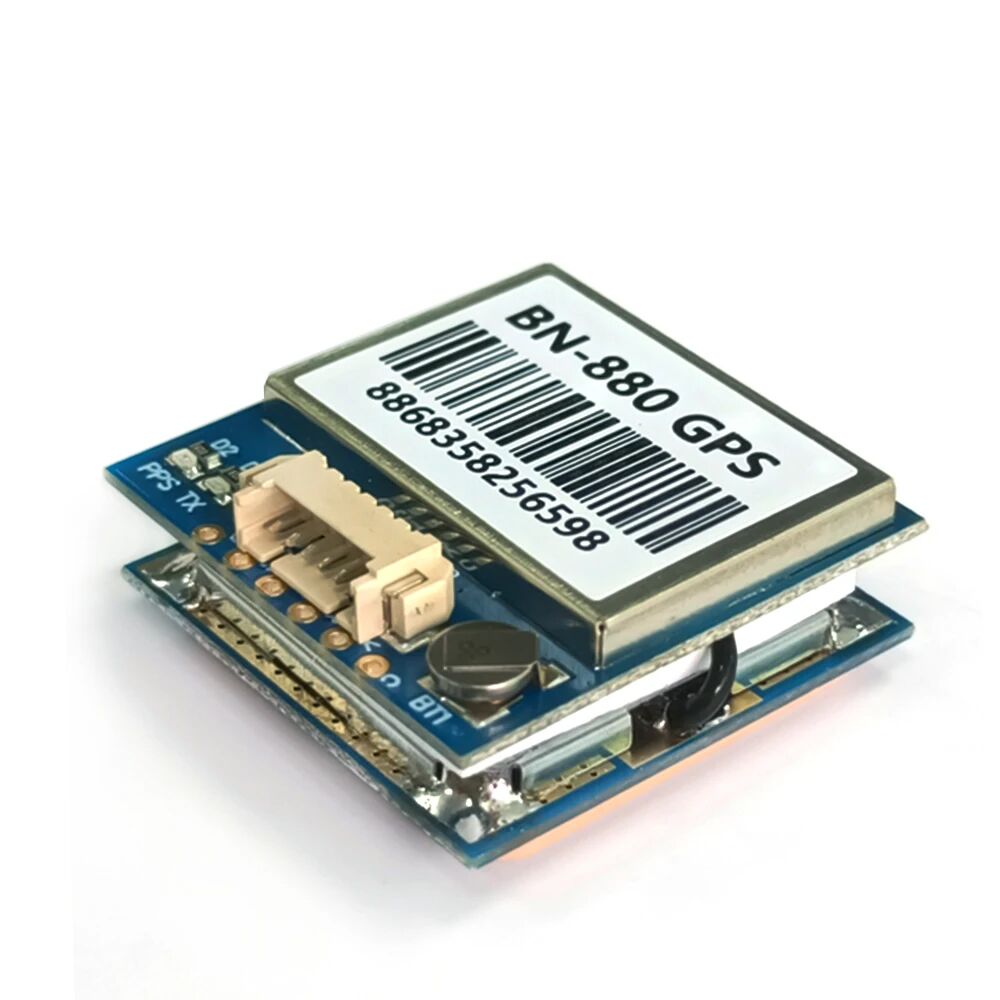

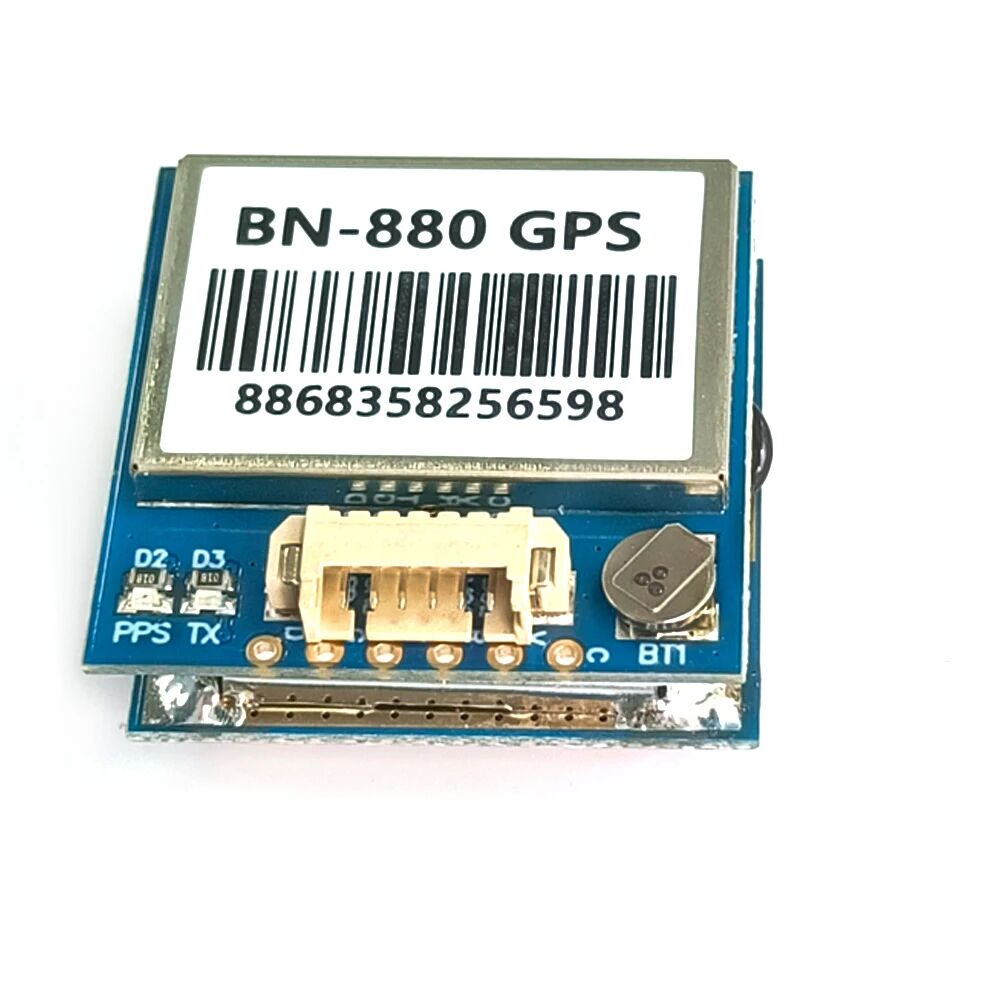

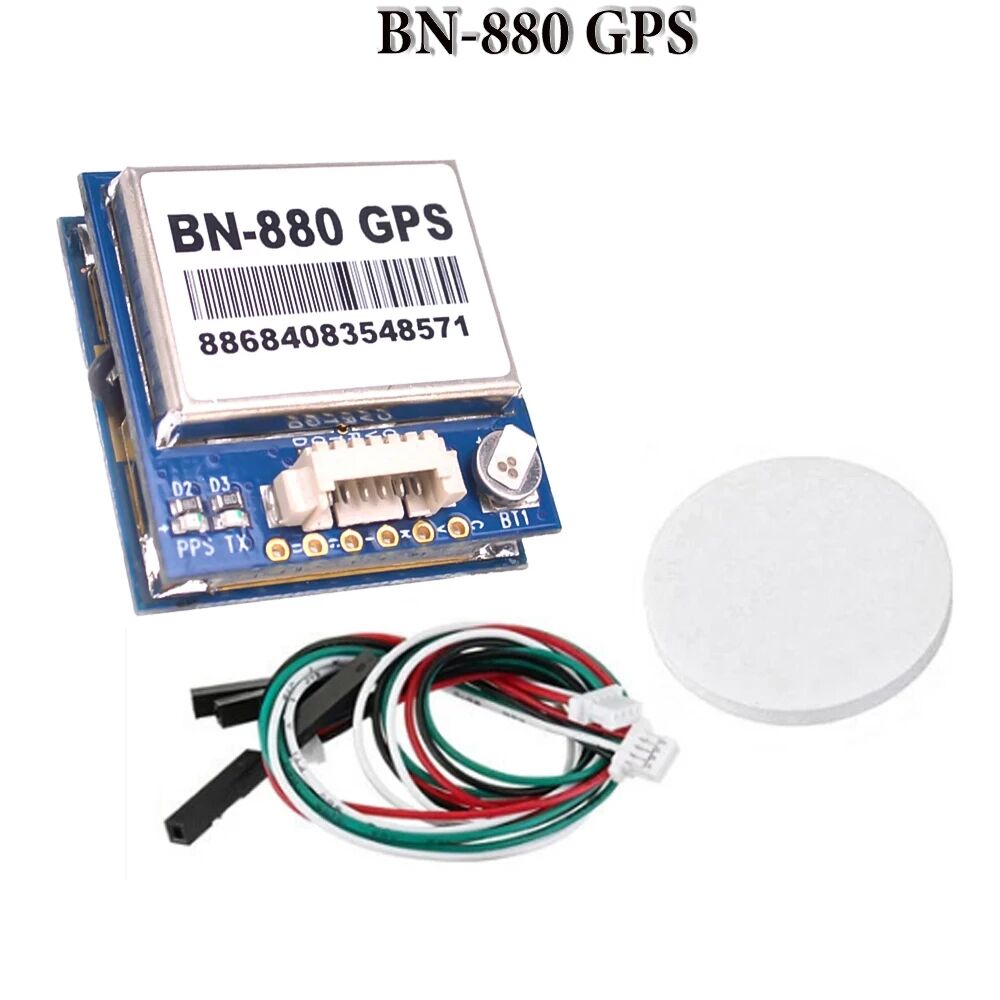

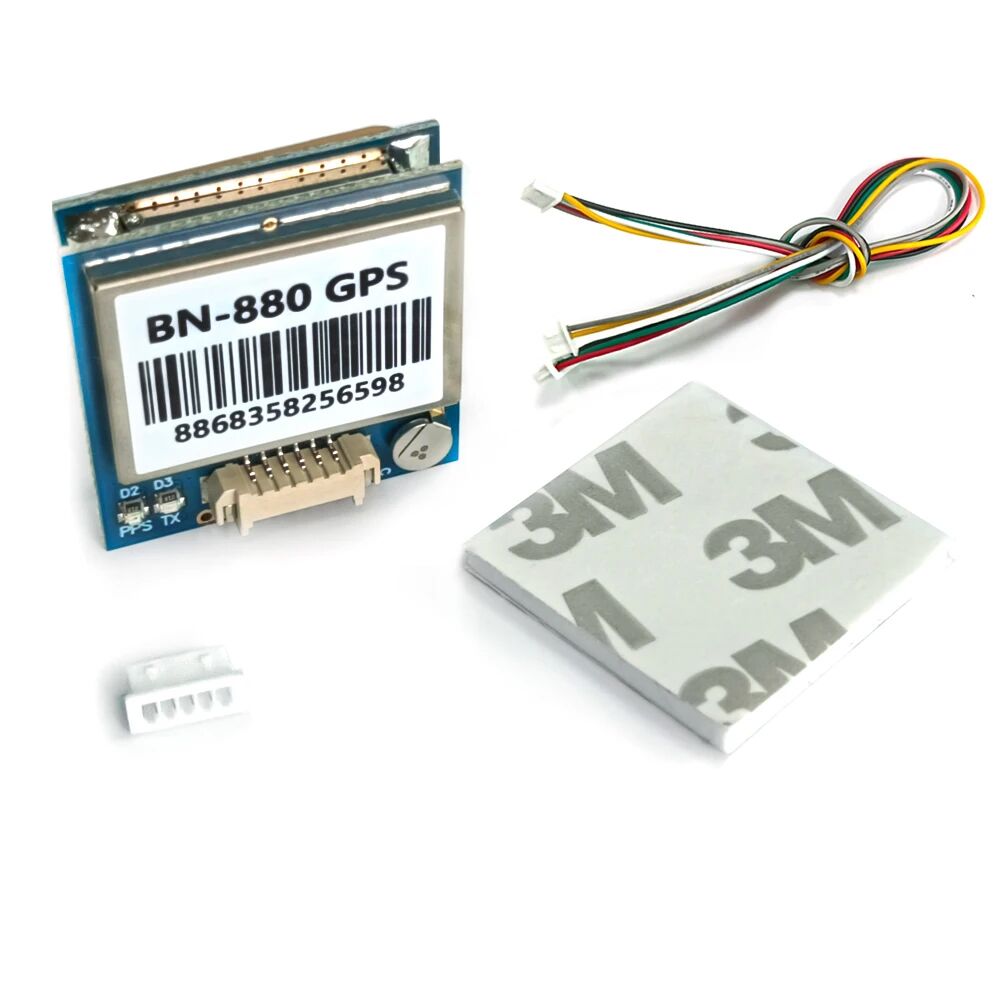

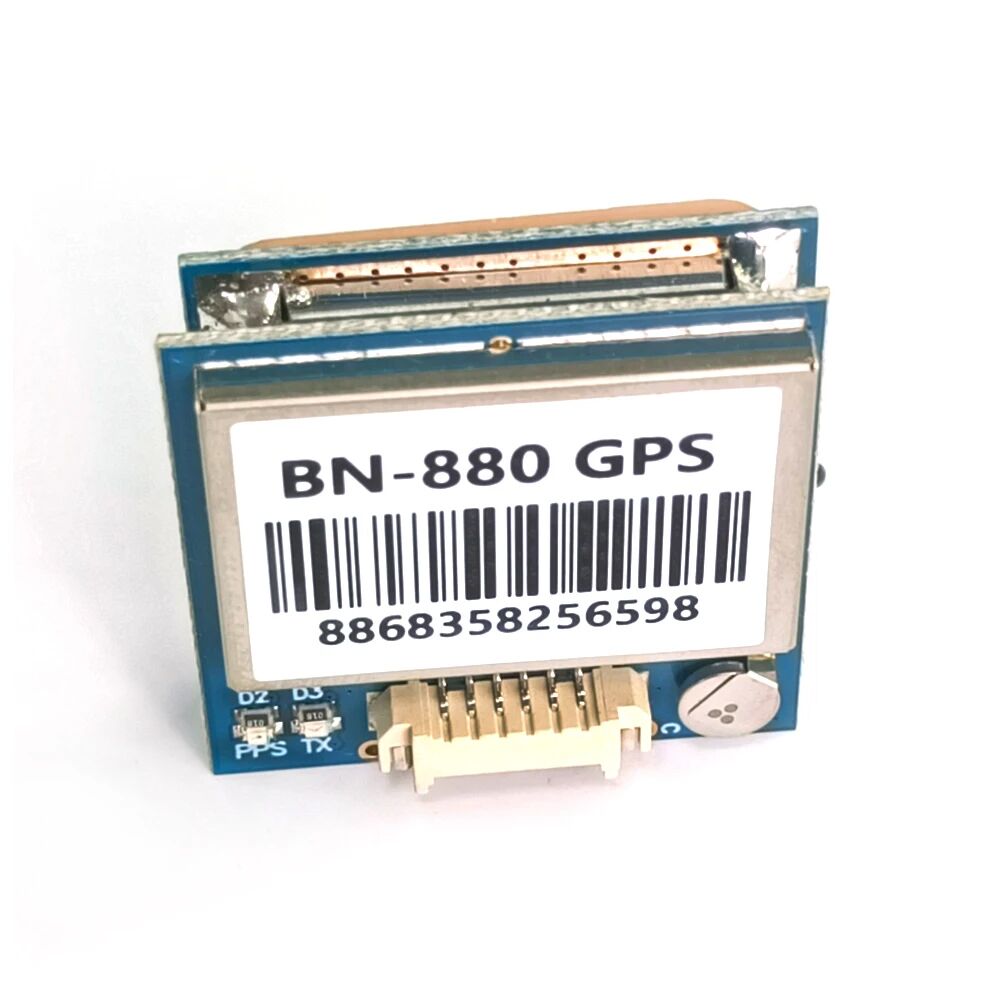

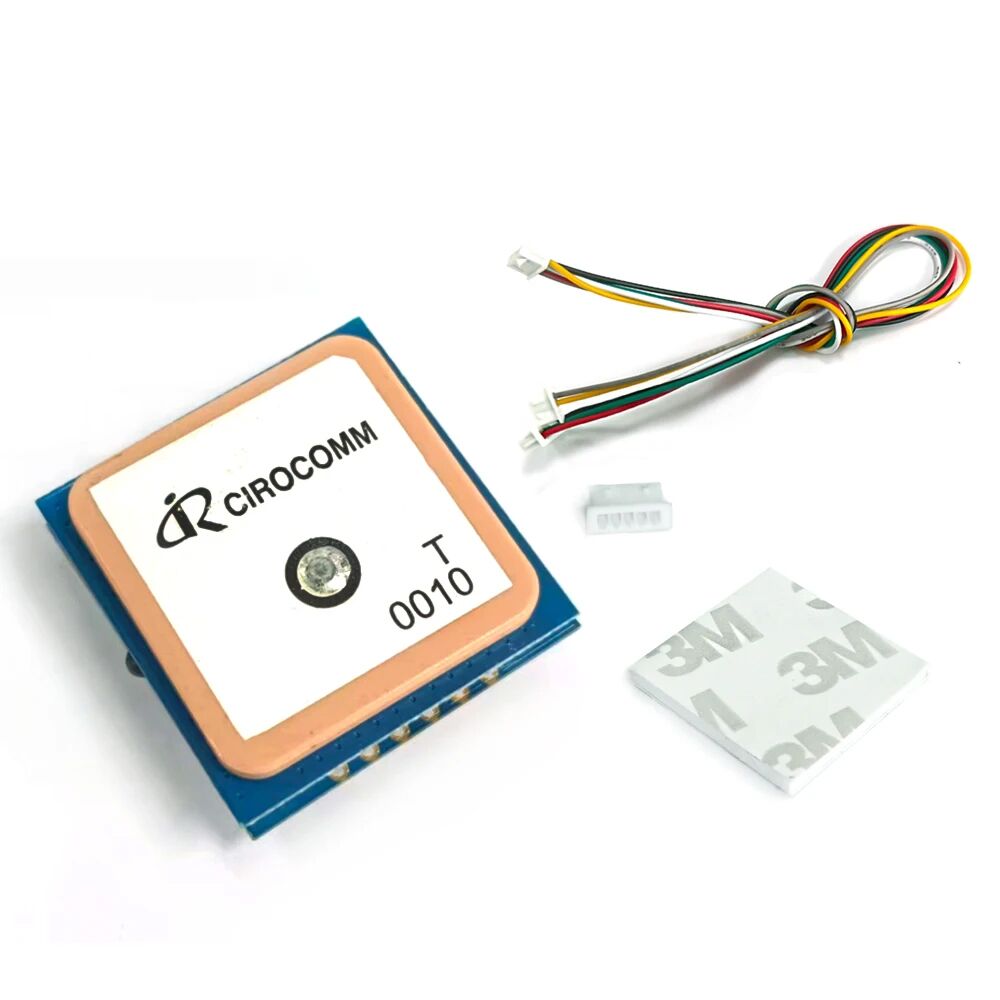

BN-880 GPS Description:

Model:BN-880

Power Supply: DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V

Consumption: Capture 50mA@5V

Receiving Format: GPS,GLONASS,BeiDou

Receiving Channel: 72 Searching Channel

Receiving Sensitivity: Trace -167dBm

Capture-148dBm

Positioning Time: Cold Start:avg26s

Warm Start:avg25s

Hot Start:avg3s

Level Positioning Precison: 2m At Open Wind

Output Frequency: 1Hz-10Hz,Default 1Hz

Speed Precison: 0.1 m/s (Without Aid)

Acceleration Precison: 0.1 m/s (Without Aid)

Dynamic Characteristics: Max Height:18000m

Max Speed:5153m/s

Max Acceleration:4G

UART Interface:UART Port: TXDA and RXDA

Support Rate: 4800bps to 115200bps,Default 38400dps

Working Temperature: -40-+85

Storage Temperature: -40-+85

Size: 28mm x 28mm x 10mm

Weight: 10g

The Module’s Pins: SDA,GND,TX,RX,VCC,SCL

Features:

GPS Module,Dual Module Compass

With electronic compass IC HMC5883

1.25mm spacing between the 6pins patch seat
