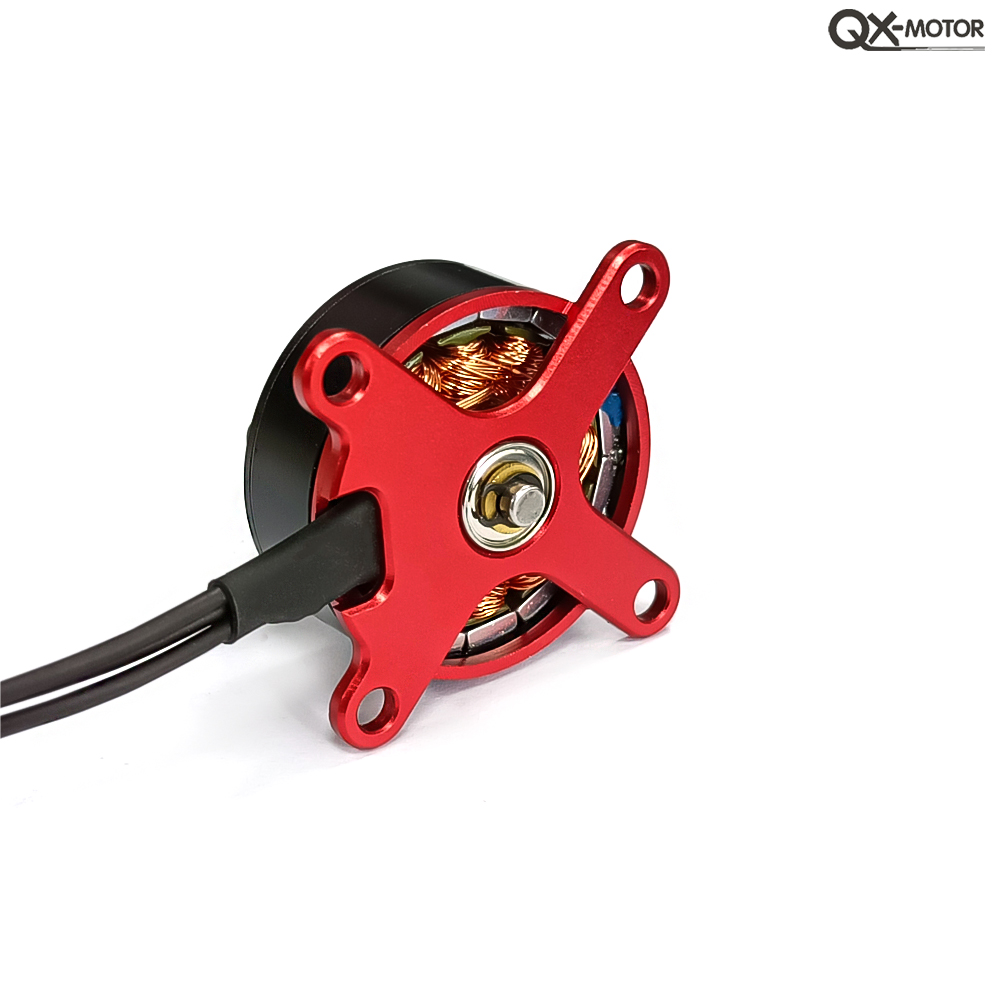

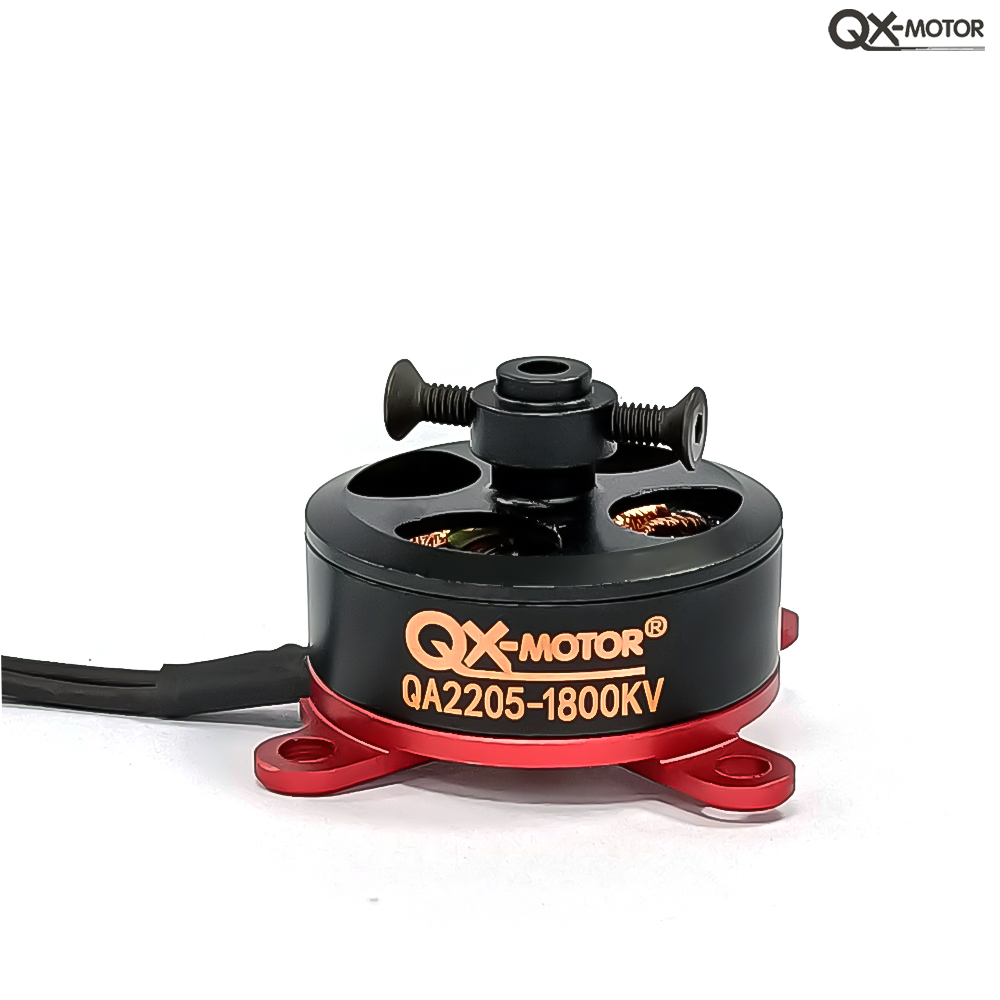

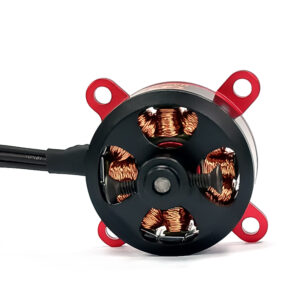

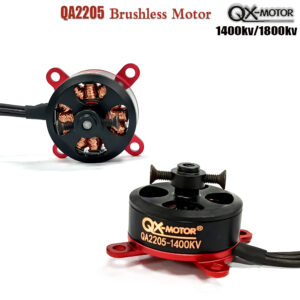

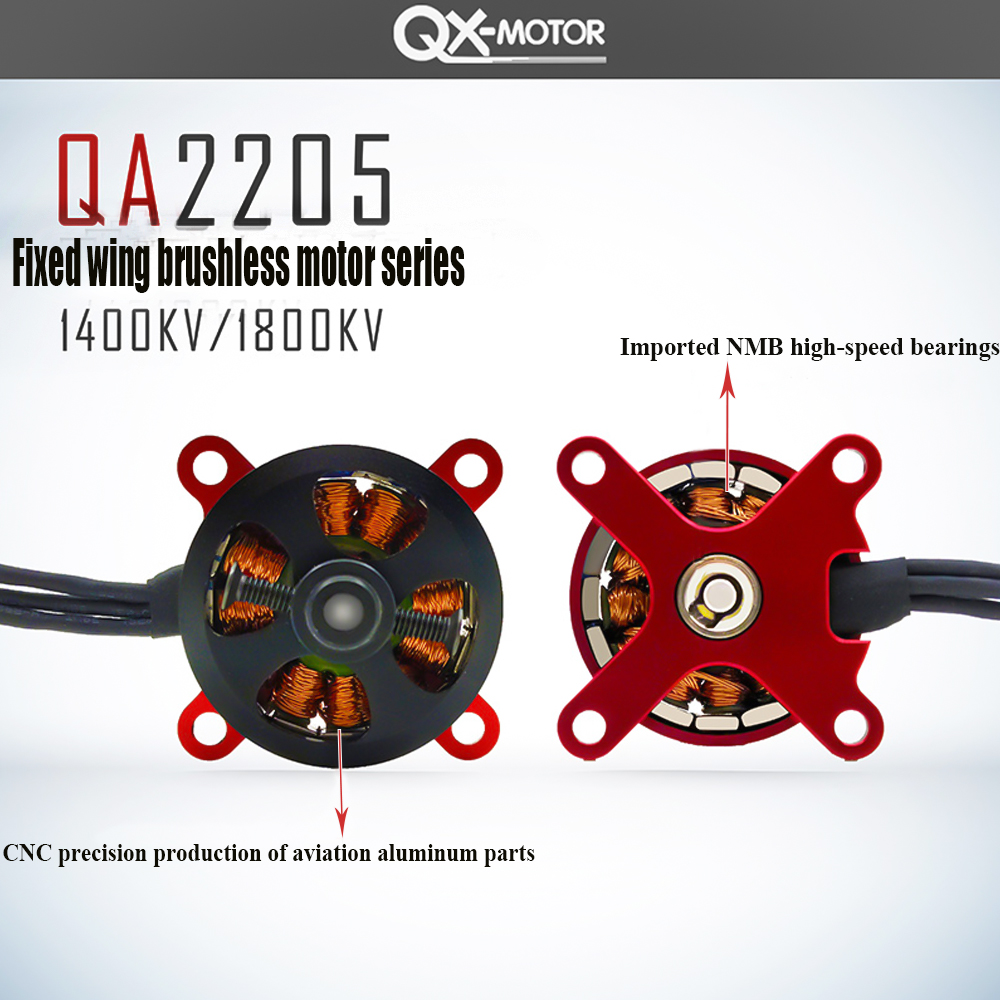

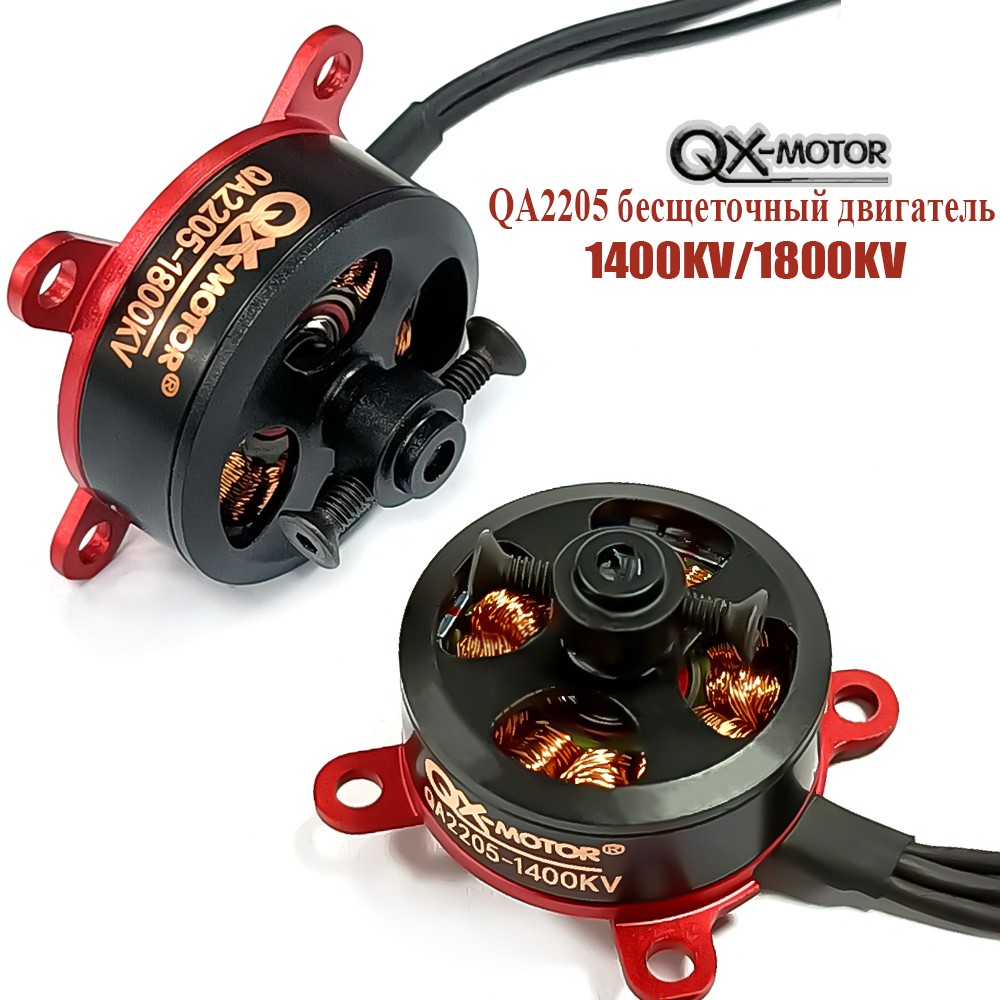

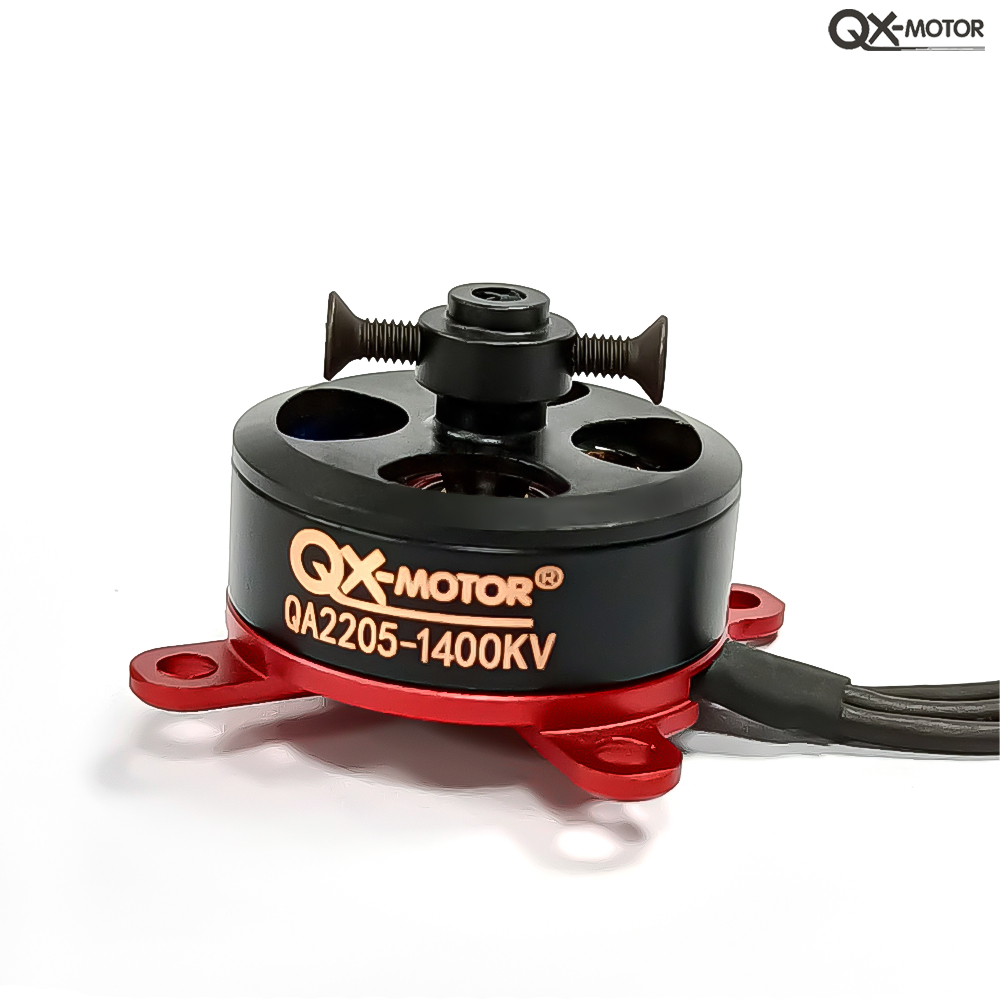

QA2205 Brushless Motor 1400KV/1800KV

QA2205 Brushless Motor 1400KV/1800KV

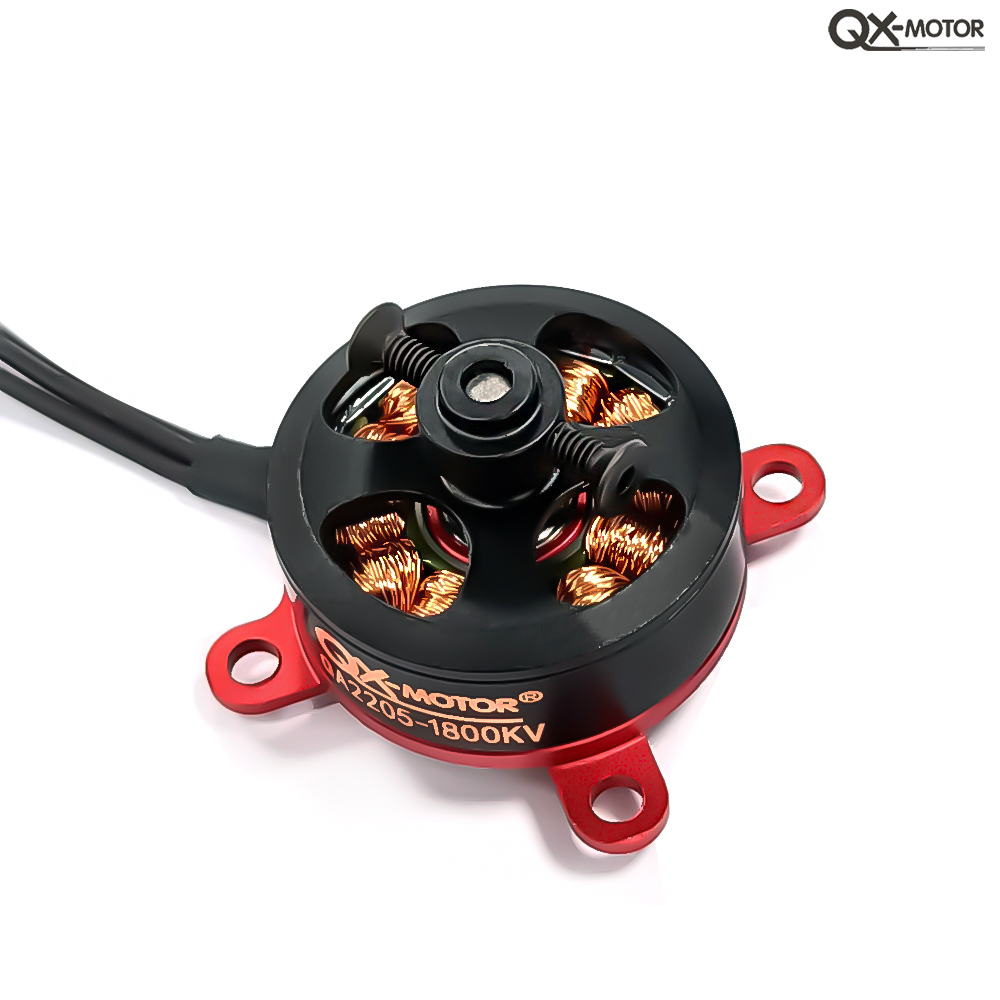

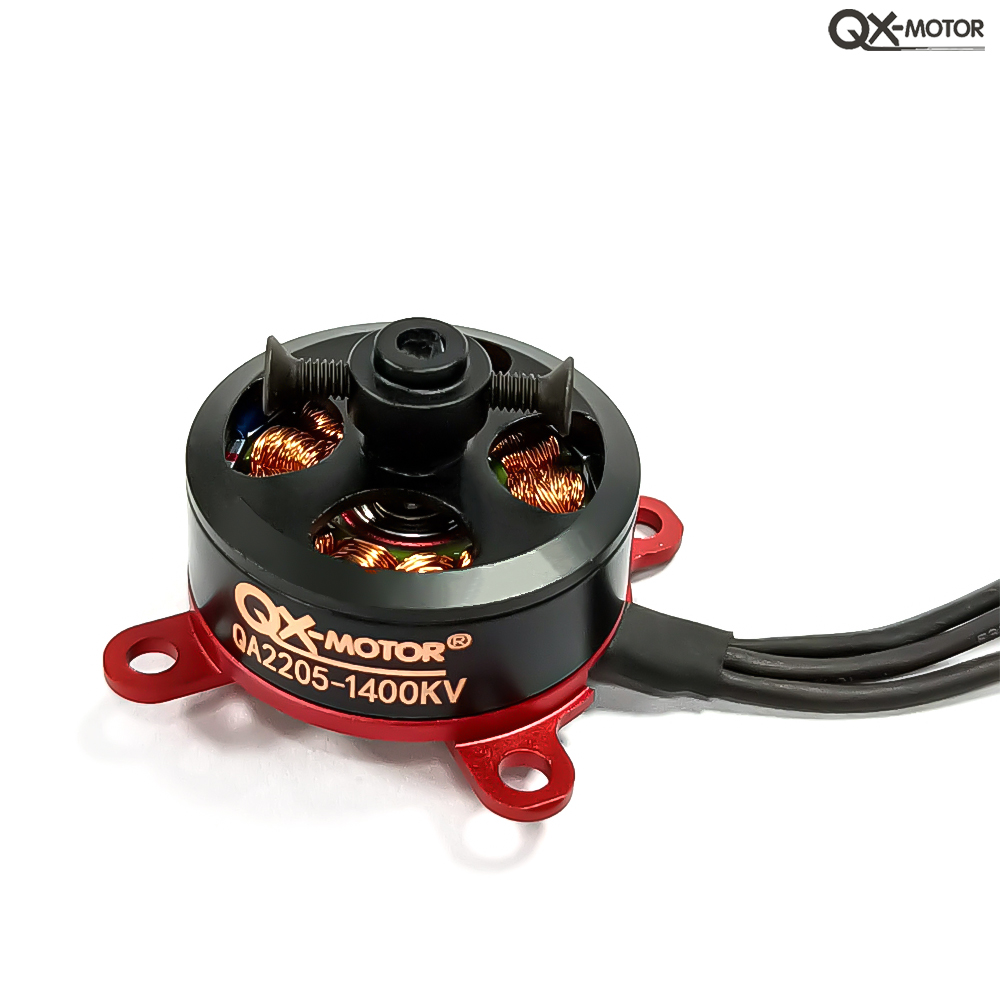

QX-MOTOR QA2205 Brushless Motor 1400KV/1800KV For RC Fixed-wing Aeroplane Airplane KT F3P

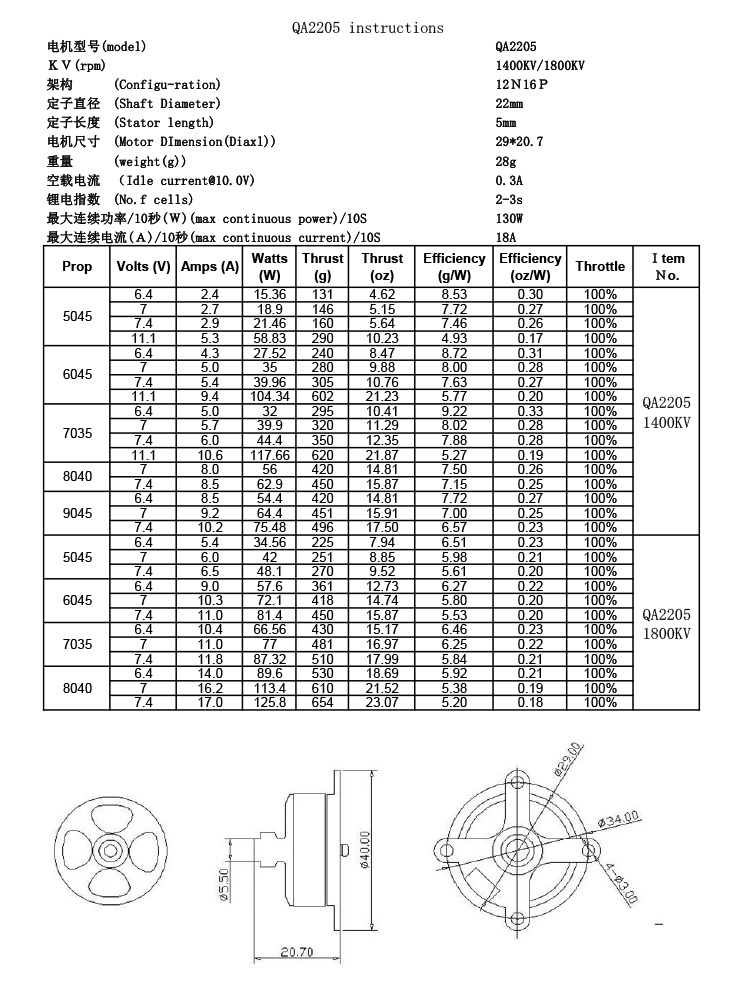

Model  :  QA2205

KV  :    1400KV/1800KV

Configu-ration  :   12N16P

Shaft Diameter  :   22mm

Stator Length  :   5mm

Motor Dimension (Diaxl)  :  29*20.7

Weight (g)  : 28g

Idel current@10.0V  :   0.3A

No.f cells  :   2-3S

Max continuous power /10S   :   130W

Max continuous current /10S  :   18A

Additional information

Weight 0.17 kg
Dimensions 8 × 8 × 8 cm

Product Details

QX-MOTOR QA2205 Brushless Motor 1400KV/1800KV For RC Fixed-wing Aeroplane Airplane KT F3P

Model  :  QA2205

KV  :    1400KV/1800KV

Configu-ration  :   12N16P

Shaft Diameter  :   22mm

Stator Length  :   5mm

Motor Dimension (Diaxl)  :  29*20.7

Weight (g)  : 28g

Idel current@10.0V  :   0.3A

No.f cells  :   2-3S

Max continuous power /10S   :   130W

Max continuous current /10S  :   18A
