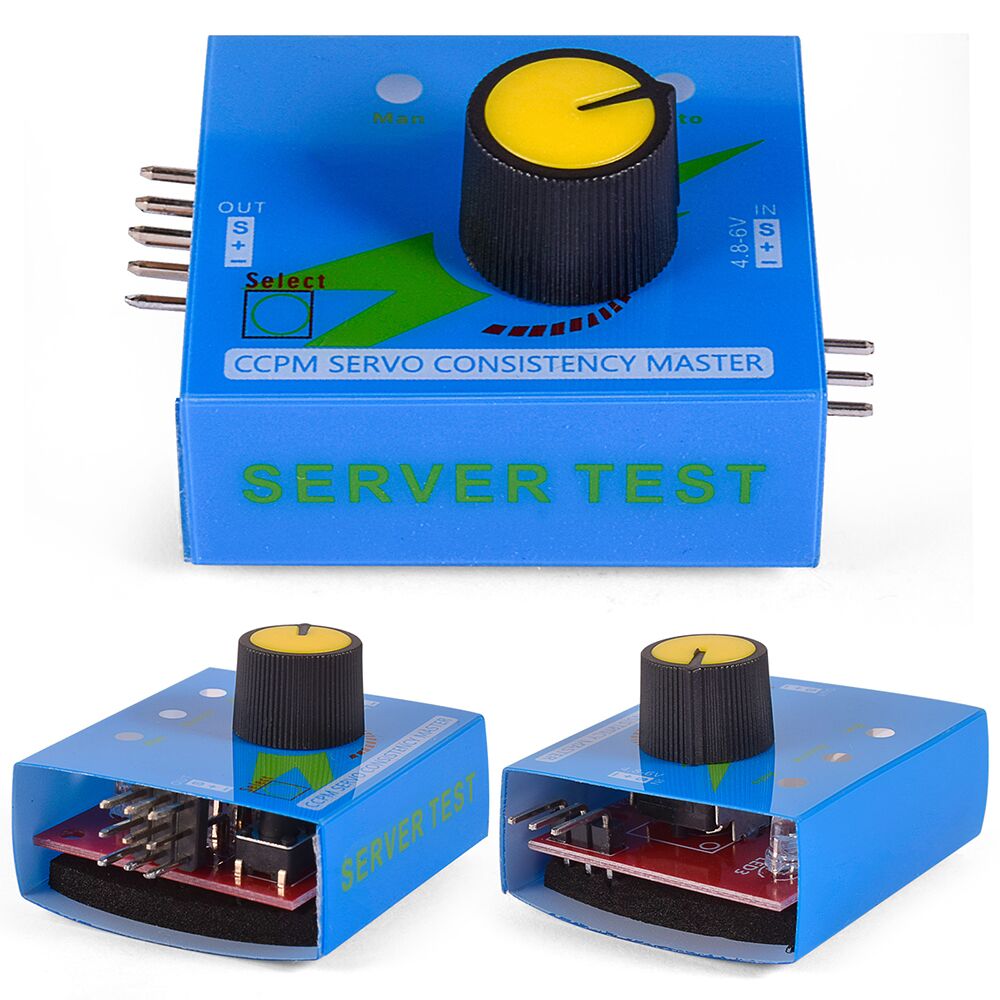

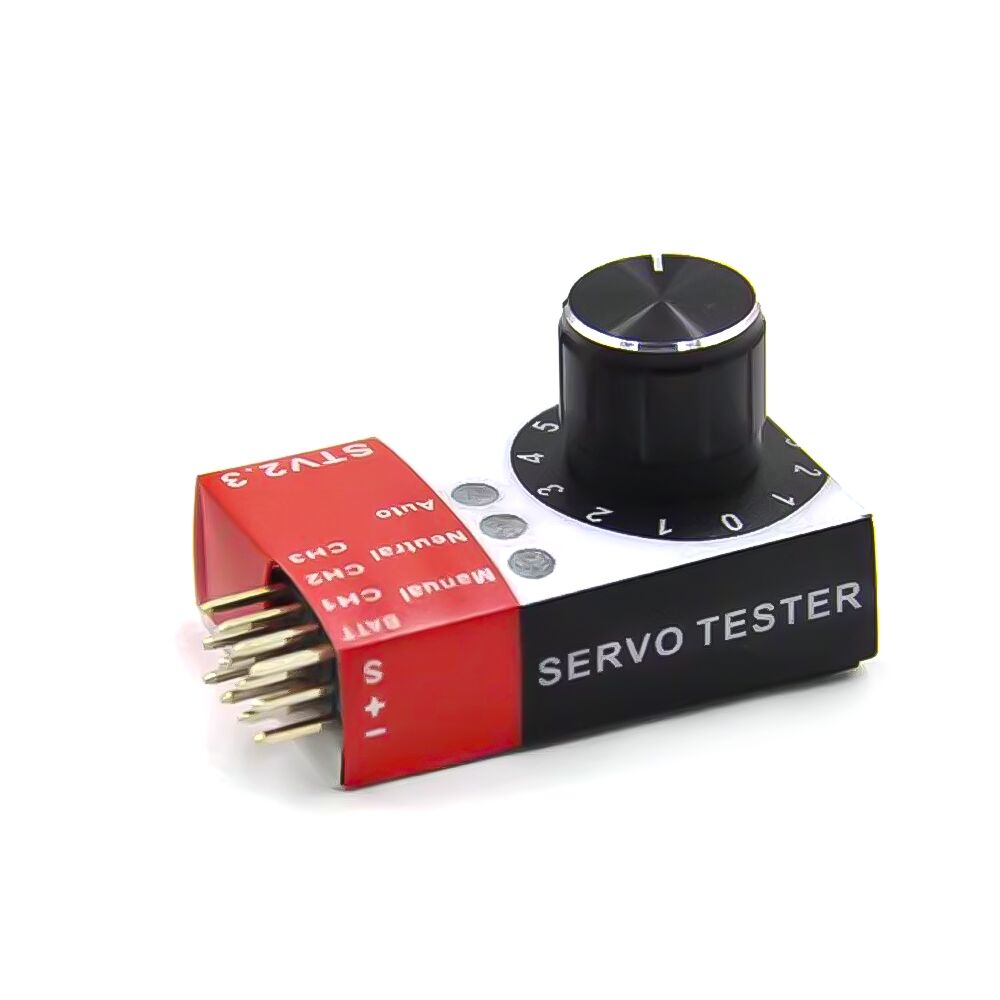

CCPM Servo Consistency Master / Servo tester

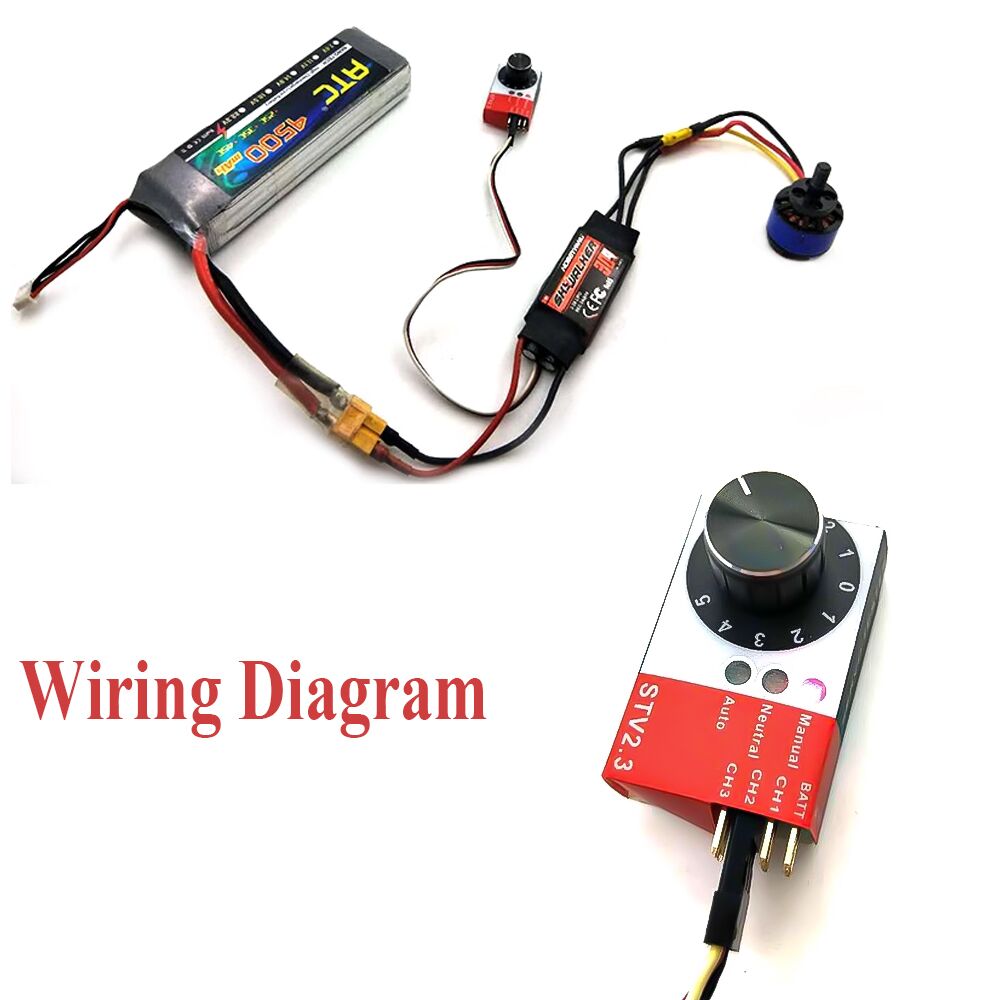

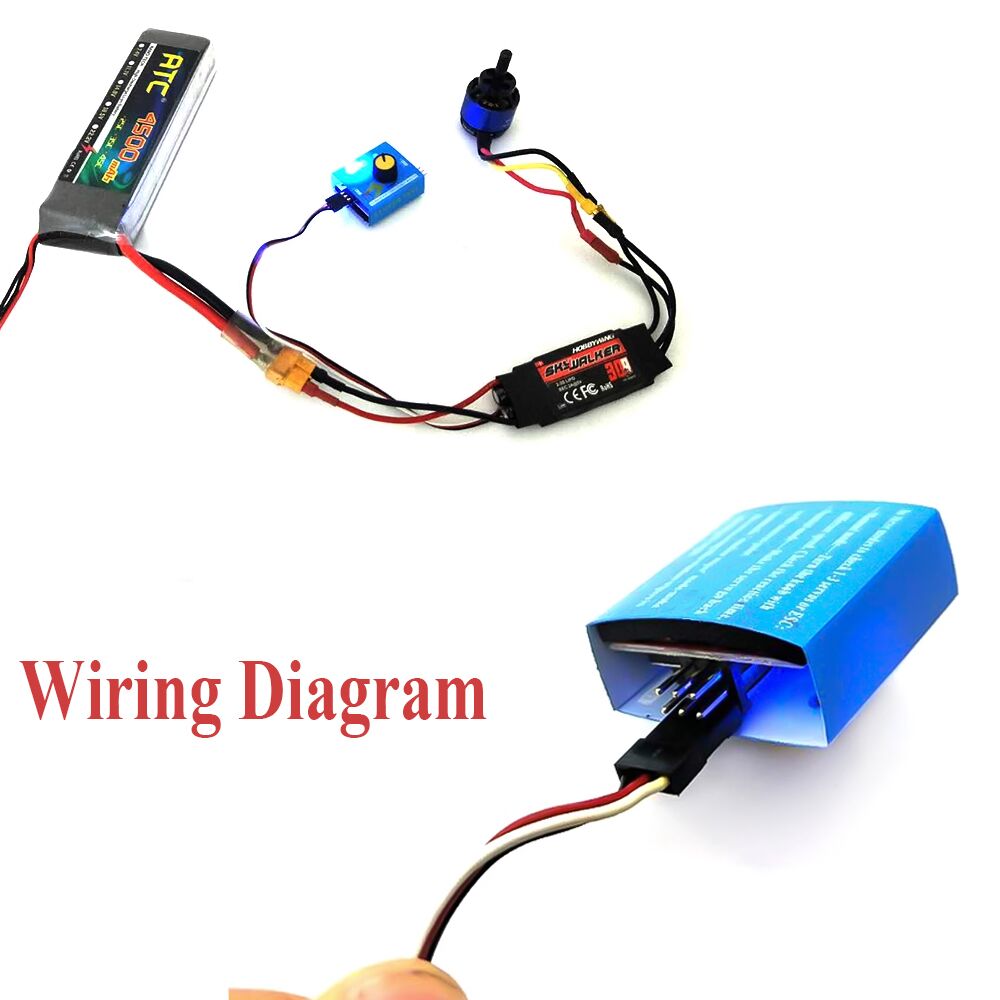

The device also can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.

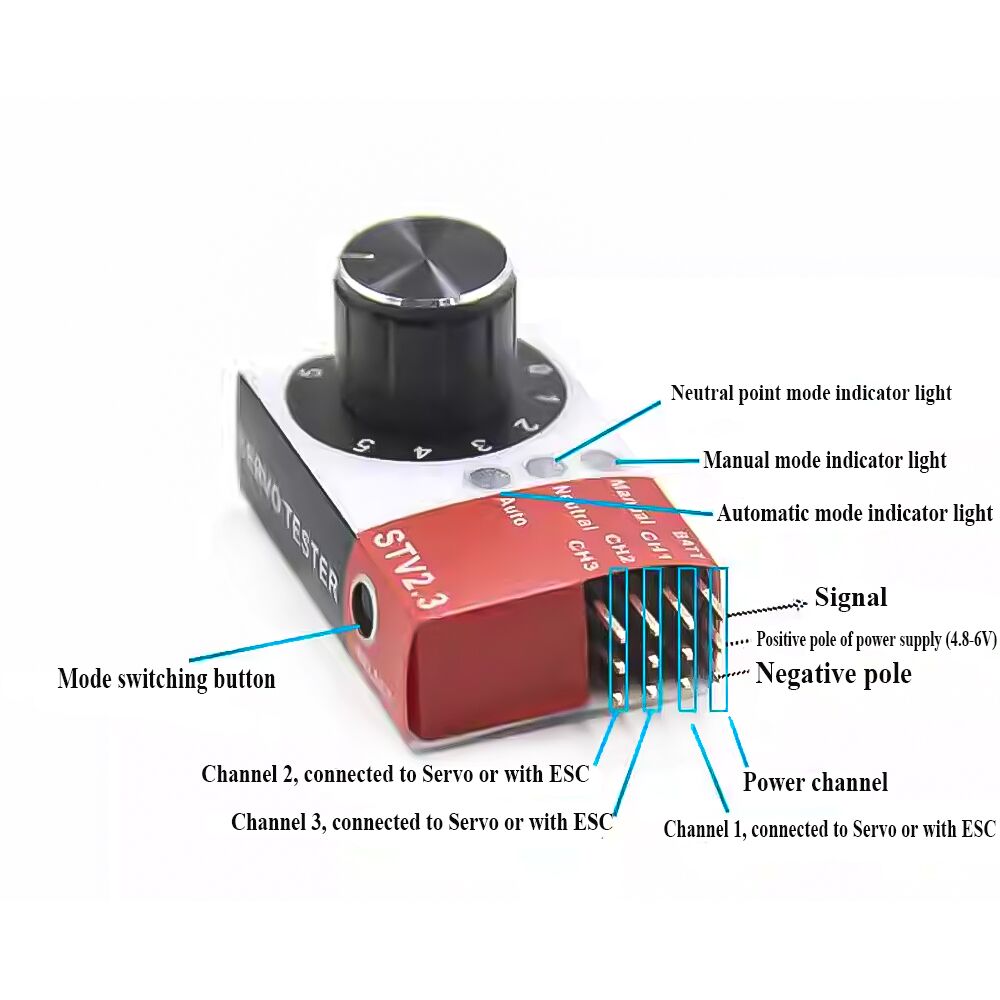

There are 3 modes to check servos or ESC:
Manual mode: turn the knob with different speed, check the reaction time.
Neutral mode: make the servo go back to the neutral point.
Automatic “window wiper” mode: make the servo swing like a window wipers in the biggest angle.
It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
You can also connect 1-3 ESC to test and compare their reaction time respectively.
It can connect 3 servos of the CCPM helicopters and select servos.
It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.

Voltage consumption: DC4.8-6V

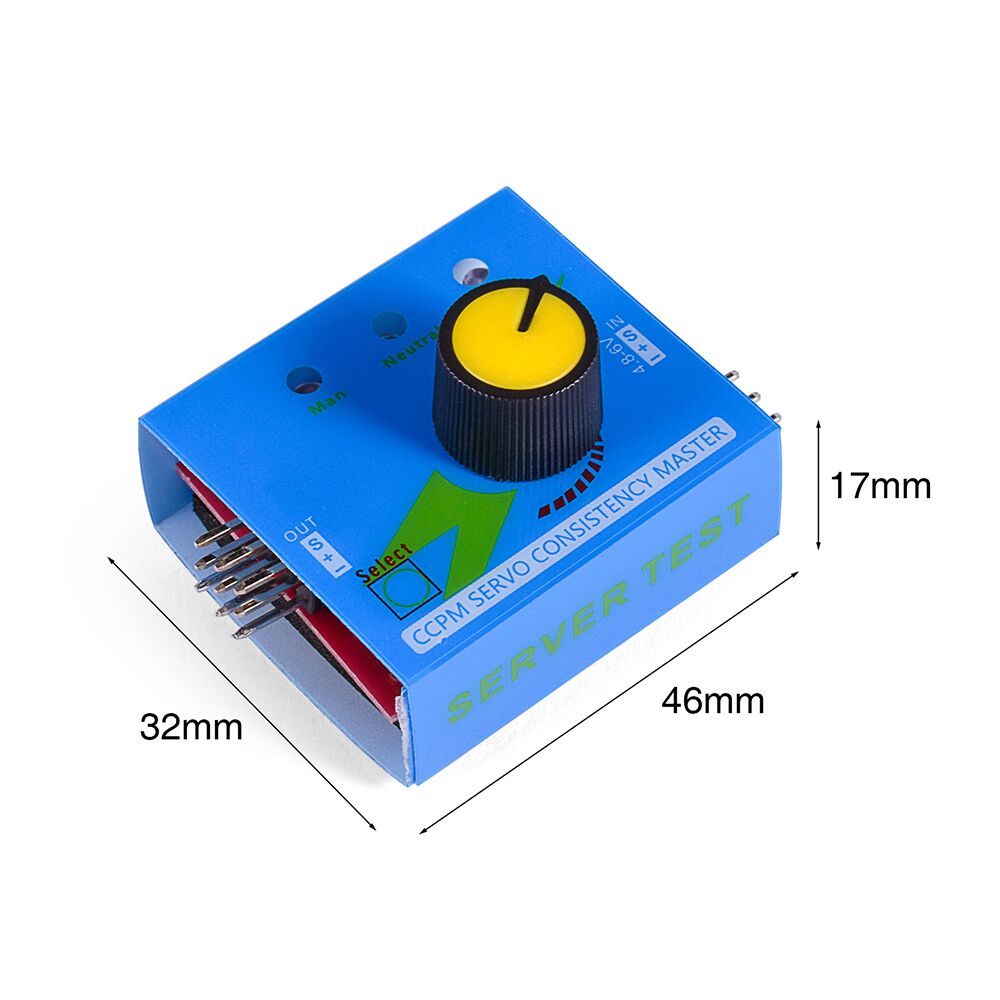

Size: 48 x 42 x 17mm
Weight: 31.5 g

Product features:

1. Small size, low power consumption, high reliability, simple and convenient operation.

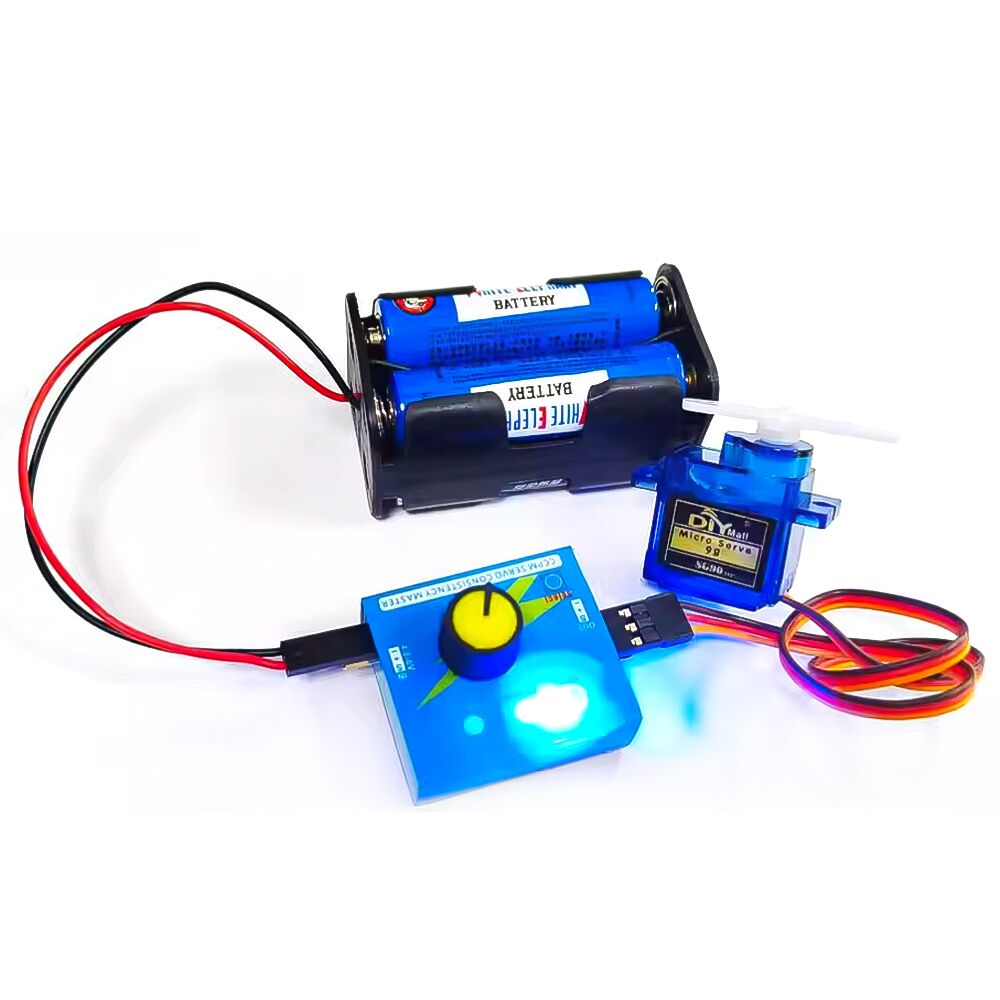

2. Powered by four dry batteries, UBEC or ESC directly, the power supply mode is flexible and adaptable.

3. The function setting is simple and practical, covering most of the parameters that servo users need to test.

4. The single-chip microcomputer controls the pulse output, with good stability and high precision.

5. Get rid of the remote control transceiver and test the servo and ESC. It is equivalent to a “manual receiver” and simulates the rudder of the transmitter through the INC or DEC button.

Note: For safety reasons, it is best to choose manual when testing the ESC! !

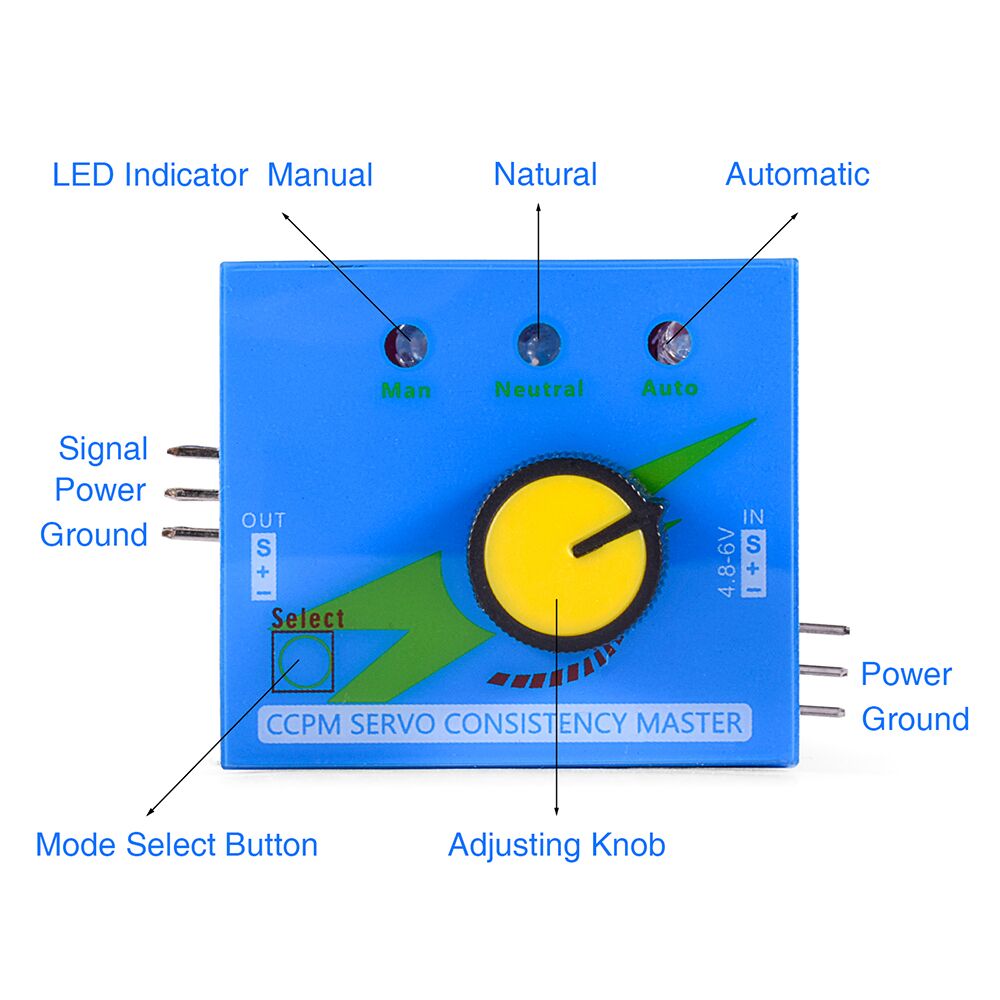

Instructions for use:

1. Power on and automatically enter the manual mode (Manual), and reduce or increase the width of the output pulse by rotating the potentiometer.

2. The mode can be changed by pressing the button, and enter the neutral mode (Neutral) and automatic mode (Automatic) in turn.

3. Neutral mode, output signal width is 1.5ms; Automatic mode, output signal width changes smoothly from 1ms to 2ms.

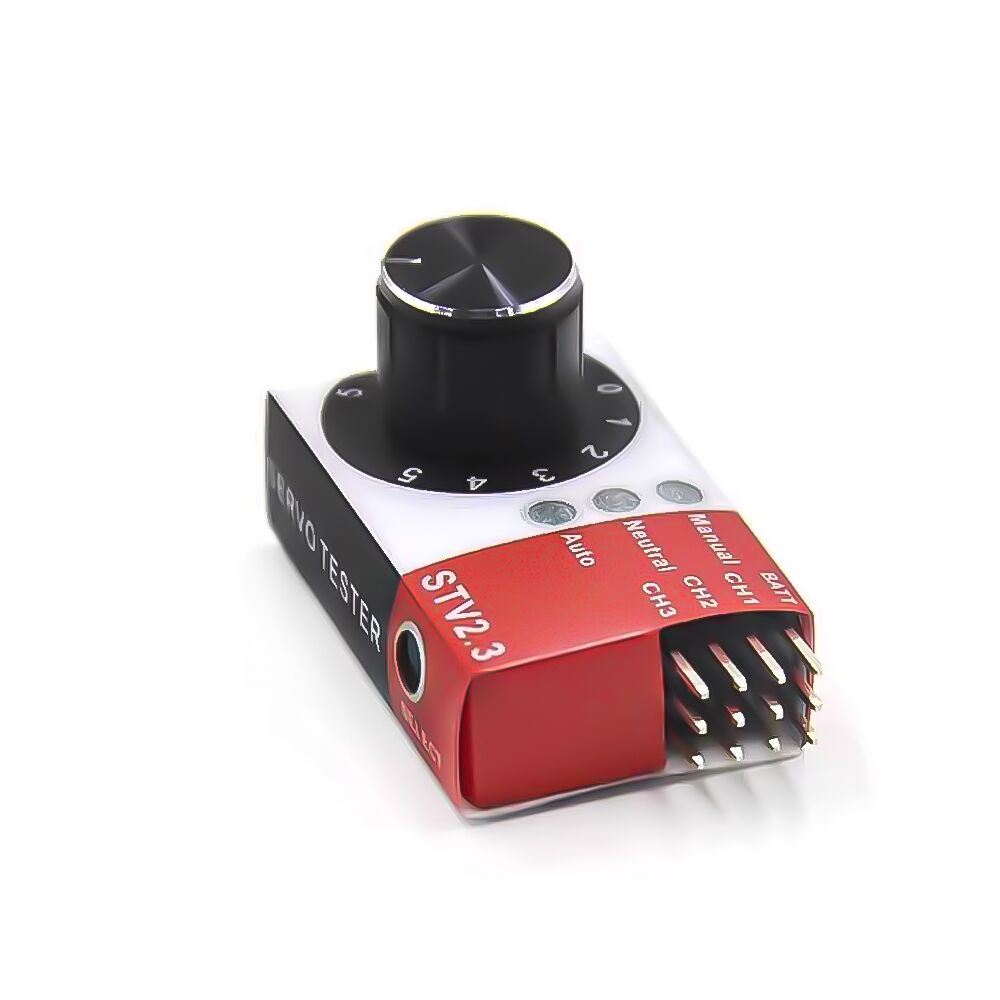

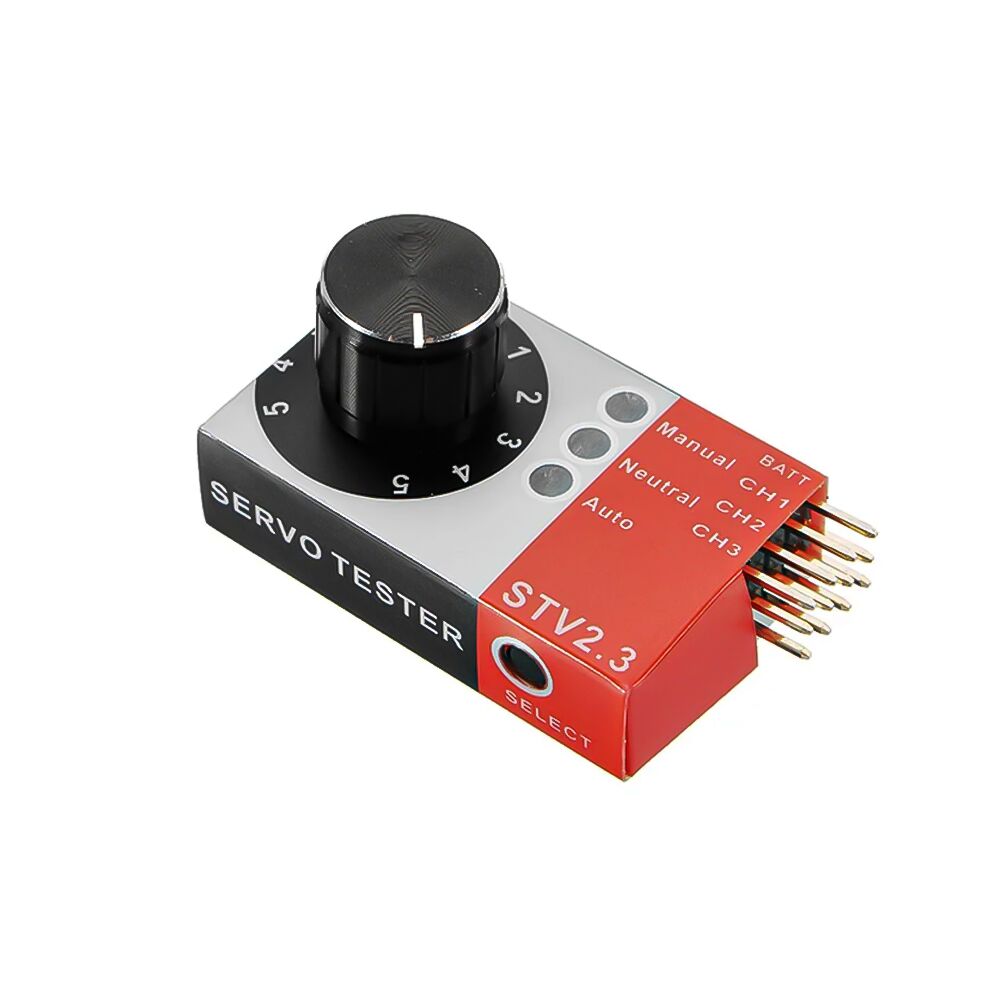

Technical parameters:

Product specifications:

1. Input voltage: DC 4.8V-6.0V

2. Output signal: 1.5ms±0.5ms

3. Dimensions: 17.25×32.29×0.98mm

4. Weight: 3.8g

5. Working mode: Manual, Neutral, Automatic
