The digital Servo is designed with a control angle of 180° and 270°, The scope of the application is model airplanes, car models, climbing cars, short trucks, rally, racing, flat running, off-road, gasoline engines, robots, aerial photography, gimbals, unmanned machines, robotic arms, etc., Meanwhile, compatible with JR/Futaba

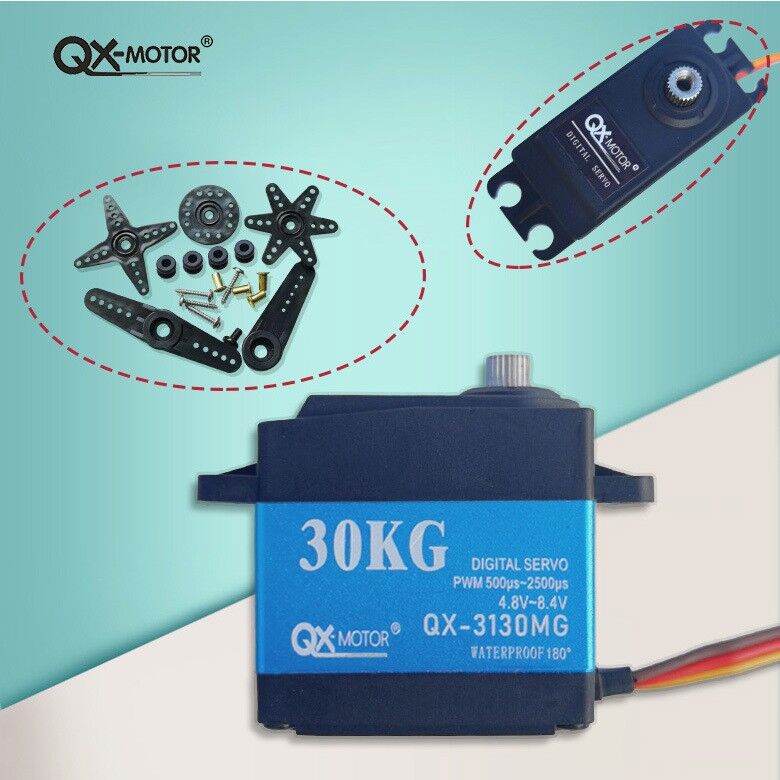

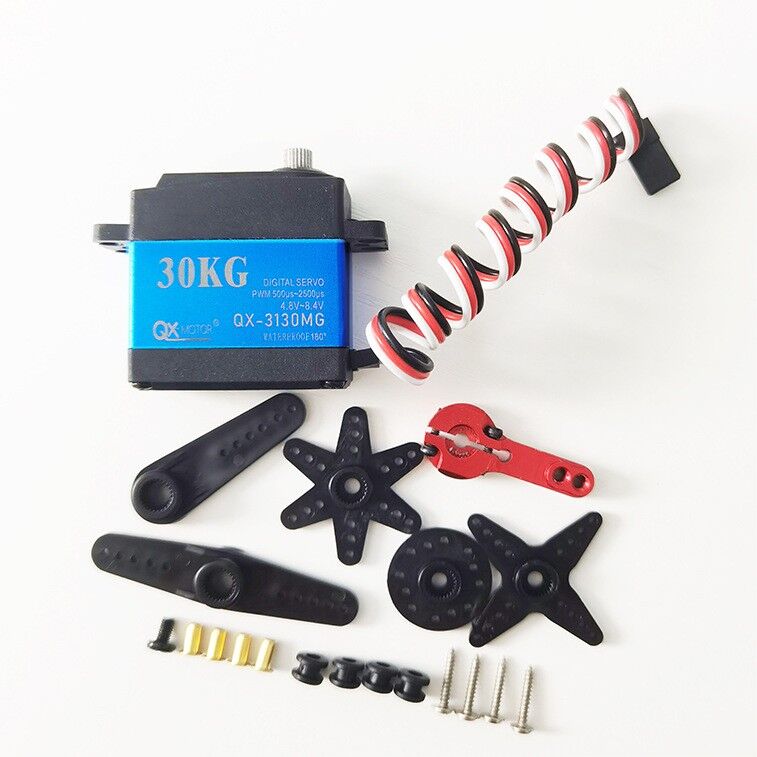

| Model | QX-3130MG |
|---|
Operating Voltage: 4.8 ~ 8.4 DC Volts
Dead brand: 3 μ s
Weight: 60 g (2.12 oz)
Motor Type: DC Motor
Torque(6V): 29.5kg-cm
Torque(7.4V): 32 kg-cm
Gear type: Metal
Weight: 67g±2g
Horn gear spline: 25T
Working frequency: 50-333Hz
Operating travel:180°（PWM 500-2500μs）
OR 270°（PWM 500-2500μs）
Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)
